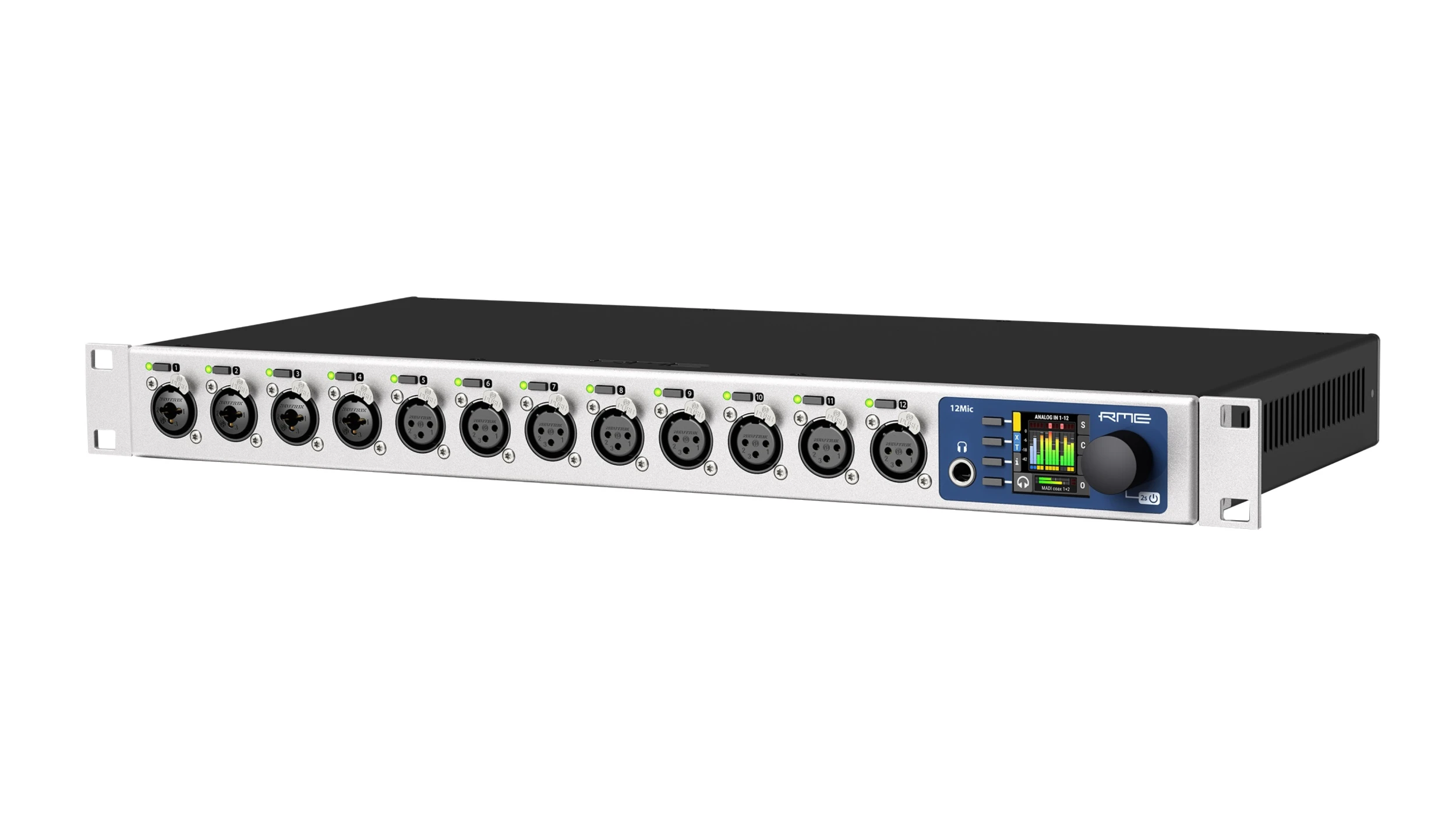

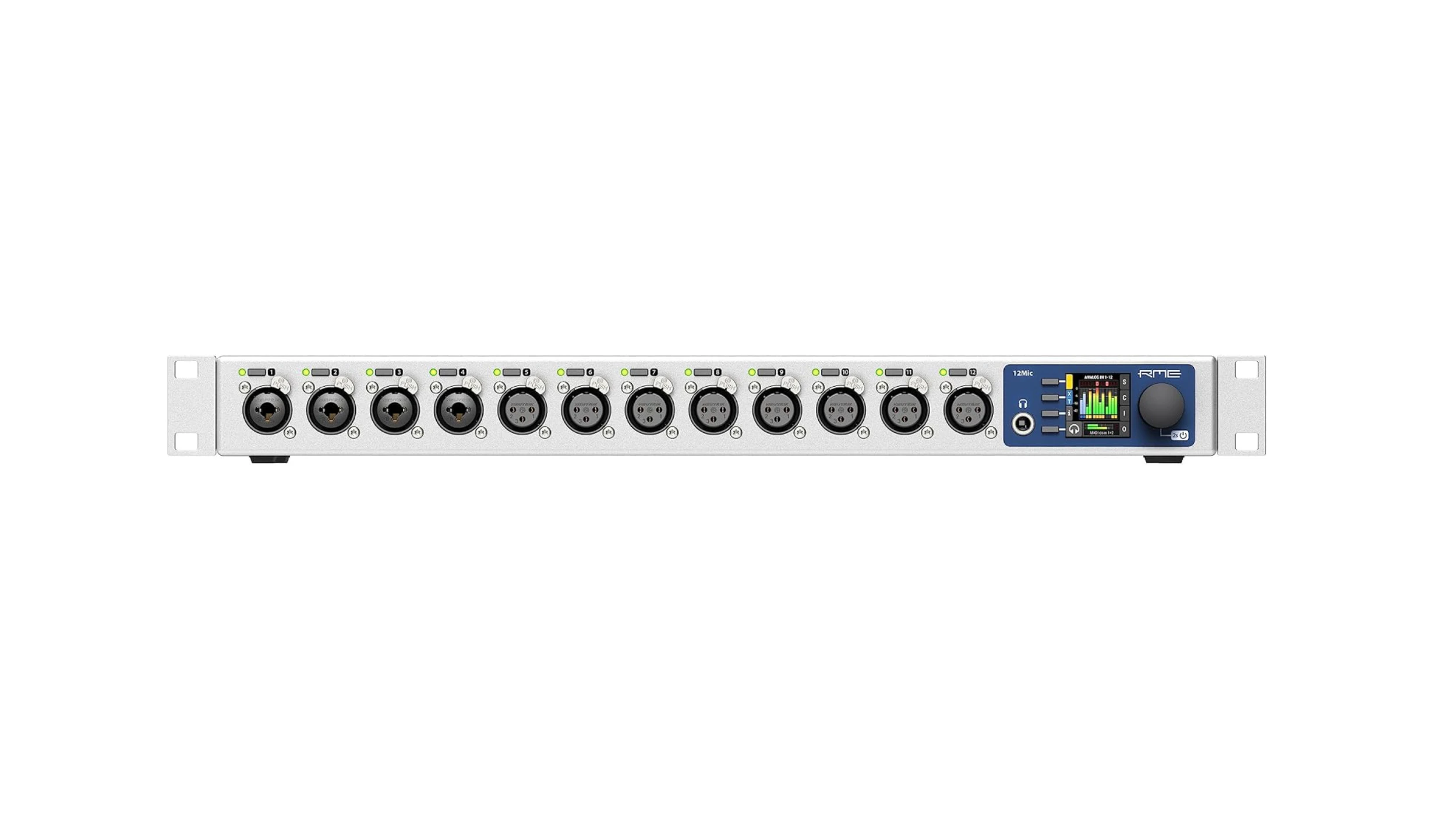

RME 12Mic
12-channel digitally controlled microphone preamplifier with AVB & MADI
The RME 12Mic is a twelve channel remote controllable microphone preamplifier with no-compromise A/D conversion, integrated AVB and MADI connectivity, and a multitude of features designed to make it a perfect companion for any professional recording.
Inputs
XLR In 1-12:
Input: XLR, electronically balanced
Input impedance: 3.4 kOhm
Gain range: 75 dB, 1 dB steps
Resolution AD: 24 bit
Frequency response @ 44.1 kHz, -0.1 dB: 8 Hz – 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 4 Hz – 29.2
Frequency response @ 192 kHz, -1 dB: 3 Hz – 43.7
THD @ 30 dB gain: < -110 dB, < 0.00032 %
THD+N @ 30 dB gain: < -104 dB, < 0.00063 %
Channel separation: > 110 dB
Signal to Noise ratio (SNR): > 117 dB RMS unweighted, > 120 dB(A)
Equivalent Input Noise (EIN), 30 dB Gain: 123 dB RMS unweighted, 125.5 dB(A) @ 150 Ohm
Maximum input level, Gain 0 dB: +18 dBu
Maximum input level, Gain 75 dB: -57 dBu
TRS In 1-4:
As above, but:
Signal to Noise ratio (SNR): 115 dB RMS unweighted, 118 dBA
TRS jack, balanced
Gain range: 42 dB, 1 dB steps
Maximum input level, Gain 8 dB: +20 dBu
Maximum input level, Gain 50 dB: -22 dBu
Switchable high impedance (unbalanced TS): 1 MOhm
MADI:
Coaxial via BNC, 75 Ohm, according to AES10-1991
Optical via optional SFP module
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
Word Clock:
75 ohm Word Clock BNC connectivity
Support 44.1kHz - 192kHz
Support full or single speed operation
SteadyClock FS extracts low jitter clock signal
Intelligent Clock Control switches clock source seamlessly
Outputs
Phones 1/2:
Resolution: 24 Bit
Noise (DR): 115 dB RMS unweighted, 118 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 9 Hz – 22 kHz
Frequency response @ 96 kHz, -0.5 dB: 9 Hz – 45 kHz
Frequency response @ 192 kHz, -1 dB: 8 Hz - 75 kHz
THD+N: < -100 dB, < 0.001 %
Channel separation: > 110 dB
Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
Maximum output level at 0 dBFS: +13 dBu (unbalanced), +19 dBu (balanced)
MADI:
Coaxial via BNC, 75 Ohm, according to AES10-1991
Optical via optional SFP module
62.5/125 and 50/125 compatible
Accepts 56 channel and 64 channel mode, plus 96k Frame
Single Speed: up to 64 channels 24 bit 48 kHz
Double Speed: up to 32 channels 24 bit 96 kHz
Quad Speed: up to 16 channels 24 bit 192 kHz
ADAT:
3 x TOSLINK
Quad Speed (S/MUX4): 1 x 2 channels 24 bit 192 kHz
Word Clock:
75 ohm Word Clock BNC connectivity
Support 44.1kHz - 192kHz
Support full or single speed operation
SteadyClock FS extracts low jitter clock signal
Intelligent Clock Control switches clock source seamlessly
General

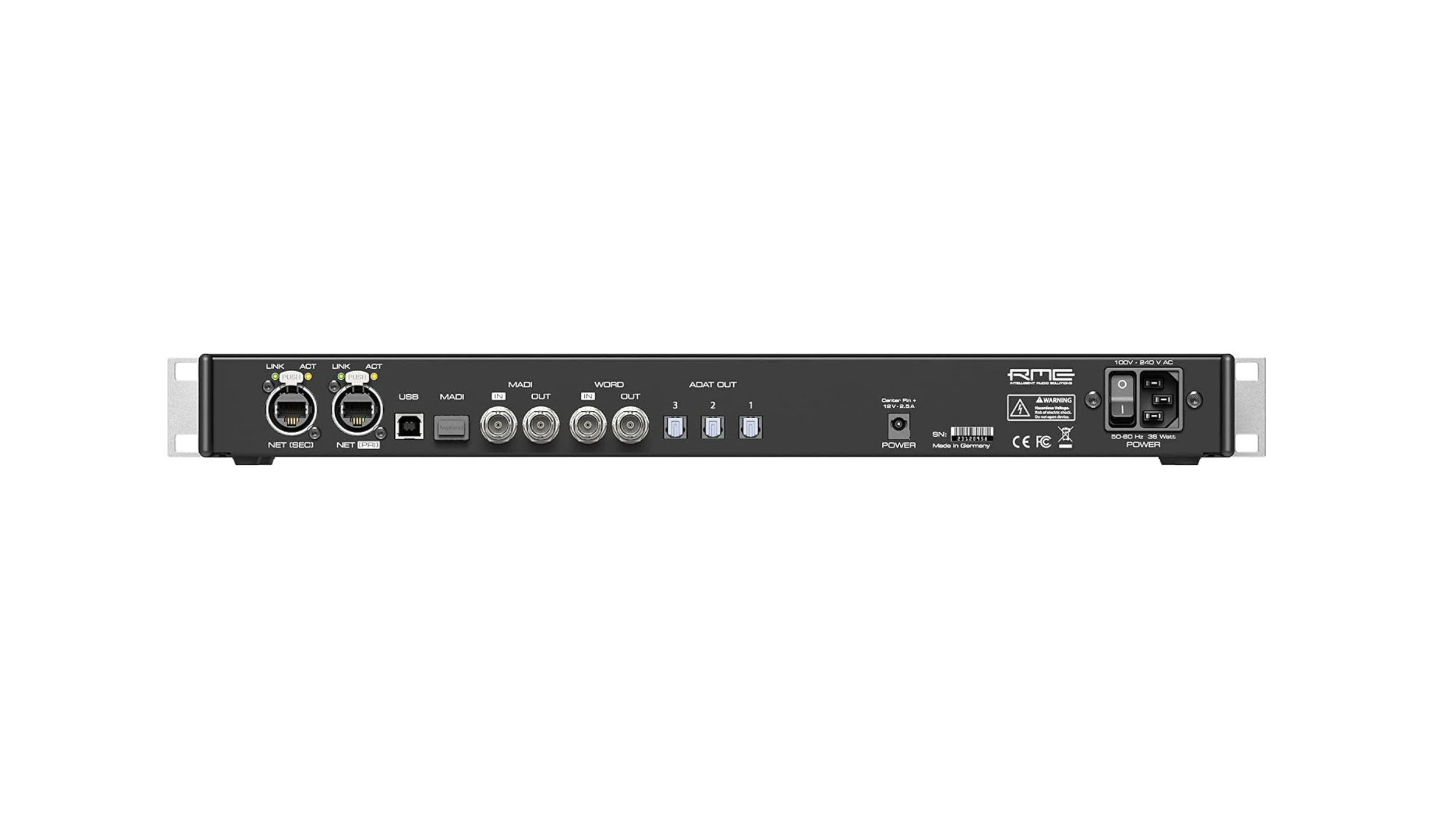

2x RJ45 1 GigE AVB, 8 streams (each up to 16 ch.) per direction with redundancy
MADI input redundancy (requires optional SFP module)
Internal routing of up to 268x282 channels
19” enclosure 1 unit height
1,54” full color display with control knob and four buttons for convenient, direct access to all features
SteadyClock FS - ultra-low jitter digital clock technology
Remote control via HTTP, JSON, IEEE 1722.1 ATDECC, MIDI over MADI
internal PSU, optional 12V DC redundant power supply
USB 2.0 (for remote control and firmware updates)
DC-coupled outputs
Hardware Specifications
Dimensions: 440 x 44 x 243 mm (17.3 x 1.7 x 9.6 inches)
Weight: 2.8 kg (6.2 lbs)
Package: 560 x 315 x 115 mm (22.1 x 12.4 x 4.5 inches)
Conformity: CE, FCC, WEEE, RoHS
Power supply: internal 30 W 100-240 V AC, external 12 V 2.5 A DC (optional)
Power consumption: typ. 20 W, standby 0.5W
