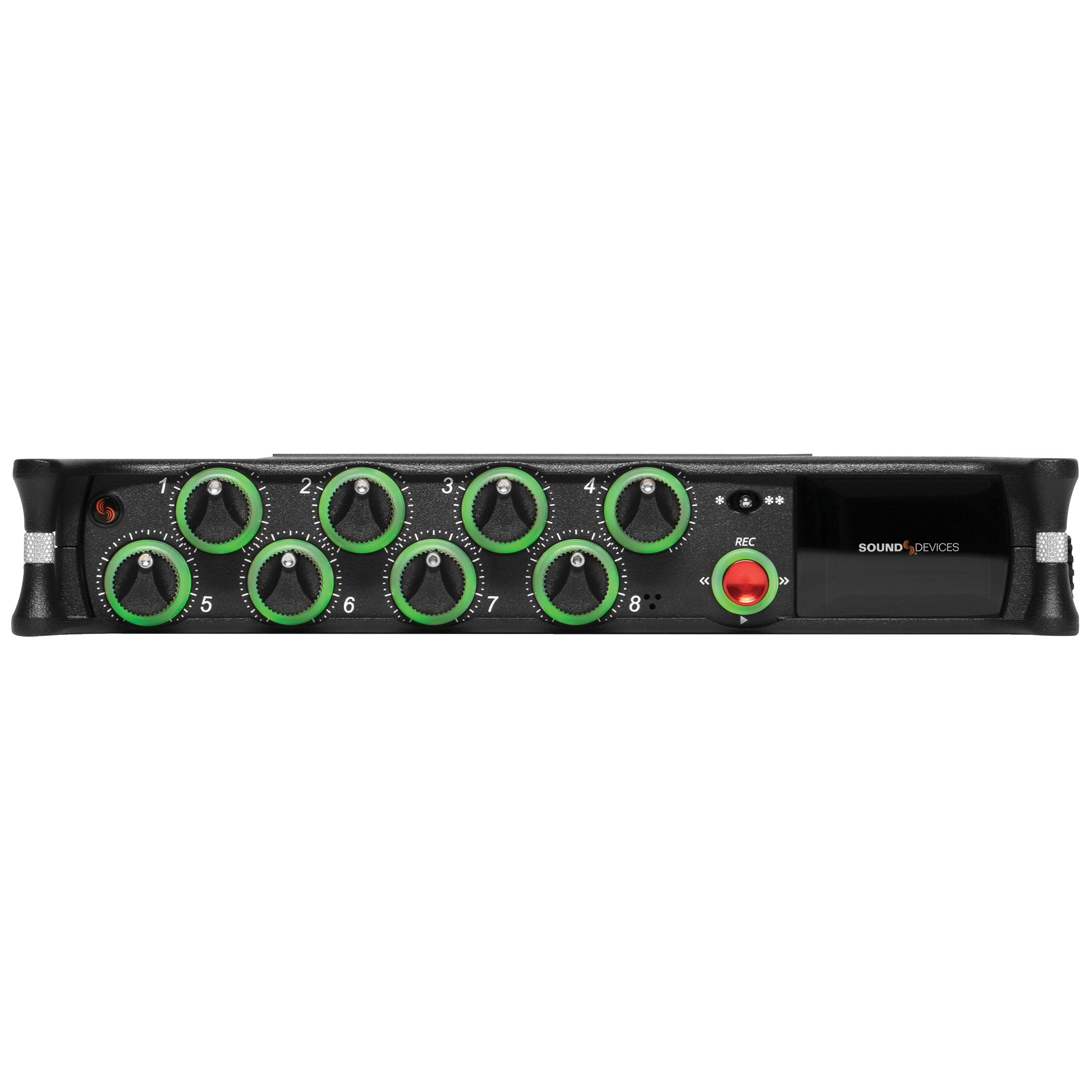

SOUND DEVICES MixPre-10 II - Snimač
8 Preamp, 12 Track, 32-Bit Float Audio Recorder
If you record field audio, sound effects, audio for film, live music, or are just starting your audio journey, the MixPre-10 II is for you! With eight crystal-clear, ultra low-noise Kashmir preamps, you can record multiple actors, multiple podcasters, or audio for film with superior quality – all the way up to a 32-bit float bit depth and a 192 kHz sample rate. This newest generation of Sound Devices’ award-winning MixPre Series has been redesigned for increased performance and an astounding 142 dB of dynamic range.
Your MixPre-10 II is highly customizable to your needs. Record internally to a compatible SD card on set or stream your podcast over USB to your computer at home. Power with wall power, or record in the middle of nowhere with AA or Sony L-mount batteries. Adjust limiters, bit depth, sample rates, gain, pan, low-cut, phase inversion and phantom power to your liking. Stay in sync with your camera using the internal timecode generator, or feed timecode in via HDMI, Aux In, or BNC. The choice is yours!
Audio Inputs
Frequency Response: 10 Hz to 80 kHz +/- 0.5 dB re 1 kHz @ 192 kHz sample rate
THD + Noise: 0.005% max (@1kHz, 22-22 kHz BW, gain=20 dB, -10 dBu in)
ADC: 32 bit precision; 142 dB dynamic range min (A-weighted, gain=10 dB, fader=0 dB)
Equivalent Input Noise: -130 dBV (-128 dBu) max (A-weighting, gain=76 dB, 150 ohm source impedance)

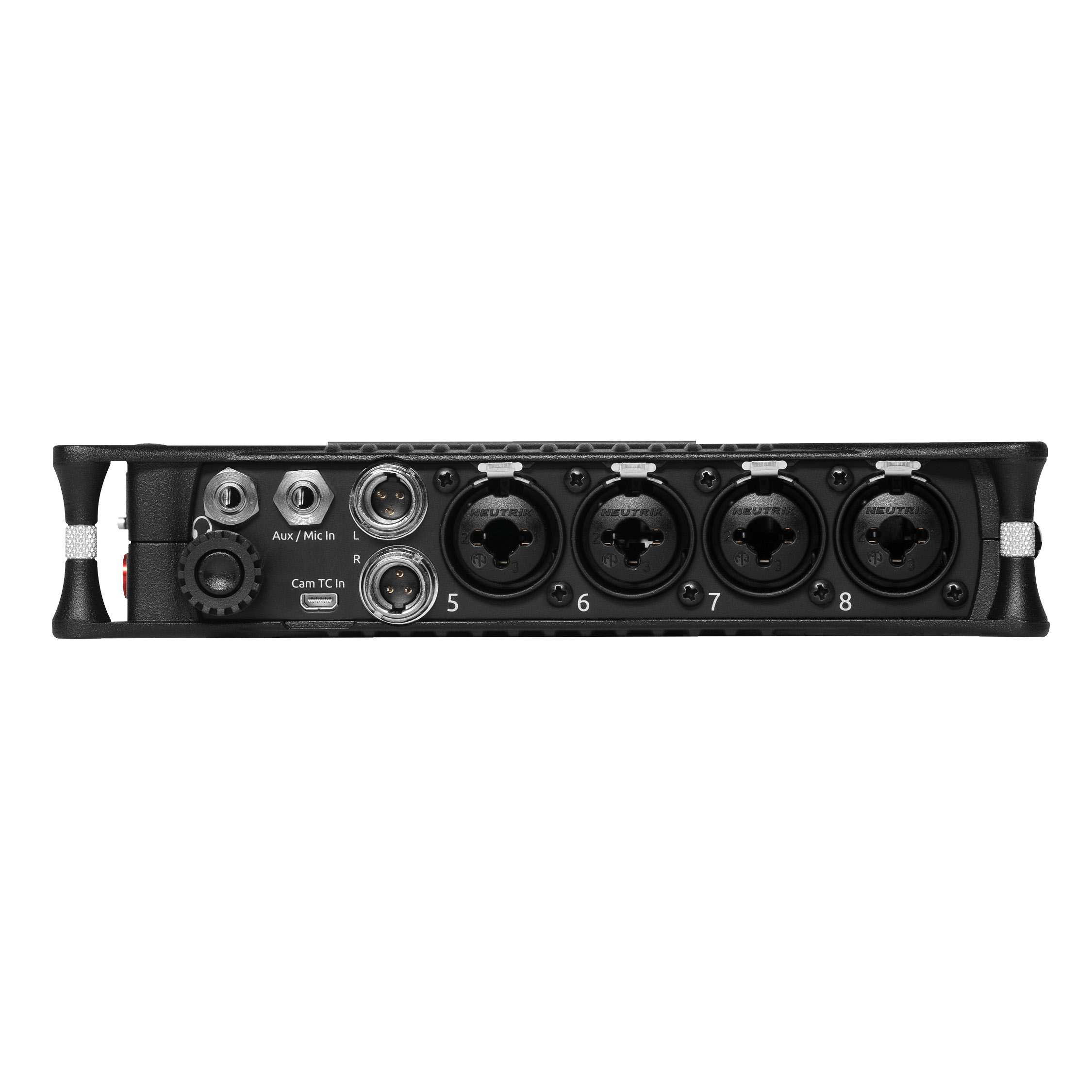

Inputs:
• Mic: XLR active-balanced; 4k input
• Line: XLR active-balanced; 4k input
• Aux/Mic in: 3.5 mm TRS, 2-channel unbalanced; 2.2k
• Line: ¼-inch TRS active-balanced; 4k input
• USB Audio: 4 channels
• 10 Total analog inputs: 8 mic-line inputs, 2 on Aux In
• All inputs fully RF-filtered and overload protected.
Gain:
• Mic input: +6 dB to +76 dB
• Line input: -20 dB to +30 dB
• Fader: -inf to +20 dB
• Headphone: -inf to +20 dB
• Total, Mic-to-recording (max): +96 dB
• Aux In (Mic): Gain = +10 dB to +40 dB
• Aux In (Line): Gain = -10 dB to +20 dB
• Total Aux Gain including Fader (Mic-to-recording): +60 dB
Maximum Input Level:
• Mic XLR: +14 dBu (limiters on or off)
• Line XLR/¼-inch: +28 dBu (limiters on or off)
• Aux In (Mic): -10 dBu
• Aux In (Line): +10 dBu
Low Cut Filters: 40 Hz to 160 Hz (adjustable), 18 dB/oct. First stage analog, subsequent stages digital.
Microphone Powering:
• Mic XLRs: 48 V via 6.8k resistors, 10 mA each
• Mic 3.5 mm: 3 V @ 3k source
Limiters: Limiter at all gain stages, range > 40 dB. First stage analog, subsequent stages digital. Adjustable Threshold, Ratio, and Release.
Audio Outputs
DAC feeding Stereo Out, Headphone Out: 32 bit precision; 115 dB dynamic range (A-weighted)
L/R Out: TA3 2-channel balanced, 1.1K max output impedance, +18 dBu max output level
X1/X2 Out: 3.5 mm TRS stereo unbalanced, 500 ohm output impedance, +7.8 dBu max output level
Headphones Out: 3.5 mm TRS stereo unbalanced, 300 mW + 300 mW, for use with any impedance headphones
USB
• Audio Interface (USB-C): 12-in/4-out; 44.1 to 96 kHz; 16/24/32-bit integer, 32-bit float; Class-compliant USB 2.0 high speed or ASIO® driver (supplied via download)
• Mass Storage (USB-C): USB 2.0 high speed
• Keyboard (USB-A): Text entry and control
• Thumbdrive (USB-A): Manual or auto-copy to drive
• Midi Control Surface (USB-A)
Recording
Maximum Record Tracks: 12 Tracks: Stereo mix + 10 ISOs
Sampling Frequency:
• 44.1 kHz
• 47.952 kHz
• 48 kHz
• 48.048 kHz
• 96 kHz
• 192 kHz
Bit Depth:
• 16
• 24
• 32 Float
Recording Storage:
• Type: SD, SDXC, SDHC Card (USB thumbdrive, copy only)
• Max Storage Size: 512 GB (SDXC)
• Card format: exFAT
File Types: Polyphonic WAV
Timecode
Timecode Modes:
• Free Run
• Time of Day (file stamped w/current ToD)
• Rec Run
• Ext LTC (file stamped w/incoming LTC on BNC or Aux 3.5mm)
• Camera TC (file stamped w/incoming TC from cameras that output TC)
Timecode Frame Rates:
• Auto-detects (fps):
• 23.98 (same as 23.976)
• 24
• 25
• 29.97DF
• 29.97ND
• 30
• 30DF
Sync Source: Internal, Word Clock, Ext LTC

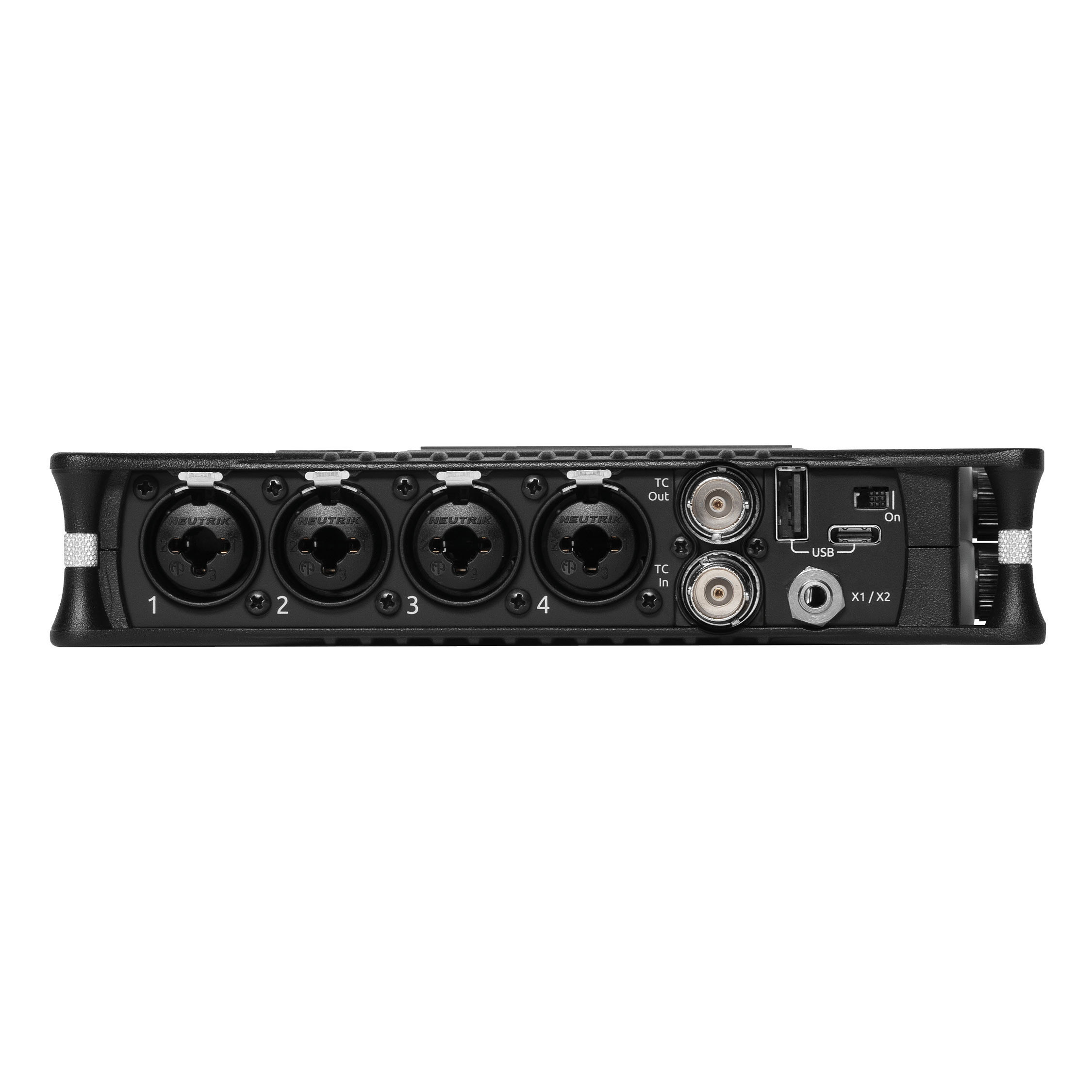

BNC In (TC In):
• Switchable between Timecode (default) or Word Clock Input
• Timecode: 20k ohm impedance, 0.3 V – 3.0 V p-p (–17 dBu – +3 dBu)
• Word Clock: 10k ohm impedance, 1.5 V p-p
BNC Out (TC Out):
• Switchable between Timecode (default) or Word Clock Output
• Timecode: 1k ohm impedance, 3.0 V p-p (+12 dBu)
• Word Clock: 75 ohm impedance, 5 V p-p
HDMI: TC Reader via HDMI
Sample/Timecode Accuracy: 0.2 ppm (0.5 frames per 24 hours)
Remote Control
• Bluetooth LE: Wireless control using Wingman app
• HDMI (micro): Auto-record start/stop trigger from cameras that output record flag over HDMI
• Timecode: Auto-record start/stop trigger via Aux In timecode
File Delivery to Cloud: Compatible with Viviana Cloud
Touch Screen: 320×256; 1.6-inch, color, sunlight-viewable IPS LCD
Power:
• AA Batteries: 8x AA sled (included). NiMH recommended
• L-Mount: Optional sled for 2x (hot-swappable) Li-ion batteries
• AC Adapter: XL-WPH3 (included): Universal, 45 W in-line AC-to-DC power supply Hirose 4-pin DC plug, with detachable IEC power cord. 100-240, 50/60 Hz
Environmental:
• Operating: -20°C to 60°C, 0 to 90% relative humidity; (non-condensing)
• Storage: -40°C to 85°C
Dimensions (H x W x D):
• 3.6 cm x 20.6 cm x 17.5 cm
• 1.375” x 8.125” x 6.875”
Weight:
• 0.91 kg (unpackaged, without batteries)
• 32.1 oz. (unpackaged, without batteries)
