Key Features

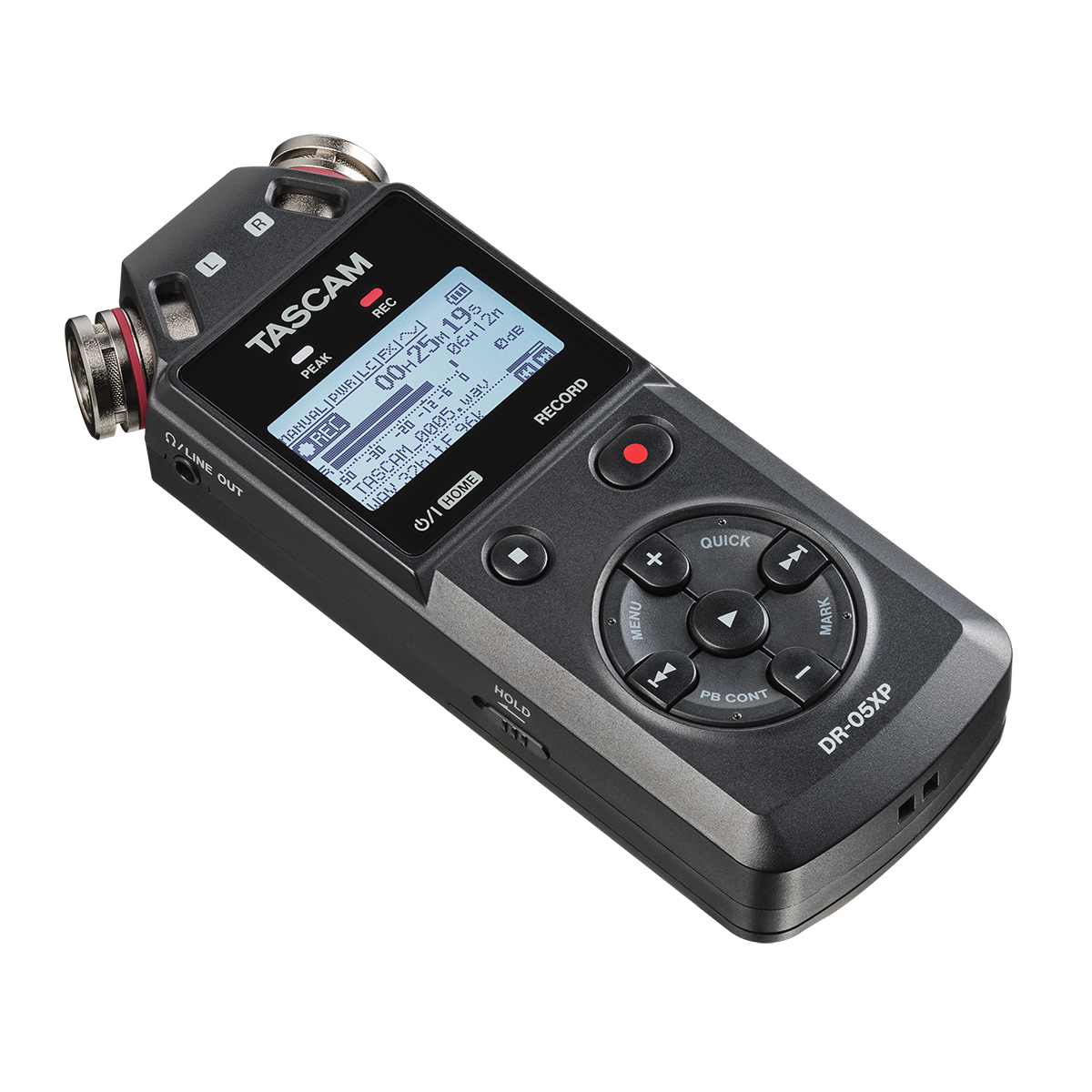

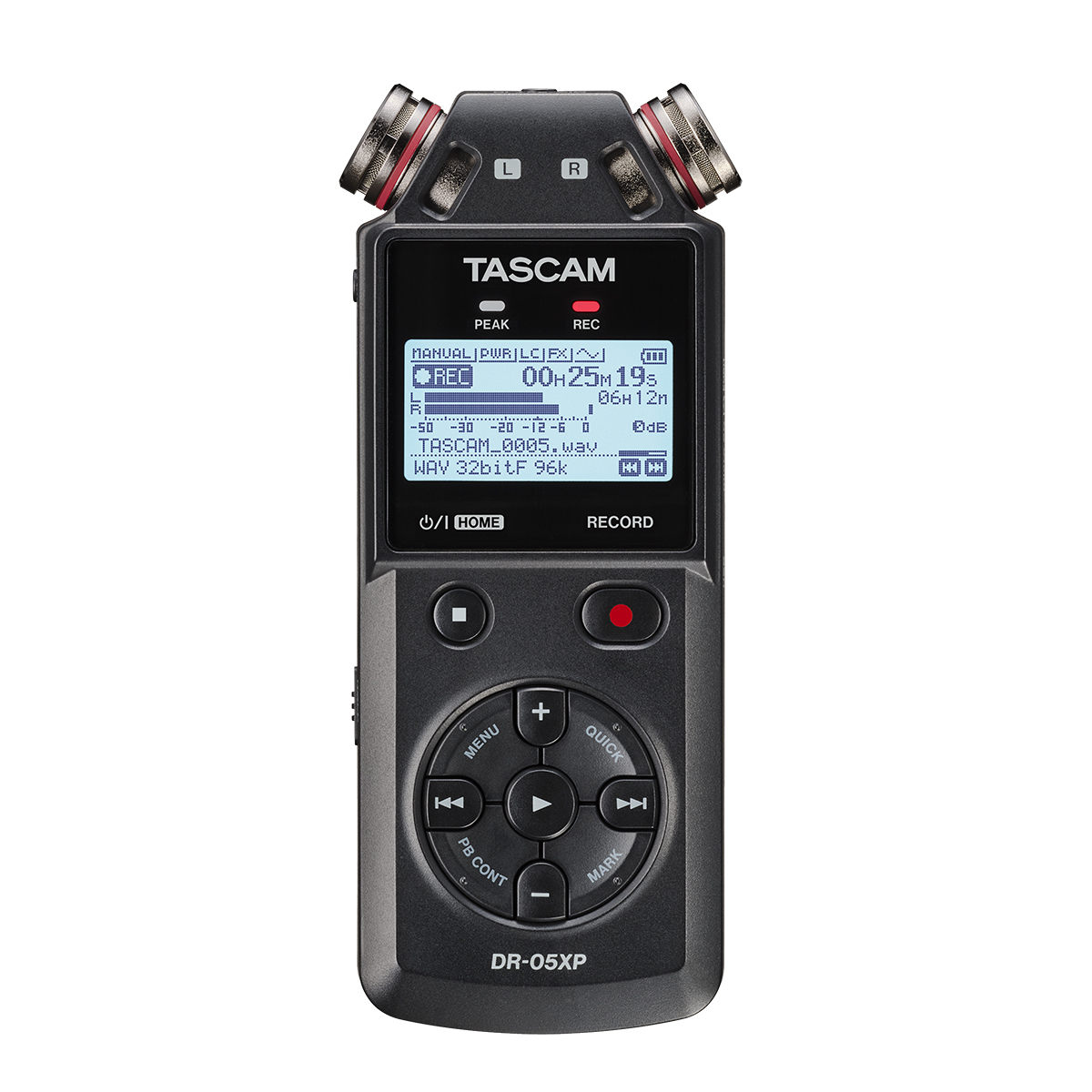

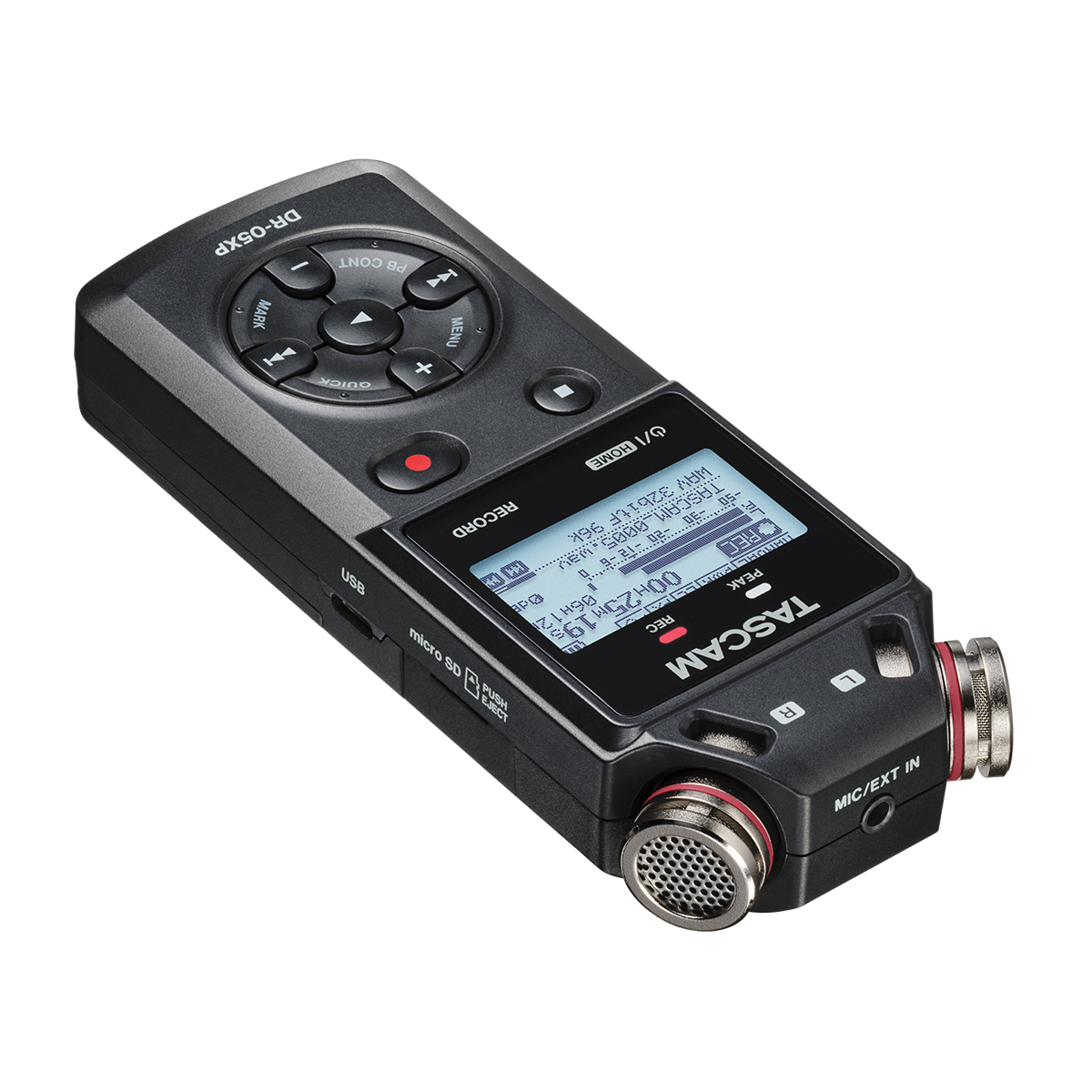

• 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
• Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
• Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
• 2-in/2-out USB-C audio interface for recording directly to your computer
• Up to 17.5 hours of operation with 2 x AA alkaline batteries

Additional Features
• microSDXC (up to 512GB) cards can be used as recording media
• USB Type-C port
• Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
• Support multiple menu languages (ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR)
• Long recordings as MP3 files possible
• Various recording function (Auto rec, Self timer, Pre rec)
• Overdubbing function
• Limiter and Peak reduction
• Four low-cut filter levels (40 / 80 / 120 / 220Hz)
• Auto Tone output for use with DSLR camera
• Reverb effect for vocal and instrument resonance
• Mark function
• 128×64 pixel graphic LCD with backlight
• Tripod mounting point attaches to any standard tripod
• Stereo mini line output and headphone output
• Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
• Playlist function
• Built-in monaural speaker makes it easy to check your recordings
• Chromatic tuner for tuning musical instruments before recording

Recorder specifications
Recording media/file systems: microSD cards / microSDHC cards / microSDXC cards (up to 512 GB)
Recording/playback formats
WAV (BWF):
Sampling frequency: 44.1 kHz / 48 kHz / 96 kHz
Quantization bit depth: 16-bit / 24-bit / 32-bit float
MP3:
Sampling frequency: 44.1 / 48 kHz
Quantization bit depth: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Maximum number of input channels: 2
Maximum number of recordable tracks: 2

Analog audio input/output ratings
MIC/EXT IN jack (can provide plug-in power)
Connector: 3.5mm (1/8") stereo mini jack
Input Impedance:
• 18 kΩ or more (when plug-in power is turned off)
• 2 kΩ or more (when plug-in power is turned on)
Nominal input level: - 20 dBV
Maximum input level: -4 dBV

PHONES/LINE OUT jack
Connector: 3.5mm (1/8") stereo mini jack
Output impedance: 12 Ω
Nominal output level: - 14 dBV (10kΩ loaded)
Maximum output level: +2 dBV (10kΩ loaded)
Maximum output: 20 mW + 20 mW (32 Ω load)
b16 - 250Ω

Built-in Speaker
Output: 0.3W (monaural)
USB
Connector: US B Type-C
Format:
• USB 2.0 High Speed Mass Storage Class
• USB 1.1 Full Speed Audio Class

USB Audio
Sampling rate: 44.1 / 48 kHz
Quantization bit depth: 24-bit
Number of inputs: 2 channels (output from this unit)
Number of outputs: 2 channels (input to this unit)

General
Power:
• 2AA batteries (alkaline or NiMH)
• USB bus power (5V/0.5A) from a computer, etc.
• TASCAM PS-P520U AC adapter (sold separately)
v1.7 W (maximum)
Weight:
• 174 g / 0.384 lb (including batteries)
• 126 g / 0.278 lb (not including batteries)
Operating temperature range: 0 – 40 °C / 32 – 104 °F
Dimensions: 60.5 x 142.3 x 27 mm (W x H x D, including protrusions)
Included items:
• DR-05XP x1
• Safety guide (including warranty) x1
• TASCAM ID registration guide x1
