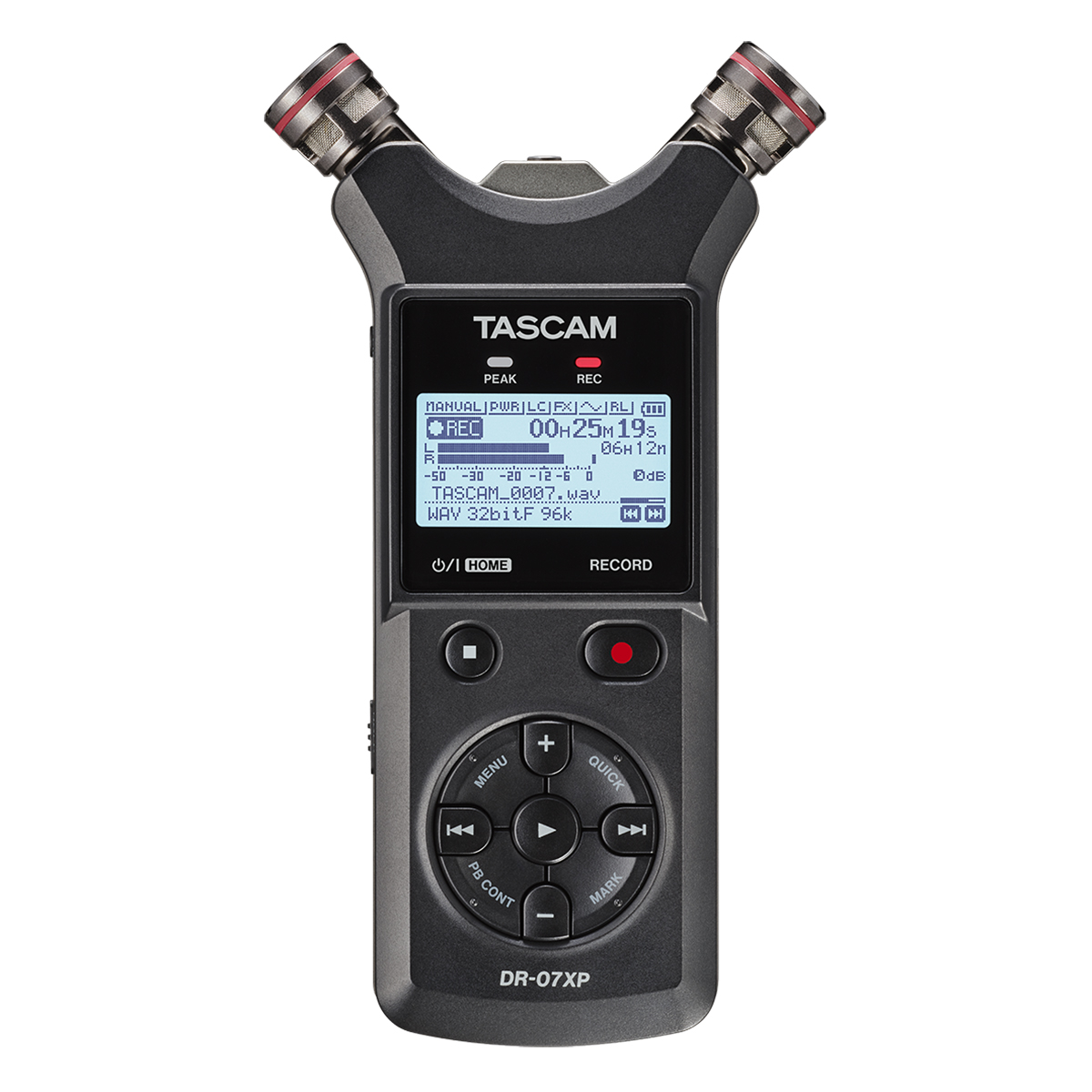

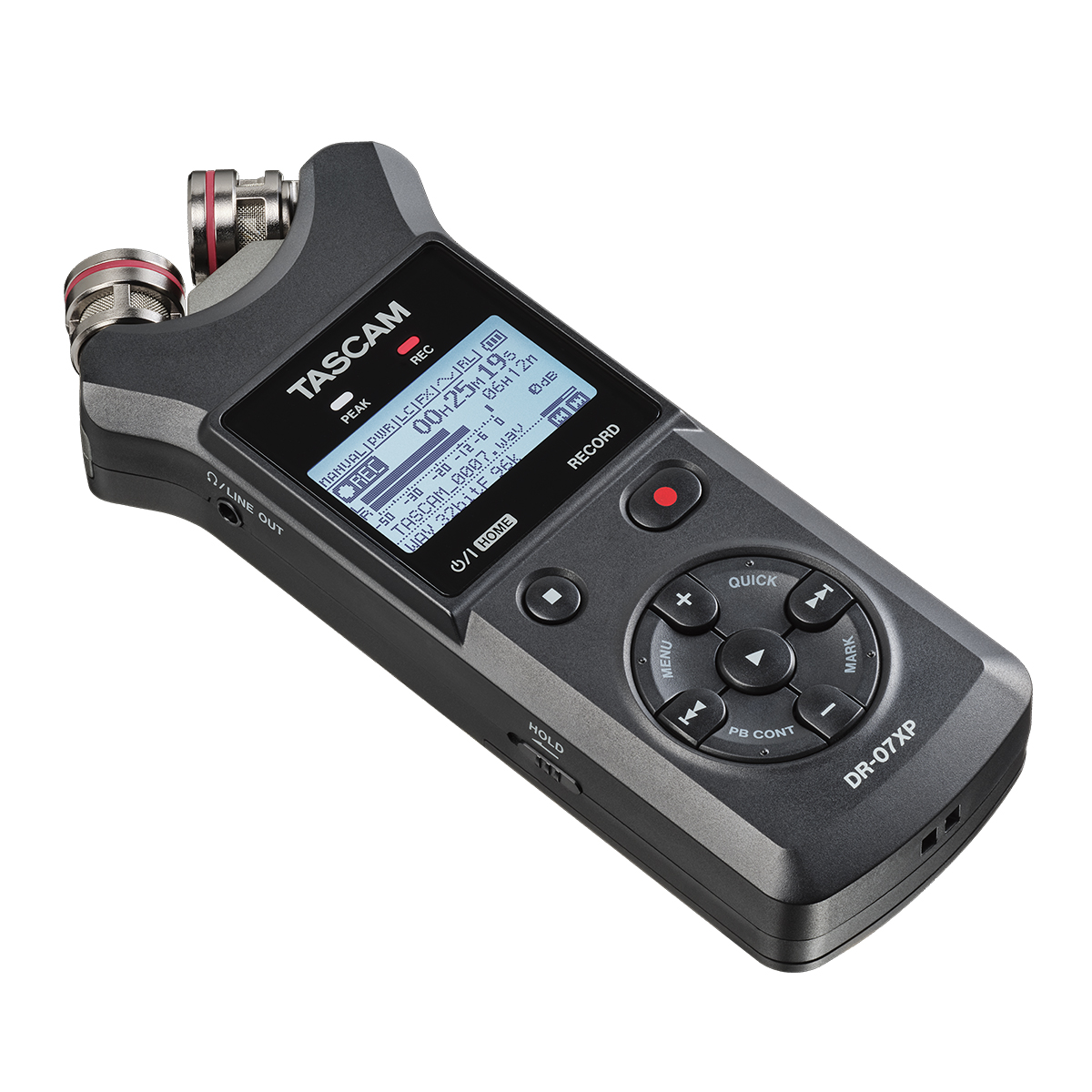

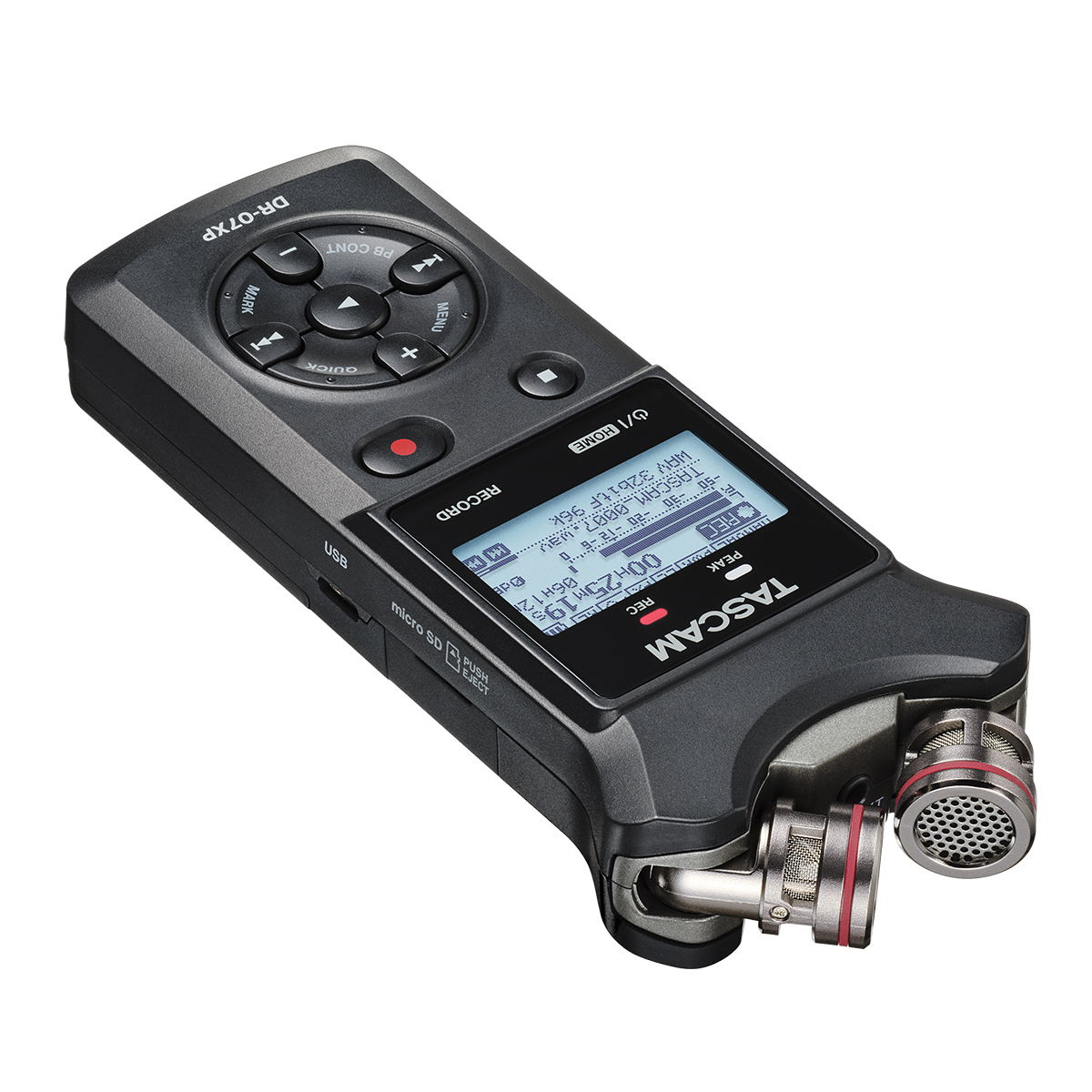

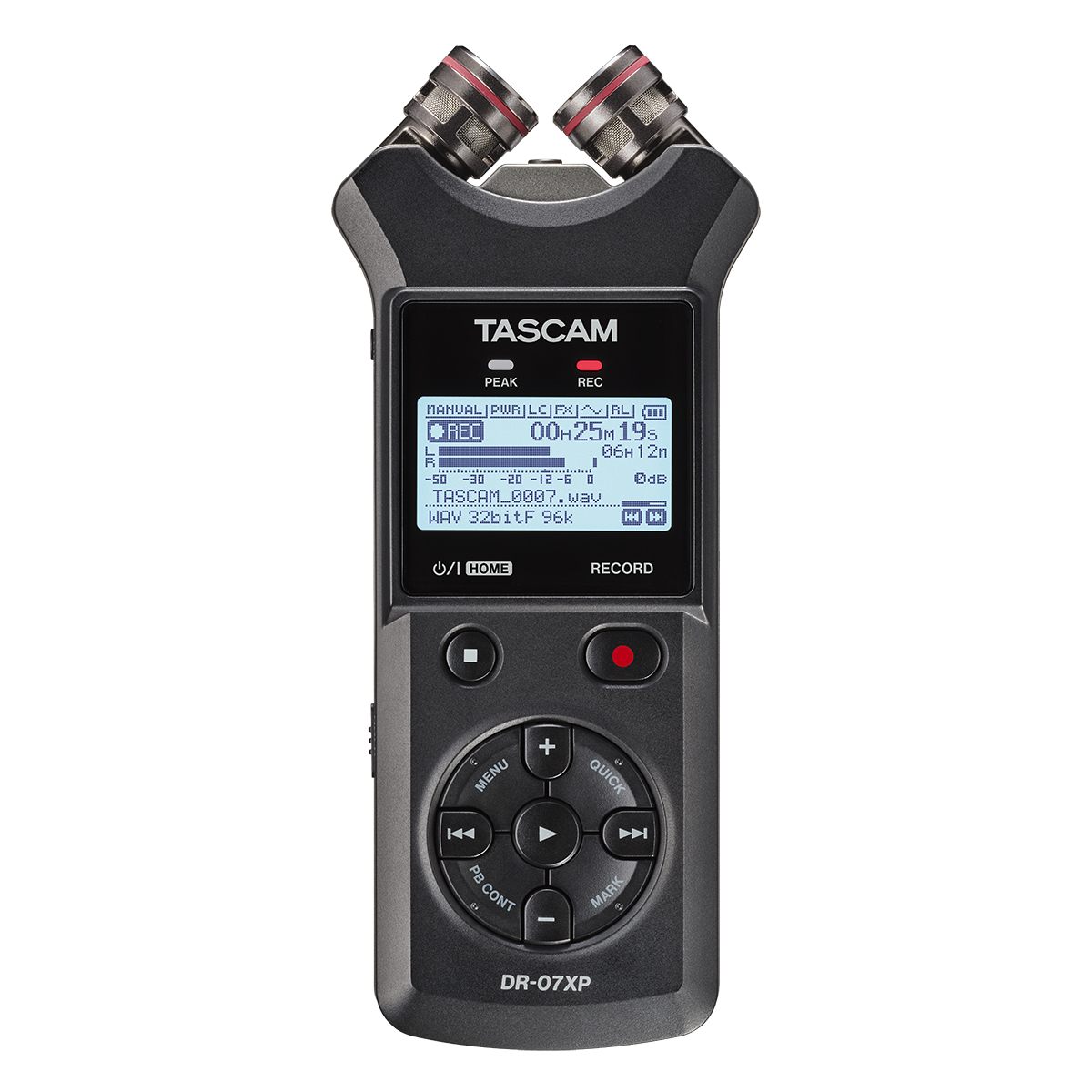

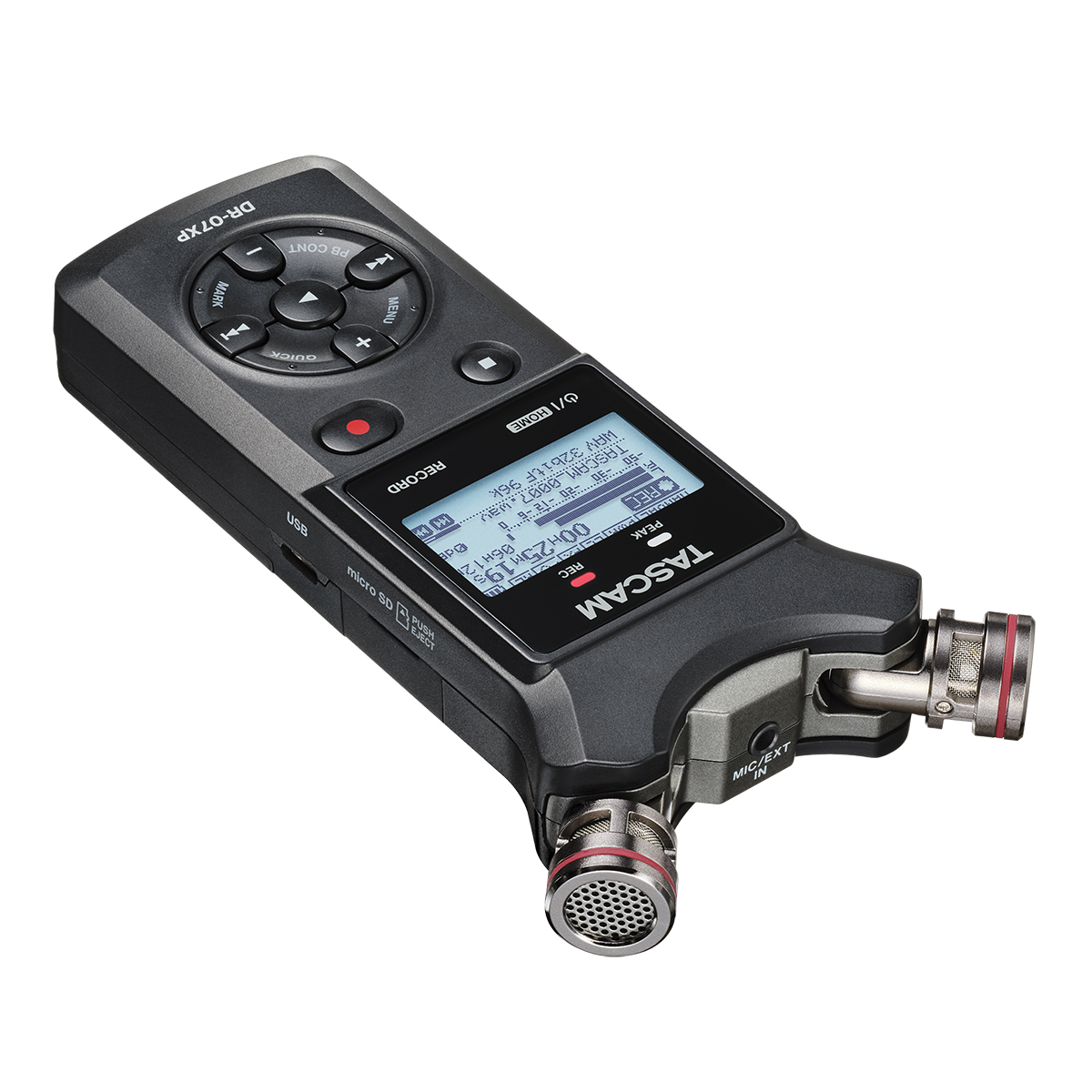

TASCAM DR-07XP - Snimač
2-Channel 32-Bit Float Handheld Recorder With USB-C Interface and Adjustable Mics
Pro-Quality Portable Recording, Simplified
The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
Key Features
• 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
• Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
• Stereo AB/XY condenser microphones handle loud environments and sources (up to 125dB SPL)
• 2-in/2-out USB-C audio interface for recording directly to your computer
• Up to 17.5 hours operation with 2 x AA alkaline batteries
Additional Features
• microSDXC (up to 512GB) cards can be used as recording media
• USB Type-C port
• Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
• Support multiple menu languages (ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR)
• Long recordings as MP3 files possible
• Various recording function (Auto rec, Self timer, Pre rec)
• Overdubbing function
• Limiter and Peak reduction
• Four low-cut filter levels (40 / 80 / 120 / 220Hz)
• Auto Tone output for use with DSLR camera
• Reverb effect for vocal and instrument resonance
• Mark function
• 128×64 pixel graphic LCD with backlight
• Tripod mounting point attaches to any standard tripod
• Stereo mini line output and headphone output
• Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
• Playlist function
• Built-in monaural speaker makes it easy to check your recordings
• Chromatic tuner for tuning musical instruments before recording
Recorder specifications
Recording media/file systems: microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
Recording/playback formats:
WAV (BWF)
Sampling frequency: 44.1 kHz / 48 kHz / 96 kHz
Quantization bit depth: 16-bit / 24-bit / 32-bit float
MP3
Sampling frequency: 44.1 / 48 kHz
Quantization bit depth: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Maximum number of input channels: 2
Maximum number of recordable tracks: 2
Analog audio input/output ratings
MIC/EXT IN jack (can provide plug-in power)
Connector: 3.5mm (1/8") stereo mini jack
Input Impedance:
• 18 kΩ or more (when plug-in power is turned off)
• 2 kΩ or more (when plug-in power is turned on)
Nominal input level: - 20 dBV
Maximum input level: -4 dBV
PHONES/LINE OUT jack
Connector: 3.5mm (1/8") stereo mini jack
Output impedance: 12 Ω
Nominal output level: - 14 dBV (10kΩ loaded)
Maximum output level: +2 dBV (10kΩ loaded)
Maximum output: 20 mW + 20 mW (32 Ω load)
Working impedance: 16 - 250Ω
Built-in Speaker
Output: 0.3W (monaural)
USB
Connector: USB Type-C
Format:
• USB 2.0 High Speed Mass Storage Class
• USB 1.1 Full Speed Audio Class
USB Audio
Sampling rate: 44.1 / 48 kHz
Quantization bit depth: 24-bit
Number of inputs: 2 channels (output from this unit)
Number of outputs: 2 channels (input to this unit)
General
Power:
• 2AA batteries (alkaline or NiMH)
• USB bus power (5V/0.5A) from a computer, etc.
• TASCAM PS-P520U AC adapter (sold separately)
Power consumption: 1.7 W (maximum)
Weight:
• 184 g / 0.406 lb (including batteries)
• 136 g / 0.30 lb (not including batteries)
Operating temperature range: 0 – 40 °C / 32 – 104 °F
Dimensions
Mic closed: 68 x 159.6 x 27.0 mm
Mic opened: 90.3 x 159.6 x 27.0 mm
Included items:
• DR-07XP x1
• Safety guide (including warranty) x1
• TASCAM ID registration guide x1
