Input Types
The EXH-6e features 2 XLR/TRS inputs with locking connectors to accept mic or line level input. Additionally, a 3.5 mm stereo mic/line input is available for lavalier microphones or stereo feeds.

Phantom Power
The EXH-6e can provide phantom power for the 2 XLR/TRS combo inputs. Connect the USB-C port of the capsule to an AC outlet or USB battery to power condenser mics. Plug-in power is also available for lavalier mics connected to the 3.5mm input.

Capsule System 3.0
The EXH-6e utilizes Zoom’s Capsule System 3.0. This new connector provides a stable connection and allows for 32-bit float recording.

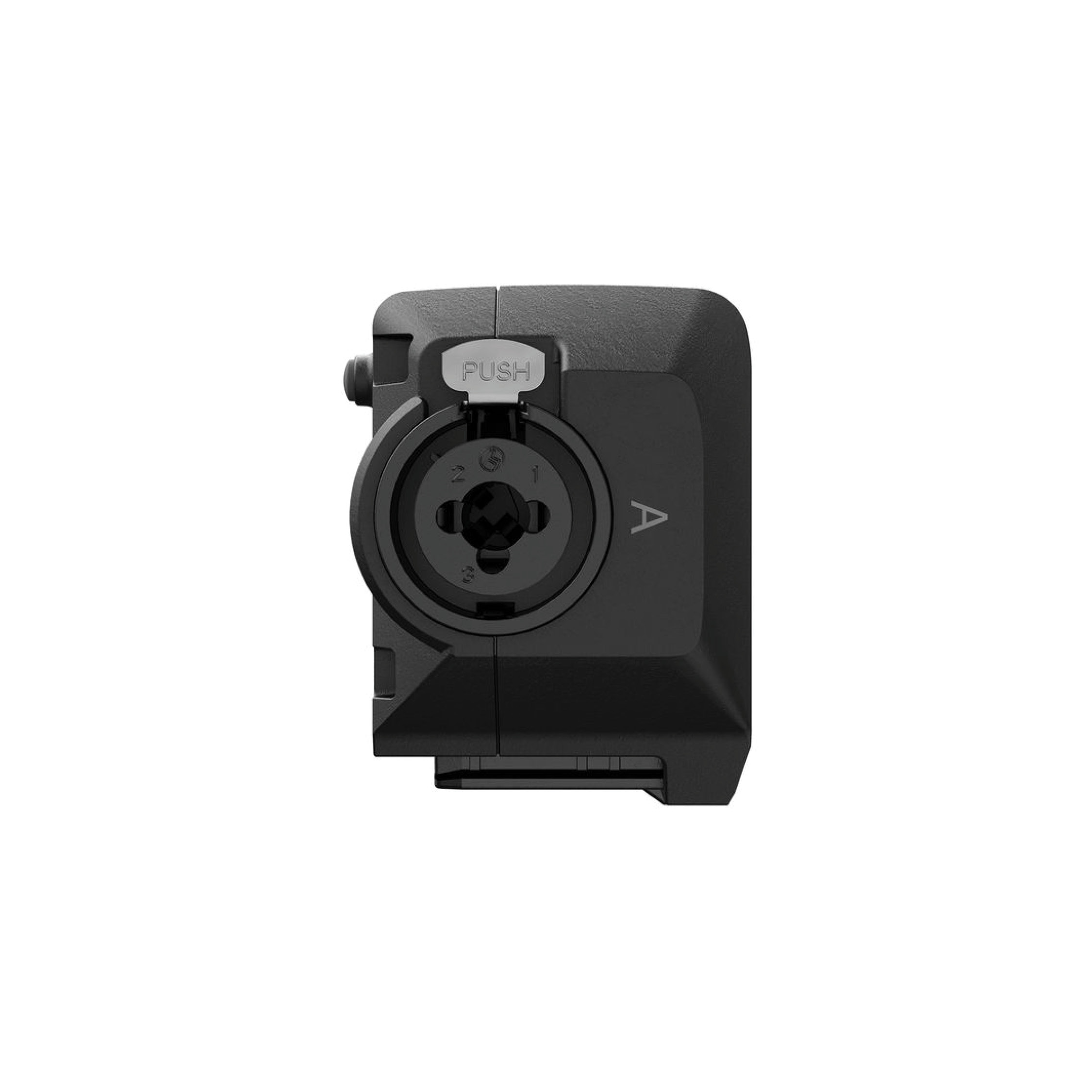

INPUT A/B jacks
Connectors: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: adjustment unnecessary
Input impedance: 3.8 kΩ or higher (MIC) / 39 kΩ or higher (LINE)
Maximum input level: −4 dBu (MIC) / +16 dBu (LINE)
Phantom power: +48 V, 10 mA maximum per channel
Equivalent input noise: −120 dBu or less (IHF-A) at 150Ω input

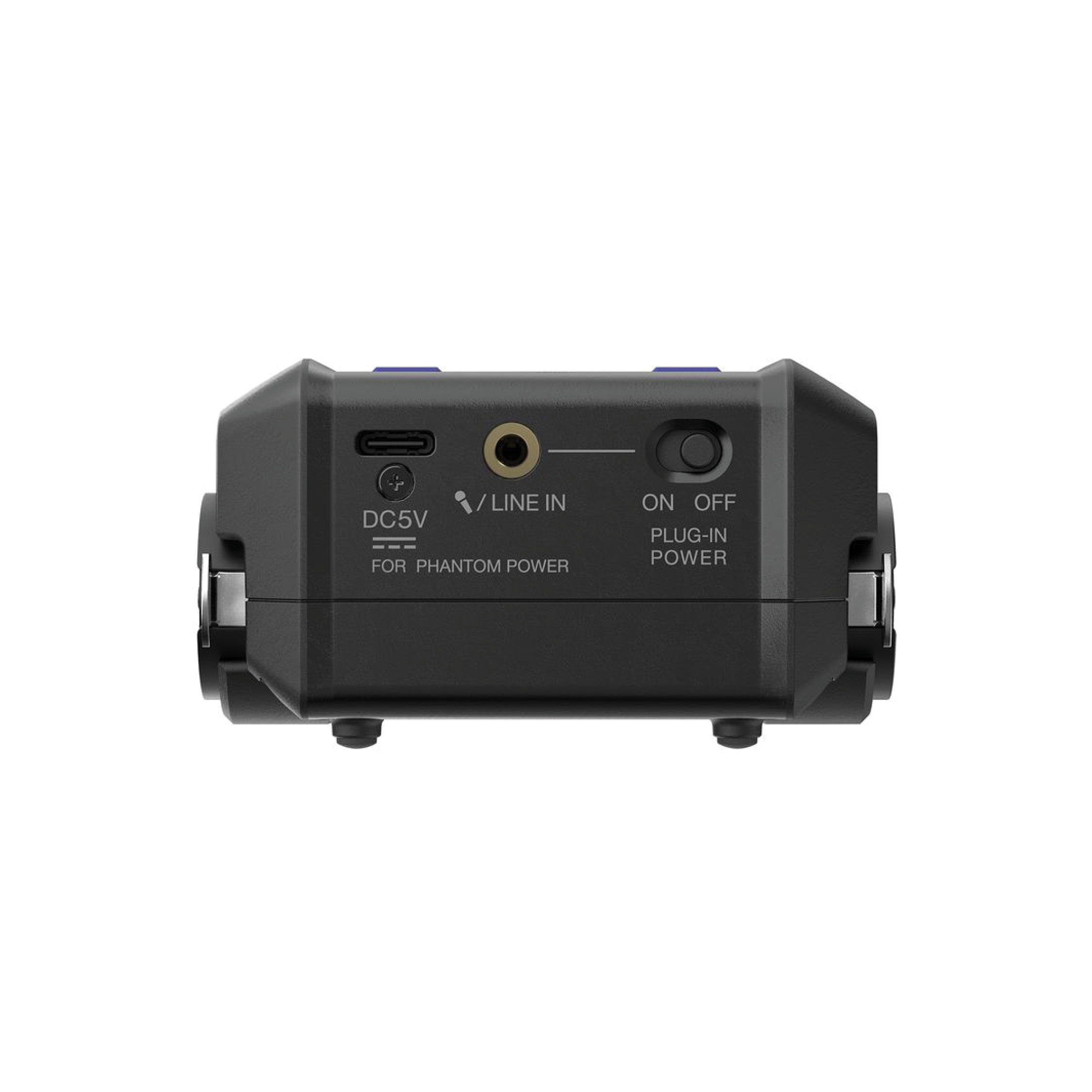

MIC/LINE jack
Connector: stereo mini jack
Input gain: adjustment unnecessary
Input impedance: 2 kΩ or higher

Dimensions: 78.1 mm (W) × 56.7 mm (D) × 43.9 mm (H)
Weight: 96 g
Compatible Models: H6essential, H5studio
