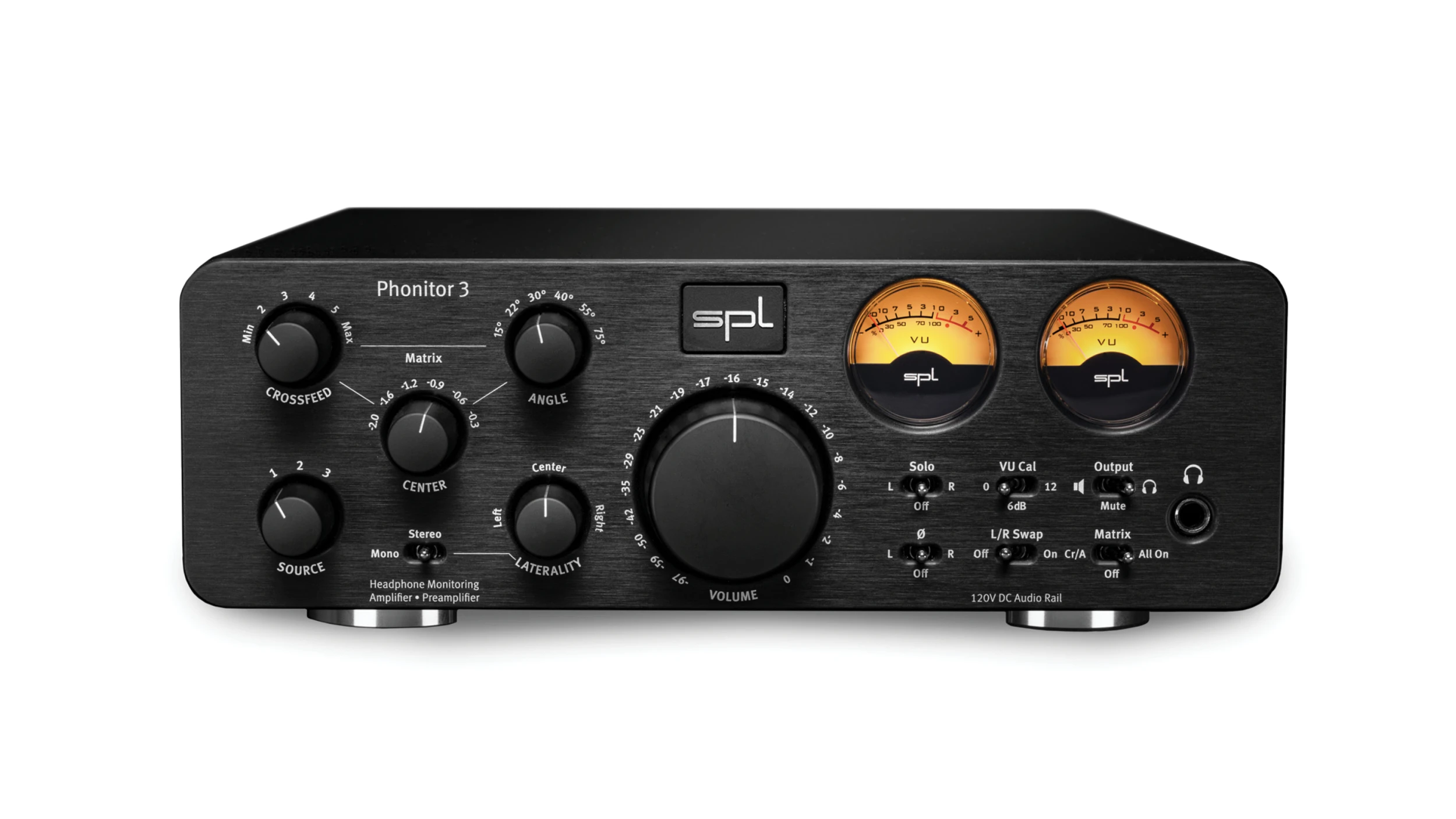

The headphone amplifier and monitoring controller with 120V technology Phonitor 3 is the ultimate headphone amplifier and monitoring controller with 120V technology. It offers the same monitoring quality as the big SPL mastering consoles – on loudspeakers and headphones.
The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality –
with the same spatial perception of the stereo stage as on loudspeakers.

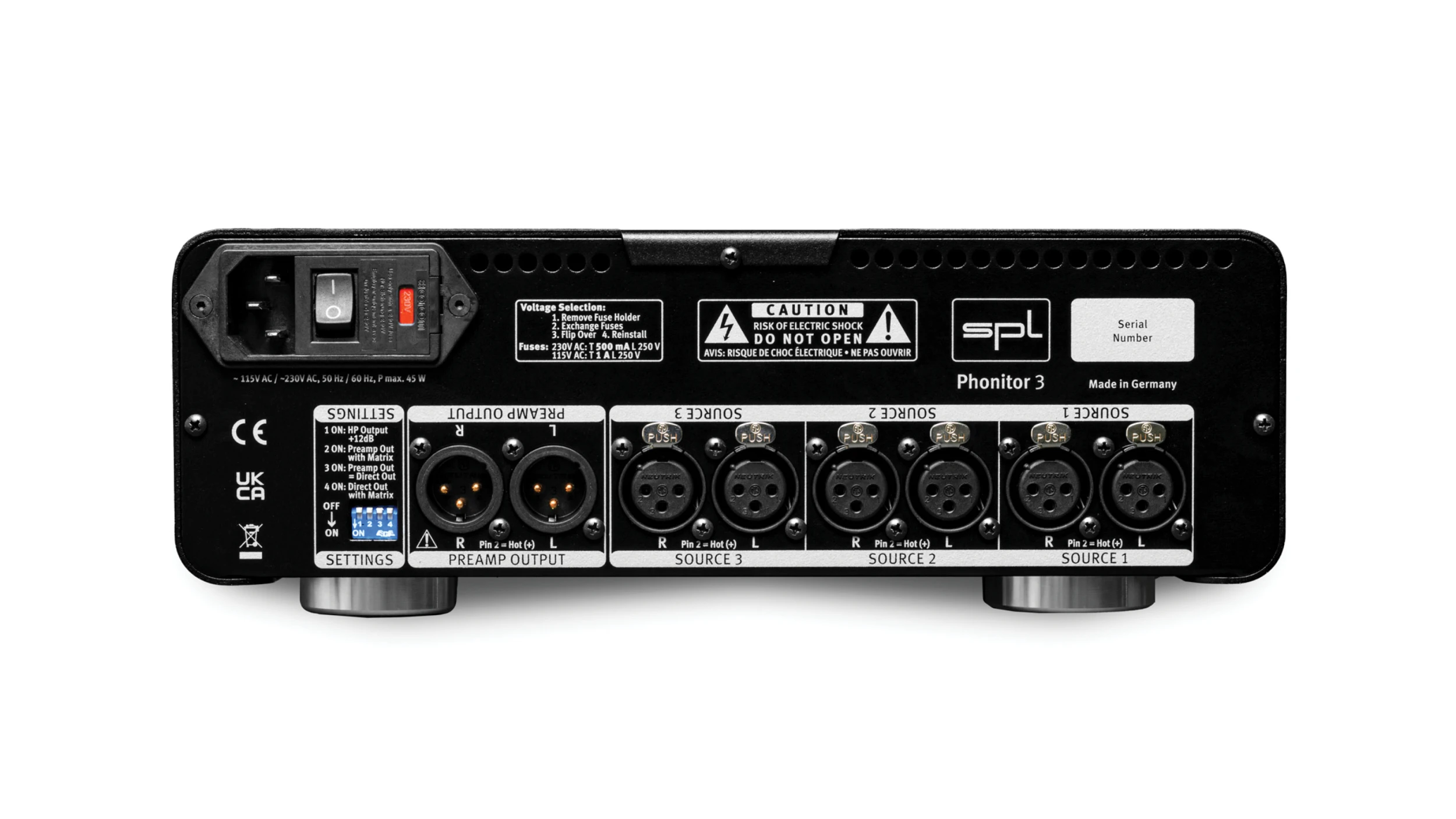

Three analog XLR stereo inputs for various sources and a wide range of monitoring options make it the perfect monitor controller for demanding producers and mixing/mastering engineers.
Phonitor 3 can be equipped with the optional Expansion Rack, which is not only a 19″ rack housing, but it also expands the connection possibilities with three additional switchable stereo outputs for active loudspeakers or power amplifiers.
Analog inputs & outputs: XLR (balanced)
Maximum input & output gain: 32.5 dBu
Input impedance (XLR): 20 kΩ
Output impedance (XLR): 75 Ω
Common mode rejection ratio (XLR): -82 dB
Frequency range (0 dBu): 10 Hz – 100 kHz
THD +N (1 kHz, 0 dBu): 0.0009 %
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): -95 dB
Dynamic range: 134.3 dB
Standard Headphones Output: 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -91 dB
THD + N (1 kHz, 0 dBu): 0.0003 %
Noise (A-weighted): -102 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 134.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm
Unit weight: 4.9 kg
Shipping weight (incl. packaging): 5.6 kg
