SPL Phonitor 3 DAC
The headphone amplifier, monitoring controller and DAC with 120V technology
Phonitor 3 DAC is not only the ultimate headphone amplifier and monitoring controller with
120V technology – the integrated DAC makes it the perfect monitoring centerpiece for demanding
producers as well as sound and mastering engineers working with digital sources or in the DAW.
Whether if USB, AES/EBU or S/PDIF – the integrated DAC with analog SLP120 converts digital
PCM audio signals with a resolution of 32 bit and a sampling rate of up to 768 kHz. It converts
DSD signals with a resolution of up to DSD256.
On the analog side, the Phonitor 3 DAC, based on the SPL 120V technology, offers the same
monitoring quality as the big SPL mastering consoles – on loudspeakers and headphones.
The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality –
with the same spatial perception of the stereo stage as on loudspeakers.

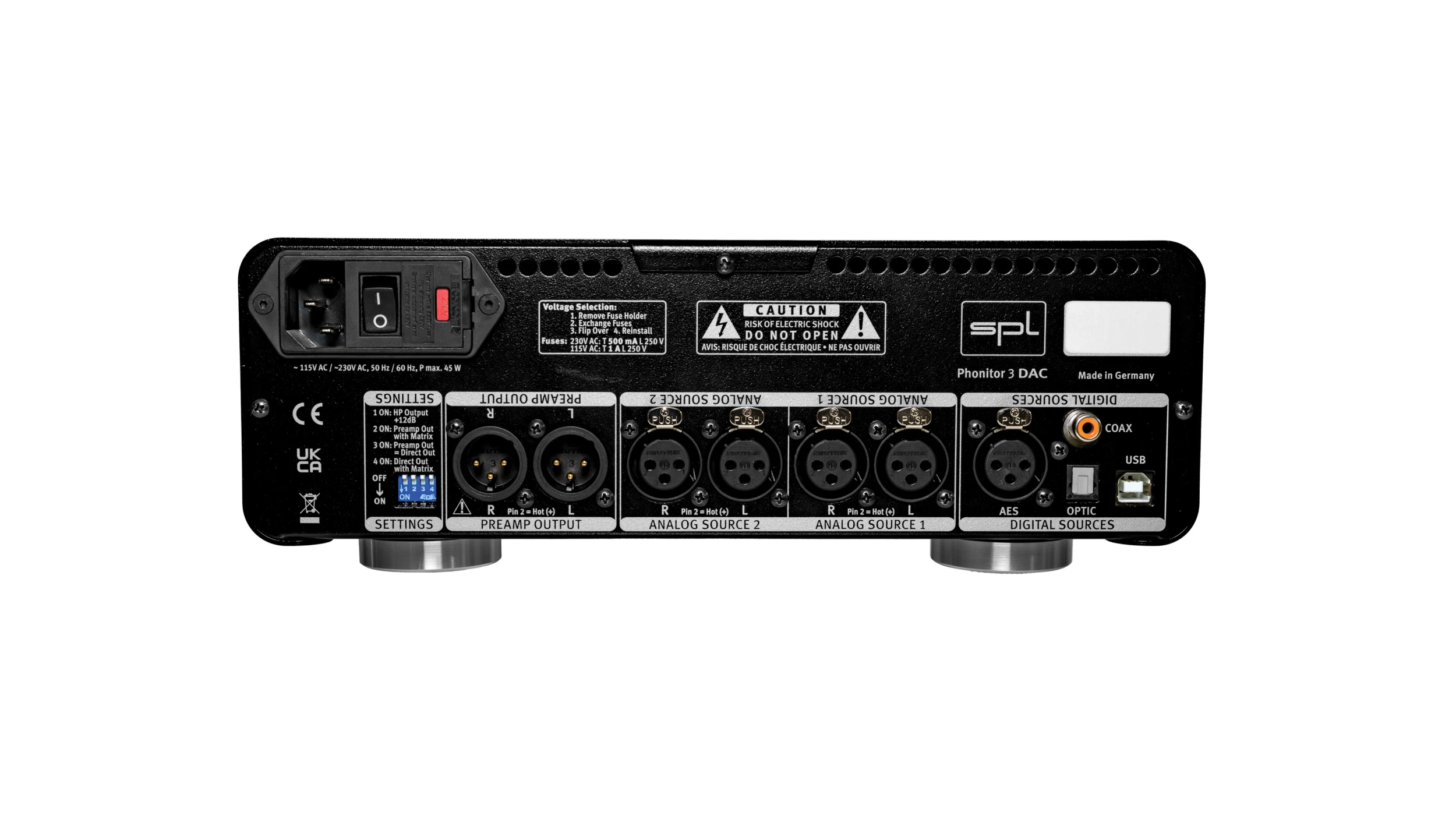

Analog inputs & outputs: XLR (balanced)
Maximum input & output gain: 32.5 dBu
Input impedance (XLR): 20 kΩ
Output impedance (XLR): 75 Ω
Common mode rejection ratio (XLR): -82 dB
Frequency range (0 dBu): 10 Hz – 100 kHz
THD +N (1 kHz, 0 dBu): 0.0009 %
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): -95 dB
Dynamic range: 134.3 dB
Digital Inputs: DAC768v2
AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Coaxial SPDIF (Cinch), PCM sample rates: 44.1/48/88,2/96/176.4/192 kHz
Optisch SPDIF (Toslink F06) sample rates: 44.1/48/88.2/96/mit Glasfaser < 1m: 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Standard Headphones Output: 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -91 dB
THD + N (1 kHz, 0 dBu): 0.0003 %
Noise (A-weighted): -102 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 134.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm (11 x 4 x 11.81 inch)
Unit weight: 4.9 kg (10.8 lbs)
Shipping weight (incl. packaging): 5.6 kg (12.5 lbs)
