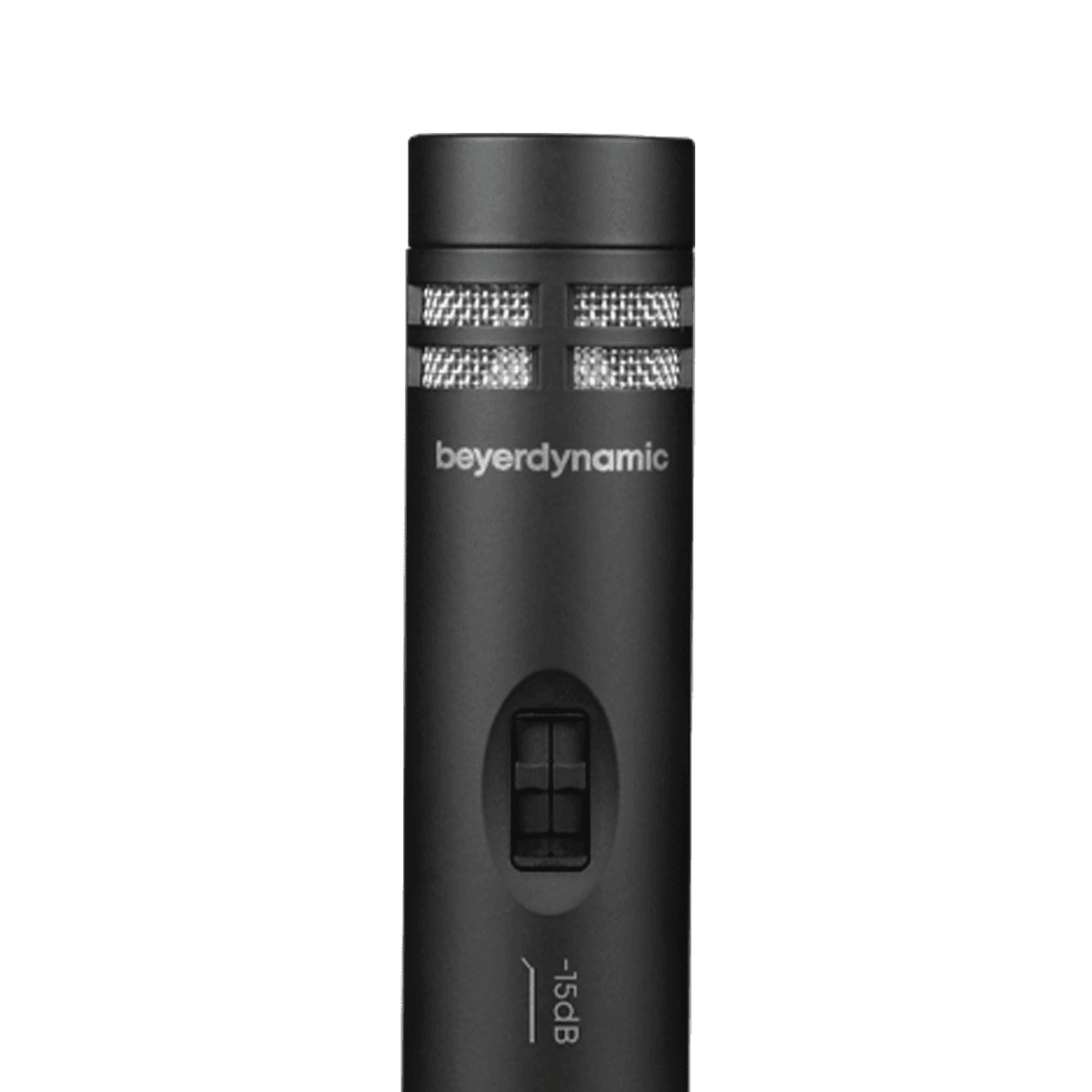

Beyerdynamic MC 950
The MC 950 is a flexible true condenser microphone with switchable -15 dB attenuation and low-cut filter. If you appreciate a clear sound and high impulse fidelity of small-diaphragm condenser
microphones, our MC 950 is the right choice.
Due to its largely linear frequency response with gentle treble boost, the MC 950 microphone is
suitable for use with a variety of signal sources such as piano, choir, orchestra or solo instruments of any kind. Due to its supercardioid polar pattern, the MC 950 can be used where sound from the rear is to be reliably attenuated, as it provides the most effective sound suppression at 140° and 220°.
FEATURES
• Flexible true condenser microphone
• Supercardioid polar pattern
• Outstanding clear and detailed sound
• Switchable pre-attenuation (-15dB) and low-cut filter
• High sensitivity
• High impulse fidelity and good transient response
• Handcrafted in Germany
TECHNICAL SPECIFICATIONS
Transducer type: True condenser
Operating principle: Pressure gradient
Frequency response: 40 - 20,000 Hz
Polar pattern: Supercardioid
Sensitivity (0 dB = 1 V/Pa): 35 mV/Pa (= -29 dBV)
Nominal impedance: 180 Ω
Load impedance: 1000 Ω
Max. SPL
• at 1 kHz: 124 dB
• with pre-attenuation: 139 dB
Signal-to-noise ratio rel. to 1 Pa: 72 dB
A-weighted equivalent SPL: 15 dB
Low-cut filter: switchable, 6 dB/octave at 250 Hz
Power supply: 11 - 52 V phantom power
Current consumption: 4.6 mA
Connector: 3-pin XLR, male
Dimensions:
• Length: 128 mm
• Diameter: 21 mm
Weight: 106 g
