SOYUZ 013 FET (Single)

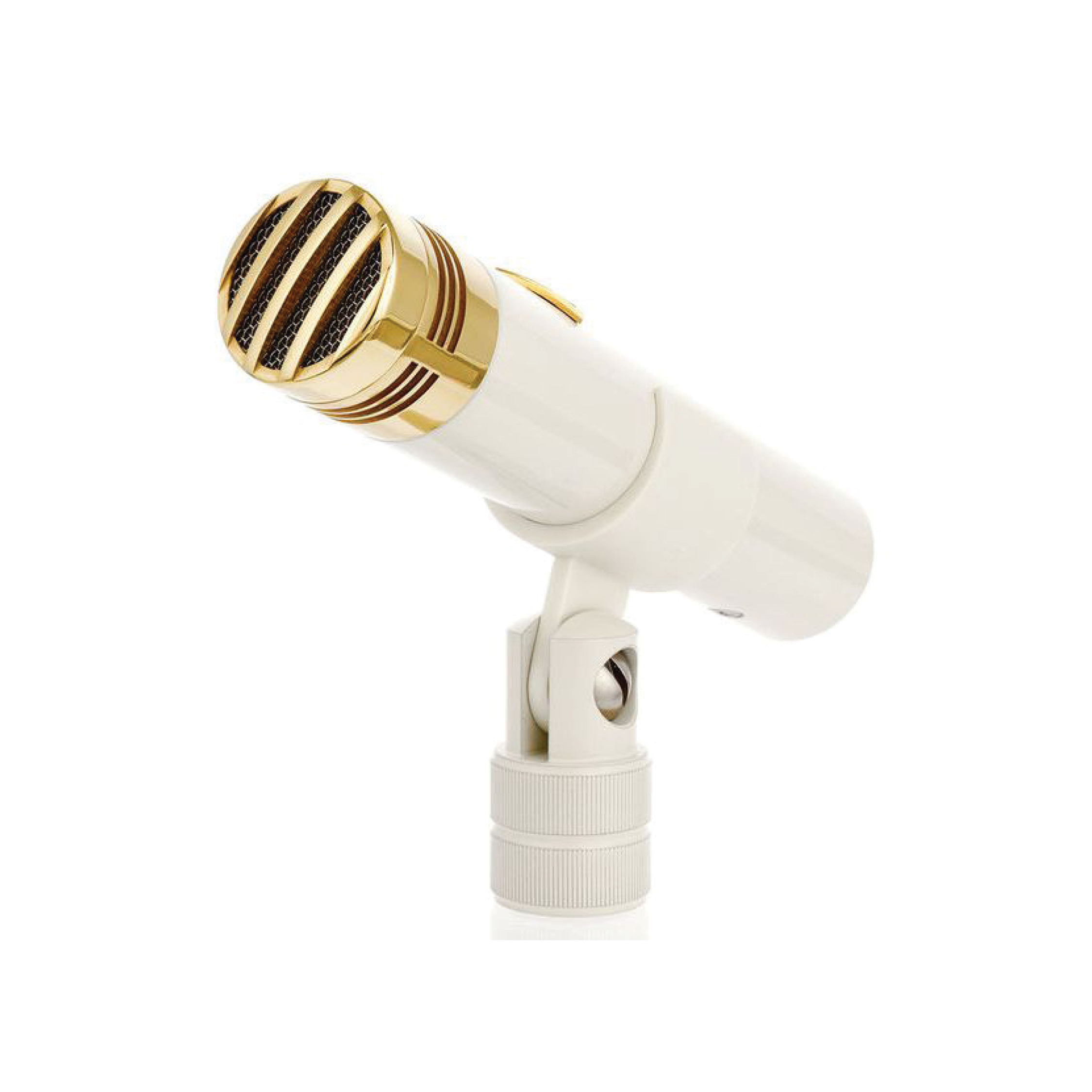

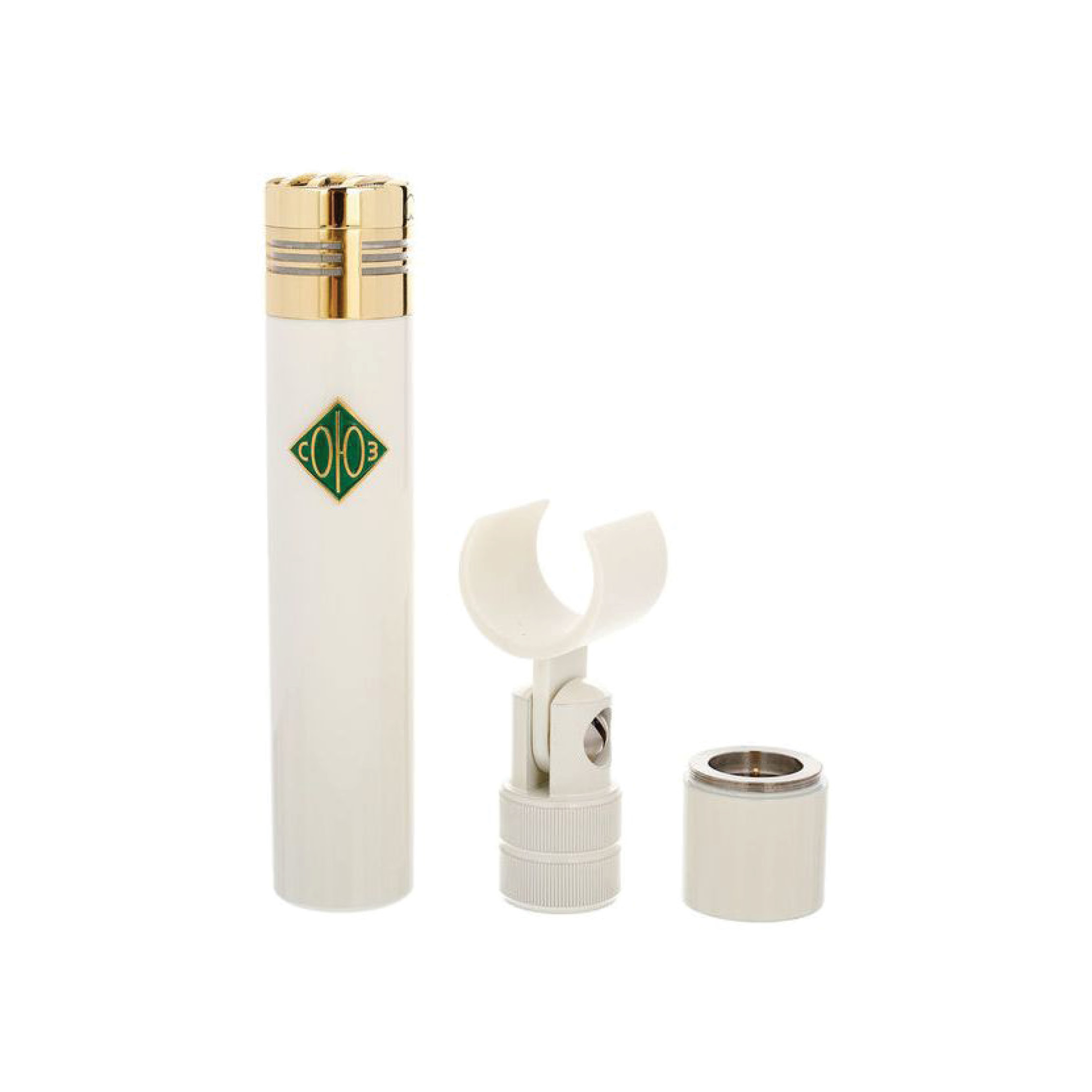

The cream/brass SU-013 Small-Diaphragm FET Microphone from Soyuz Microphones comes with a cardioid capsule and a 10 dB pad. The cardioid capsule can be detached and replaced with optional hypercardioid and omnidirectional capsules. The same capsules also work with the Soyuz SU-011 tube microphone, which offers a tube preamp instead of the FET preamp found on this model. The SU-013 features a custom toroidal transformer and offers low distortion.
Key Specs
Microphone Type: Small Diaphragm
Polar Pattern: Cardioid
Element Type: Condenser
Controls: No
Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 143 dB
Analog Output: 1x XLR 3-Pin
Power Sources: Phantom Power
Microphone
Microphone Type: Small Diaphragm
Polar Pattern: Cardioid
Element Type: Condenser
Sound Field: Mono
Orientation: End Address
Controls: No
Pad: -10 dB
Circuitry: Solid-State
Performance
Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 143 dB
Sensitivity: 20 mV/Pa
Equivalent Noise Level: 16 dB (A-Weighted)
Connectivity
Analog Output Connector: 1x XLR 3-Pin
Power
Power Sources: Phantom Power
Operating Voltage: 48 V
Physical
Color: White / Brass
Dimensions: ø: 0.98 x L: 4.8" / ø: 25 x L: 122 mm
Weight: 7.05 oz / 200 g
