SOYUZ 013 FET M (Pair)

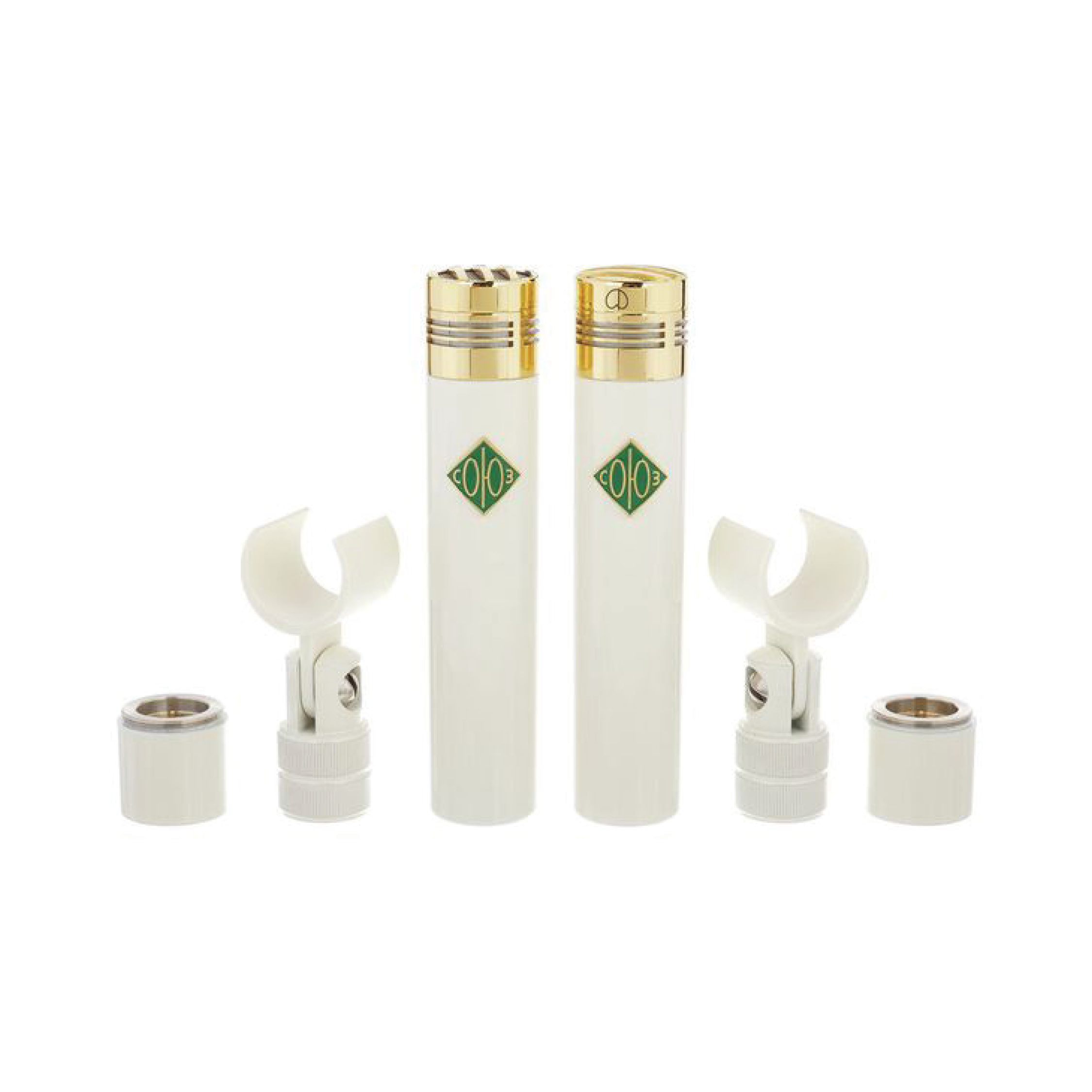

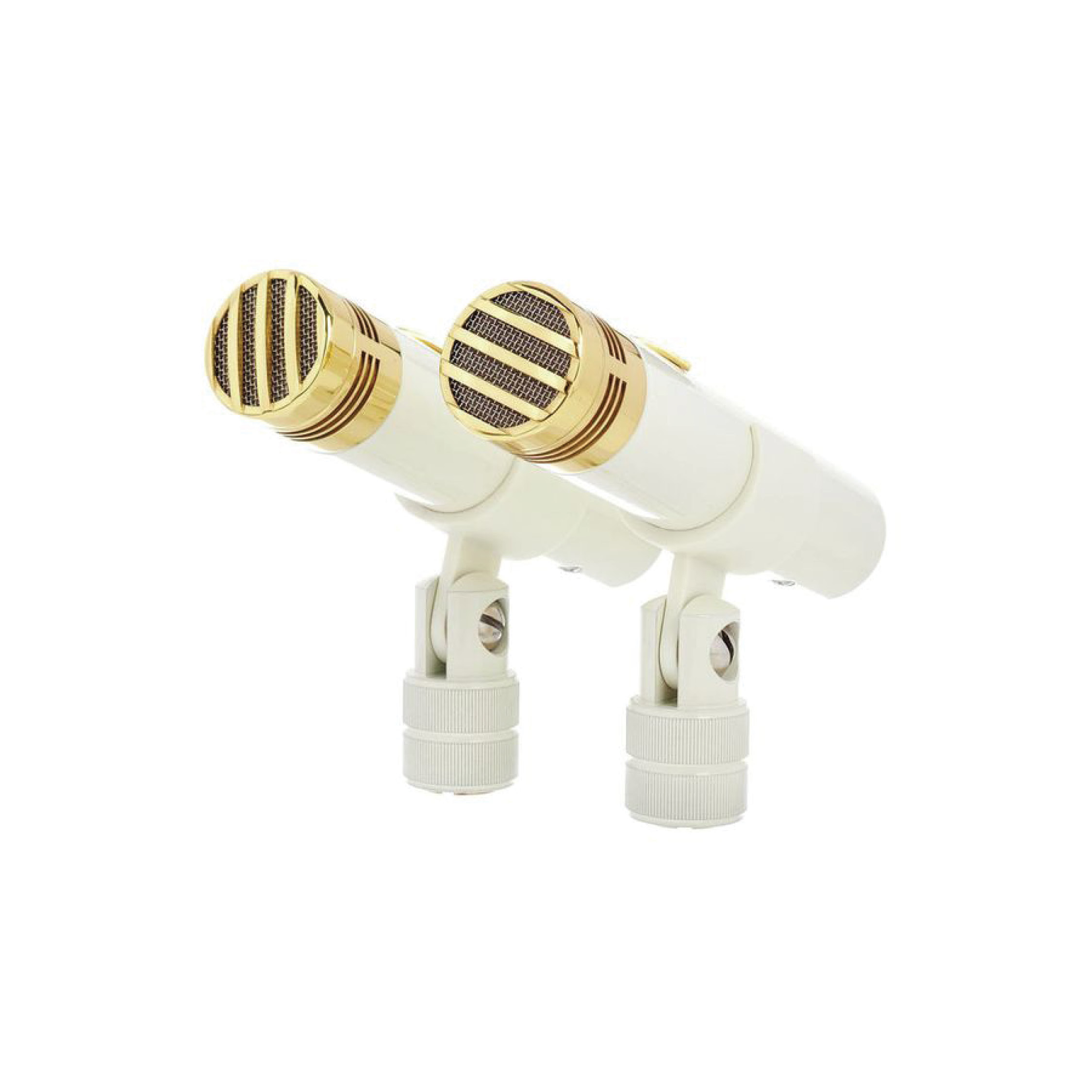

The cream/brass Matched Pair of SU-013 Small-Diaphragm FET Microphones from Soyuz Microphones comes with two cardioid capsules. The cardioid capsule can be detached and replaced with optional hypercardioid and omnidirectional capsules. These same capsules will also work with the Soyuz SU-011 mic which features a tube preamp instead of the FET preamp used on the SU-013. The SU-013 features a custom toroidal transformer and offers low distortion and an impedance of 150 Ohms.
Key Specs
Microphone Type: Small Diaphragm
Polar Pattern: Cardioid
Element Type: Condenser
Controls: No
Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 143 dB
Analog Output: 1x XLR 3-Pin
Power Sources: Phantom Power
Microphone
Microphone Type: Small Diaphragm
Polar Pattern: Cardioid
Element Type: Condenser
Sound Field: Stereo Pair / Mono / Dual-Mono
Orientation: End Address
Controls: No
Pad: -10 dB
Circuitry: Solid-State
Performance
Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 143 dB
Sensitivity: 20 mV/Pa
Equivalent Noise Level: 16 dB (A-Weighted)
Connectivity
Analog Output Connector: 1x XLR 3-Pin
Power
Power Sources: Phantom Power
Operating Voltage: 48 V
Physical
Color: White / Brass
Dimensions: ø: 0.98 x L: 4.8" / ø: 25 x L: 122 mm
Weight: 8.82 oz / 250 g
Packaging Info
Package Weight: 2.575 lb
Box Dimensions (LxWxH): 12.05 x 7.95 x 3"
