Neumann TLM 107 - Mikrofon sa velikom dijafragmom

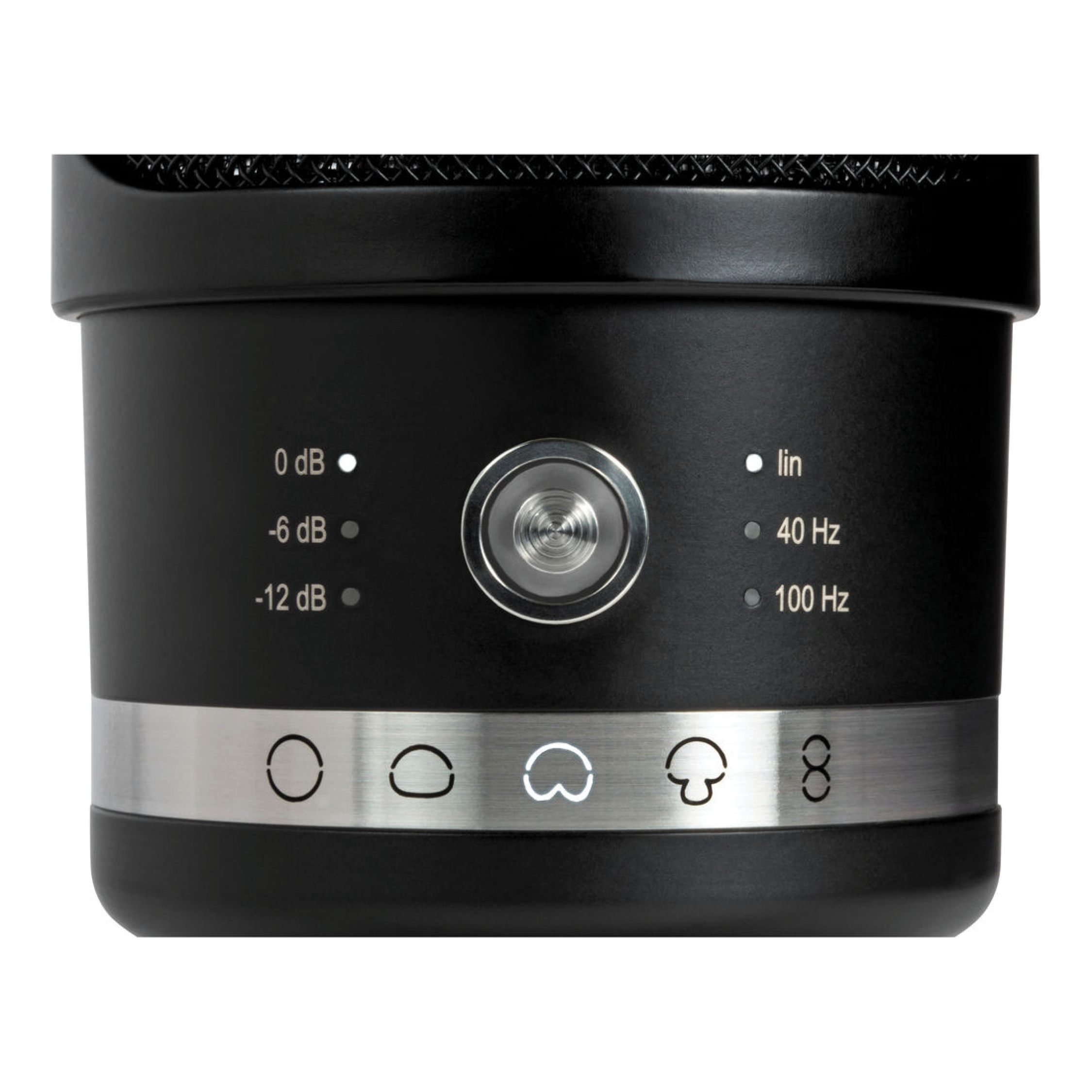

The TLM 107 is a reference class microphone for vocals and instruments with breathtaking realism. Five polar patterns plus variable pad and low cut settings make the TLM 107 exceptionally flexible. And with a dynamic range of 131 dB the TLM 107 captures anything from a slight whisper to massive drums without unwanted noise or distortion.
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Omni, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency Range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
Rated Impedance: 50 ohms
Rated load impedance: 1000 ohms
Equivalent noise level, CCIR¹⁾: 22 dB
Equivalent noise level, A-weighted¹⁾: 10 dB-A
Maximum SPL for THD 0.5%²⁾: 141 dB
Maximum SPL for THD < 0.5% with pre-attenuation -6 dB²⁾: 147 dB
Maximum SPL for THD < 0.5% with pre-attenuation -12 dB²⁾: 153 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾: 72 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾: 84 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3.2 mA
Matching connector: XLR 3 F
Weight: 445 g
Diameter: 64 mm
Length: 145 mm
