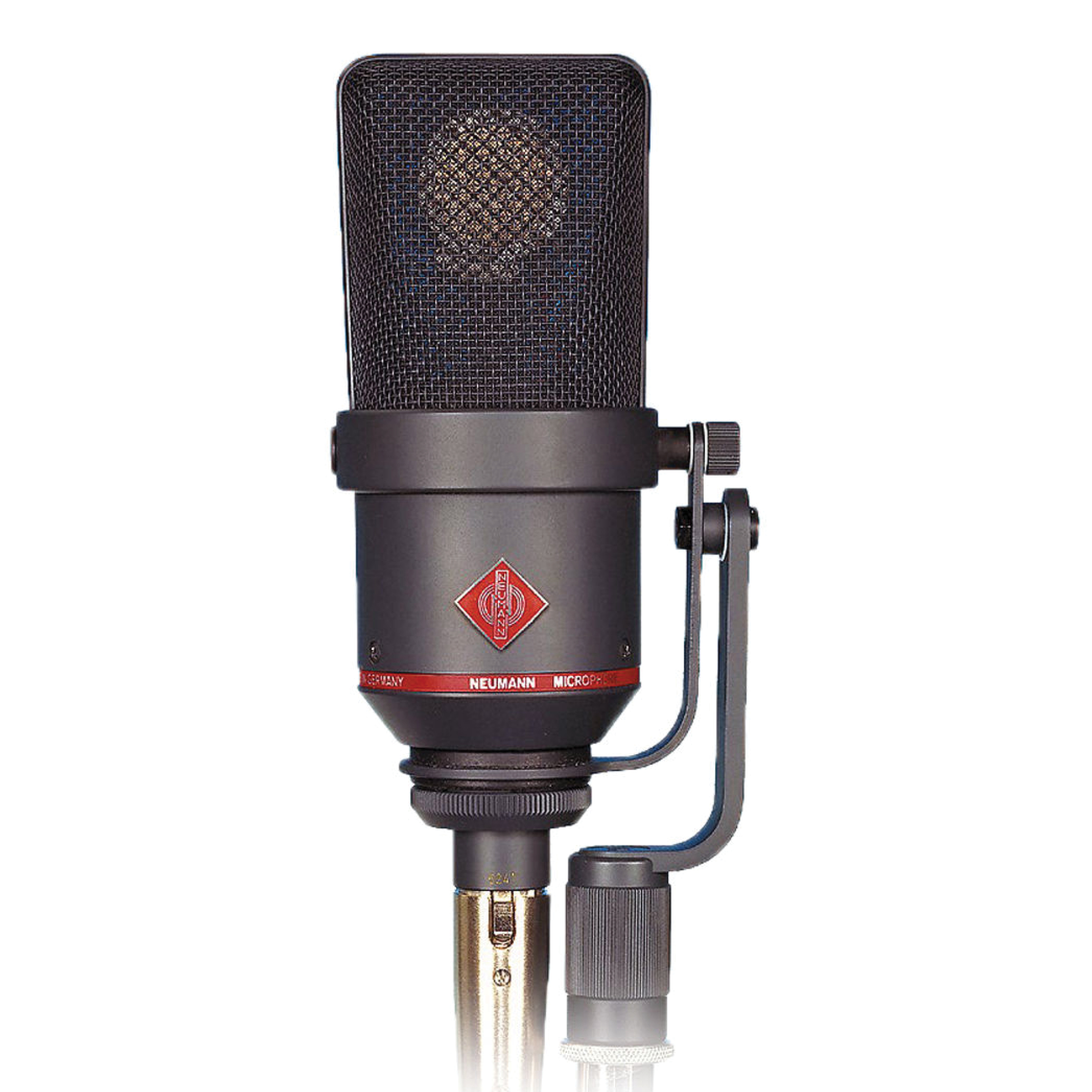

Neumann TLM 170 R - Mikrofon sa velikom dijafragmom
THE MODERN REFERENCE
The TLM 170 R is a truly universal microphone for even the most demanding recording situations. It combines technical excellence with the smoothness and flexibility of a large diaphragm capsule. The TLM 170 R offers an exceptionally even response in five directional patterns. The latter may be remote controlled via the optional N248 PSU.
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
Frequency Range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 8 mV/Pa ± 1 dB
Rated Impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR¹⁾: 26 dB
Equivalent noise level, A-weighted¹⁾: 14 dB-A
Maximum SPL for THD 0.5%²⁾: 144 dB
Maximum SPL for THD 0.5% with preattenuation²⁾: 154 dB
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾: 68 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾: 80 dB
Maximum output voltage: 10 dBu
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 3 mA
Matching connector: XLR 3 F
Weight: 625 g
Diameter: 60 mm
Length: 152 mm
