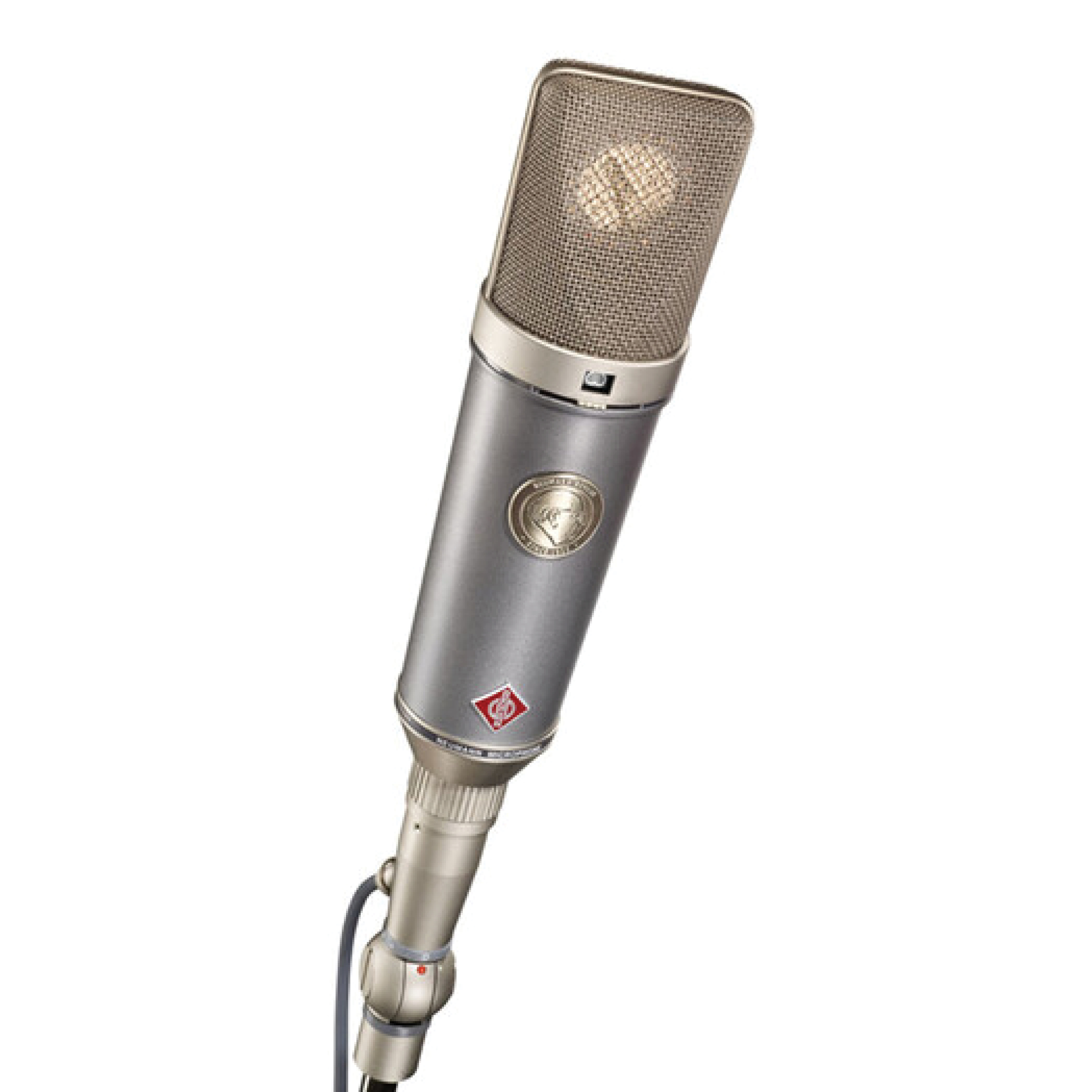

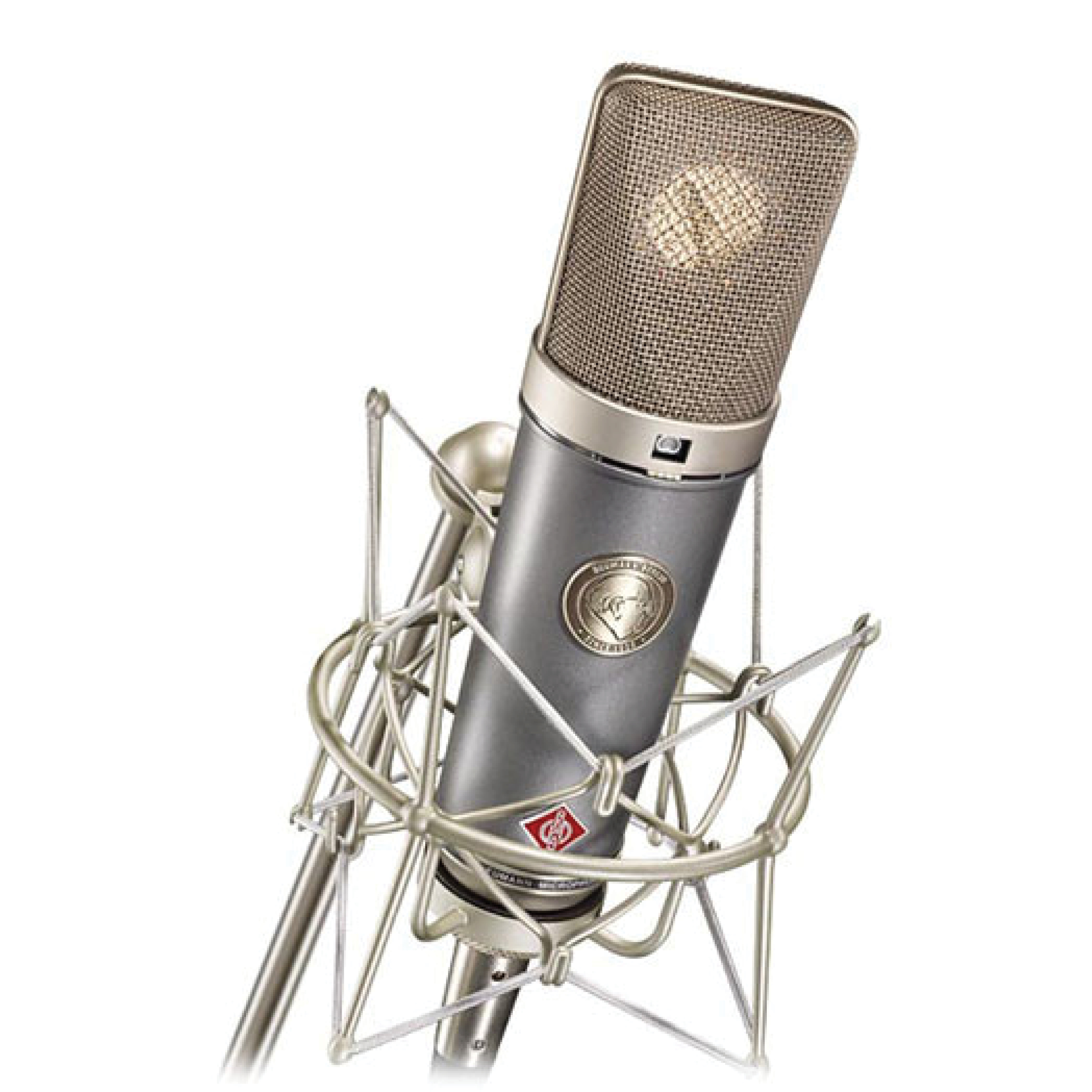

Neumann TLM 67 - Mikrofon sa velikom dijafragmom
THE SOUND OF THE 1960S REINVENTED
The TLM 67 captures the spirit of Neumann’s classic U 67, which defined the sound of the 1960s. But instead of electron tubes the TLM 67 relies on trouble free FET electronics with a special sound design for a gorgeous retro tone. Like its predecessor, the TLM 67 is a versatile studio workhorse with three polar patterns, pad and low cut options.
Acoustical operating principle: Pressure gradient transducer
Frequency Range: 20 Hz ... 20 kHz
Directional Pattern: Omni/cardioid/figure-8
Sensitivity at 1 kHz into 1 kohm: 10/18/9 mV/Pa (Omni/cardioid/8)
Rated Impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR¹⁾: 29/24/30 dB (Omni/cardioid/8)
Equivalent noise level, A-weighted¹⁾: 16/11/17 dB-A (Omni/cardioid/8)
Typical SPL (tube characteristic) for K<0.5%²⁾: 110/105/111 dB (Omni/cardioid/8)
Typical SPL (tube characteristic) for K<5%²⁾: 130/125/131 dB (Omni/cardioid/8)
Signal-to-noise ratio, CCIR (re. 94 dB SPL)¹⁾: 65/70/64 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL)¹⁾: 78/83/77 dB-A
Maximum output voltage: -1 dBu
Supply voltage (P48, IEC 61938): P48
Current consumption (P48, IEC 61938): 3 mA
Matching connector: XLR 3 F
Weight: 490 g
Diameter: 56 mm
Length: 200 mm
Opis nije dostupan
