SOYUZ 017 TUBE

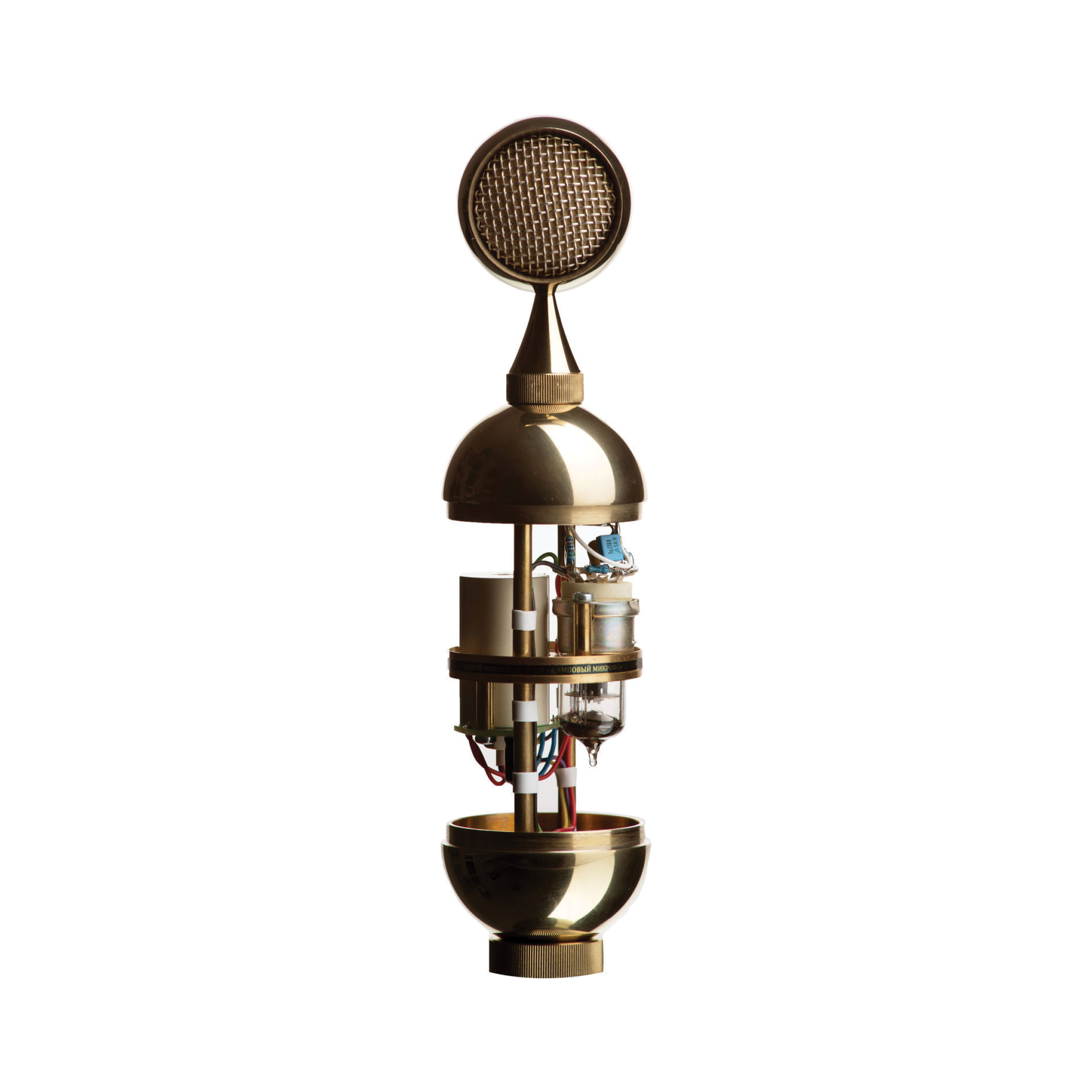

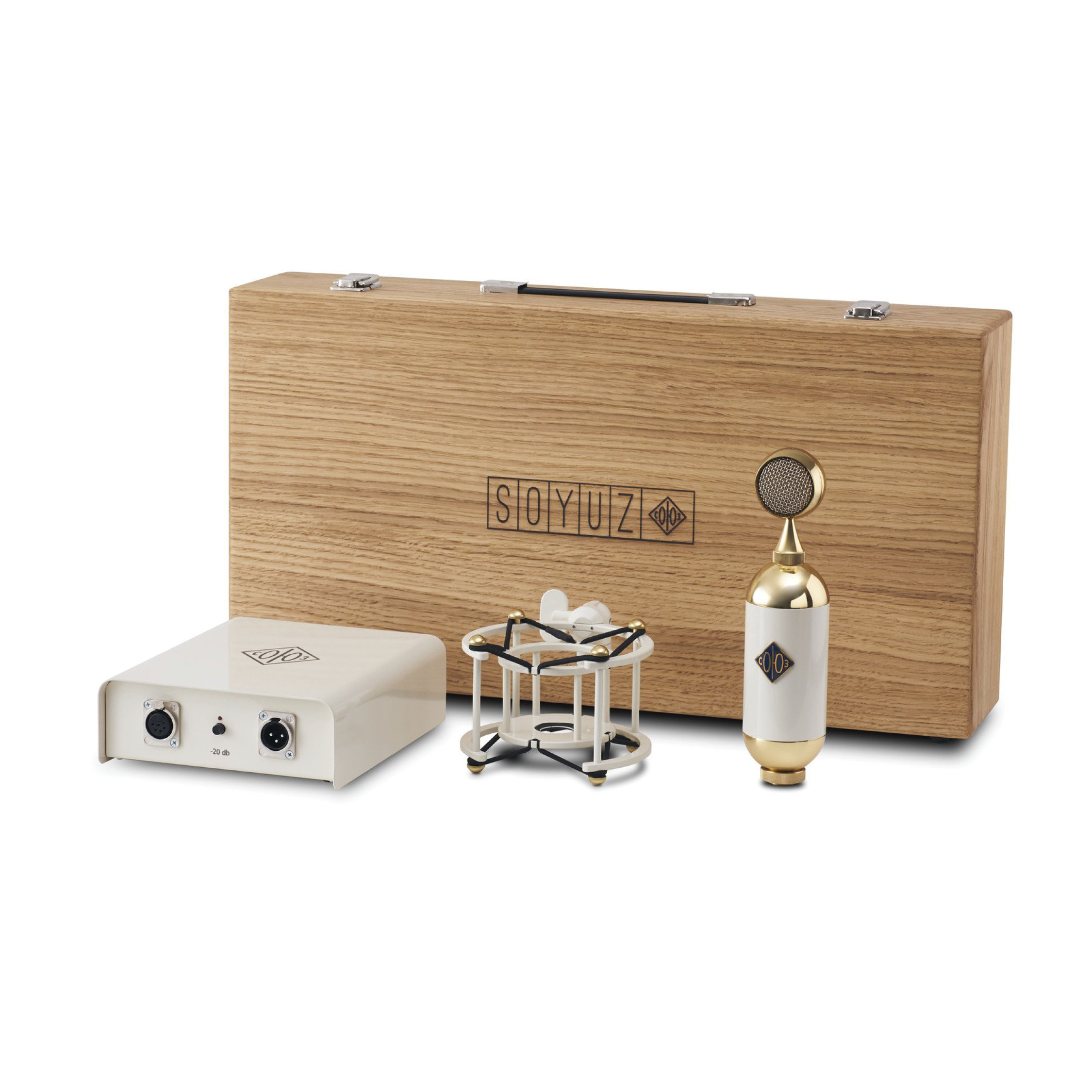

Handmade in small batches in Russia, the SU-017 Large-Diaphragm Tube Condenser Microphone from Soyuz Microphones is designed to provide warm, vintage-style sound for a variety of critical recording applications, ranging from vocals to orchestral instruments. It has a cardioid capsule that can be swapped out with optional capsules to change its polar pattern. Omnidirectional and figure 8 capsules are available separately. A dedicated power supply, 6-pin cable, shockmount, and wooden mic box are all included.
Microphone
Microphone Type: Large Diaphragm / Tube
Polar Pattern: Cardioid
Element Type: Condenser
Sound Field: Mono
Diaphragm: 1" / 25.4 mm
Orientation: Side Address
Controls: On/Off
Circuitry: Tube
Performance
Frequency Response: 20 Hz to 20 kHz
Maximum SPL: 120 dB
Sensitivity: 16 mV/Pa
Equivalent Noise Level: 20 dB (A-Weighted)
Connectivity
Analog Output Connector: 1x XLR 3-Pin Male
Power
Power Sources: External PSU
Operating Voltage: AC Input
Physical
Color: White / Gold
Dimensions: ø: 2.17 x L: 8.9" / ø: 55 x L: 226.06 mm
Weight: 2.09 lb / 950 g
Packaging Info
Package Weight: 12.5 lb
Box Dimensions (LxWxH): 22.7 x 13.4 x 5.8"
