SOYUZ 023 BOMBLET

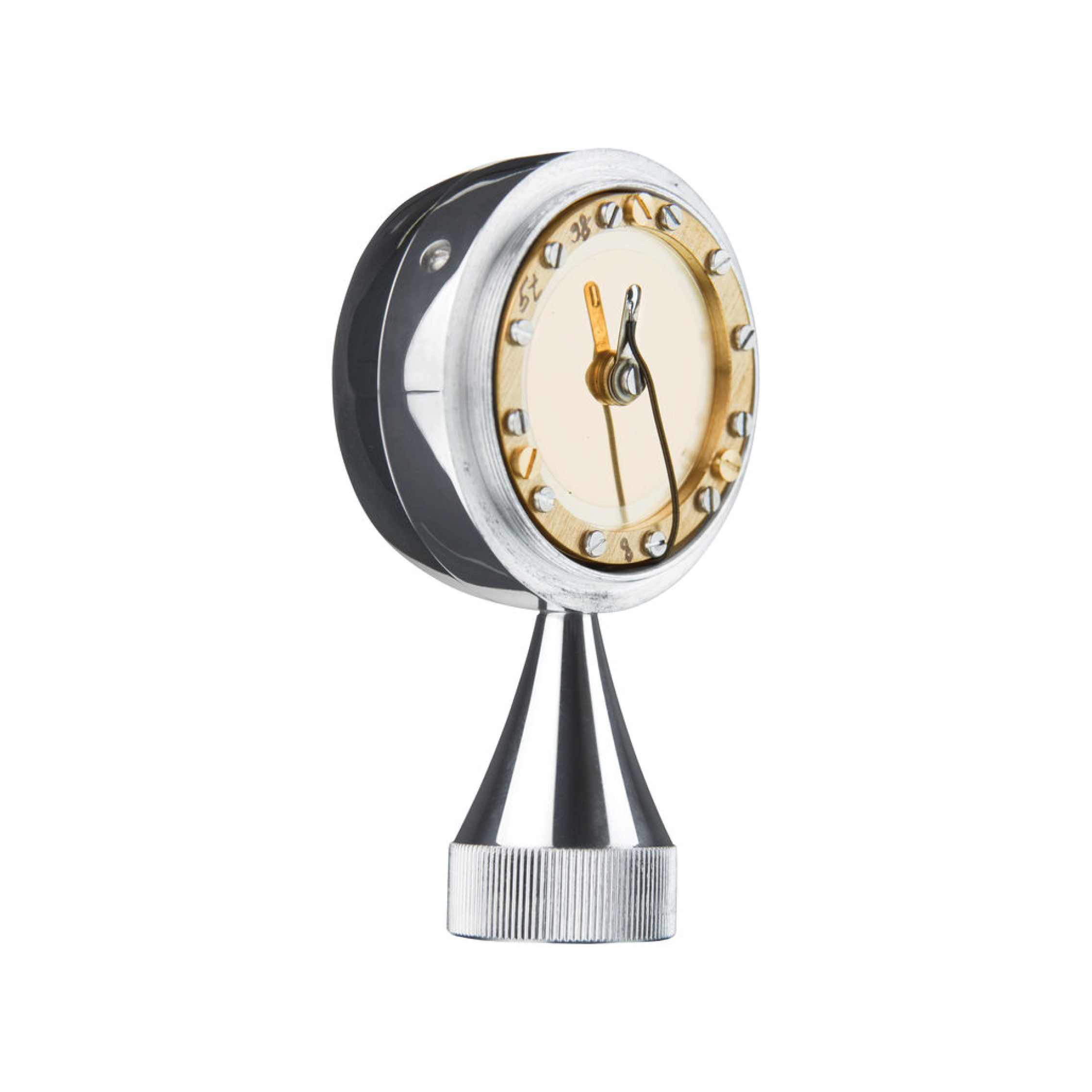

The silver Soyuz 023 , dubbed "The Bomblet," is a large-diaphragm condenser microphone designed for recording applications. It's suitable for vocals, guitars, pianos, and more. Based on soviet-era technology, the microphone offers a cardioid polar pickup pattern by means of its dual 1.3" capsules, one of which features gold sputtering.

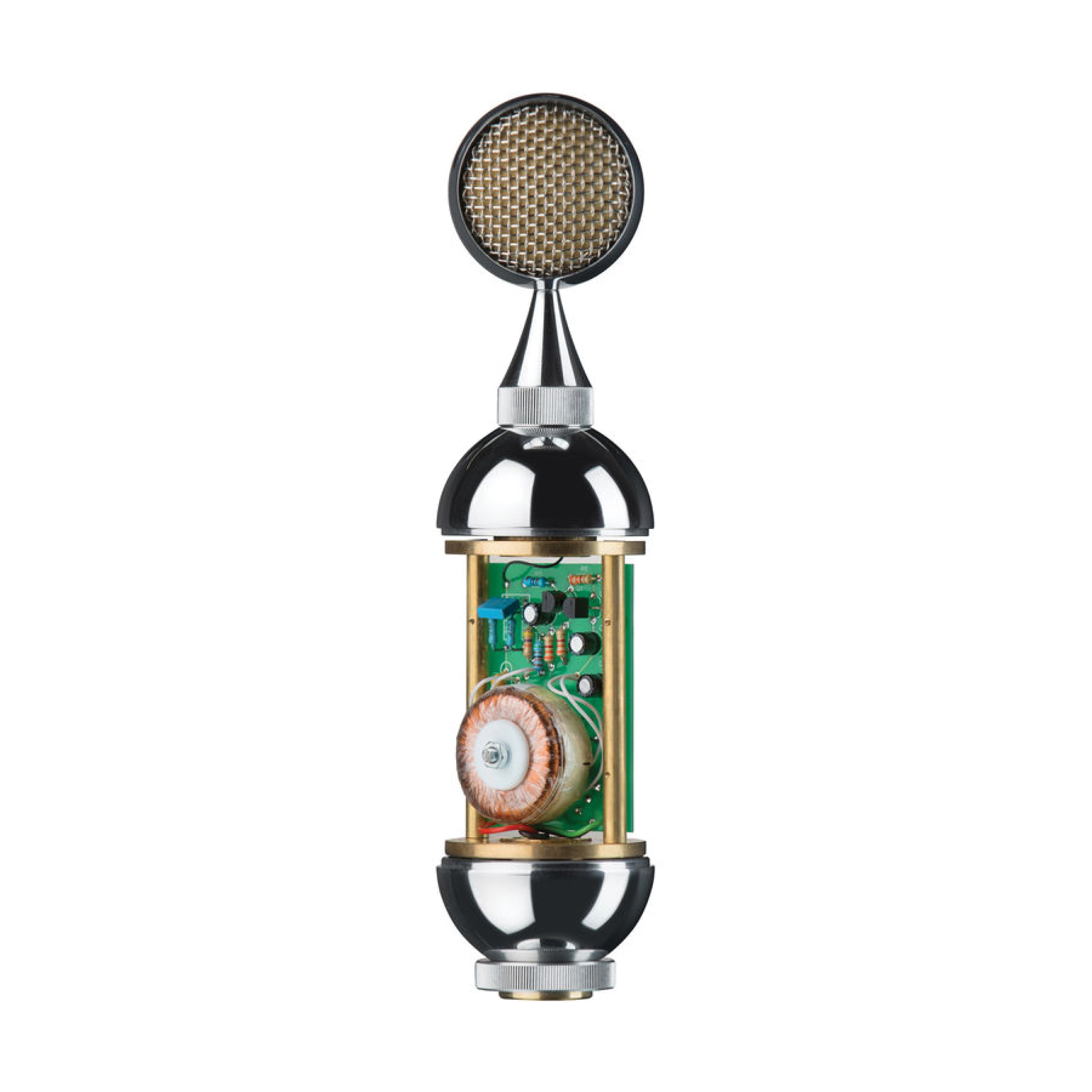

A proprietary toroidal transformer helps ensure a pristine tone, with a sweet frequency boost at around 10 kHz. The microphone sports a 30 Hz to 18 kHz frequency range. Rather than a pad switch, the 023 uses an external attenuator block to secure a -20 dB pad, if need be.
Microphone
Microphone Type: Large Diaphragm
Polar Pattern: Cardioid
Element Type: Condenser
Sound Field: Mono
Diaphragm:
• 1.3" / 33 mm
• 1.3" / 33 mm
Orientation: Side Address
Controls: Pad
Pad: -20 dB
Circuitry: Solid-State
Performance
Frequency Response: 30 Hz to 18 kHz
Maximum SPL: 140 dB
Sensitivity: 10 mV/Pa
Connectivity
Analog Output Connector: 1x XLR 3-Pin Male
Power
Power Sources: Phantom Power
Operating Voltage: 48 V (Phantom Power)
Physical
Color: Silver
Mounting Thread Size: 5/8"-27 Female
Dimensions: ø: 1.85 x L: 7.64" / ø: 46.9 x L: 194 mm
Weight: 1.12 lb / 510 g
Packaging Info
Package Weight: 2.9 lb
Box Dimensions (LxWxH): 10.1 x 5.7 x 3.4"
