BAREFOOT FOOTPRINT 03 - Aktivni studijski monitor

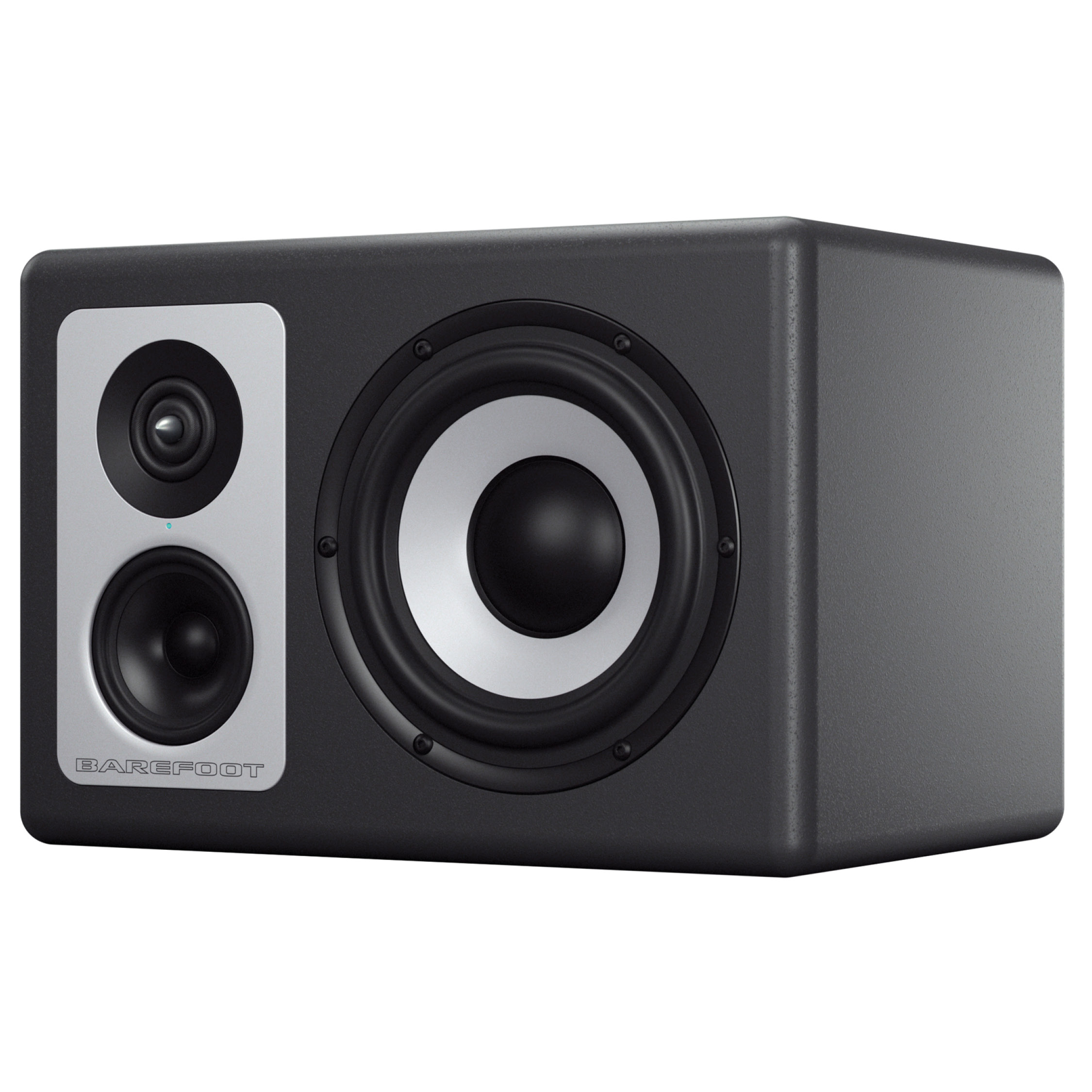

A TRUE 3-WAY ACTIVE PORTED DESIGN MONITOR EVOLVES BAREFOOT SOUND'S FOOTPRINT SERIES
The saga continues as Barefoot Sound introduces the latest edition of the highly acclaimed Footprint series. Say hello to the Footprint03 – this tri-amplified 3-way studio monitor maintains the exceptional audio quality and design characteristics of its predecessors, the Footprint01 and Footprint02, all while offering a more compact design and an affordable price. Departing from the traditional sealed cabinet design, the Footprint03 embraces a fast transient ported speaker design, achieving remarkable low-end extension while upholding Barefoot’s renowned standards in cabinet construction. The cabinet’s Footprint Gray polyester coating, stress assembly techniques, and substantial weight contribute to stability and damping, combatting potential vibrations for an unparalleled listening experience.
Description: Tri-amplified 3-way studio monitor with MEME™ Technology

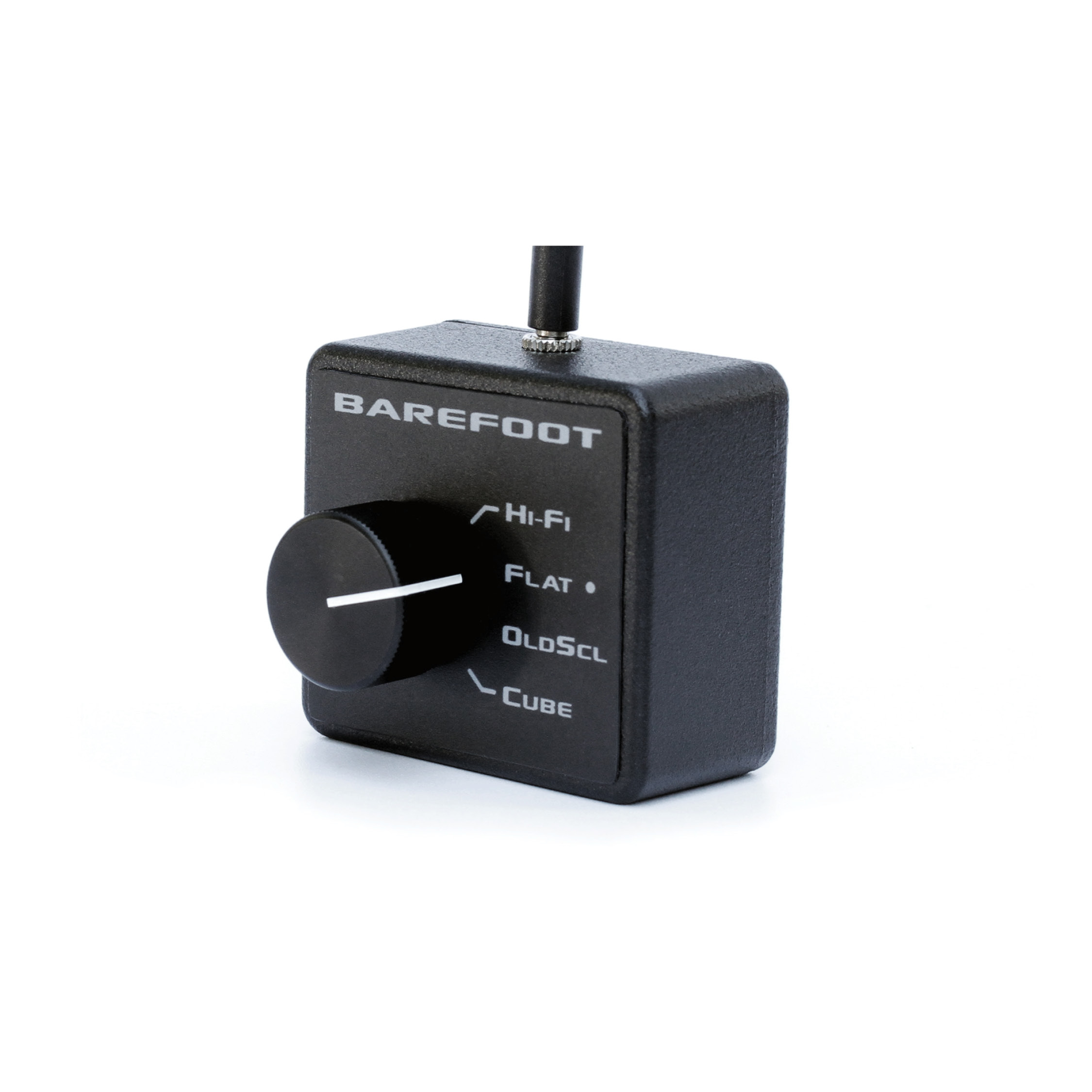

Controls: Input level stepped attenuator, MEME™ voice select

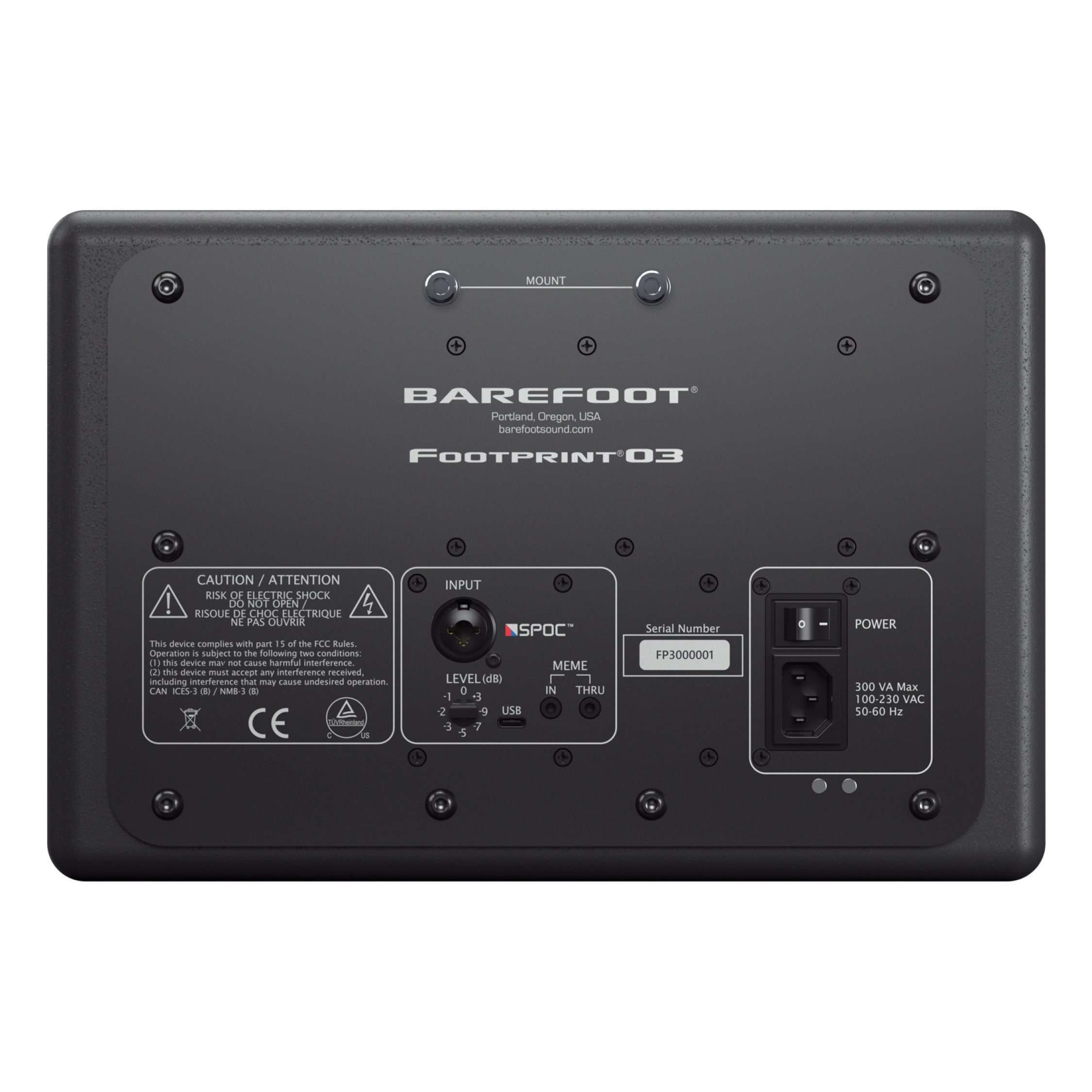

Analog Input:
XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative
TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
Input Impedance = 20k Ohms
Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital Conversion:
Word Length: 28-bit (56-bit High Precision)
Sample Rate: 96 kHz
Signal/Noise ≥ 100 dB
Frequency Response: 45 Hz–40 kHz (+/-3 dB), 50 Hz–22 kHz (+/- 1 dB )
Bass Response:
-3 dB @ 46 Hz
Q = 0.707 Slope = 18 dB/octave
MAX SPL: Continuous 101 dB
Cabinet:
10.5 liters total internal volume
Solid aluminum baffle plate
Polyurethane acoustic damping throughout
Crossover Frequencies: 400 / 3900 Hz (Active crossover between drivers)
Tweeter: 1″ ring radiator, low distortion motor, rear waveguide chamber. Amplifier: 60W
Midrange: 3.5″ aluminum cone, Low distortion motor +/- 3.5 mm linear excursion Amplifier: 100W
Woofers: 6.5″ aluminum cone with low distortion motor +/- 9.5 mm linear excursion. Amplifier: 100W
HF Amplifier: 60W
MF Amplifier: 100W
LF Amplifier: 100W
Power:
Mains Voltage Input: 85 VAC to 265 VAC universal
Idle Power Consumption = 12W
Maximum Power Consumption = 340W
Weight: Speaker: 17.9 lbs each (8.1 kg)
Dimensions HxWxD: 9″ x 13.25″ x 9.25″ (229 x 337 x 235 mm)
