BAREFOOT FOOTPRINT 03C
TRI-AMPLIFIED 3-WAY ACTIVE MONITOR
The Footprint® 03C active monitor is designed to complement the Footprint® 03 right and left channel monitors, delivering unmatched precision essential for accurate mixes in surround sound and immersive environments. Built on the proven legacy of the acclaimed Footprint® 03 tri-amplified 3-way design, the Footprint® 03C ensures seamless tonal consistency when paired with the Footprint03, forming a fully integrated and cohesive monitoring system that elevates any professional setup.
Description: Tri-amplified 3-way Monitor

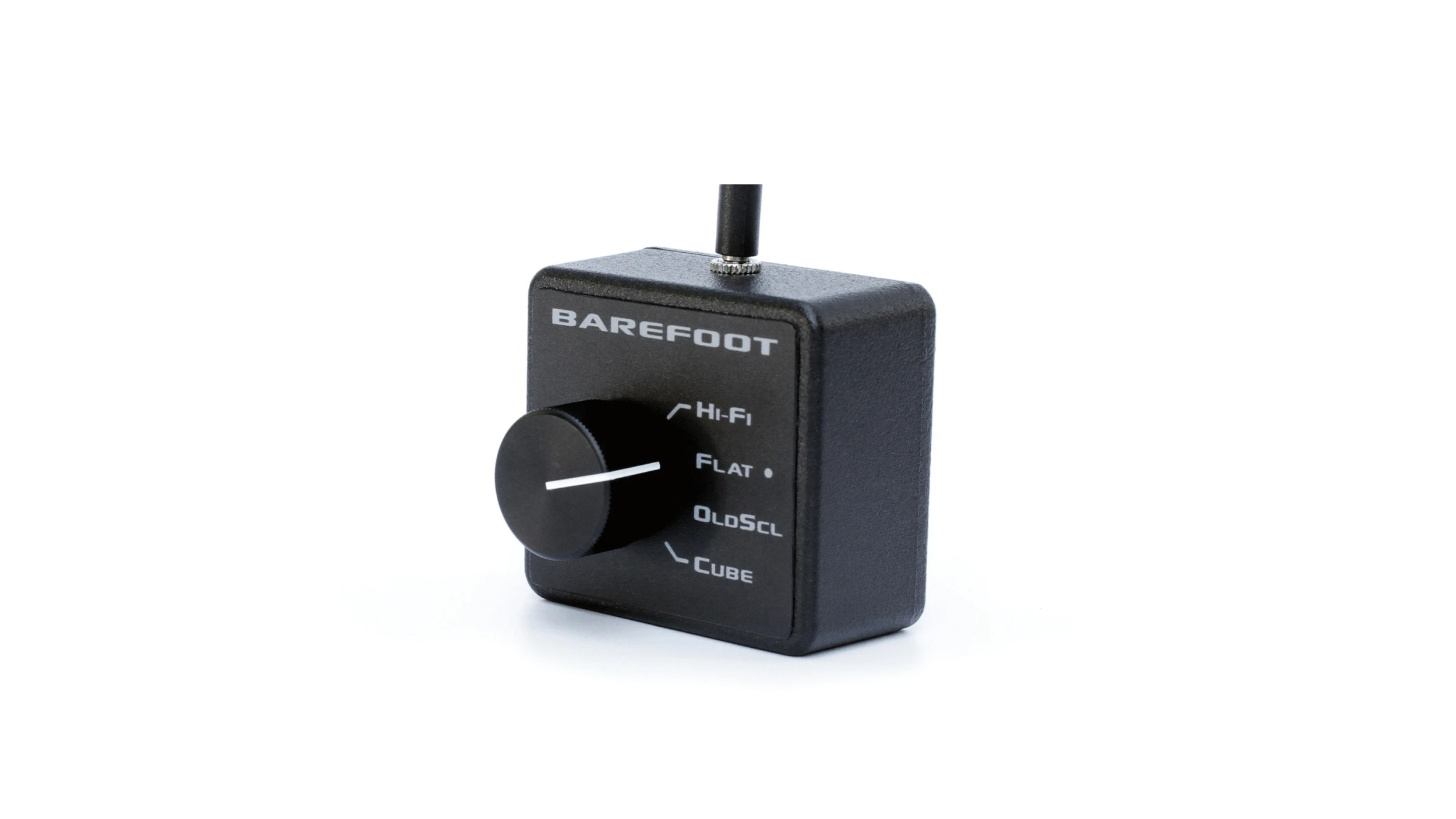

Controls: Input level stepped attenuator, MEME™ voice select

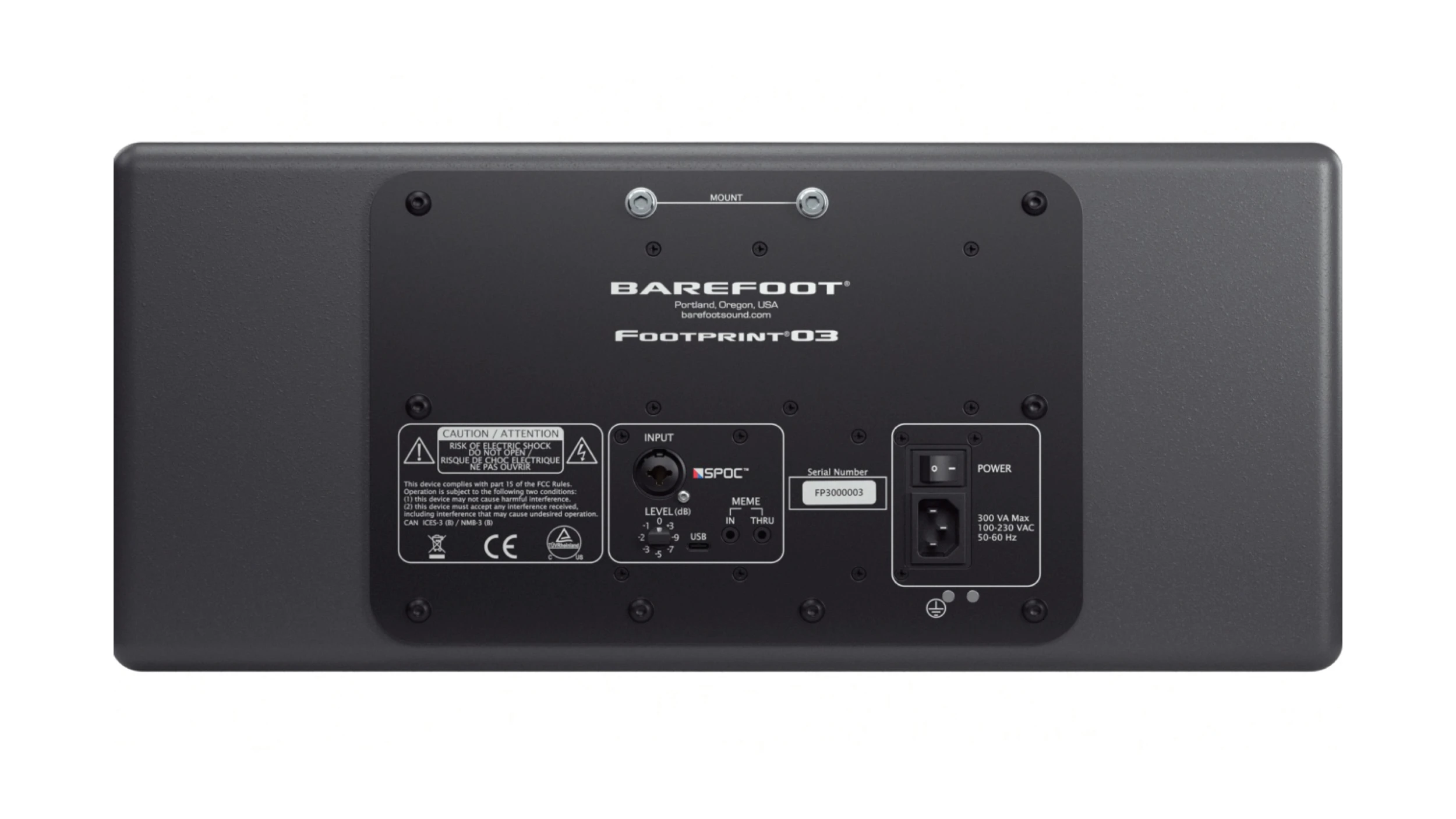

Analog Input: XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
Input Impedance = 20k Ohms
Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital Conversion: Word Length: 28-bit (56-bit High Precision)
Sample Rate:
96 kHz
Signal/Noise ≥ 100 dB
Frequency Response: 42 Hz–40 kHz (+/-3 dB), 48 Hz–22 kHz (+/- 1 dB )
Bass Response: -3 dB @ 42 Hz Q = 0.707 Slope = 24 dB/octave asymptotic
MAX SPL: Continuous 104.5 dB
Cabinet:
10.8 liters total internal volume
Solid aluminum baffle plate
Polyurethane acoustic damping throughout
Crossover Frequencies: 400 / 3900 Hz (Active crossover between drivers)
Tweeter: 1″ ring radiator, low distortion motor, rear waveguide chamber. Amplifier: 60W
Midrange: 3.5″ aluminum cone, Low distortion motor +/- 3.5 mm linear excursion Amplifier: 100W
Woofers: 6.5″ aluminum cone with low distortion motor +/- 9.5 mm linear excursion. Amplifier: 100W
HF Amplifier: 60W
MF Amplifier: 100W
LF Amplifier: 100W
Power:
Mains Voltage Input: 85 VAC to 265 VAC universal
Idle Power Consumption = 12W
Maximum Power Consumption = 340W
Weight: Speaker: 33 lbs each (15 kg), Shipping: 40.3 lbs each (18.3 kg)
Dimensions HxWxD: 20″ x 7.25″ x 9″ (50.8 x 18.4 x 22.9 mm)
