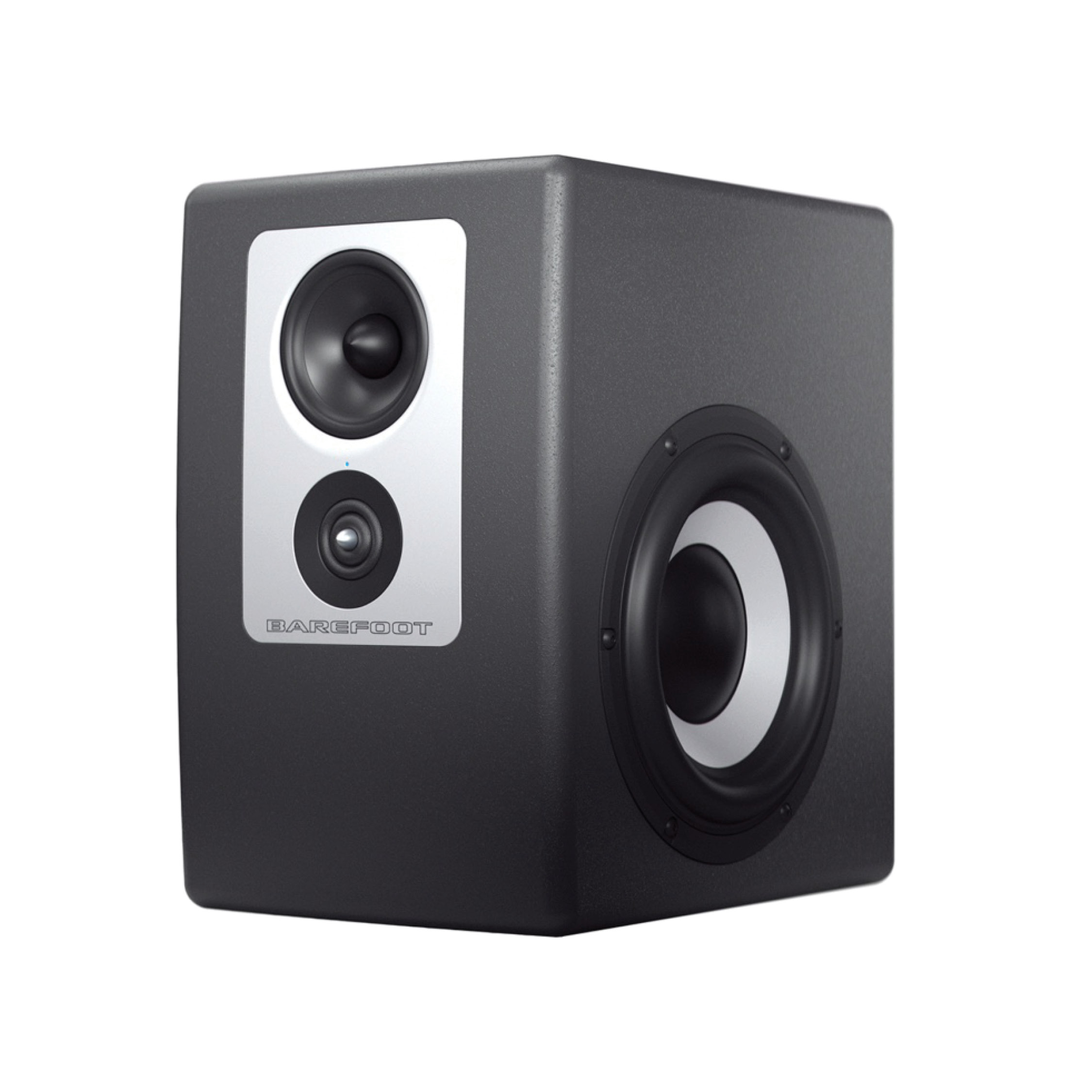

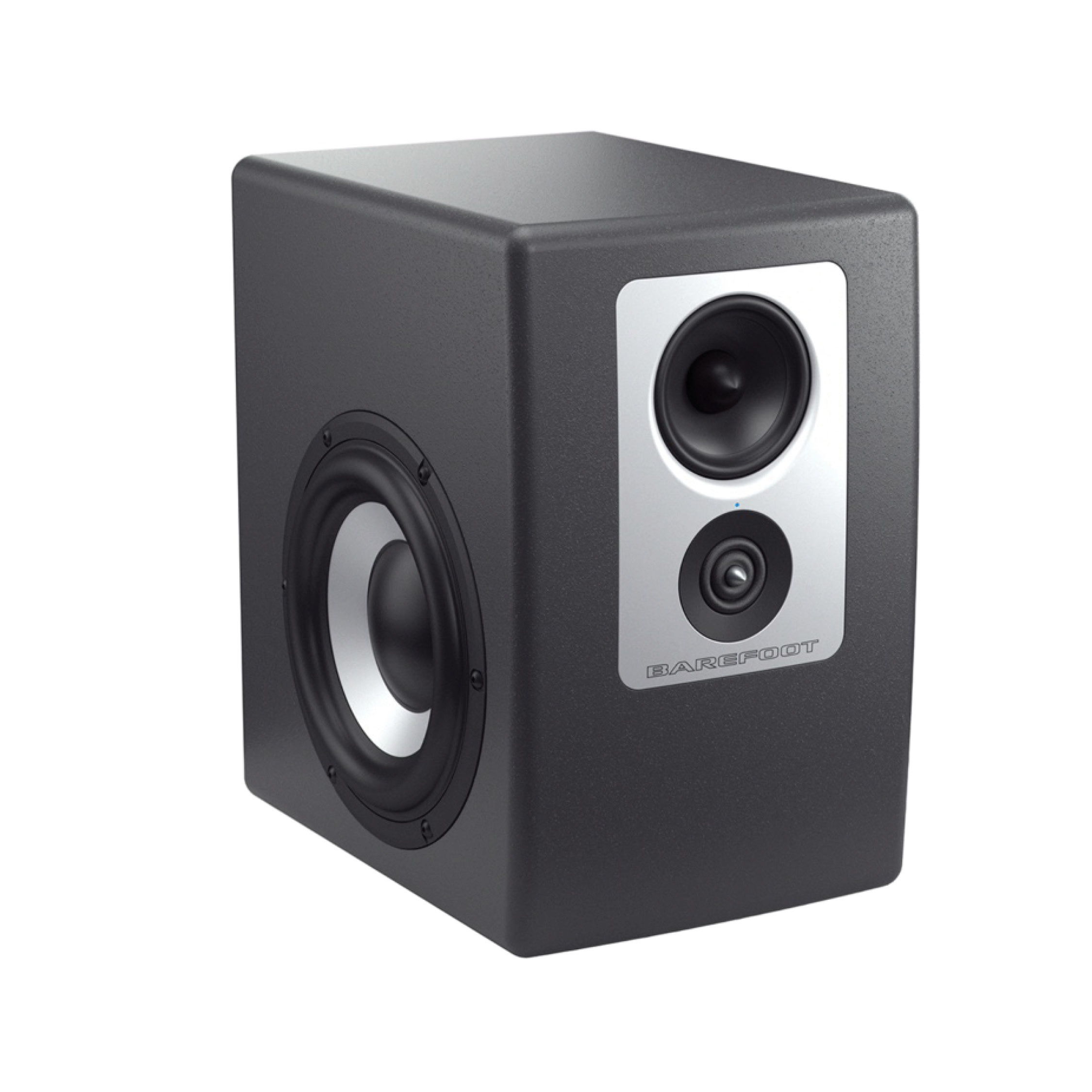

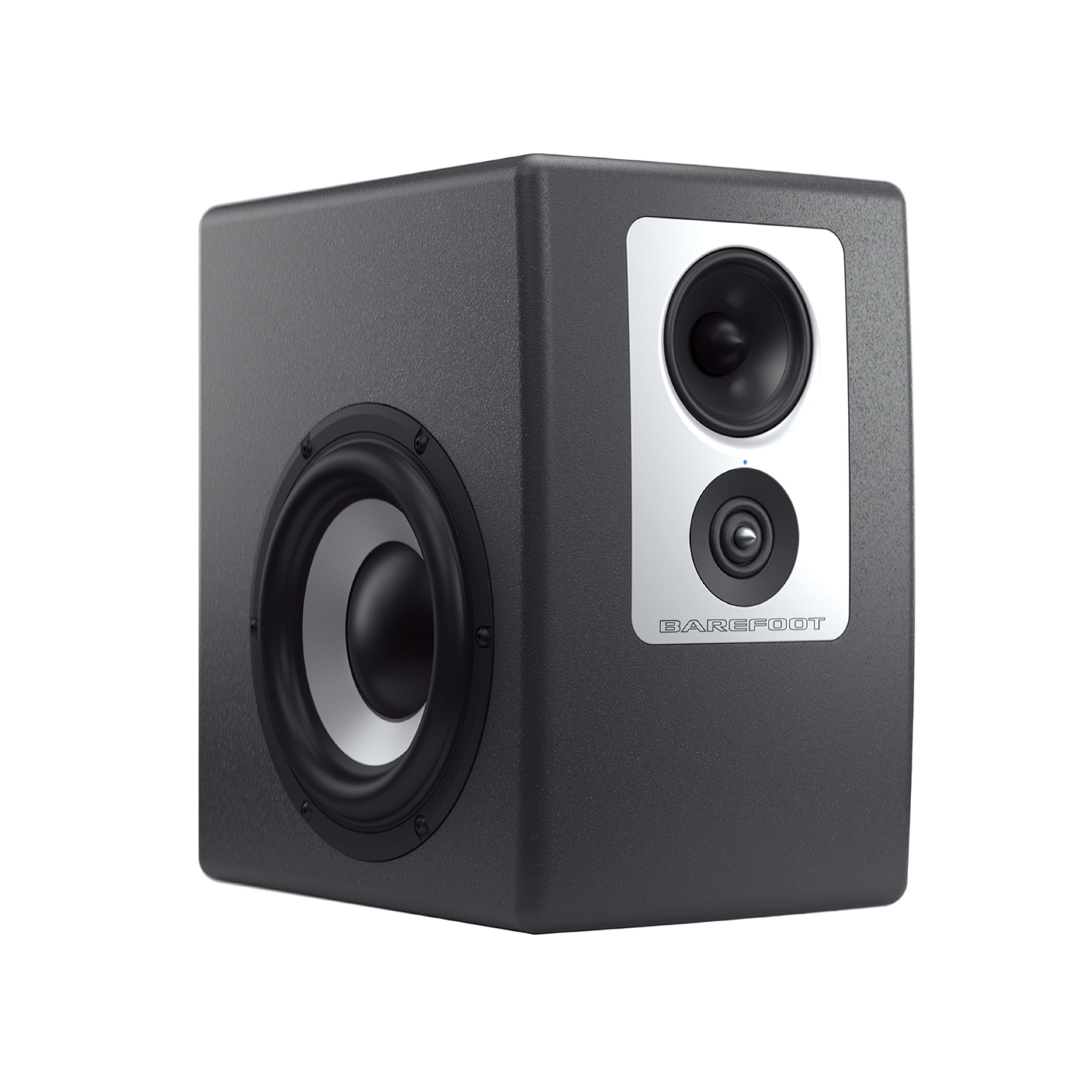

BAREFOOT Footprint01 GEN2
8-INCH DUAL-FORCE TRI-AMPLIFIED 3-WAY ACTIVE MONITOR
The Footprint®01 Gen2 is a complete reinvention of one of Barefoot Sound’s most acclaimed monitors, redesigned from the ground up to deliver even greater precision, power, and transparency. While the original Footprint®01 set a high standard for compact professional monitors, the Gen2 surpasses it in every meaningful way, both technically and sonically. This next generation model introduces a fully tri-amplified 3-way architecture, providing dedicated Class D amplification for each driver to ensure optimal performance, headroom, and efficiency across the frequency spectrum.

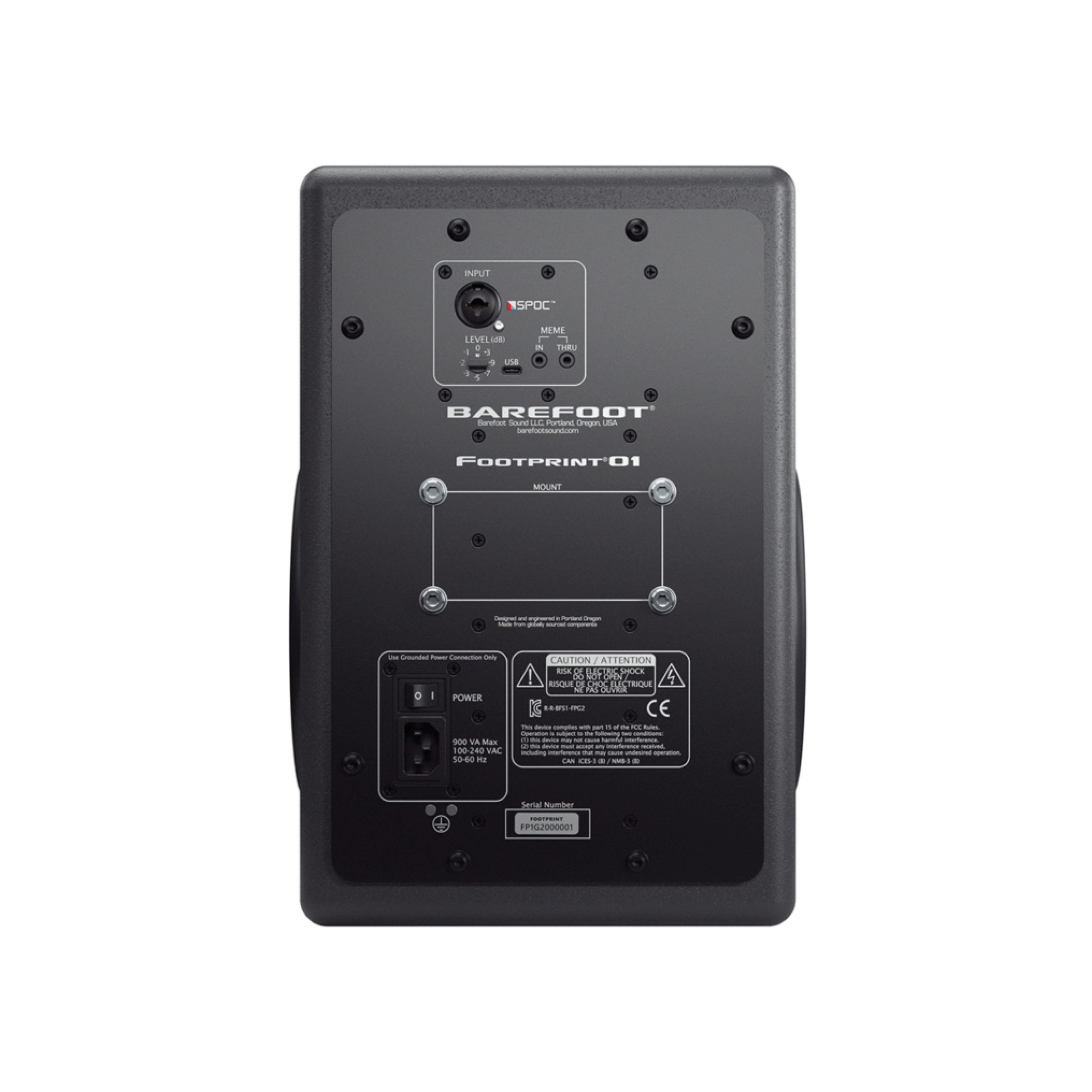

Analog Input: XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative
TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
Input Impedance = 20k Ohms
Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital
Conversion:
Word Length: 24-bit (56-bit High Precision)
Sample Rate: 96 kHz
Signal/Noise ≥ 100 dB
Frequency Response: 36Hz – 40kHz (±3dB), 39Hz – 30kHz (±1dB)
Bass Response: -3 dB @ 36 Hz,
Q = 0.762, Slope = 18 dB/octave asymptotic
MAX SPL: ≥113 dB
Cabinet: 12.8 liters total internal volume,
compound radius baffle, tensioned extra thick
machined aluminum faceplate
Crossover Frequencies: 170 / 3600 Hz (Active crossover between drivers)
Tweeter: 1” dual-ring radiator, high magnetic flux motor,
rear waveguide chamber Amplifier: 60W
Midrange: 5” Aluminum cone, high magnetic flux motor
Amplifier: 150W

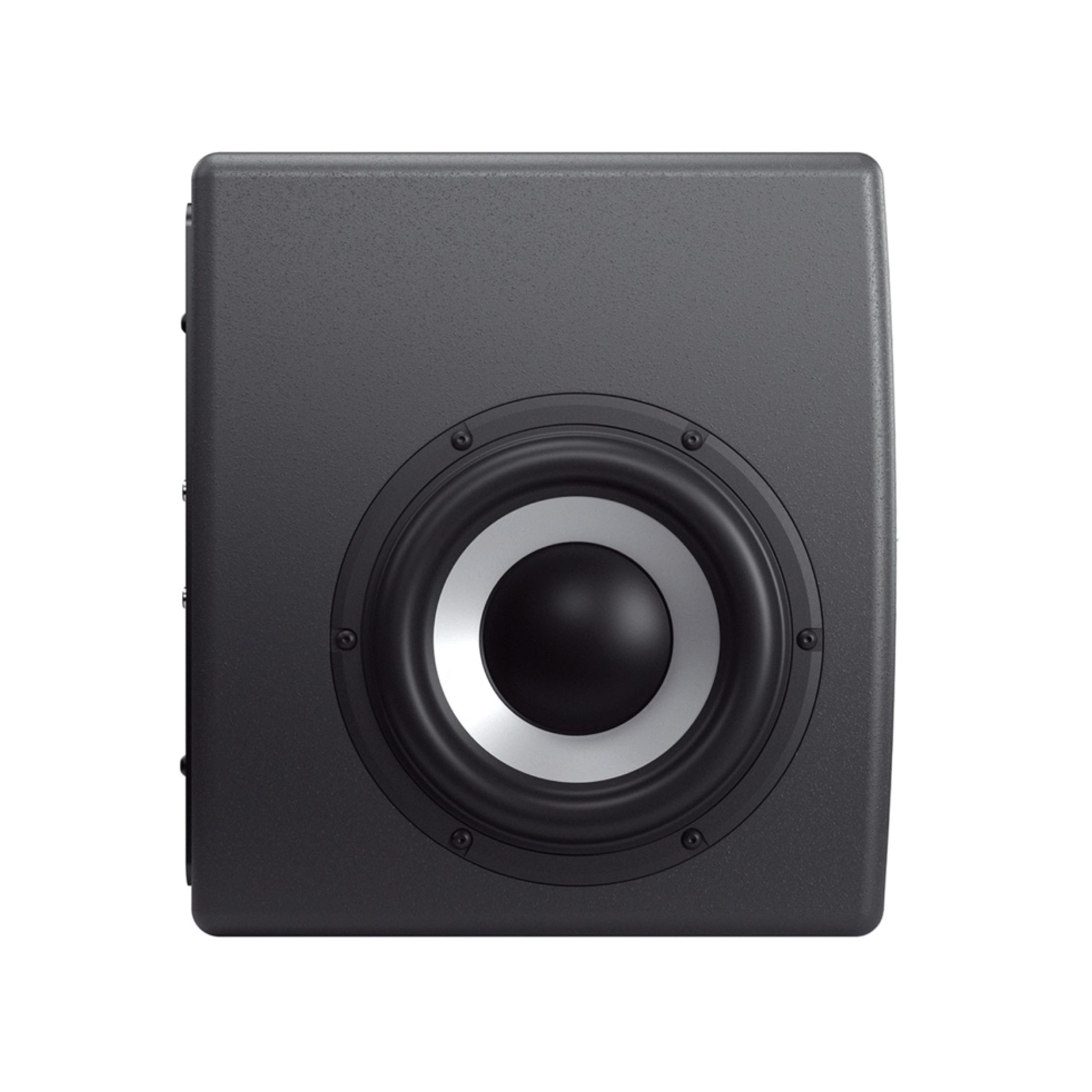

Woofers Dual-Force 8” aluminum cone high magnetic flux motors
+/- 9.5 mm linear excursion. Amplifier: 500W
Power: Mains Voltage Input: 85 VAC to 265 VAC universal
Idle Power Consumption = 12 W
Maximum Power Consumption = 1000 W
Weight: Speaker: 40.4 lbs (18.3 kg) each
Shipping: 51.0 lbs (20.4 kg) each
Dimensions HxWxD: Speaker: 14.25” x 10.20” x 13.63” (362 mm x 259 mm x 346 mm)
Box Dimensions HxWxD: Shipping: 22.75 x 13.8 x 17.5 in (578 mm x 350 mm x 445 mm
