BAREFOOT Footprint02 GEN2
6.5-INCH DUAL-FORCE™ TRI-AMPLIFIED 3-WAY ACTIVE MONITOR
The Footprint®02 Gen2 continues the evolution of Barefoot Sound’s acclaimed monitor lineup, delivering the same high-performance DNA as the flagship models in a more compact and accessible form. While the original Footprint®02 carved out its place as the mid-sized solution in the Footprint® series, the Gen2 takes things further with reengineered drivers, updated DSP, and refined cabinet acoustics, all designed to offer stunning accuracy and sonic integrity in smaller studio spaces.

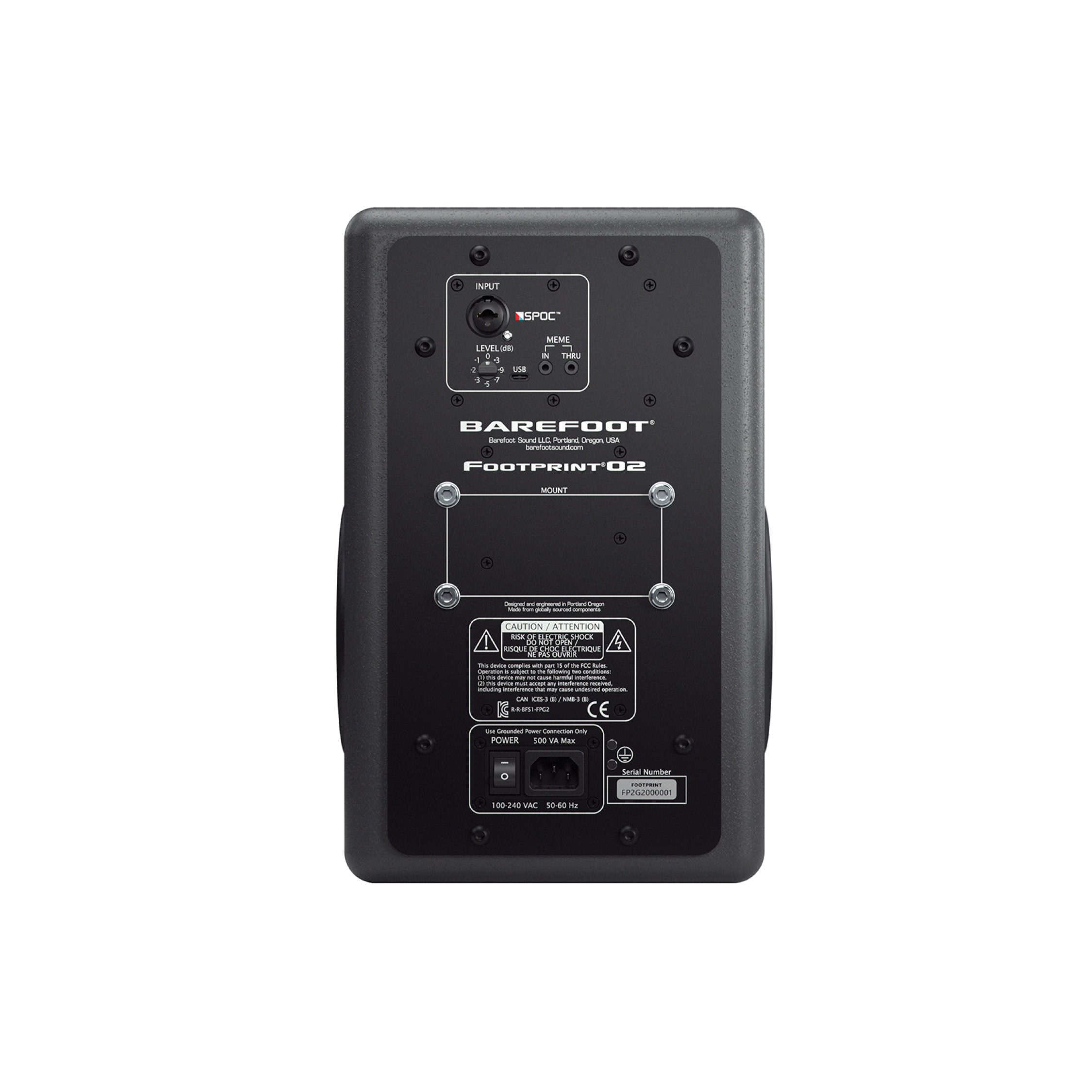

Analog Input:XLR female, Pin 1 ground, Pin 2 positive, Pin 3 negative
TRS Male, Tip: Positive, Ring: Negative, Sleeve: Ground
Input Impedance = 20k Ohms
Input Sensitivity (1m) = 90 dB @ -15 dBV (pass band)
Analog to Digital
Conversion:
Word Length: 24-bit (56-bit High Precision)
Sample Rate: 96 kHz
Signal/Noise ≥ 100 dB
Frequency Response: 38Hz – 40kHz (±3dB), 42Hz – 30kHz (±1dB)
Bass Response: -3 dB at 42 Hz
Q = 0.707, 24 dB/octave slope
MAX SPL: ≥111 dB
Cabinet: 9.4 liters total internal volume,
compound radius baffle, tensioned extra thick
machined aluminum faceplate
Crossover Frequencies: 180 Hz / 3700 Hz (Active crossover between drivers)
Tweeter: 1” dual-ring radiator, high magnetic flux motors,
rear waveguide Amplifier: 60W
Midrange 5” aluminum cone, aluminum phase plug, 32mm voice coil,
high magnetic flux motor. Amplifier: 150W
Woofers: Dual-Force 6.5” aluminum cone,
high magnetic flux motor. Amplifier: 200W
Power: Mains Voltage Input: 85 VAC to 265 VAC universal
Idle Power Consumption = 15 W
Maximum Power Consumption = 850 W
Weight: Speaker: 34.8 lbs (15.8 kg) each
Shipping: 44.0 lbs (17.7 kg) each
Dimensions HxWxD: Speaker: 13.54 x 9.12 x 12.45 in (344 mm x 232 mm x 316 mm)
Box Dimensions HxWxD: Shipping: 21.25 x 13.27 x 16.73 in (540 mm x 337 mm x 425 mm)
