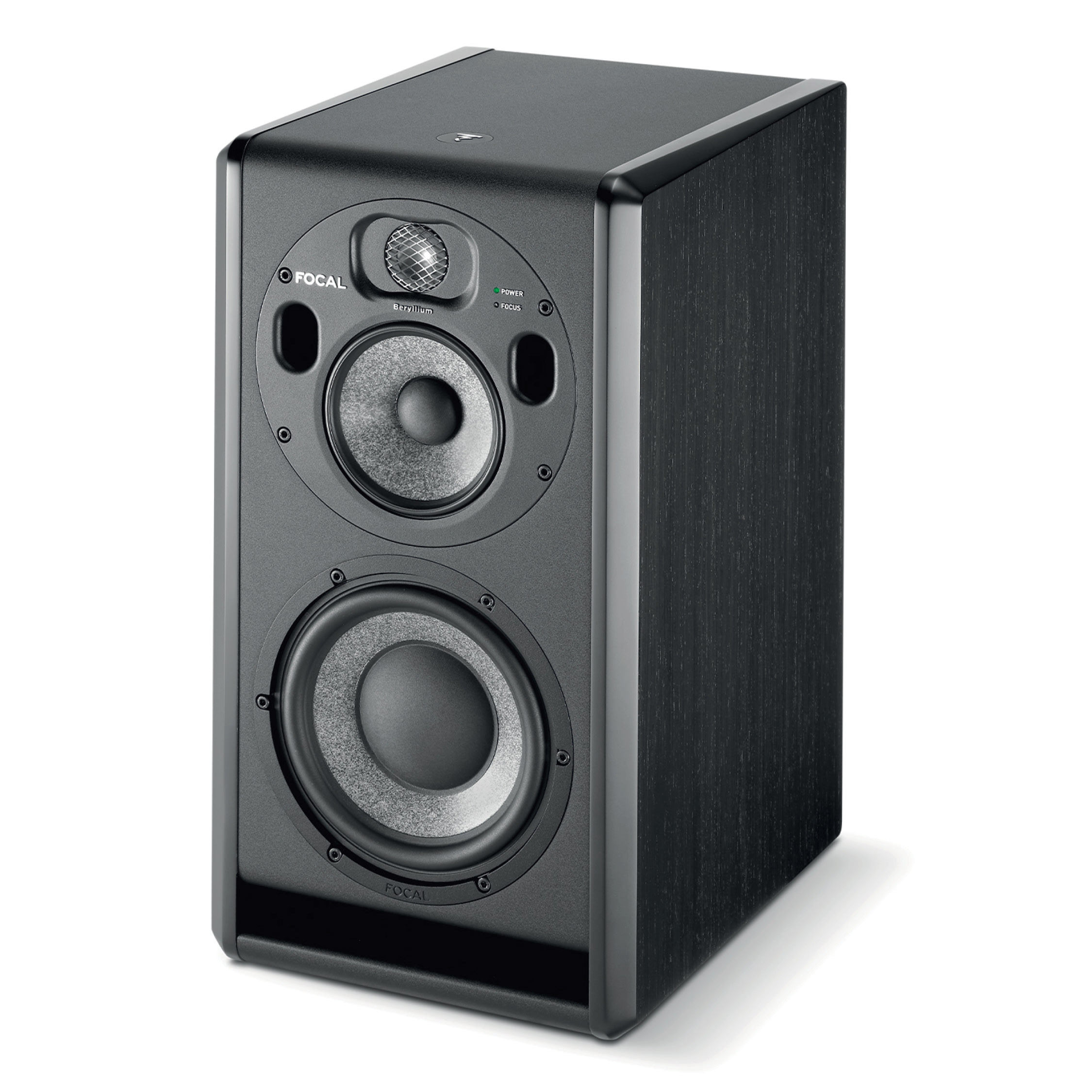

FOCAL TRIO 6 ST6 Black - Studijski Monitor
3-way monitor
Trio6 is a professional monitoring loudspeaker offering flawless transparency, dynamics and sonic precision. Reliability and versatility are also its hallmarks, as evidenced by its dual Focus Mode, which enables Trio6 to form three monitors in one, for perfectly crafted, controlled mixes.
Design
Height: 53.7 cm / 20.86 in
Width: 29.2 cm / 11.41 in
Depth: 36.9 cm / 14.52 in
Weight: 25 kg / 55.12 lb
Sound - Acoustics
Product type: 3-way monitor
Loudspeakers:
• Subwoofer: 8" W membrane
• Woofer: 5" W membrane
• Tweeter: 1" Beryllium inverted dome
Frequency response (+/- 3dB):
• 3-way mode: 35 Hz - 40 kHz
• 2-way mode (Focus): 80 Hz - 20 kHz
• 1-way mode (Focus): 100 Hz - 15 kHz
Maximum SPL (peak@1m): 115 dB
Sound - Electronics
Bass/midrange level (160 Hz): Adjustable, +/-3 dB
Inputs: XLR: symmetrical 10 kOhms
High-pass filter: Full range, 45 Hz, 60 Hz, 90 Hz
LED:
• Power on
• Focus mode
• Clipping, default and stand-by
Local supply:
~ 100-120 V, t2.5al/250 V.
~ 220-240 V, T1.25Al/250 V.
High frequency amplifier: 50 W, class AB
Bass level (>250Hz): Adjustable, +/-3 dB
Power on/of: On/Off switch on the rear panel
Mid-range and low frequency amplifier:
• Bass: 100 W, class G
• Midrange: 100 W, class G
• Treble level (< 4.5kHz): Adjustable +/-3dB
Indicators and controls:
• Sensitivity
• Auto standby
• HPF, LF Shelv, LMF EQ, HF Shelv
• Focus Mode
