Design
Height: 94 cm / 37 in
Width: 53 cm / 20.8 in
Depth: 46 cm / 18.1 in
Weight: 77.6 kg / 171 lb
Bundle dimensions:

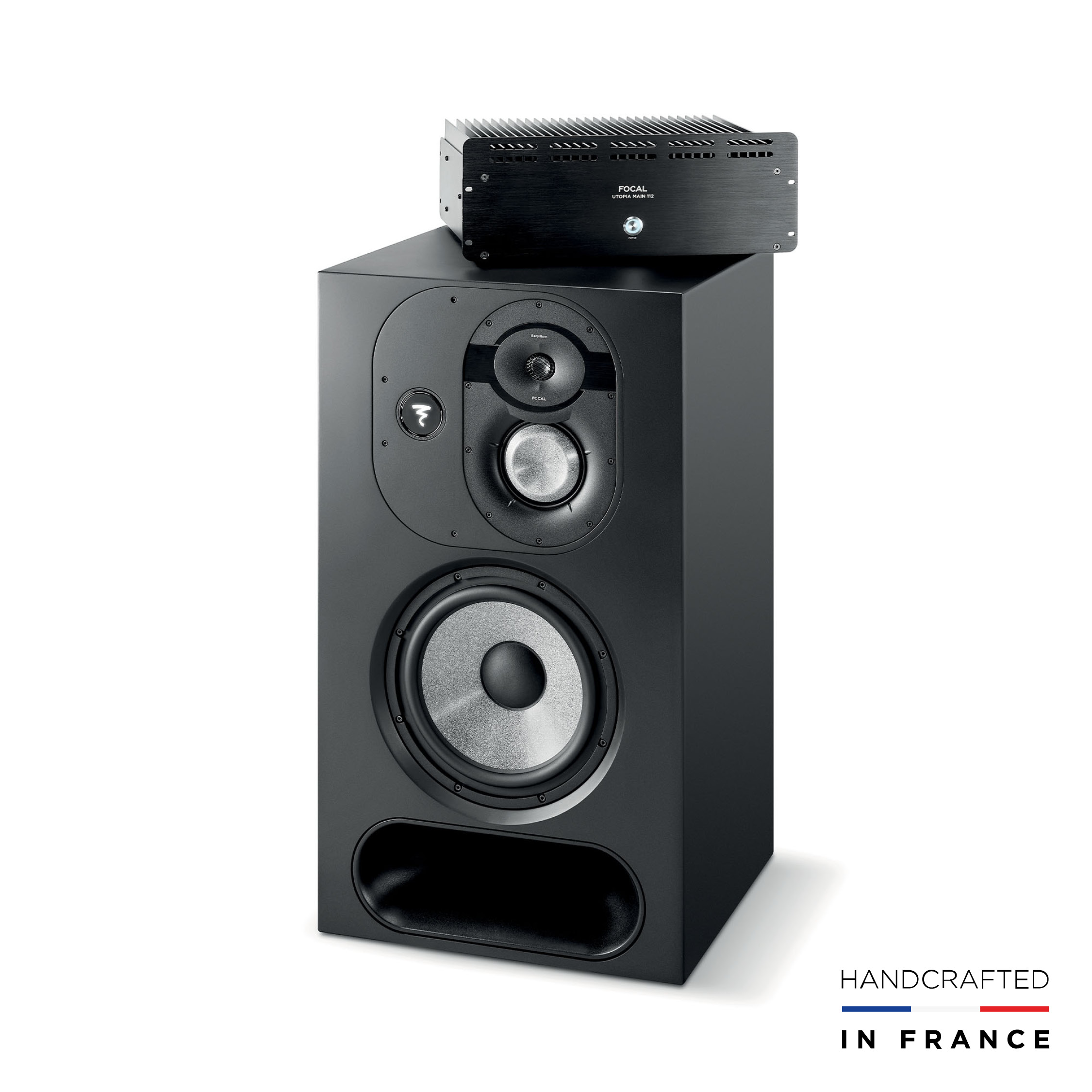

Bundle includes a pair of speakers and a pair of amplifiers:
• 1x Amplifier:
Dimensions (LxWxH): 72x60x45 cm
Weight: 29.35 kg
• 1x Speaker:
Dimensions (LxWxH): 79x60x122.7 cm

Sound - Acoustics

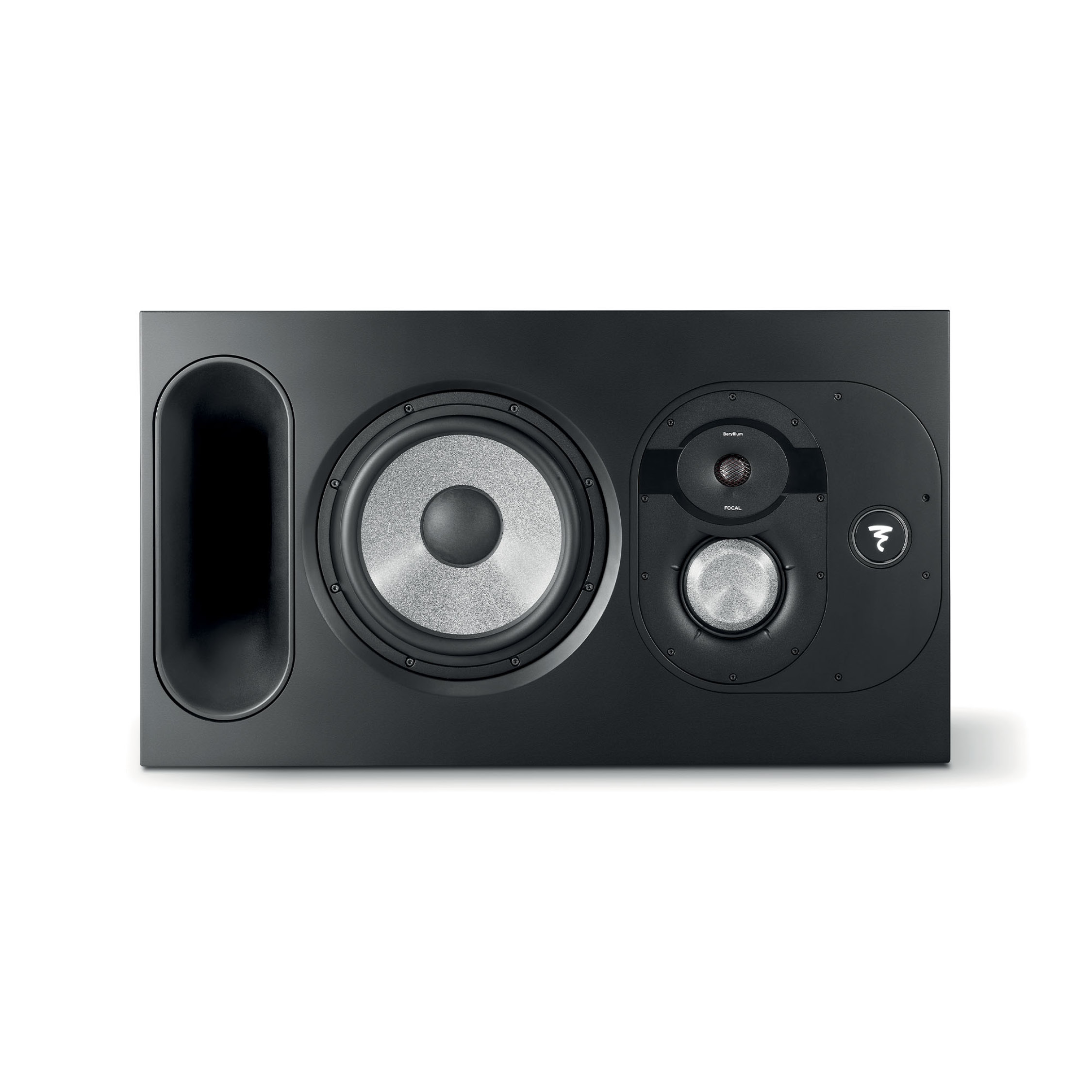

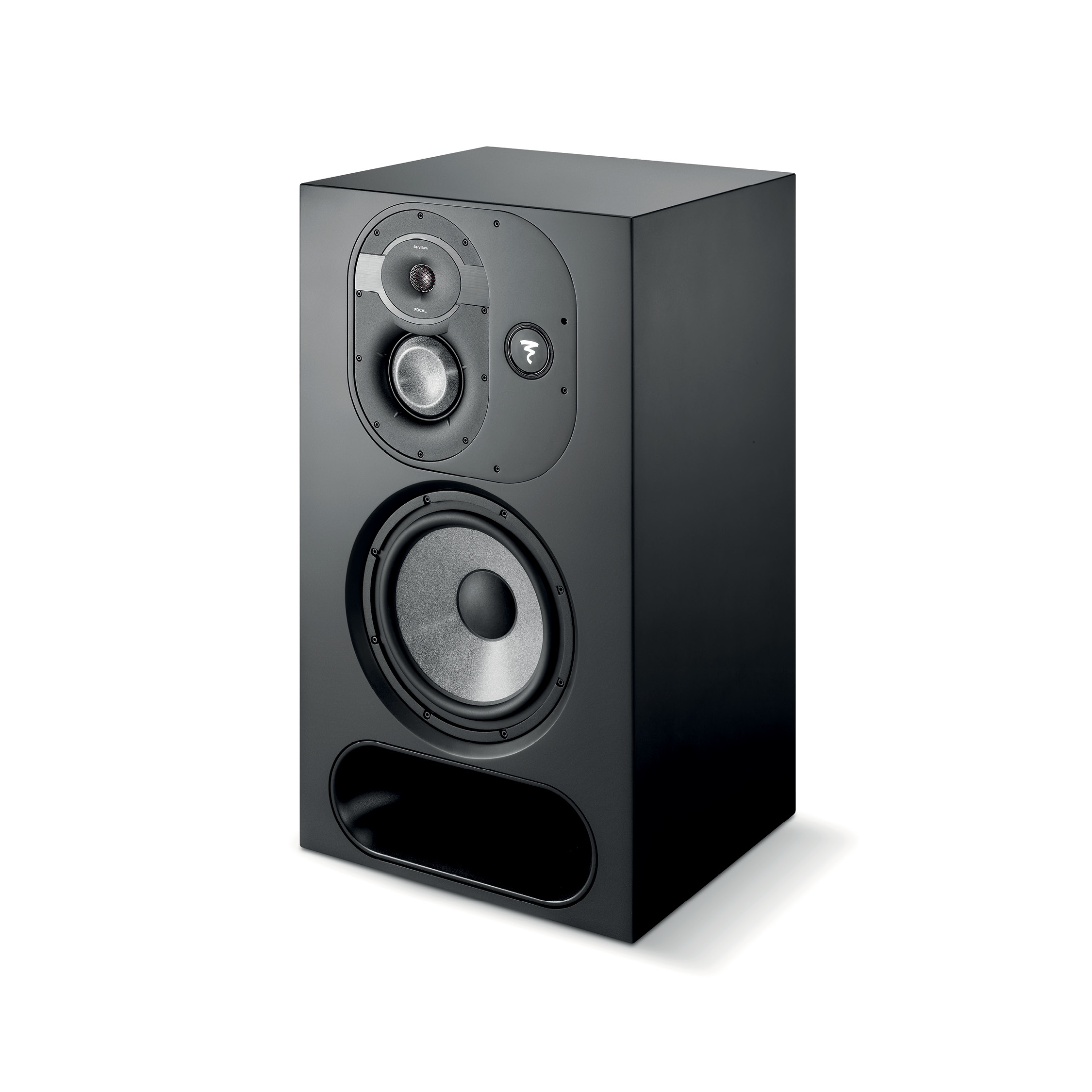

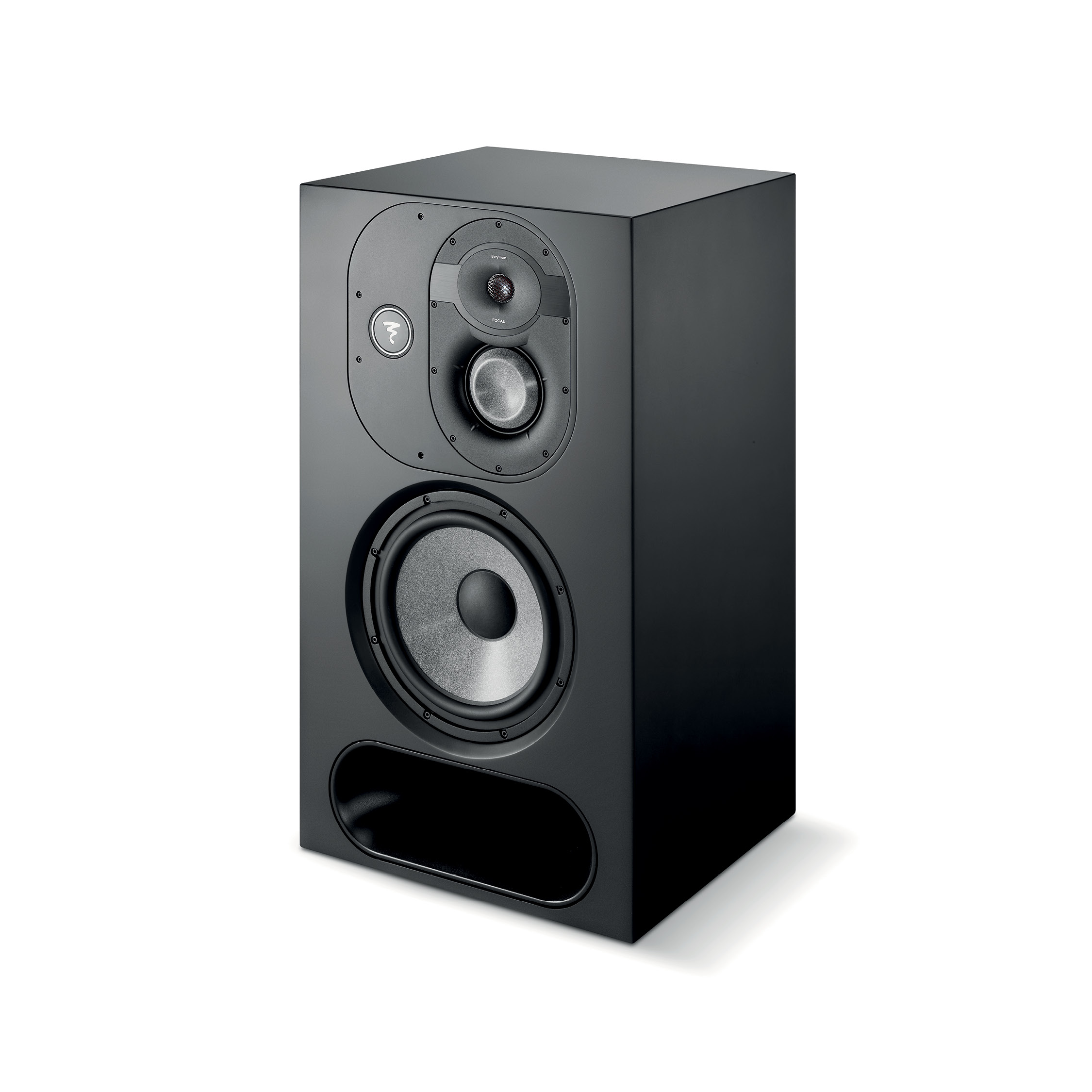

Product type: 3-way monitor
Loudspeakers:
• Subwoofer: 13" W Membrane
• Woofer: 5" M-shaped W membrane
• Tweeter: 1.5" M-shaped Beryllium
Frequency response (+/- 3dB): 28 Hz - 40 kHz
Maximum SPL (peak@1m): 120 dB

Sound - Electronics
Inputs:
XLR: symmetrical 10 kOhms
High-pass filter: Full range, 30 Hz, 40 Hz, 50 Hz
LED:
Loudspeaker:
• Power on
• Clipping

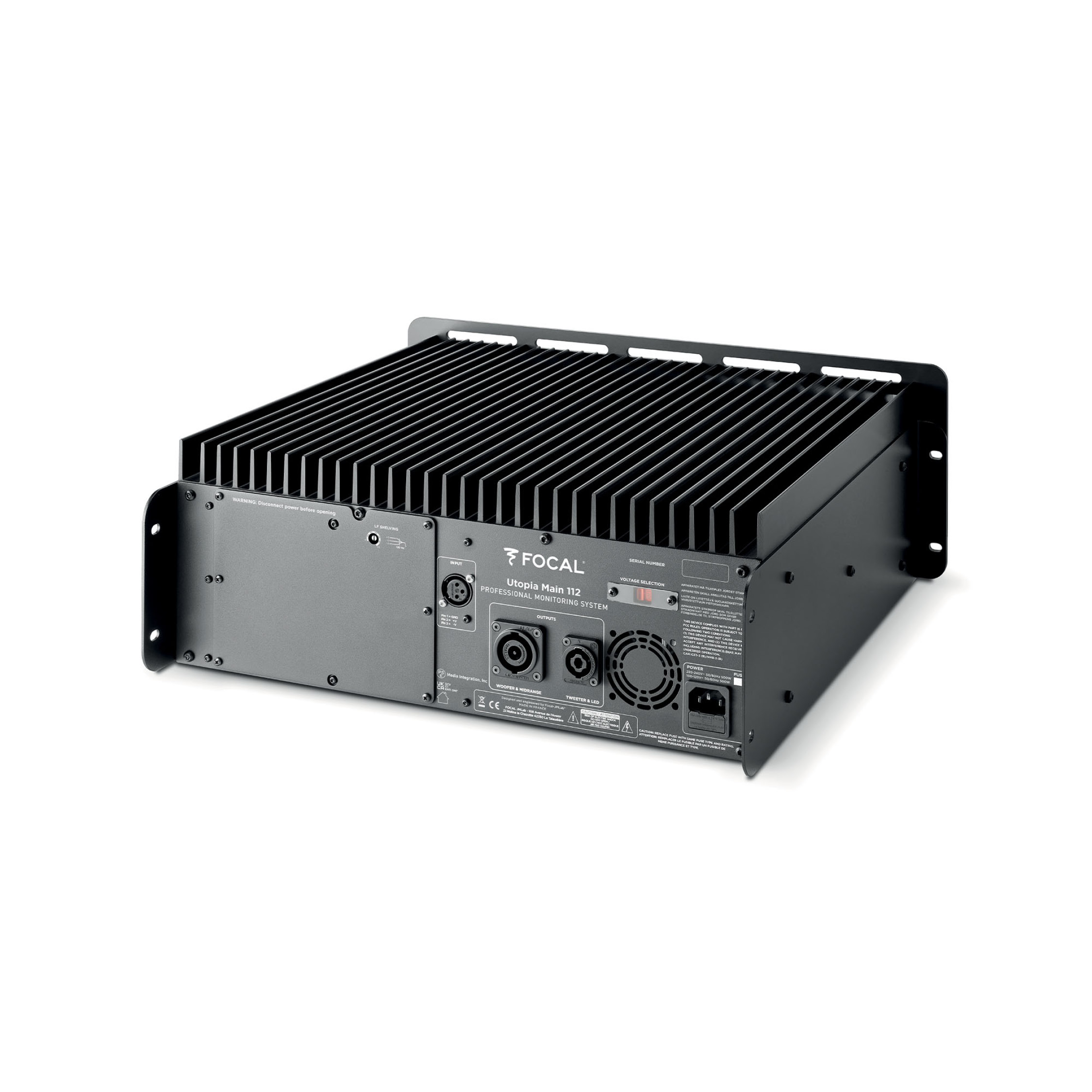

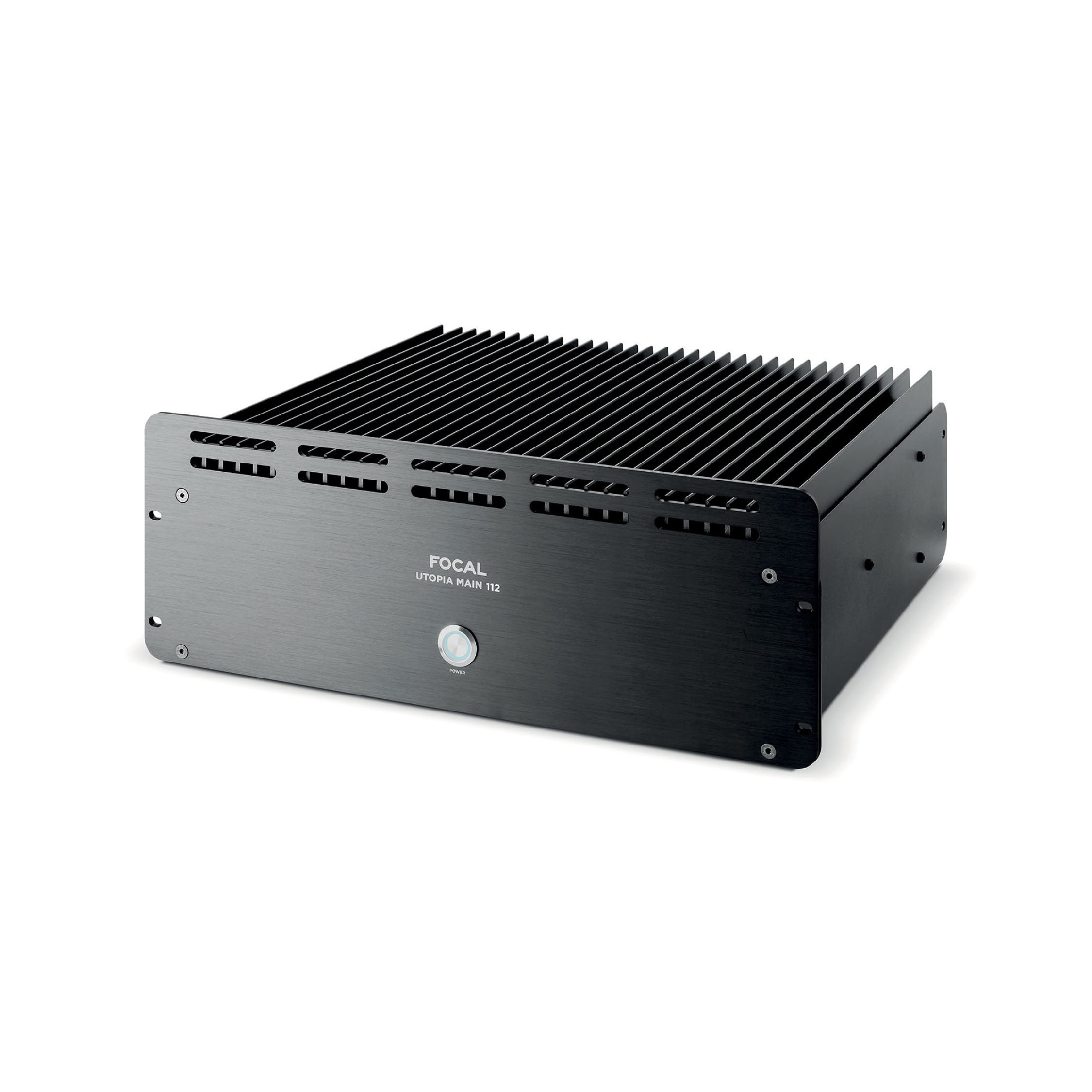

Remote amplifier:
• Power on
Local supply:
~100 - 120 V, 50/60 Hz
~220 - 240 V, 50/60 Hz
High frequency amplifier: 90 W RMS Class H Current Mode
Bass level (>250Hz): Adjustable, +/-3 dB
Power on/of: On/Off switch on remote amplifier
Mid-range and low frequency amplifier:
Bass: 500 W RMS Class D / Midrange: 180 W RMS Class H Current Mode
Treble level (< 4.5kHz): Adjustable, +/-3 dB
Indicators and controls:
• Sensitivity
• Auto standby
• LED Logo on/off
• HPF, LF Shelving, LF EQ, LMF EQ, HF Shelving
• Subwoofer / Midrange / Tweeter trims
• Soffit filter
• Sealed port filter
