System Specifications
Frequency Response: 40 Hz - 20 kHz (± 2.5 dB)
Low cutoff -6dB: 33 Hz
High cutoff -6dB: 23 kHz

SPL
Peak SPL: ≥124 dB
Maximum peak acoustic output per pair in a listening room with music material at 1 m.
Short term max SPL: ≥114 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥104 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.

Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in free space at 1 m on axis (A-weighted).

Weight
Weight: 17 kg (37.5 lb)

Dimensions
Height: 495 mm (19 1/2 in)
Width: 320 mm (12 5/8 in)
Depth: 290 mm (11 3/8 in)

Enclosure
Enclosure material: MDF

Drivers
Bass
Driver type: Cone
Magnetically shielded bass driver.
Diameter: 250 mm (9 7/8 in)
Treble
Driver type: Metal dome
Magnetically shielded treble driver.
Diameter: 25 mm (1 in)

Harmonic distortion
50…100 Hz ≤1 %
> 100 Hz ≤0.5 %

Amplifier Section
Amplifiers
1032C bass amplifier: 250 W Class D
1032C treble amplifier: 150 W Class D

Mains voltage: 100-240 VAC 50/60Hz

Power consumption
ISS Active: ≤1 W
Idle: ≤11 W
Full output: 200 W

Signal processing section

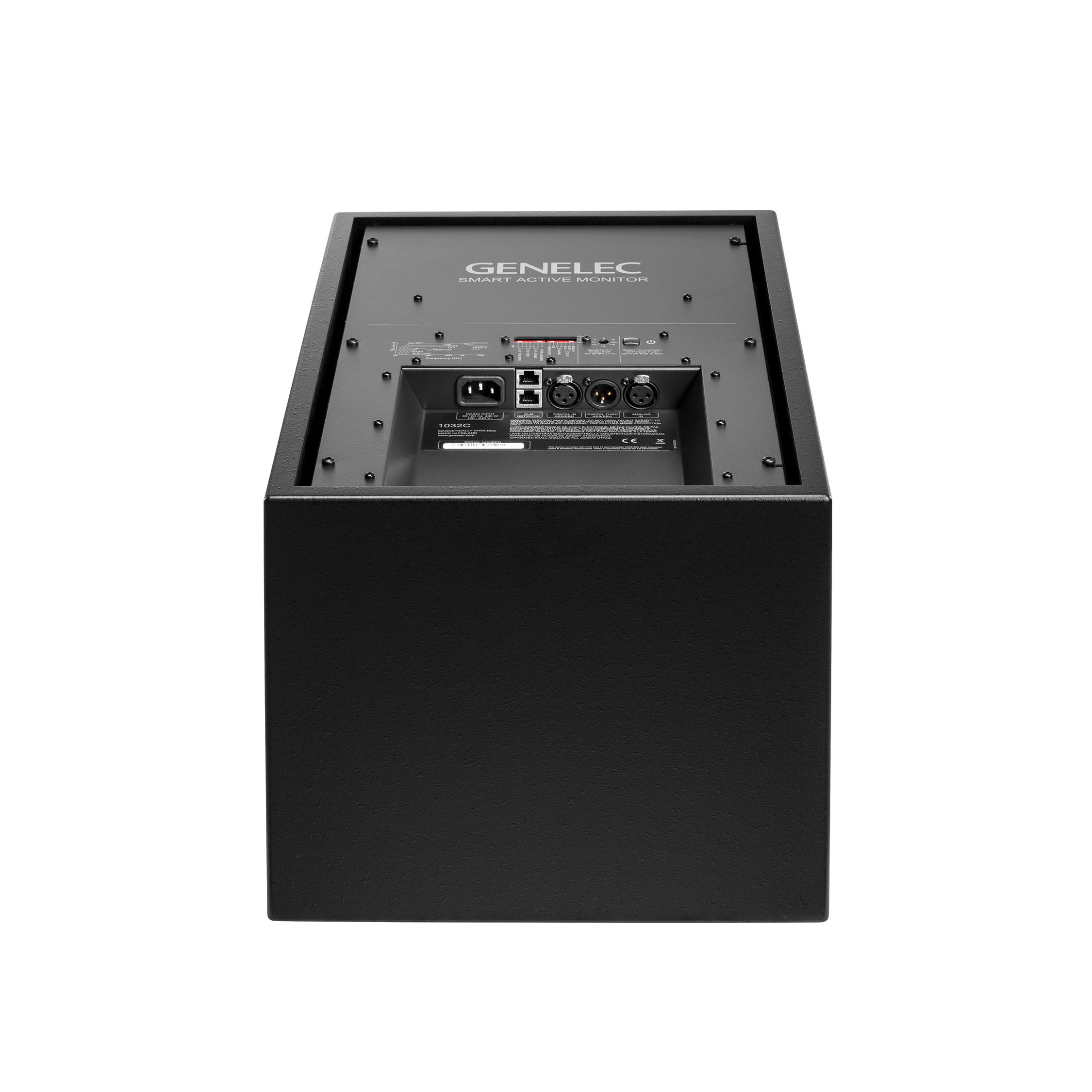

Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
