System Specifications
Frequency Response: 35 Hz - 20 kHz (± 2.5 dB)
Low cutoff -6dB: 30 Hz
High cutoff -6dB: 22 kHz

SPL
Peak SPL: ≥124 dB
Maximum peak acoustic output per pair in a listening room with music material at 2 m.
Short term max SPL: ≥121 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥116 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.

Self-generated noise
Self-generated noise: ≤10 dB SPL
Self generated noise level in free field at 1 m on axis (A-weighted).

Weight
Weight: 57 kg (125.7 lb)

Dimensions
Height: 810 mm (31 7/8 in)
Width: 480 mm (18 7/8 in)
Depth: 420 mm (16 1/2 in)

Enclosure
Enclosure material: MDF
Enclosure type: Reflex port

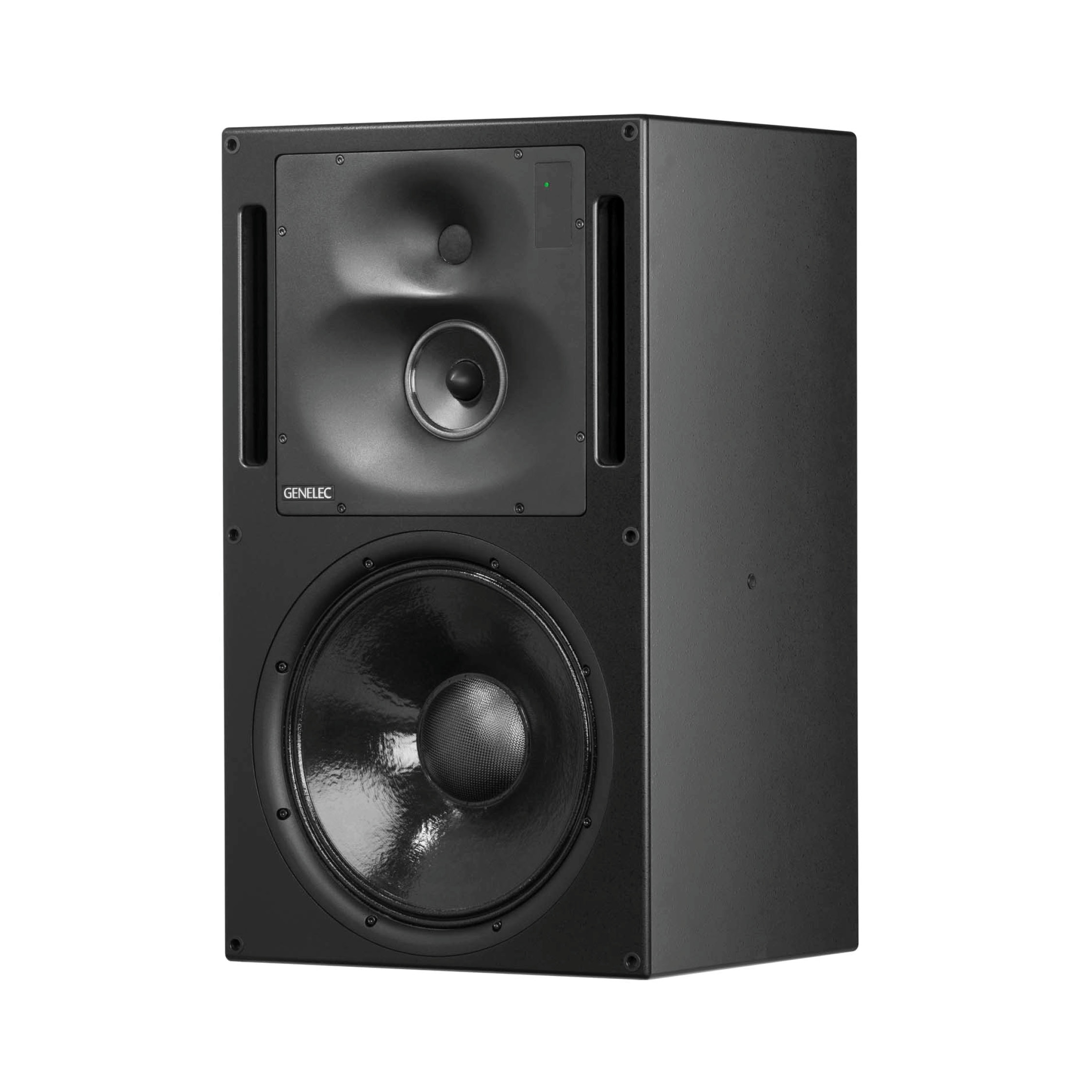

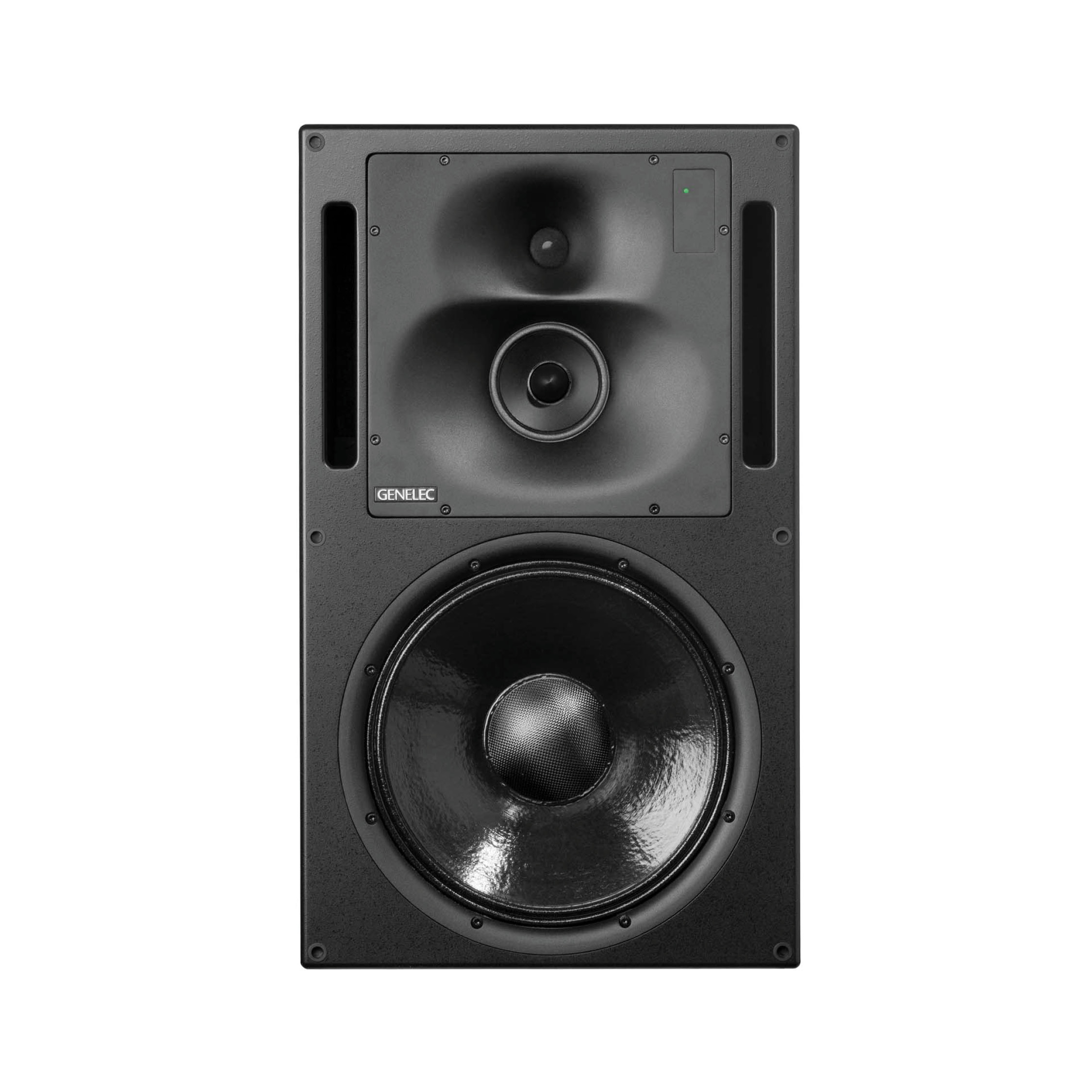

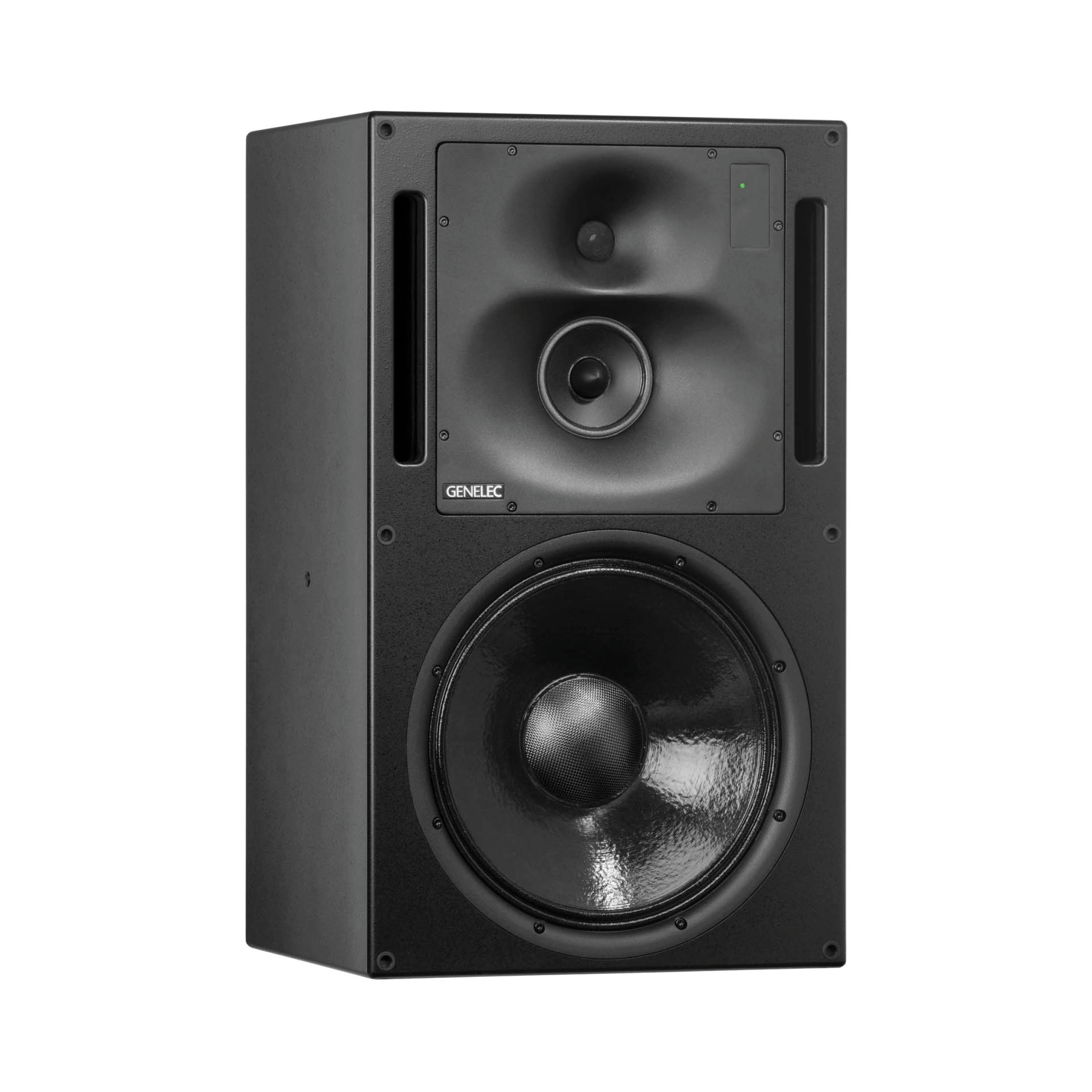

Drivers
Bass
Driver type: Cone
385mm (15 in) cone
Diameter: 385 mm (15 1/8 in)
Midrange
Driver type: Cone
125 mm (5 in) cone
Diameter: 125 mm (4 7/8 in)
Treble
Driver type: Metal dome
25mm (1 in) metal dome
Diameter: 25 mm (1 in)

Harmonic distortion
50…200 Hz ≤1 %
> 200 Hz ≤0.5 %

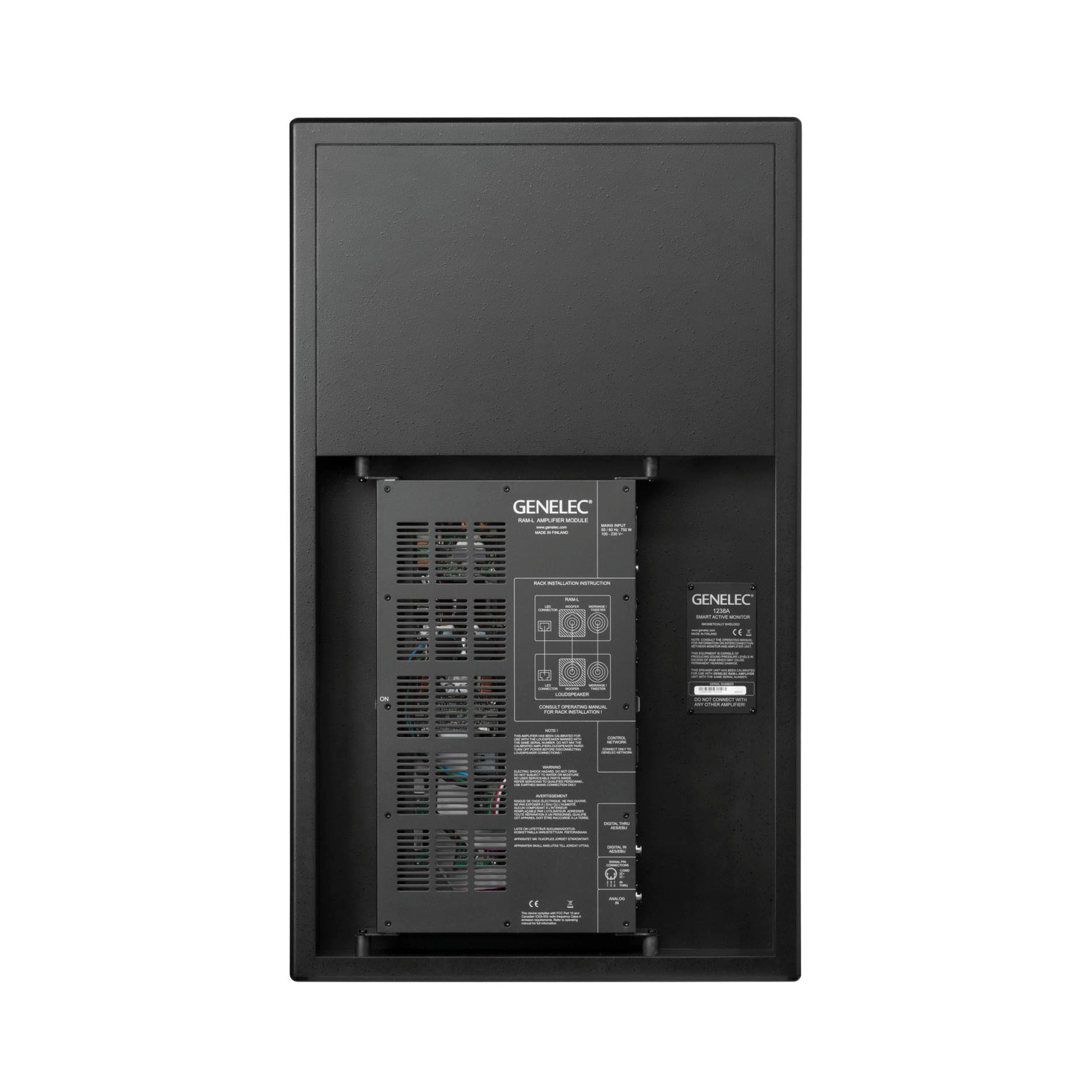

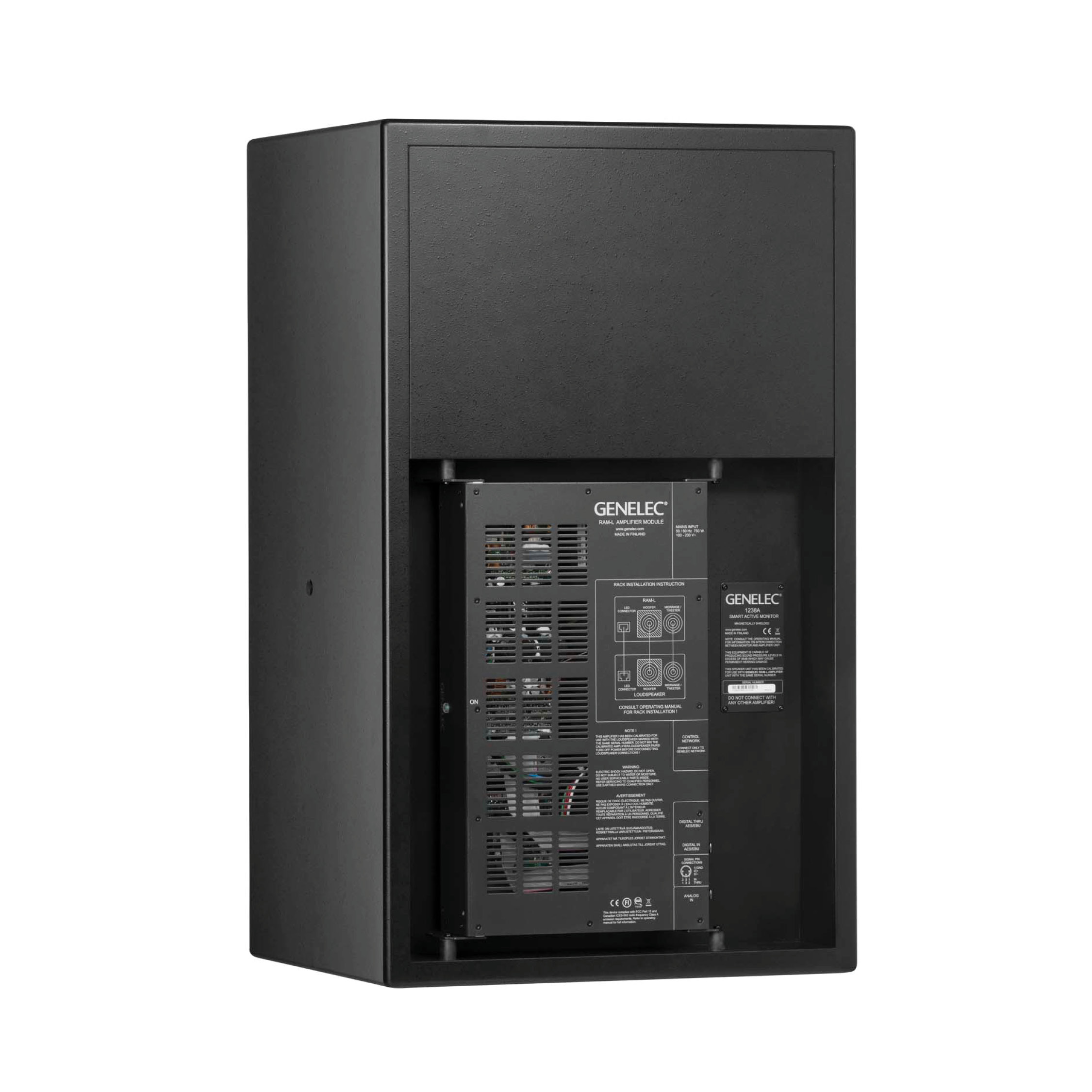

Amplifier Section
Amplifiers
1238A bass amplifier: 500 W Class D
Height: 132 mm (5 1/4 in)
Width: 483 mm (19 in)
Depth: 252 mm (9 7/8 in)
Weight: 6 kg (13.2 lb)
1238A midrange amplifier: 250 W Class D
1238A treble amplifier: 200 W Class AB

Mains voltage: 100-240 VAC 50/60Hz

Power consumption
ISS Active: ≤0.5 W
Idle: ≤25 W
Full output: 750 W

Signal processing section
Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
