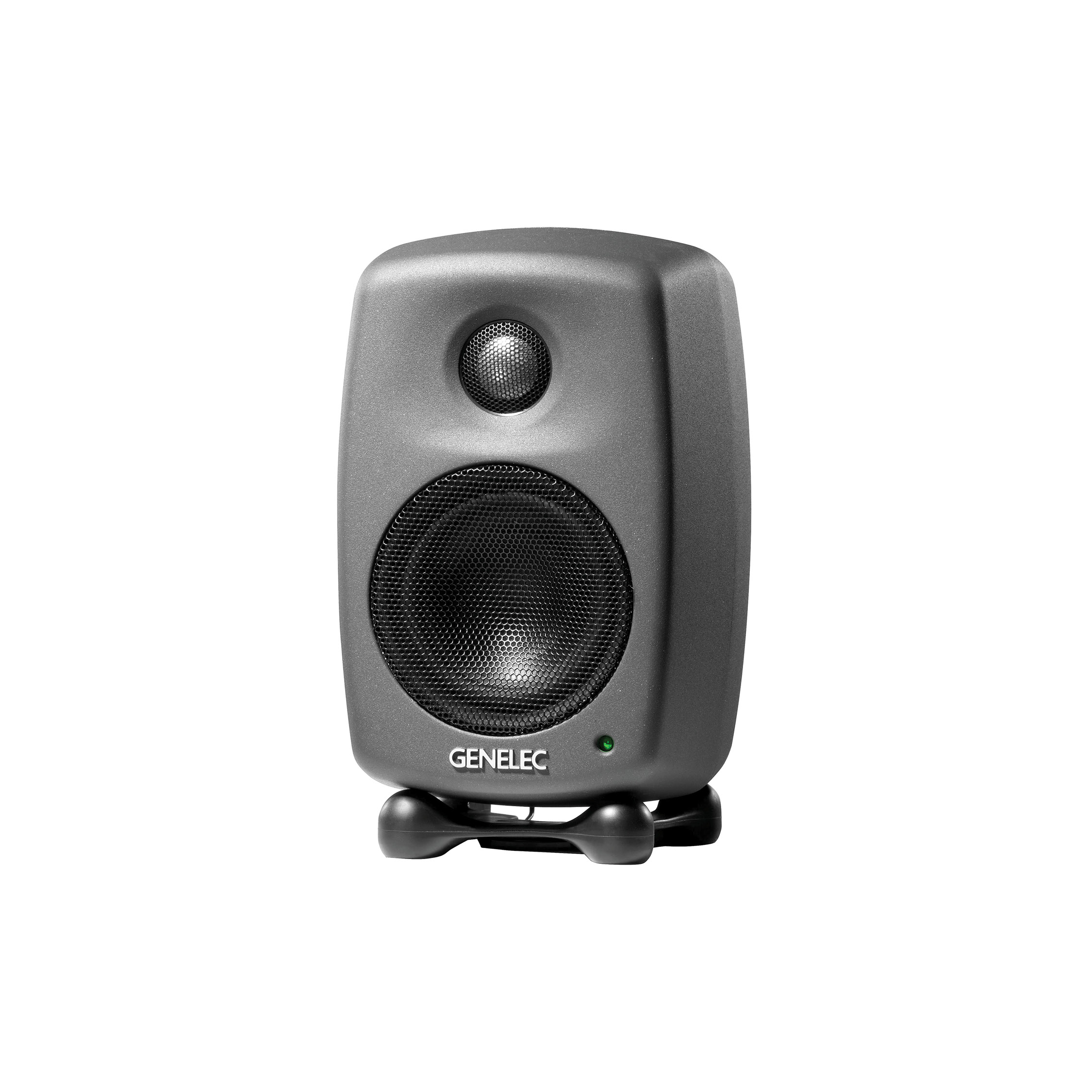

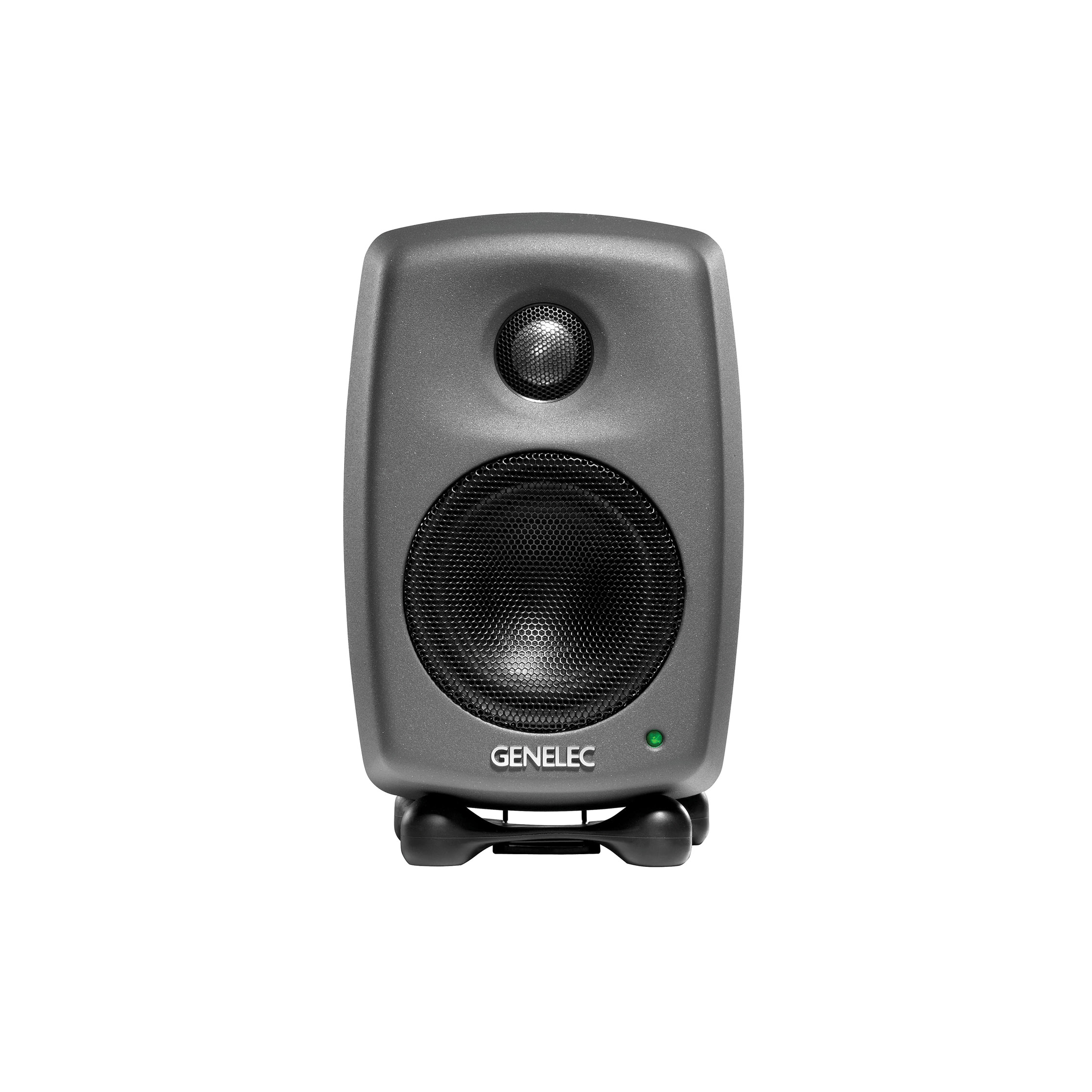

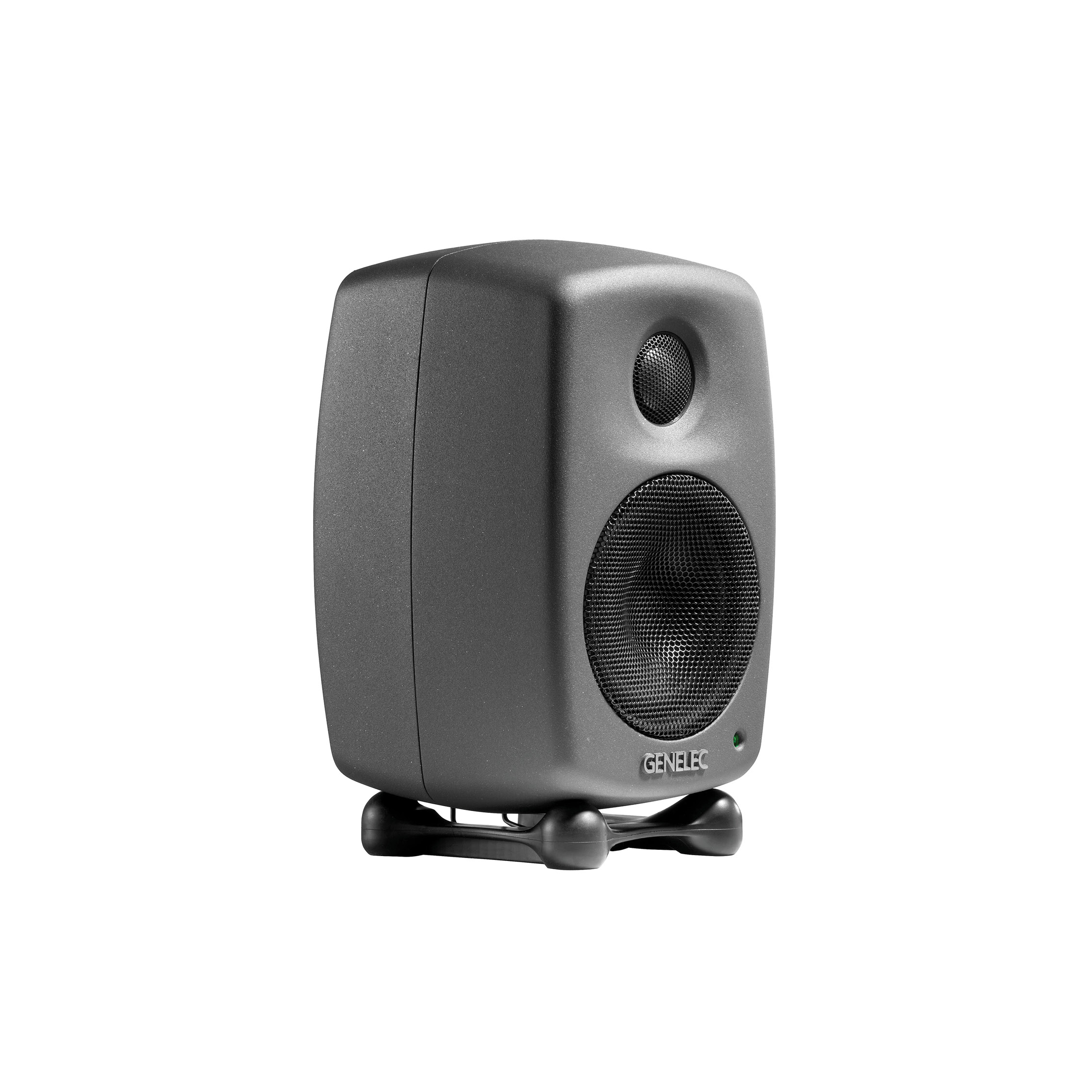

Genelec 8010 AP - Aktivni studijski monitor
The 8010A squeezes true reference performance and extended frequency response into an extremely compact package.
When studio space is limited or you record on the move, the 8010A is your reliable monitoring companion. Don’t be fooled by its affordable price tag and modest dimensions, the 8010A is every bit a Genelec pro monitor: uncoloured, accurate and powerful.
System Specifications
Frequency Response: 74 Hz - 20 kHz (± 2.5 dB)
Low cutoff -6dB: 67 Hz
High cutoff -6dB: 25 kHz
SPL
Peak SPL: ≥105 dB
Maximum peak acoustic output per pair on top of console, at 1 m distance with music material.
Short term max SPL: ≥96 dB
Max. short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz, at 1m distance.
Long term max SPL: ≥91 dB
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) @ 1m.
Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in free field at 1m on axis (A-weighted)
Weight
Weight: 1.5 kg (3.3 lb)
Dimensions
Height: 181 mm (7 1/8 in)
Height with Iso-Pod: 195 mm (7 5/8 in)
Width: 121 mm (4 3/4 in)
Depth: 115 mm (4 1/2 in)
Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port
Drivers
Bass
Driver type: Cone
Diameter: 76 mm (3 in)
Treble
Driver type: Metal dome
Diameter: 19 mm (3/4 in)
Harmonic distortion
70…400 Hz ≤3 %
> 400 Hz ≤0.5 %
Amplifier Section
Amplifiers
8010A bass amplifier: 25 W Class D
8010A treble amplifier: 25 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤0.5 W
Idle: ≤5 W
Full output: 30 W
Signal processing section
Connectors
Input: XLR female, 7 kOhm.
Crossover
Bass/Treble: 3000 Hz
Opis nije dostupan
