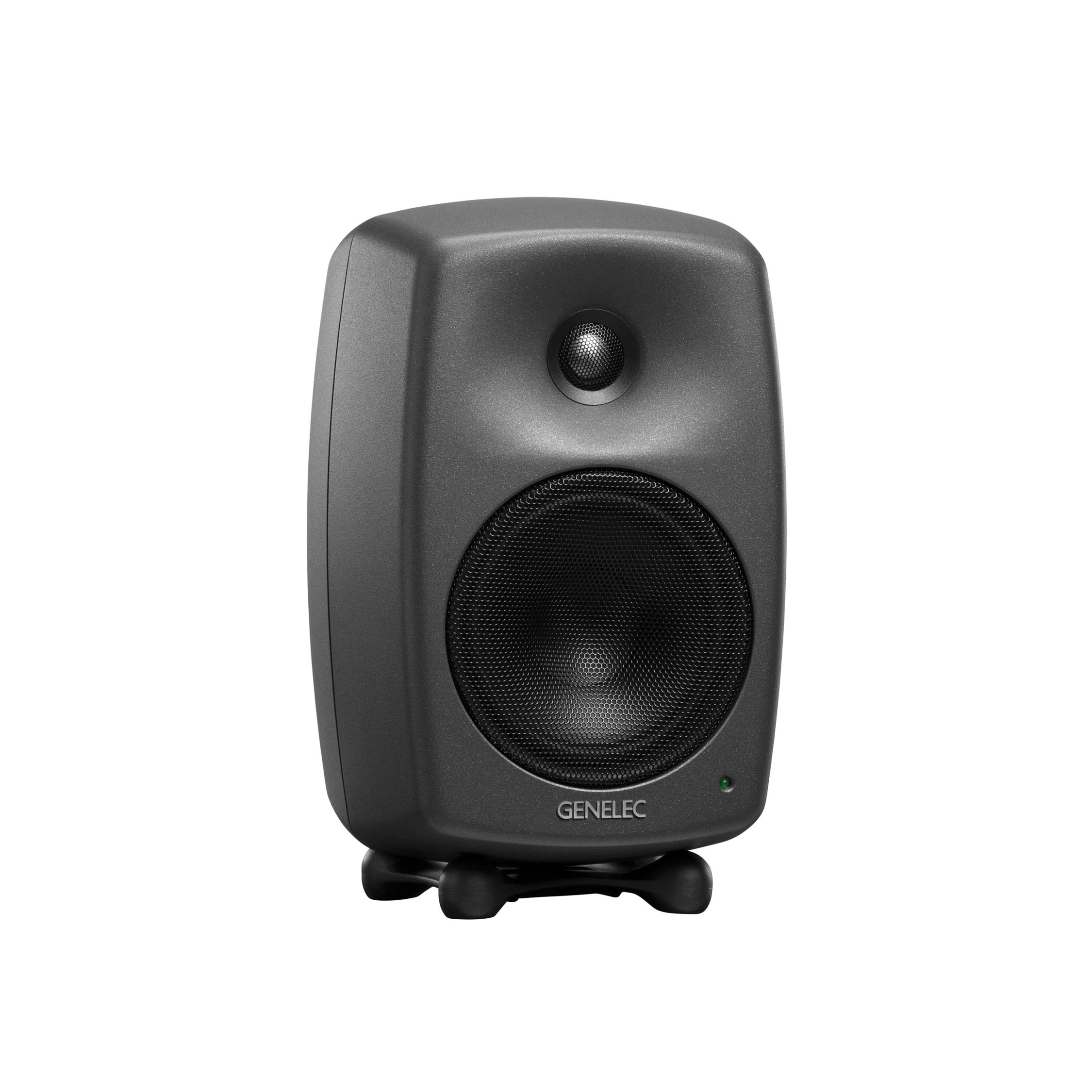

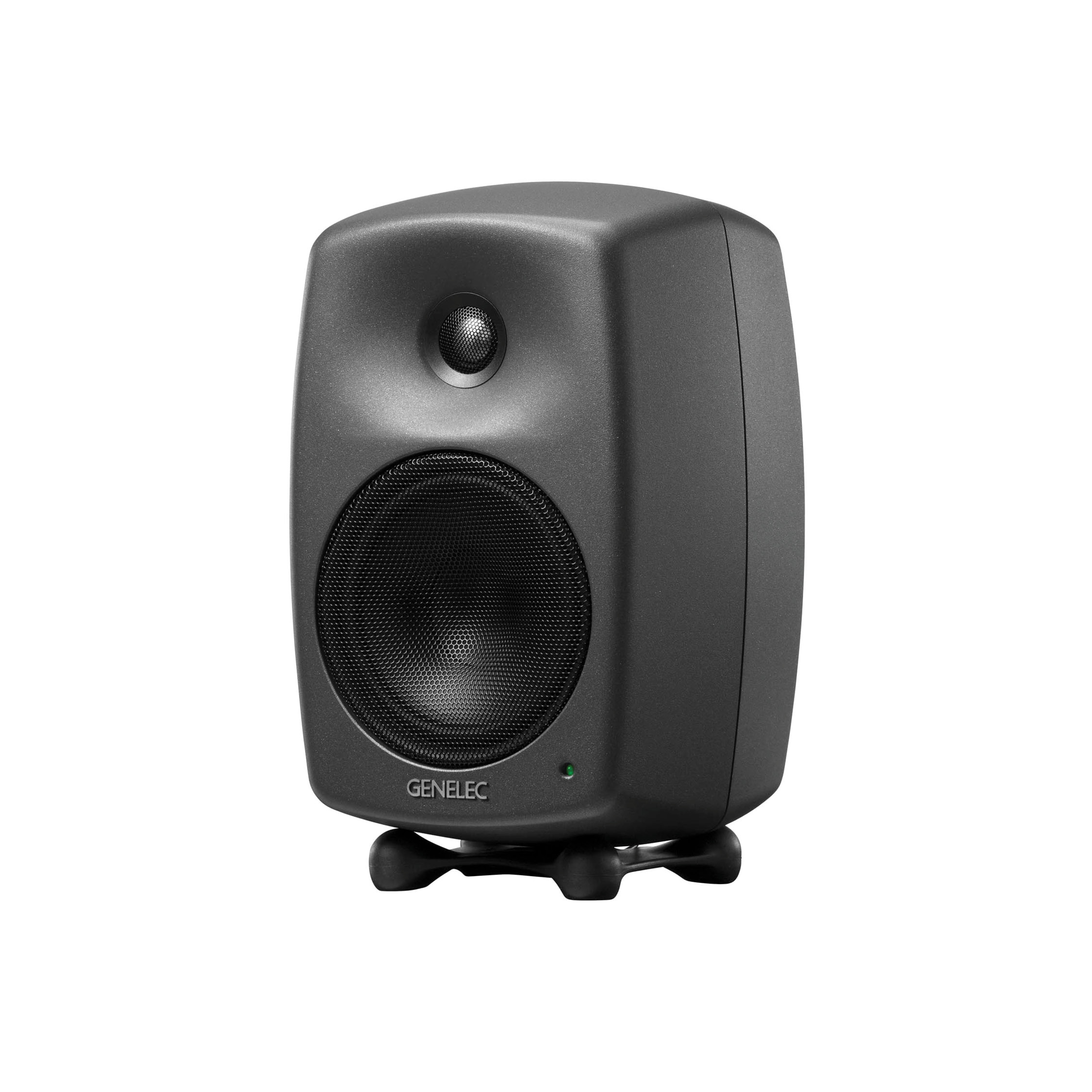

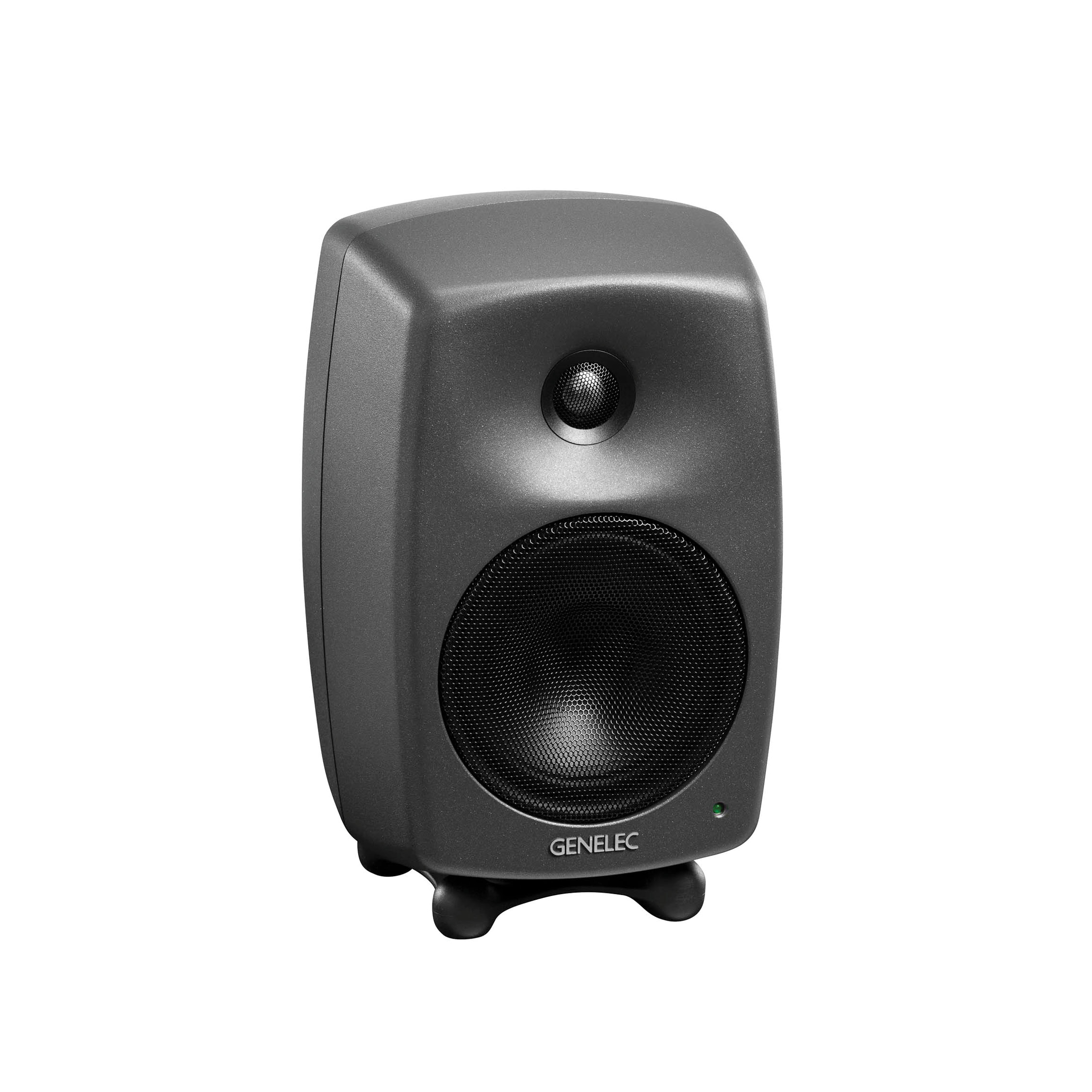

Genelec 8030C - Aktivni studijski monitor
If you love the compact format of the 8010 and 8020 models but demand higher SPL and more bass extension, meet the 8030C.
A consistent best-seller, the 8030C sits in the perfect sweet spot of big monitor performance and small footprint. It offers precise imaging and staggering detail, but can go louder and lower than its smaller siblings – making it the perfect choice for slightly larger spaces.
System Specifications
Frequency Response: 54 Hz - 20 kHz (± 2 dB)
Low cutoff -6dB: 47 Hz
High cutoff -6dB: 25 kHz
SPL
Peak SPL: ≥110 dB
Maximum peak acoustic output per pair at 1 m distance with music material.
Short term max SPL: ≥104 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥96 dB
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.
Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in free field at 1 m on axis (A-weighted).
Weight
Weight: 5 kg (11.0 lb)
Dimensions
Height: 285 mm (11 1/4 in)
Height with Iso-Pod: 299 mm (11 3/4 in)
Width: 189 mm (7 1/2 in)
Depth: 178 mm (7 in)
Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port
Drivers
Bass
Driver type: Cone
Diameter: 130 mm (5 1/8 in)
Treble
Driver type: Metal dome
Diameter: 19 mm (3/4 in)
Harmonic distortion
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %
Amplifier Section
Amplifiers
8030C bass amplifier: 50 W Class D
8030C treble amplifier: 50 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤0.5 W
Idle: ≤3 W
Full output: 60 W
Signal processing section
Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Crossover
Bass/Treble: 3000 Hz
