System Specifications
Frequency Response: 58 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB: 45 Hz
High cutoff -6dB: 23 kHz

SPL
Peak SPL: ≥110 dB
Maximum peak acoustic output per pair at 1 m distance with music material.
Short term max SPL: ≥104 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥96 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.

Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in free field on axis (A-weighted).

Weight
Weight: 5.1 kg (11.2 lb)

Dimensions
Height: 285 mm (11 1/4 in)
Height with Iso-Pod: 299 mm (11 3/4 in)
Width: 189 mm (7 1/2 in)
Depth: 178 mm (7 in)

Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port

Drivers
Bass
Driver type: Cone
Diameter: 130 mm (5 1/8 in)
Treble
Driver type: Metal dome
Diameter: 19 mm (3/4 in

Harmonic distortion:
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %

Amplifiers
8330A bass amplifier: 50 W Class D
8330A treble amplifier: 50 W Class D

Mains voltage: 100-240 VAC 50/60Hz

Power consumption
ISS Active: ≤0.5 W
Idle: ≤3 W
Full output: 50 W

Signal processing section

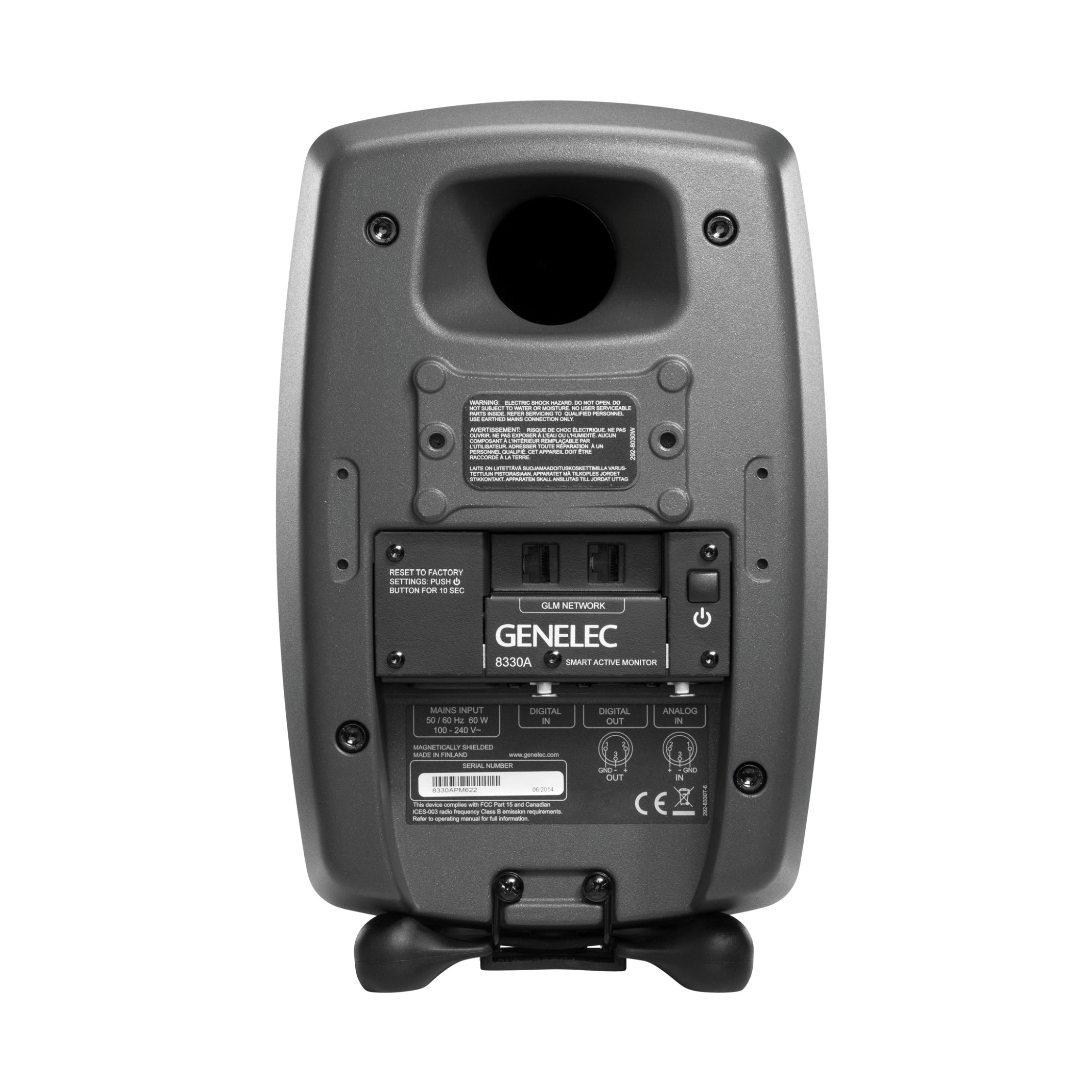

Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: XLR female IN
Output: XLR male OUT
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
