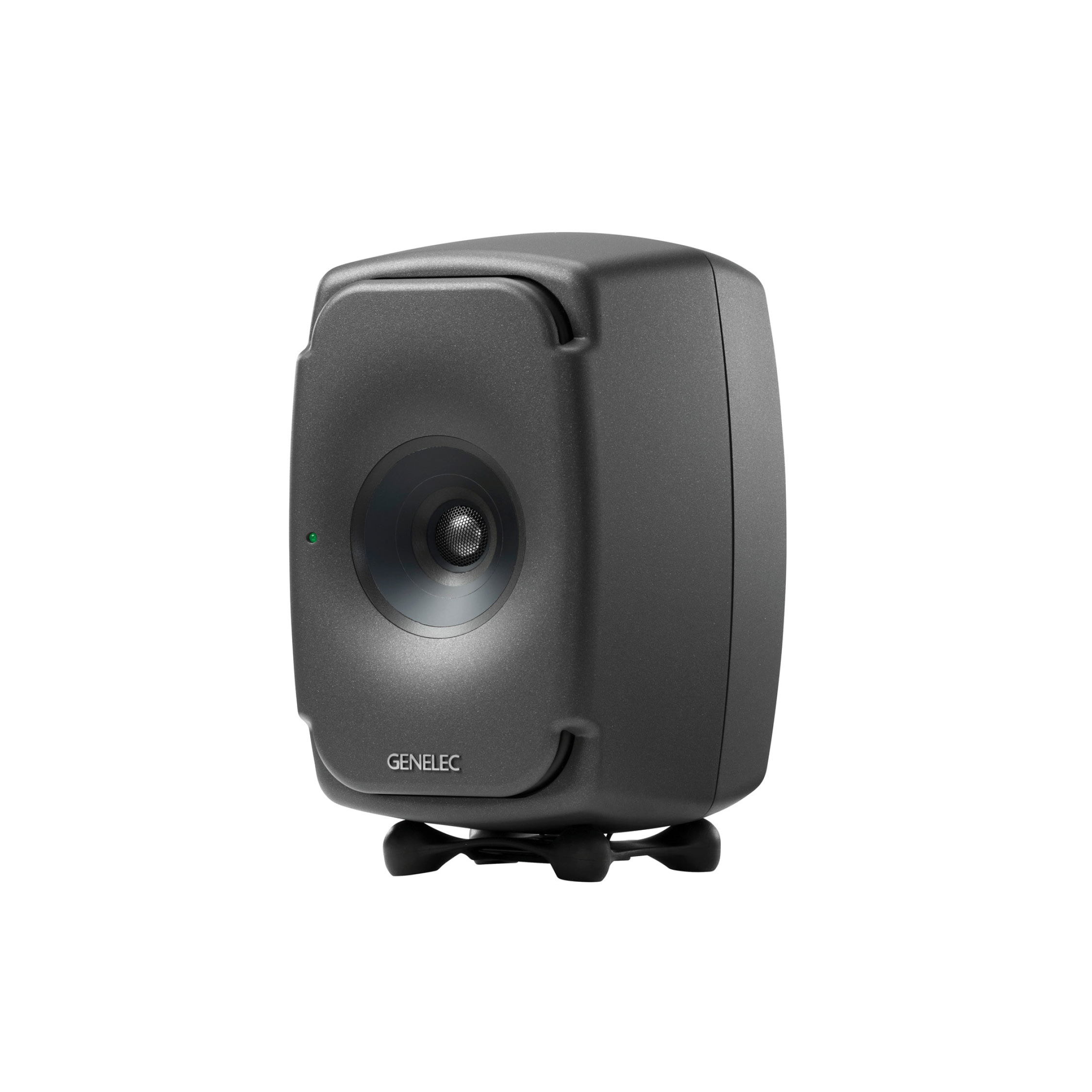

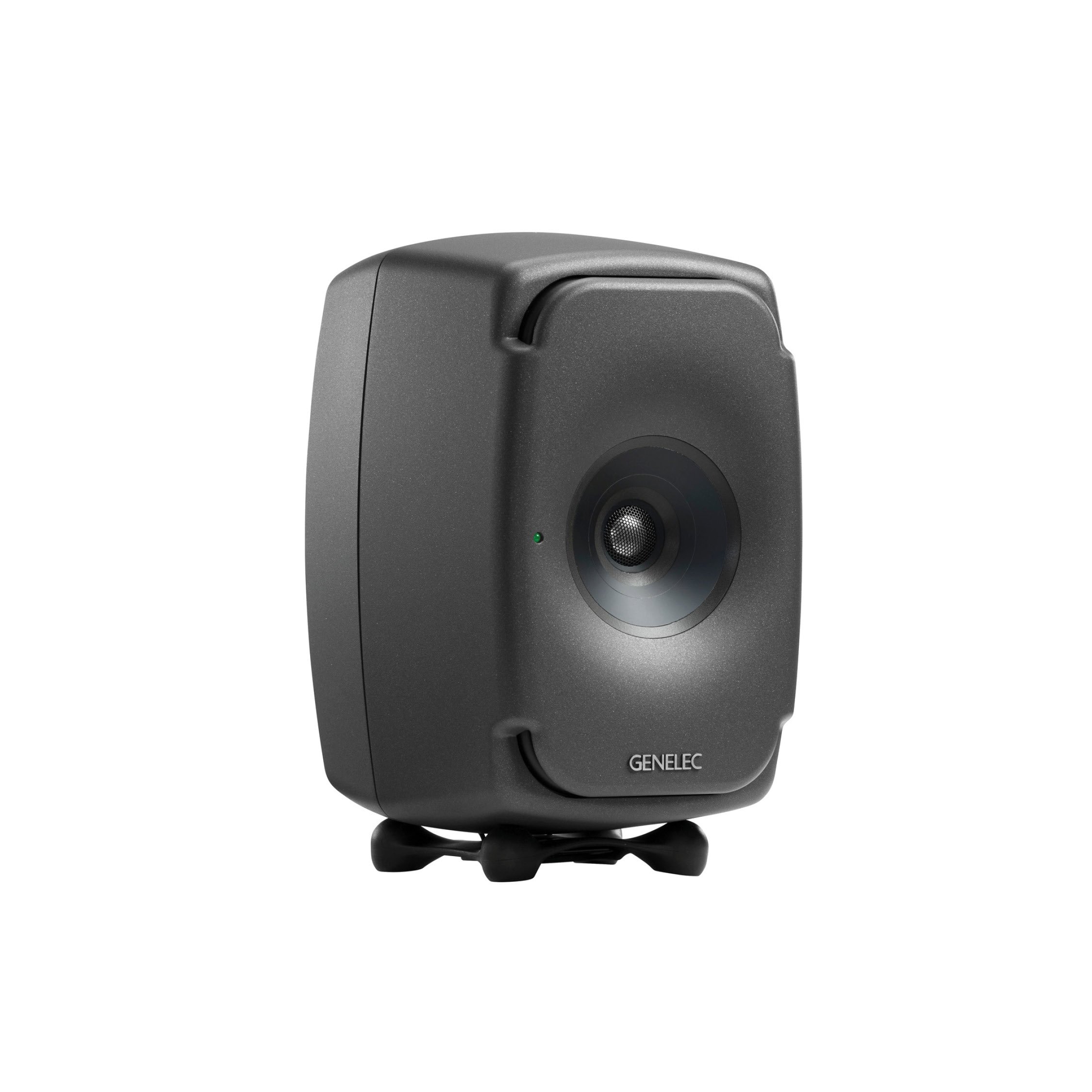

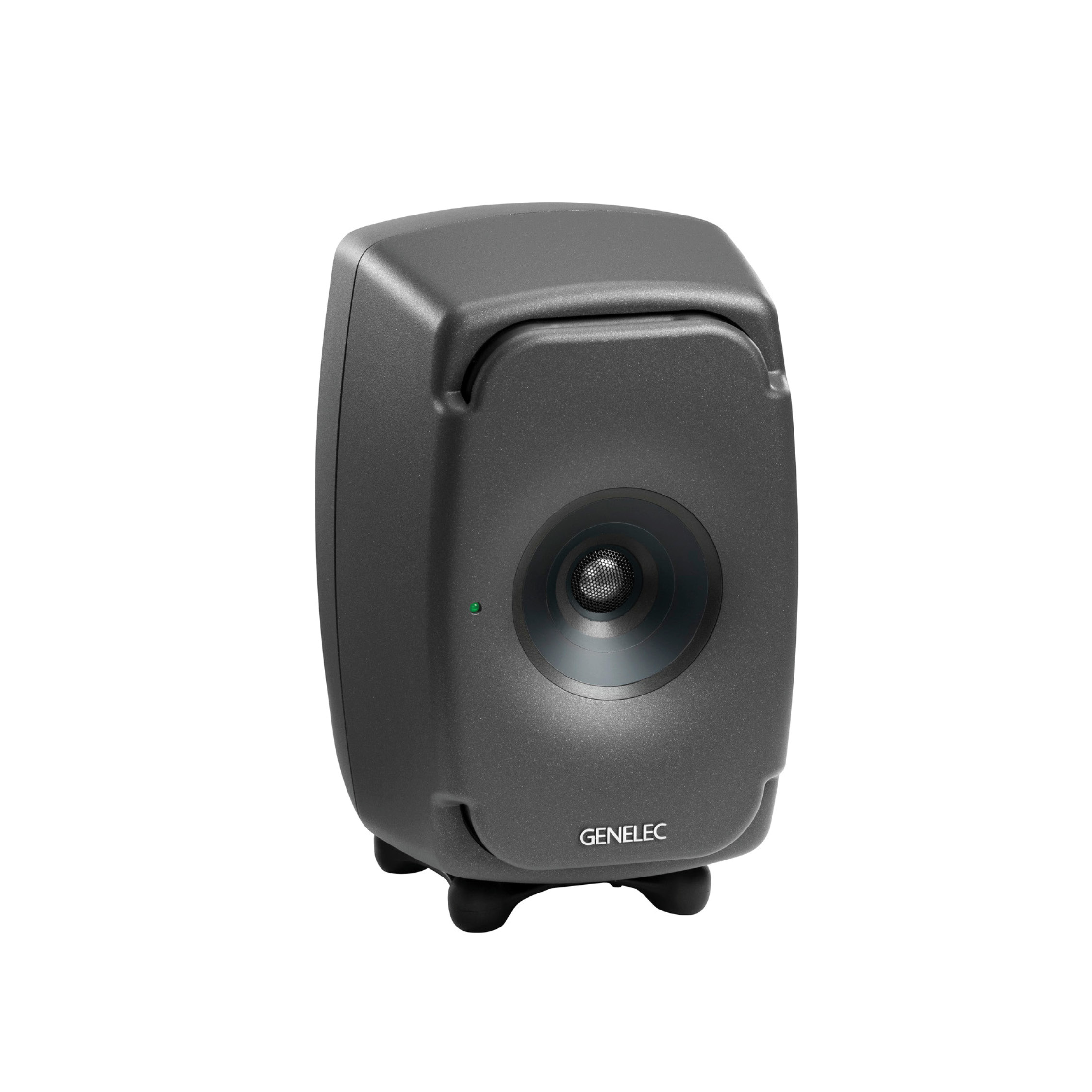

Genelec 8331 AP - Aktivni studijski monitor
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom karticom.
Garantujemo najnižu cenu!
Incredible three-way point source monitor with the footprint of a compact two-way. When space and precision is of the essence, nothing even comes close.
For applications calling for extraordinary imaging, extended frequency response, short to medium listening distance or long, fatigue-free working hours, The Ones are in an elite league of their own. They promote faster and more consistent decision making, and they also extend listening time, because unnatural imaging - a main contributor to listener fatigue - is minimised.
Frequency Response
58 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB: 45 Hz
High cutoff -6dB: 37 kHz
SPL
Peak SPL: ≥110 dB
Maximum peak acoustic output per pair in a listening room with music material at 1 m.
Short term max SPL: ≥104 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥99 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise: ≤0 dB SPL
Self generated noise level in free space at 1 m on axis (A-weighted).
Weight
Weight: 6.7 kg (14.8 lb)
Dimensions
Height: 285 mm (11 1/4 in)
Height with Iso-Pod: 305 mm (12 in)
Width: 189 mm (7 1/2 in)
Depth: 212 mm (8 3/8 in)
Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port
Drivers
Bass
Driver type: Racetrack
8331A Bass Driver
Count: 2
Width: 130 mm (5 1/8 in)
Height: 65 mm (2 1/2 in)
Midrange
Driver type: Coaxial
8331A midrange driver in cone (coaxial)
Diameter: 90 mm (3 1/2 in)
Treble
Driver type: Coaxial
8331A treble driver in metal dome (coaxial)
Diameter: 19 mm (3/4 in)
Harmonic distortion
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %
Amplifier Section
Amplifiers
8331 bass amplifier: 72 W Class D
8331 midrange amplifier: 36 W Class D
8331 treble amplifier: 36 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤0.5 W
Idle: ≤4 W
Full output: 60 W
Signal processing section

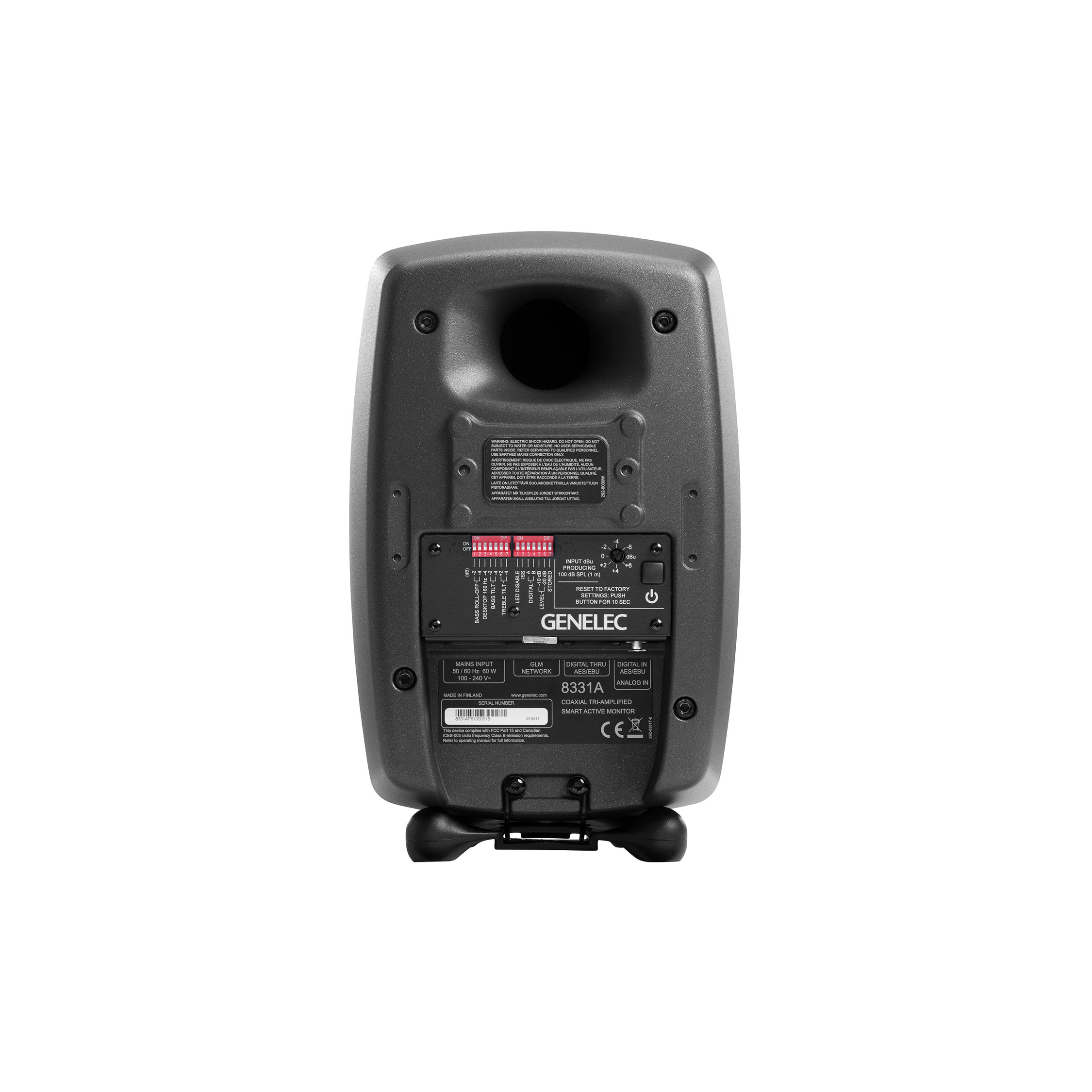

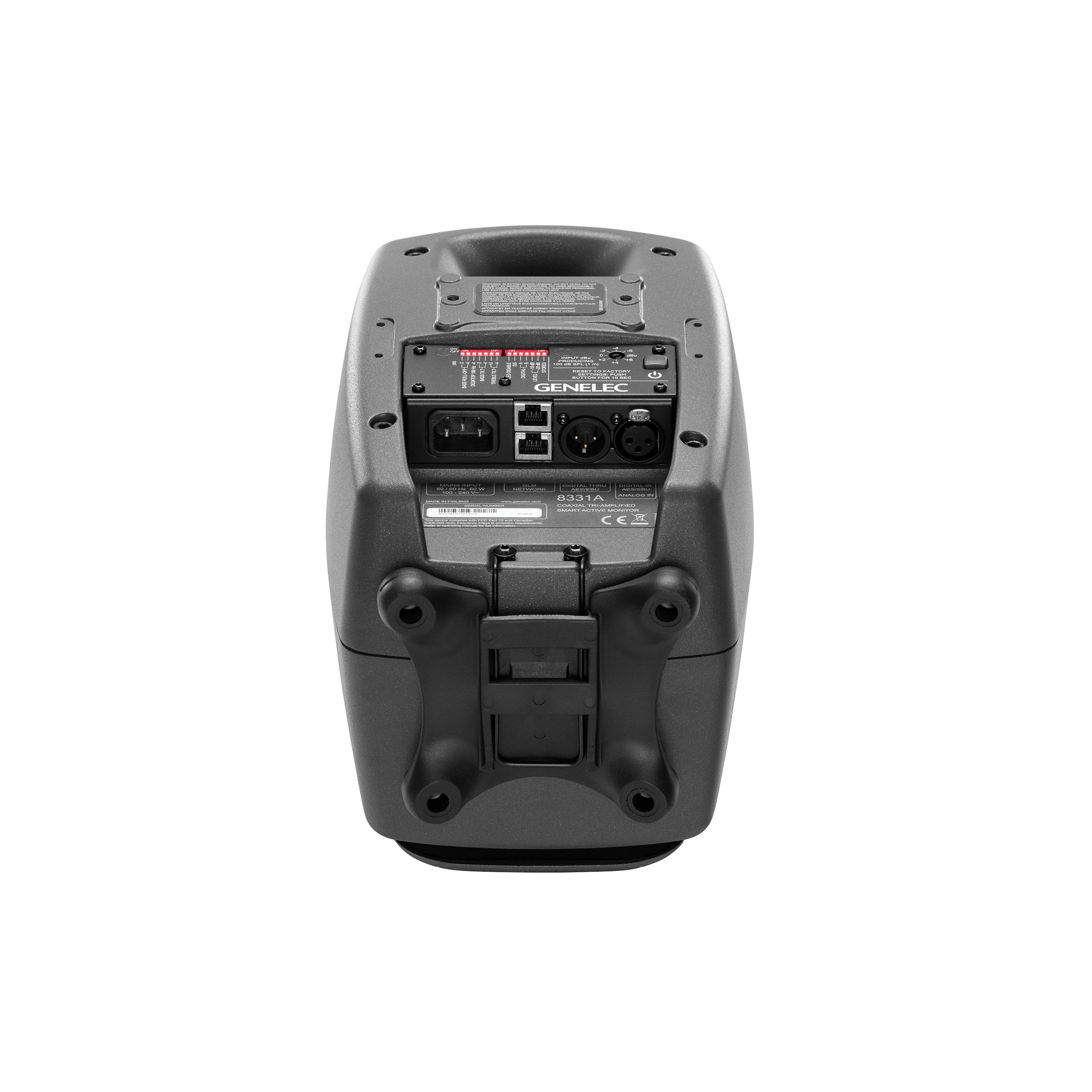

Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
Bass/Mid: 500 Hz
Mid/Treble: 3000 Hz
