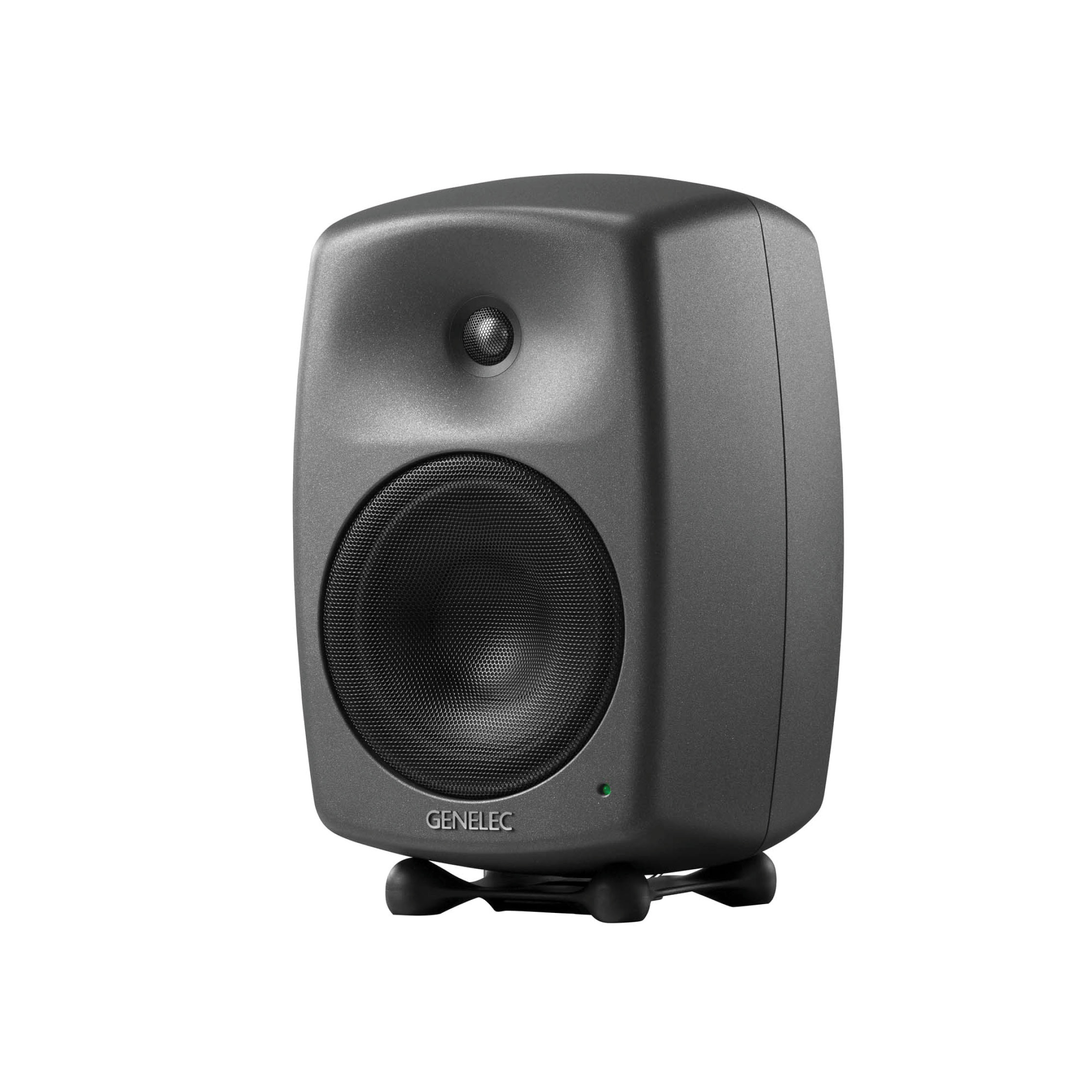

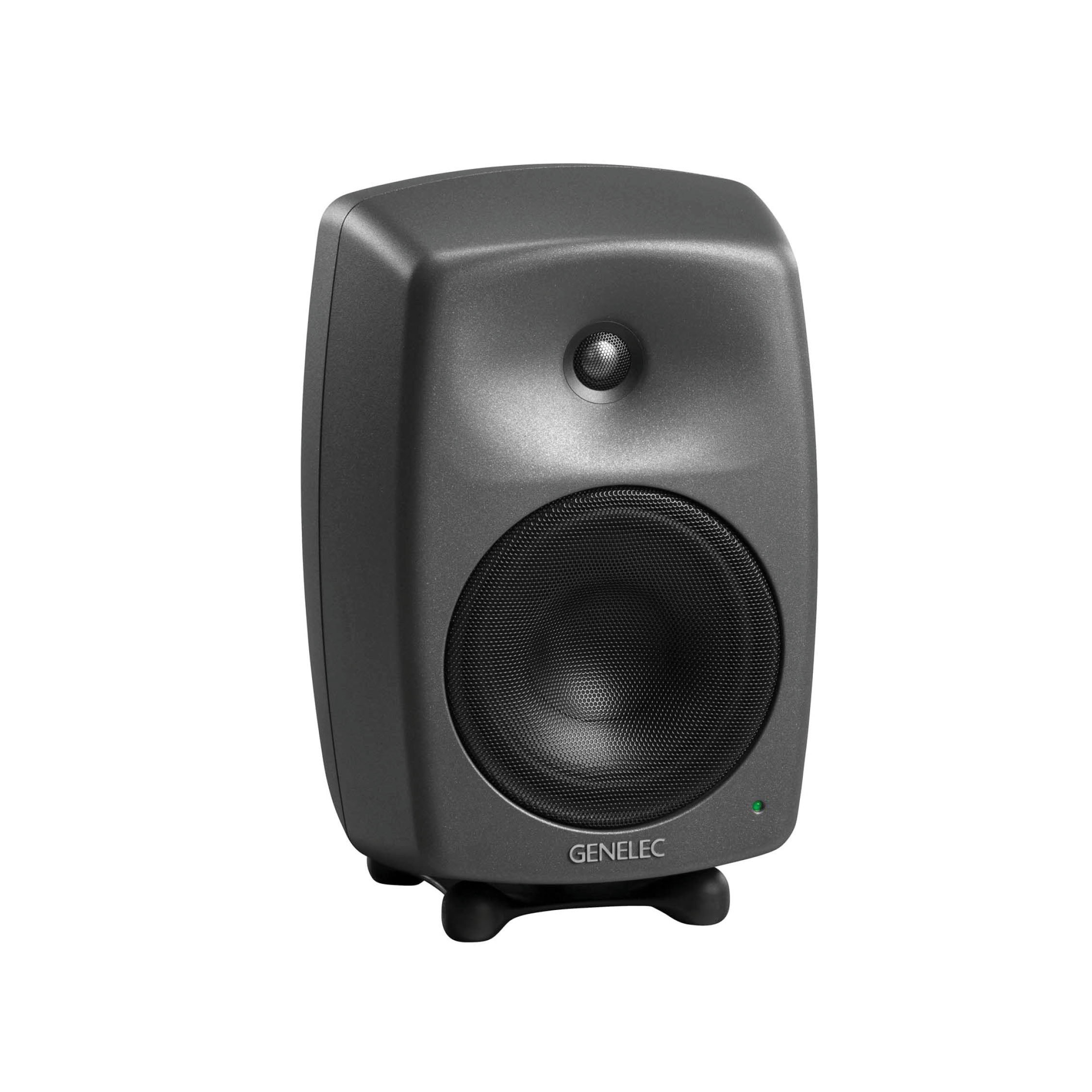

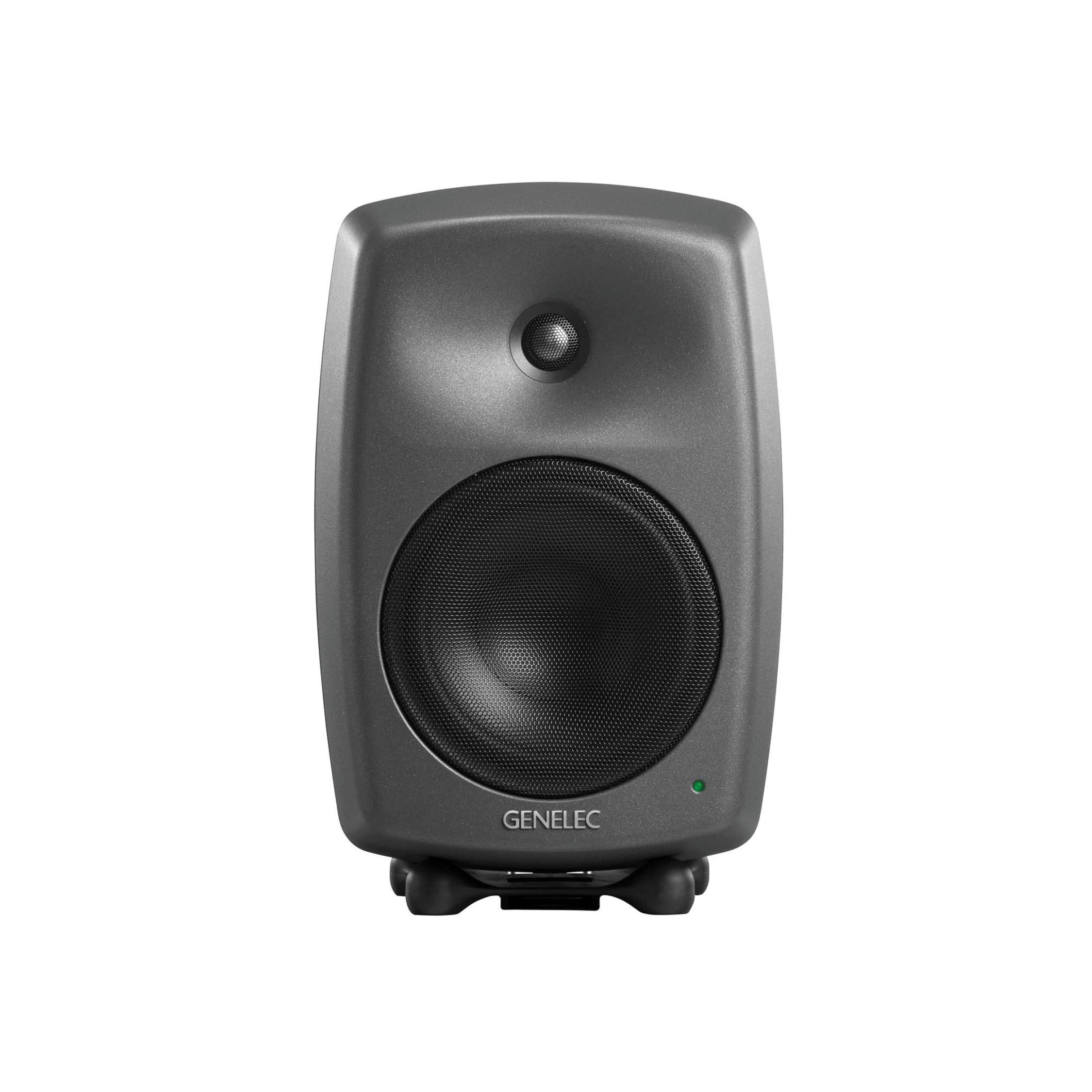

Genelec 8340A - Aktivni studijski monitor
Elevate the accuracy of your audio monitoring to a new level with the precision and adaptability of the 8340A Smart Active Monitor.
Top professionals the world over in recording studios, post-production houses, digital edit suites, radio, TV and outside broadcasting have come to rely on the unvarnished truth of the 8340A. Its wide and stable sweet spot promotes accurate, reliable mix decisions, and its bulletproof durability is essential for mission-critical applications.
System Specifications
Frequency Response: 45 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB: 38 Hz
High cutoff -6dB: 22 kHz
SPL
Peak SPL: ≥118 dB
Maximum peak acoustic output per pair in a listening room with music material at 1 m.
Short term max SPL: ≥110 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL: ≥100 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver unit protection circuit) at 1 m.
Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in free field on axis (A-weighted).
Weight
Weight: 8.4 kg (18.5 lb)
Dimensions
Height: 350 mm (13 3/4 in)
Height with Iso-Pod: 365 mm (14 3/8 in)
Width: 237 mm (9 3/8 in)
Depth: 223 mm (8 3/4 in)
Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port
Drivers
Bass
Driver type: Cone
Diameter: 165 mm (6 1/2 in)
Treble
Driver type: Metal dome
Diameter: 19 mm (3/4 in)
Harmonic distortion
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %
Amplifier Section
Amplifiers
8340A bass amplifier: 150 W Class D
8340A treble amplifier: 150 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤1 W
Idle: ≤12 W
Full output: 180 W
Signal processing section

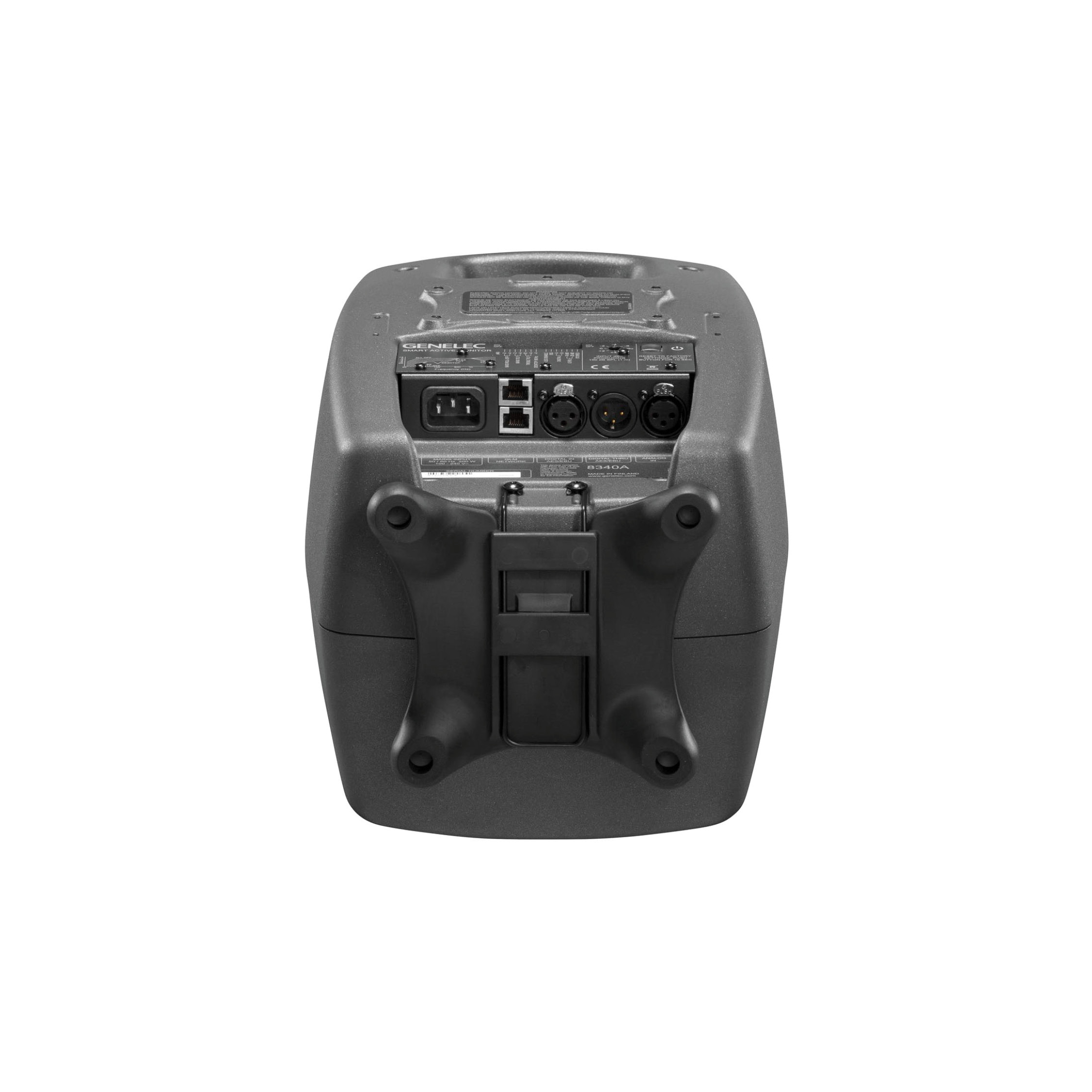

Connectors
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
