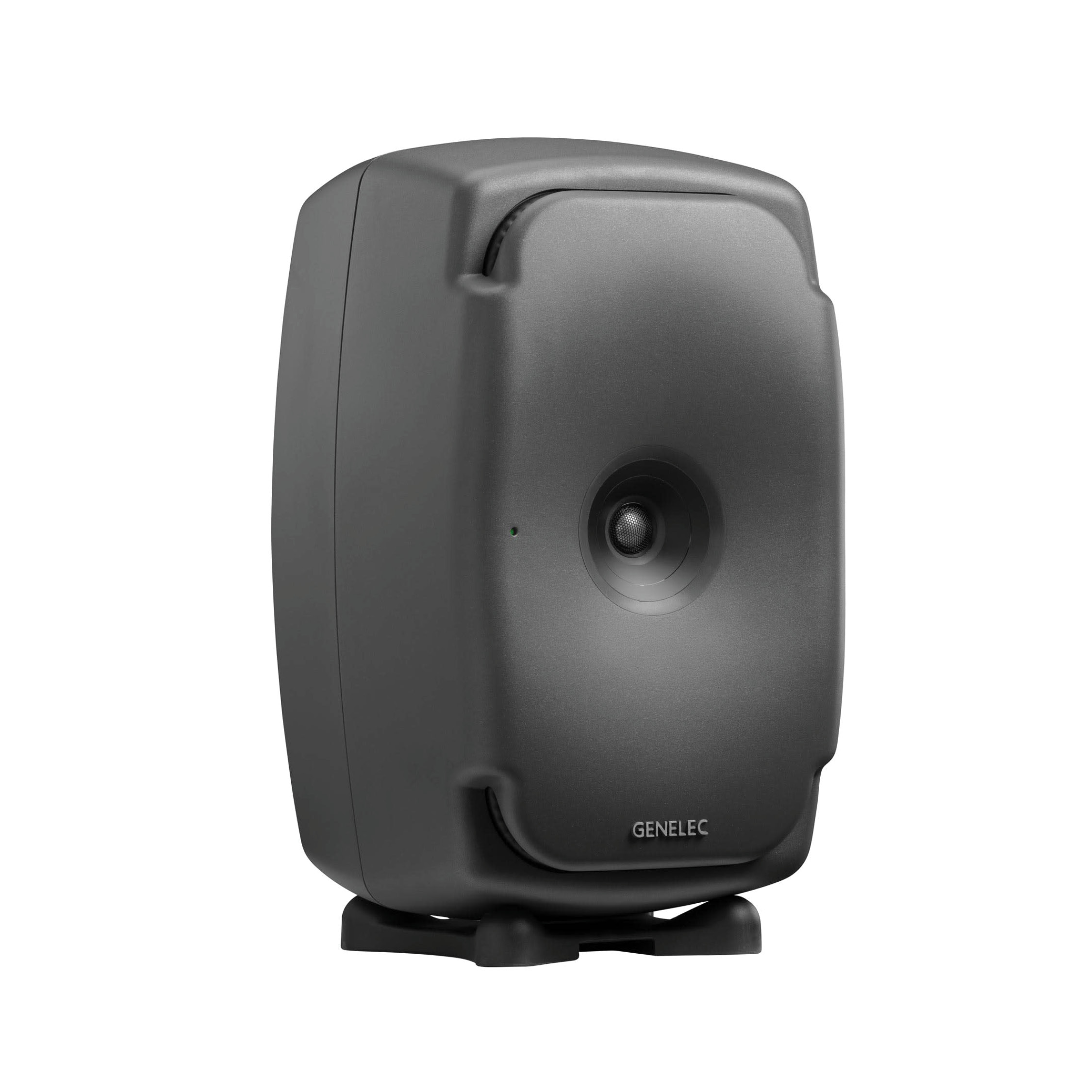

GENELEC 8361 AP
Adapts to your space
The 8361A promotes faster and more consistent decision making, and also allows you to work reliably on longer sessions - because unnatural imaging, a main contributor to listener fatigue, is minimised. And by using it in conjunction with our powerful GLM calibration software, the 8361A will adapt to your acoustic space - compensating for any detrimental room influences and helping you produce mixes that translate perfectly, from stereo through to highly complex immersive formats.
Frequency Response
36 Hz - 20 kHz (± 1.5 dB)
Low cutoff -6dB: 30 Hz
High cutoff -6dB: 43 kHz
SPL
Peak SPL: ≥124 dB
Short term max SPL: ≥118 dB
Long term max SPL: ≥109 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise: ≤5 dB SPL
Self generated noise level in free space at 1 m on axis (A-weighted)
Weight
Weight: 31.9 kg (70.3 lb)
Dimensions
Height: 570 mm (22 1/2 in)
Height with Iso-Pod: 593 mm (23 3/8 in)
Width: 357 mm (14 in)
Depth: 347 mm (13 5/8 in)
Enclosure
Enclosure material: Die cast aluminium
Enclosure type: Reflex port
Drivers
Bass
Driver type:
• Racetrack
• Dual 263 x 137 mm (103/8 x 53/8 in) obround cones
Count: 2
Width: 263 mm (10 3/8 in)
Height: 137 mm (5 3/8 in)
Midrange
Driver type:
• Coaxial
• 8361A midrange driver cone (coaxial)
Diameter: 130 mm (5 1/8 in)
Treble
Driver type:
• Coaxial
• 8361A treble driver metal dome (coaxial)
Diameter: 25 mm (1 in)
Harmonic distortion
50... 100 Hz ≤3 %
> 100 Hz ≤0.5 %
Amplifier Section
Amplifiers
8361A Bass Amplifier: 700 W Class D
8361A Midrange amplifier: 150 W Class D
8361A Treble Amplifier: 150 W Class D
Mains voltage: 100-240 VAC 50/60Hz
Power consumption
ISS Active: ≤1.5 W
Idle: ≤20 W
Full output: 600 W
Signal processing section
Connectors
2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Input: Analog signal input connector XLR female, balanced 10 kOhm.
Input: Digital signal input connector XLR female 110 Ohm.
Output: Digital signal output / Thru connector XLR male 110 Ohm
Crossover
Bass/Mid: 320 Hz
Mid/Treble: 2800 Hz
