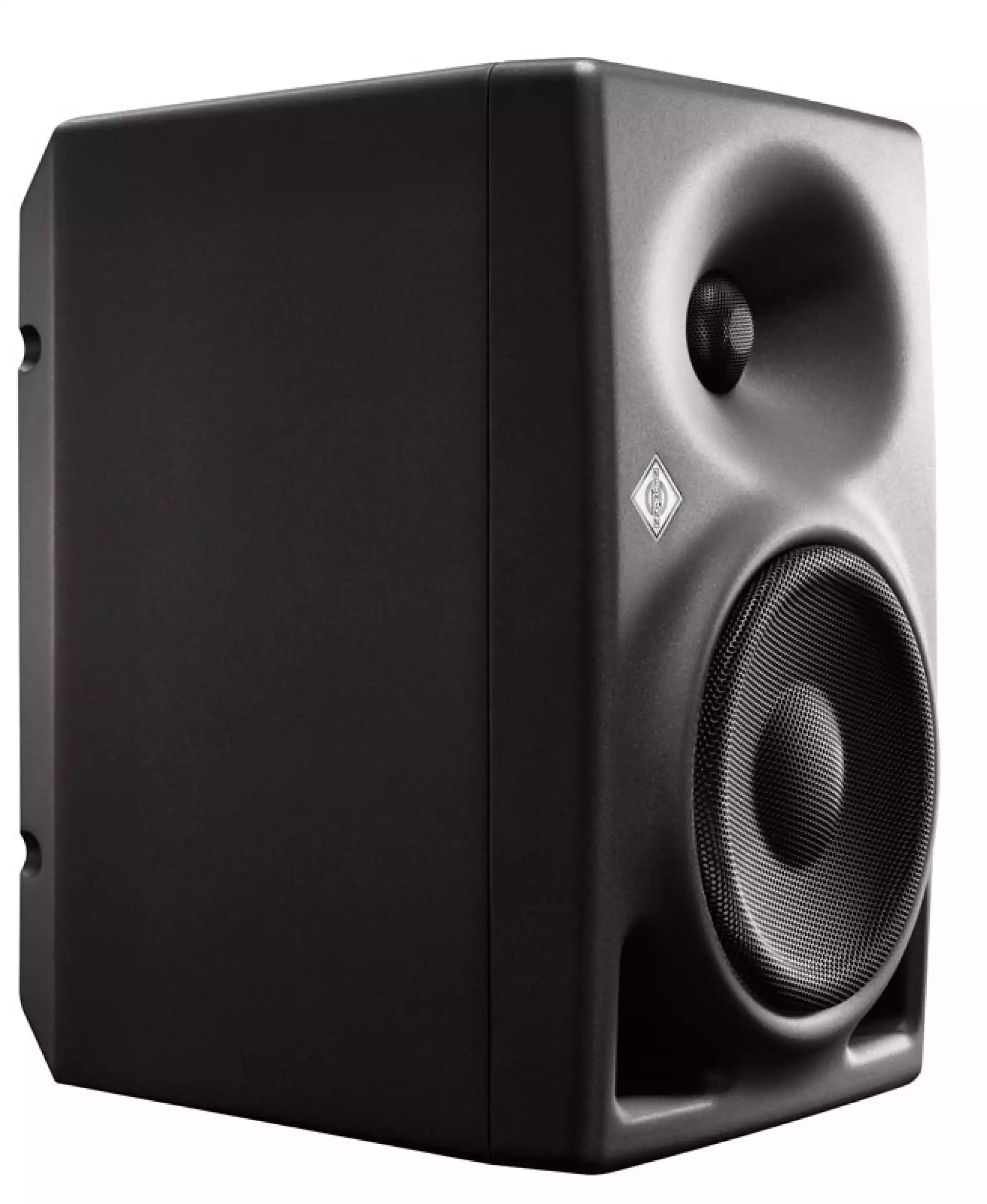

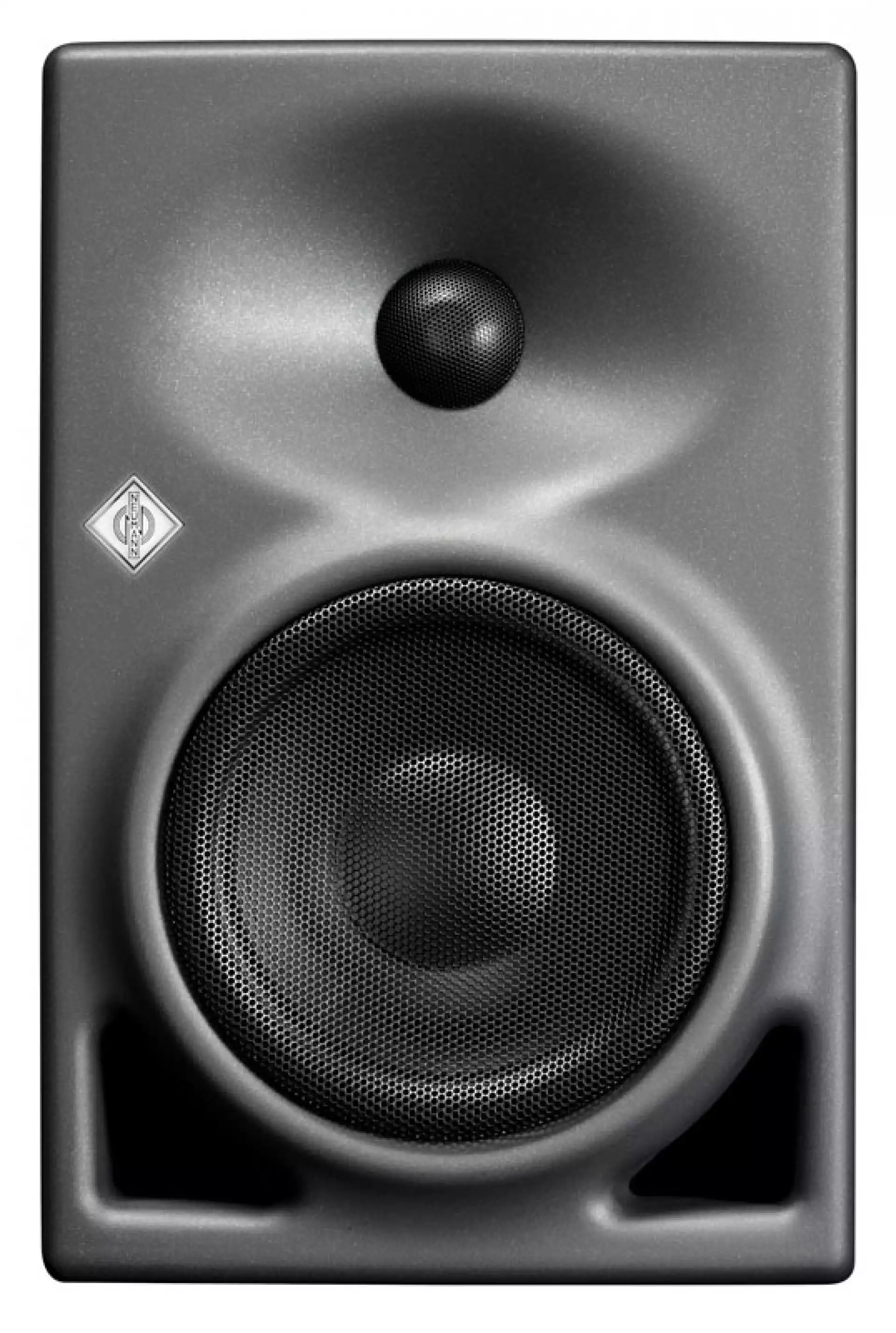

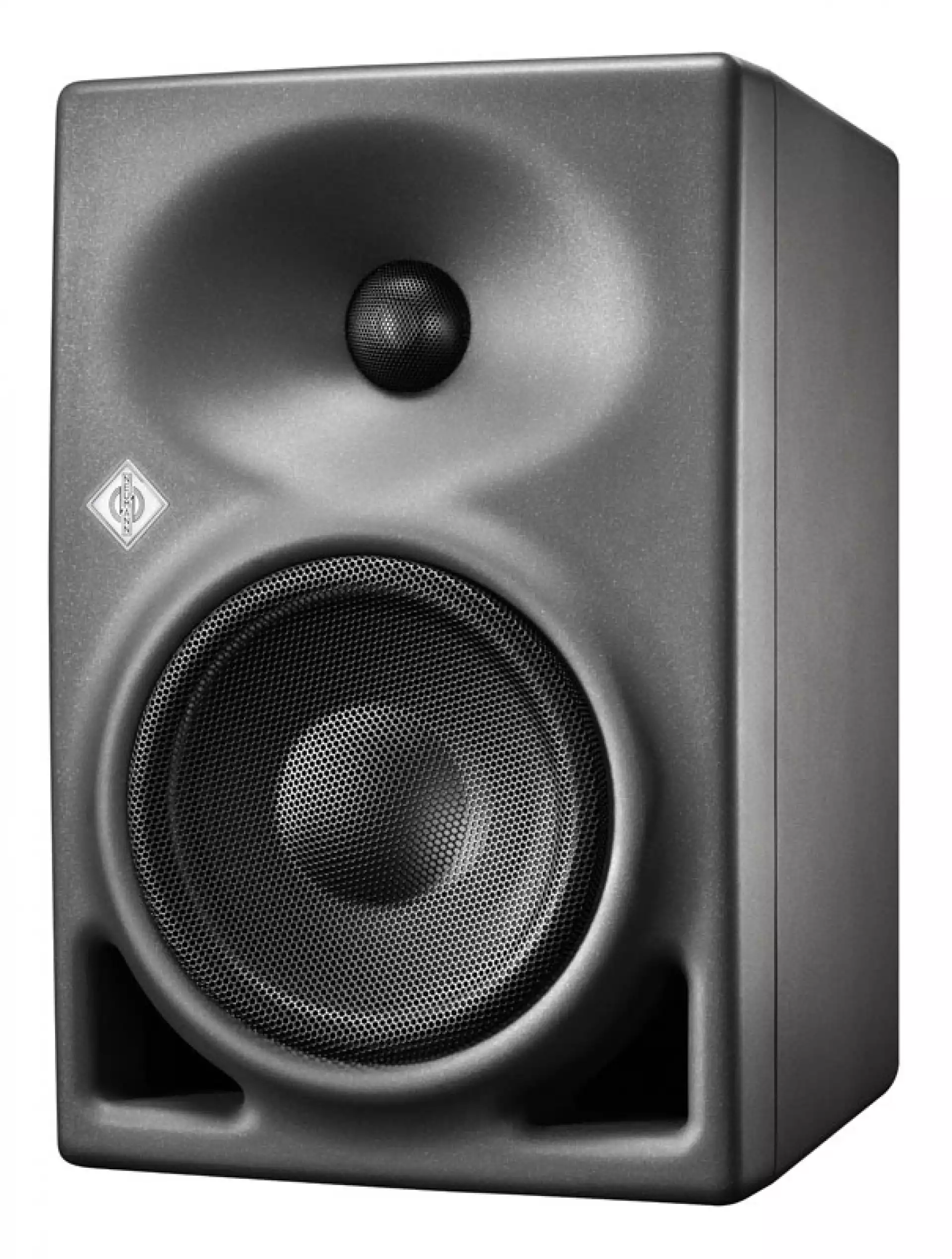

NEUMANN KH 120 D

Šifra:
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

PRECISION REDEFINED

The KH 120 is Neumann's trailblazer model and development yardstick for compact studio monitors. It has been a reference class for close-range monitoring since 2011. Enormous power reserves meet high-precision sound conduction. The result: Maximum signal fidelity and distinctly contoured transients across the entire, neutrally designed frequency response. This enables you to precisely control tonal depth, spatial image and even the smallest details in the mix.

The KH 120 is a two-way bi-amplified monitor with thermally protected class-AB amplifiers (80 W each). Just like the drivers, its Mathematically Modeled Dispersion™ (MMD™) waveguide is calculated with an optimal level of precision. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections – for example from a desk or mixing console. The finely controlled dispersion characteristics optimize reproduction in even the most varied of room configurations.

BEST WORKING ENVIRONMENT: CLOSE TO PROFESSIONAL EARS

The KH 120 is typically used in near-field applications such as project, music, broadcast and post-production studios for recording, mixing and mastering. It it also available as a digital input “D” version.

PORTS AND HIGH DYNAMICS: NO LONGER A CONTRADICTION

With its digital switched-mode power supply and bi-amplification, the KH 120 realizes sound pressure of up to 111.1 dB and in doing so, retains a high-resolution and neutral representation across the entire frequency response. This provides sufficient energy for maximum dynamics without distortion and losses. As a result, the bass goes down to impressive 52 Hz. Despite using ports, there is no “overhang” in the bass response. The transient response remains well in control. The optimized design of the drivers delivers clean sound right down to the lowest parts of the 50 Hz region. This rich foundation offers enough room to work cleanly on the mix without the necessity for a supplementary subwoofer. In the demanding treble range, the specially developed, powerful alloy fabric dome ensures distortion-free reproduction.

DIGITAL INPUT AND DELAY

The KH 120 D enables flexible digital signal connectivity (24 bit, 192 kHz, AES3 and S/P-DIF) via a digital BNC input and buffered BNC output. Audio-visual synchronization ensures a lip sync delay of 0 to 10/12 frames. The loudspeaker can be delayed up to 400 ms, in order to compensate for varying listening distances.

THE PERFECT COMPLEMENT: THE KH 750 DSP SUBWOOFER

In addition to its outstanding acoustic characteristics this DSP-based subwoofer not only offers excellent acoustic properties, but - in combination with the Neumann.Control iPad® app - it also provides the possibility of adapting a KH 120 stereo pair* to the room using the patented "Guided Alignment“. Furthermore the entire stereo system can be controlled via the app. Detailed information about all additional features can be found here.

HUNDREDS OF GOOD REASONS FROM THE NEUMANN PHILOSOPHY

The KH 120 has been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 120, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 120. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.

*When using the analog inputs only.

Free field frequency response ±6 dB 46 Hz … 24 kHz
Free field frequency response ±3 dB 52 Hz … 21 kHz
Free field frequency linearity deviation between 100 Hz and 10 kHz ± 1.0 dB
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced ±0.97; ±0.40; ±0.23 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) <20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space 95 dB SPL (>120 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) 111.1 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) 105.1 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) 104.8 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 107 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) 97 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) 104 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) 88 / 93 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) 89 / 94 dB(C) SPL

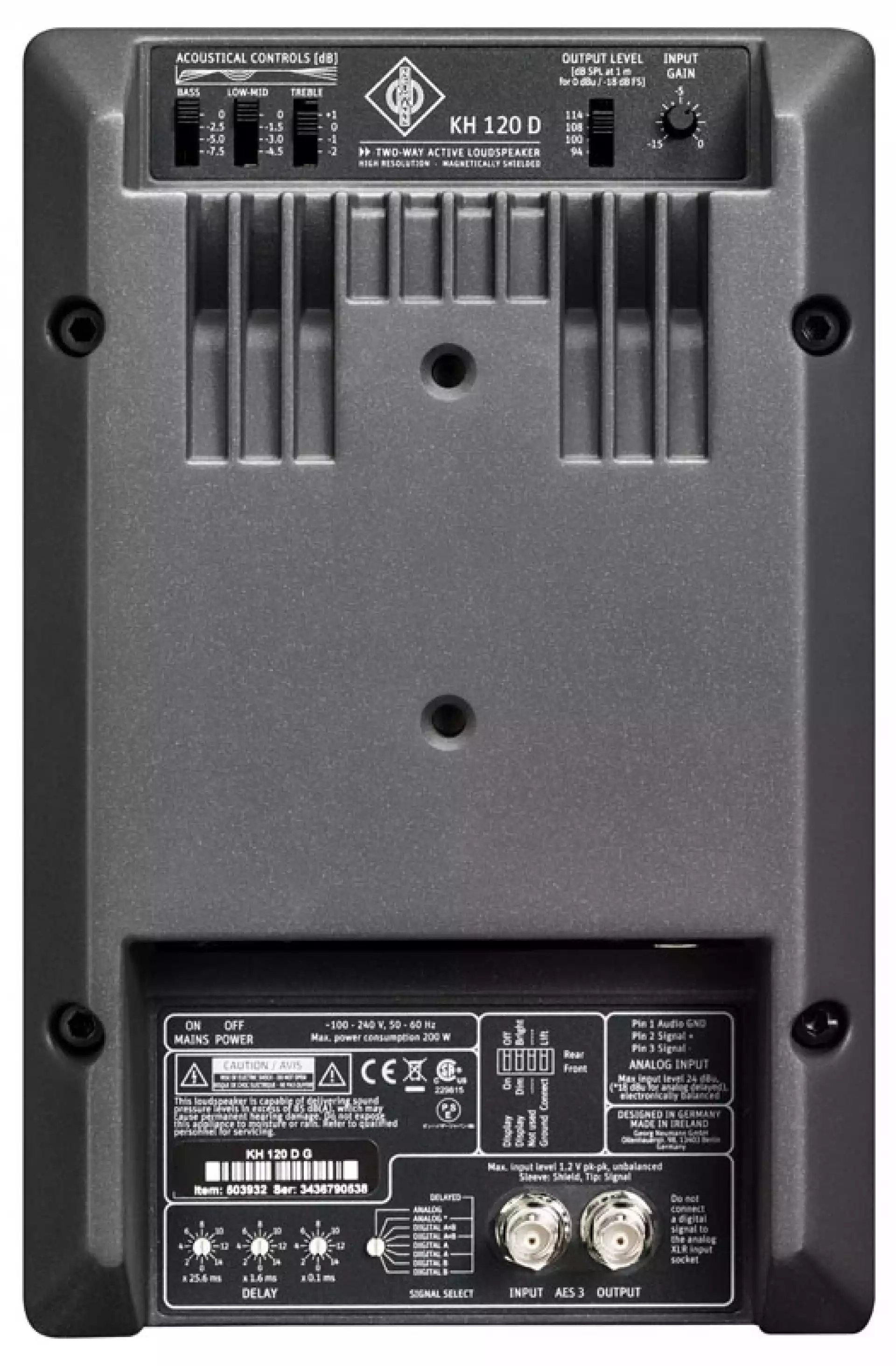

Analog input(s) XLR
Analog input impedance 10k Ohms in position 94/108 dB SPL at 1 m; 20k Ohms in position 100/114 dB SPL at 1 m
Max. input level +24 dBu (18 dBu for analog delayed)
Common mode rejection ratio (CMRR) >56 dB @ 15kHz
Input gain control (sensitivity) 0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level) 94; 100; 108; 114 dB SPL
Digital input(s) BNC (75 Ω): AES3; S/P-DIF
Digital output(s) BNC (75 Ω): AES3
Digital converter: resolution; design 16 … 24-bit DAC; Δ∑
Digital converter: sampling rate 22.05; 24; 32; 44.1; 48; 64; 88.2; 96; 176.4; 192 kHz
Digital internal sampling rate 96 kHz
Dynamic range A-D-A >116 dB(A)
Dynamic range D-A >123 dB(A)
THD+N: analog delayed, digital < -104 dB; < -106 dB
Digital sensitivity -18 dBFS = 100 dB SPL at 1 m
Latency 0.22 … 1.85 ms (digital A, B or A+B); 0.54 ms (analog delayed)
Delay: User adjustable delay range 0 … 409.5 ms
Delay: Resolution: time; distance 0.1 ms; 3.44 cm (1 3/8”)
Delay: Max. frames Audio-video synchronisation (lip sync) 10.2 (40 ms) frames; 12.3 (33 ms) frames
Delay: Time-of-flight maximum distance 140.1 m (462' 2")
Controller design Analog; active
Crossover frequency 2.0 kHz
Crossover slope 24 dB/oct; 4th order
Equalization: Bass 0; -2.5; -5; -7.5 dB
Equalization: Low-Mid 0; -1.5; -3; -4.5 dB
Equalization: Treble +1; 0; -1; -2 dB
Protection circuitry Independent thermo limiters for woofer, tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
Infrasonic filter: frequency; slope 30 Hz; 6 dB/oct.
Display: On; Normal Operation Neumann logo “White”
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute Neumann logo “Red”
Display Brightness White:on/dimmed/off: Red:on/dimmed
Output power woofer amplifier (THD+N with limiter deactivated: 10%) 80 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%) 80 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) 50 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) 50 W
Mains Power Supply: input voltage; frequency 100-240V; 50/60 Hz
Power consumption (230 V / 100 V): Idle 40 W
Power consumption (230 V / 100 V): Full output 200 W
In-rush current (Peak) 20 A
Cabinet material Aluminium
Cabinet surface finish; color (front / back) Painted; metallic anthracite (RAL 7021)
Operating conditions +10° C to +40° C (+50° F to +104° F); <75% RH; non-condensing
Transport/storage conditions -25° C to +70° C (-13° F to 158° F); <90% RH, non-condensing
Woofer 130 mm (5.25") magnetically shielded with protecting black metal grille
Tweeter 25 mm (1") with protecting black metal grille
Mounting points 2 x M8 threaded inserts with 70 mm spacing on back panel; thread depth 15 mm (5/8”)
Product dimensions (height x width x depth) 277 x 182 x 220 mm (10 7/8” x 7 1/8” x 8 5/8”)
External net volume 9.7 liters
Product weight 6.5 kg (14 lbs 5 oz)
Packed dimensions (height x width x depth), mm (inches) 415 x 365 x 280 mm (16 3/8” x 14 3/8” x 11”)
Packed weight 8.5 kg (18 lbs 8 oz)
Packed cube 0.042 m³
