NEUMANN KH 420

Šifra:
Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

THE GOLD STANDARD IN THE MIDFIELD RANGE

The KH 420 is designed for a working distance of 1.5 to 3 m (5’ to 9’). It handles this space effortlessly thanks to great power reserves and precisely concentrated dispersion. Even in diverse acoustical environments the KH 420 remains neutral and clear in every detail down to the subtlest nuances. No subtlety is lost; every sound element can be localized.

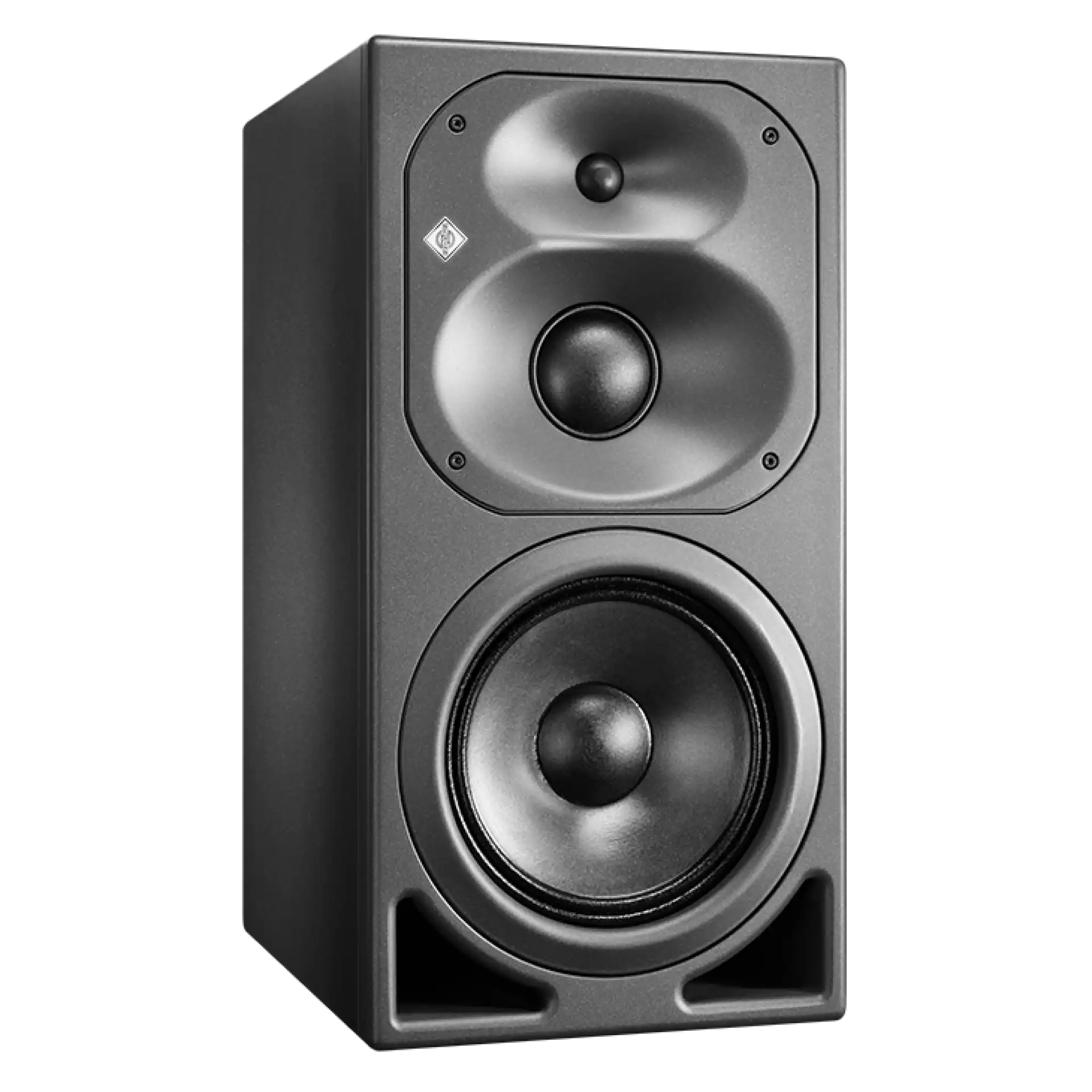

The KH 420 is a three-way tri-amplified monitor with thermally protected Class AB amplifiers (330 W and two times 140 W). Just like the drivers, its Mathematically Modeled Dispersion™ (MMD™) waveguide is engineered for optimum precision. Sound distributed in a horizontally precise manner ensures flexibility in the listening position; the narrower vertical dispersion reduces the negative effects of nearby reflections, for example from a desk or mixing console. The dispersion of the KH 420 is deliberately designed to be narrower, to guarantee reference sound at longer working distances.

BEST WORKING ENVIRONMENT: CLOSE TO PROFESSIONAL EARS

The KH 420 is designed for midfield applications and as main monitor in project, music, broadcast and post-production studios for recording, mixing and mastering. And in a multi-channel system, it can also be freely combined with all other Neumann studio monitors.

PORTS AND HIGH DYNAMICS: NO LONGER A CONTRADICTION

With its tri-channel amplifiers the KH 420 also realizes sound pressures of up to 122.4 dB. And it thereby retains high-resolution and neutral representation across the entire frequency response. This also includes an exceptional bass response down to 26 Hz. Despite using ports, there is no “overhang” or audible resonance in the low frequency range and the transient response is precisely controlled at all times.

The computer modeled chassis is constructed of LRIM™ materials which eliminates standing wave resonances and suppresses intermodulation distortion, especially in the midrange.

For demanding treble, our own specially developed, powerful alloy fabric dome ensures distortion-free reproduction. The fabric dome captures the midrange with utmost precision. Its ultralight material and the powerful neodymium magnet enable a significantly better transient response with considerably less distortion than comparable midrange drivers.

DIGITAL INPUT AND DELAY OPTION

The Digital Input Module DIM 1 expands the loudspeaker electronics by a digital XLR input, a digital BNC input and a digital BNC output (192 kHz/24 Bit) for flexible digital signal links. With the delay function (adjustment range 0 - 400 ms) of the DIM 1, the audio signal can be delayed to ensure audio-visual synchronization (lip sync). In addition, the high resolution of the delays (0.1 ms) allows equalization of the propagation delays. The delay can be added to both inputs (digital and analog). The KH 420 can be retrofitted with a DIM 1.

THE KH 750 DSP SUBWOOFER

In addition to its outstanding acoustic characteristics this DSP-based subwoofer not only offers excellent acoustic properties, but - in combination with the Neumann.Control iPad® app - it also provides the possibility of adapting a KH 420 stereo pair to the room using the patented "Guided Alignment“. Furthermore the entire stereo system can be controlled via the app. Detailed information about all additional features can be found here.

HUNDREDS OF GOOD REASONS FROM THE NEUMANN PHILOSOPHY

The KH 420 has also been developed true to the Neumann philosophy for monitor loudspeakers. Every component, every shape, every signal and every wave motion is a consequence of this philosophy. No form or component is there without reason. There are hundreds of tangible reasons built into the KH 420, which all stand for exceptionally pure and neutral sound. These include, for example, curvatures of the housing that reduce edge diffraction. Also included is the pistonic output of the bass driver which does not give rise to harmonic distortions, even with the highest sound peaks. Some of these reasons are obvious in the KH 420. Others Neumann prefers to keep to itself. But together, each can be heard – sound professionals in both large and small studios all around the world can testify to this. You can read more about the Neumann philosophy for studio monitors here.

Free field frequency response ±6 dB 25 Hz … 22 kHz
Free field frequency response ±3 dB 26 Hz … 22 kHz
Free field frequency linearity deviation between 100 Hz and 10 kHz ± 1.2 dB
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced ±0.78; ±0.36; ±0.22 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu) <20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space 95 dB SPL (>100 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) 122.4 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz) 116.4 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz) 109.9 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions 109 dB(C) SPL
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range) 103 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer) 109 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range) 90 / 96 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer) 90 / 96 dB(C) SPL
Analog input(s) XLR: analog electronically balanced
Analog input impedance >14k Ohms
Max. input level +24 dBu (DIM 1: 18 dBu for analog delayed)
Common mode rejection ratio (CMRR) >56 dB @ 15kHz

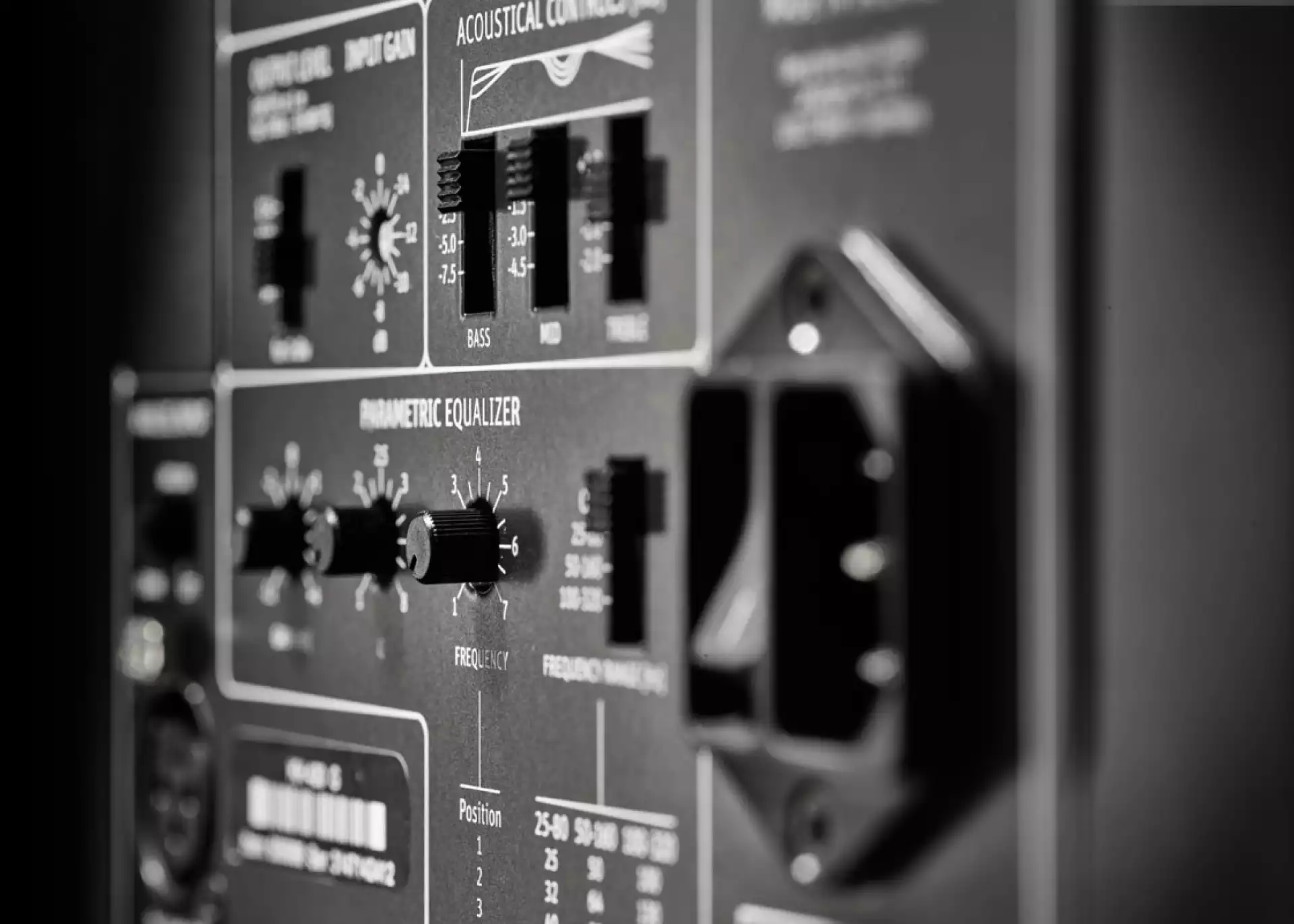

Input gain control (sensitivity) 0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level) 94; 100; 108; 114 dB SPL
Controller design Analog; active
Crossover frequency 570 Hz and 2.0 kHz
Crossover slope 24 dB/oct; 4th order
Equalization: Bass 0; -2.5; -5; -7.5 dB
Equalization: Mid 0; -1.5; -3; -4.5 dB
Equalization: Treble +1; 0; -1; -2 dB
Equalization: Parametric EQ: Gain '+4 ... -12 dB
Equalization: Parametric EQ: Frequency Bypass, 25 ... 80 Hz; 50 ... 160 Hz; 100 ... 320 Hz
Equalization: Parametric EQ: Q 1 ... 8
Protection circuitry Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
Infrasonic filter: frequency; slope 9 Hz; 18 dB/oct.
Display: On; Normal Operation Neumann logo “White”
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute Neumann logo “Red”
Display Brightness White: 100%/60%/30%/off; Red: 100%/60%/30%
Output power woofer amplifier (THD+N with limiter deactivated: 10%) 330 W
Output power midrange amplifier (THD+N with limiter deactivated: 10%) 140 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%) 140 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%) 295 W
Output power midrange amplifier (THD+N with limiter deactivated: 0.1%) 130 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%) 130 W
Mains Power Supply: input voltage; frequency 100-240V; 50/60 Hz
Power consumption (230 V / 100 V): Idle 60 W (+5W when DIM 1 fitted)
Power consumption (230 V / 100 V): Full output 800 W
Cabinet material Wood cabinet, polyurethane waveguide, aluminum electronics panel
Cabinet surface finish; color (front / back) Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
Operating conditions +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
Transport/storage conditions -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing
Woofer 265 mm (10") with magnetic shielding
Midrange 75 mm (3") with magnetic shielding
Tweeter 25 mm (1") with protecting black metal grille
Mounting points 8 x M5 on rear panel
Product dimensions (height x width x depth) 645 x 330 x 444 mm (25 3/8" x 13" x 17 1/2")
External net volume 93 liters
Product weight 35.0 kg (77 lbs 3 oz) (+ 100 g (3 oz) with DIM 1 fitted)
Cabinet weight when electronics remote located 30.3 kg (66 lbs 13 oz) (+ 100 g (3 oz) with DIM 1 fitted)
Packed dimensions (height x width x depth), mm (inches) 775 x 610 x 590 mm (23 1/4" x 15" x 14 1/8")
Packed weight 41.0 kg (90 lbs 6 oz)
Packed cube 0.279 m³
