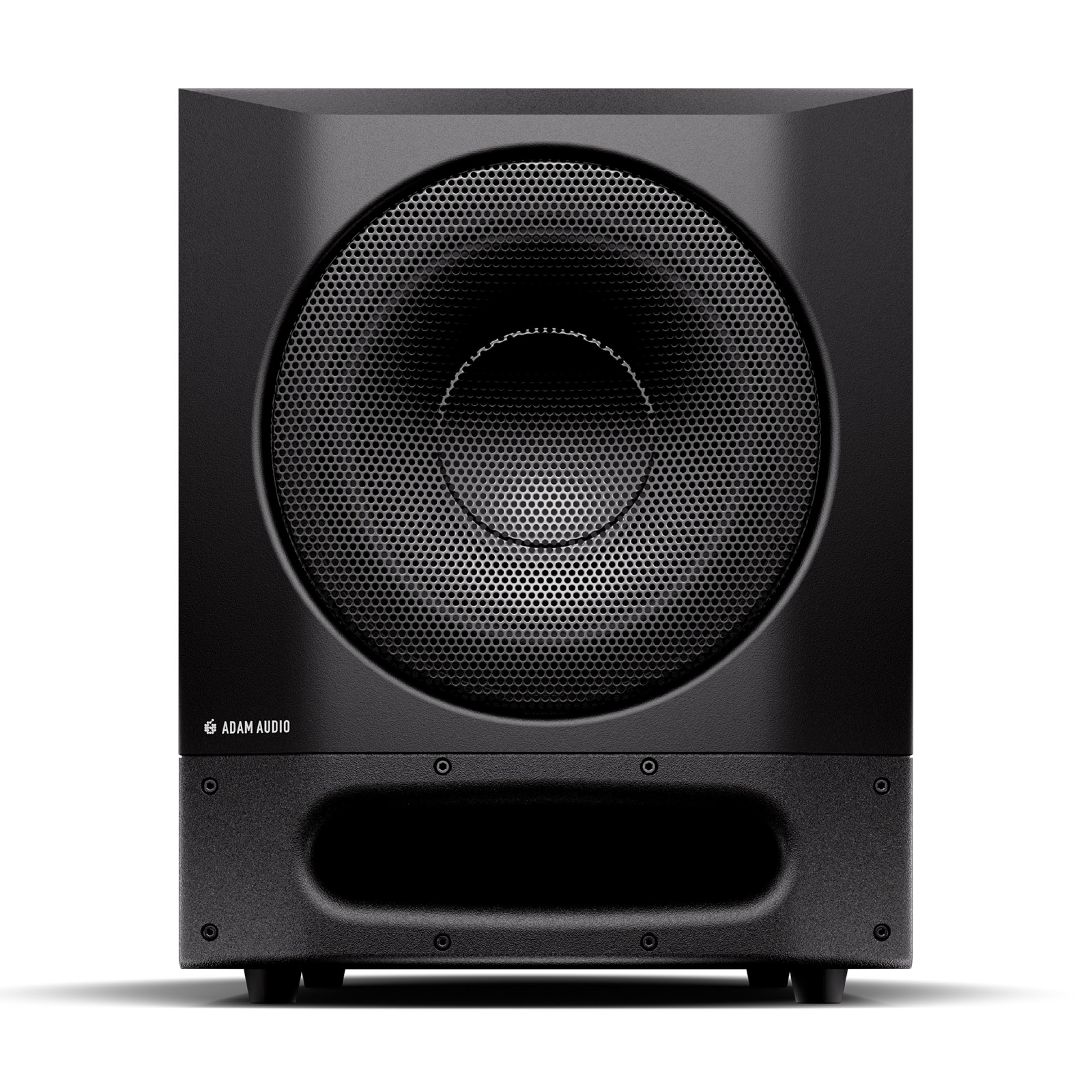

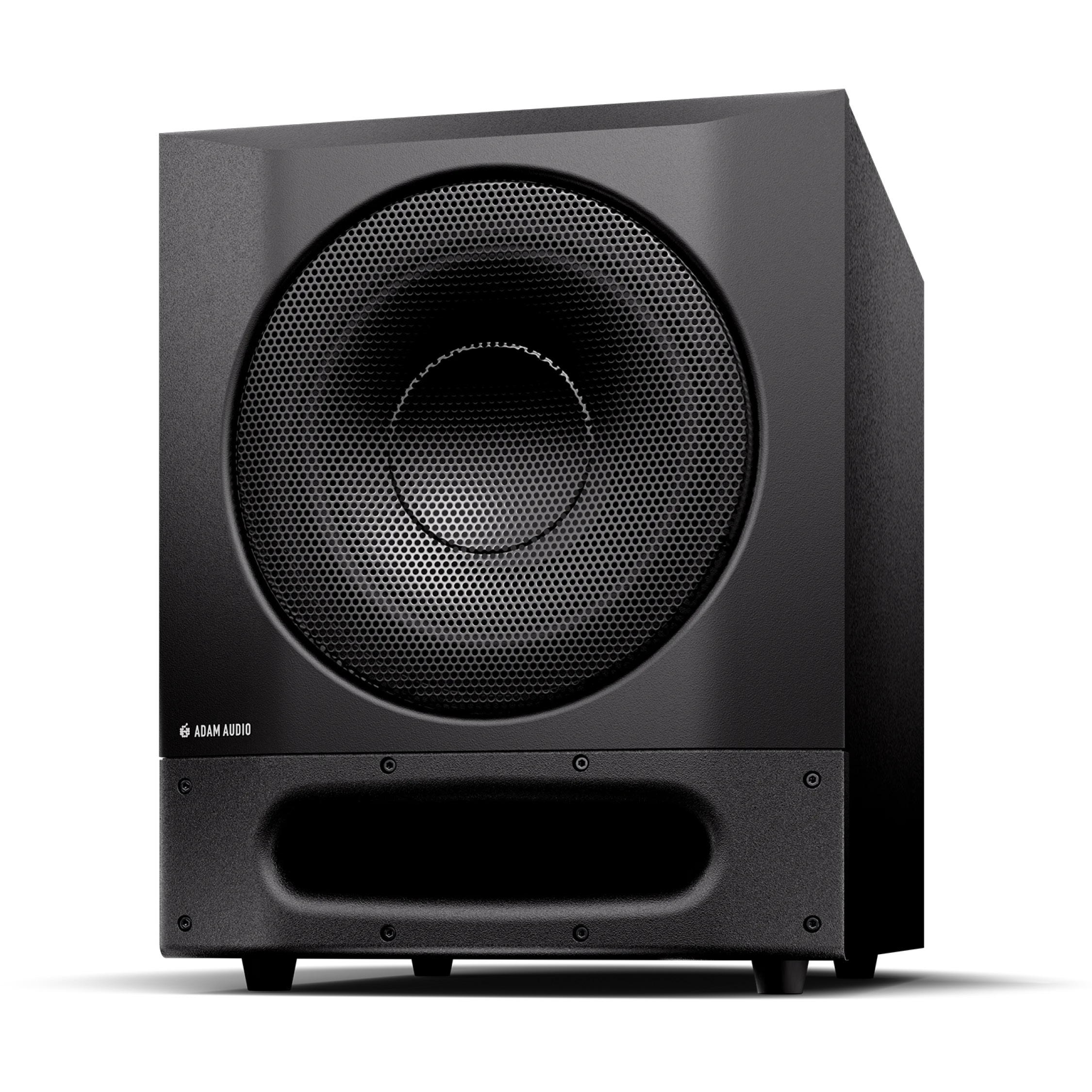

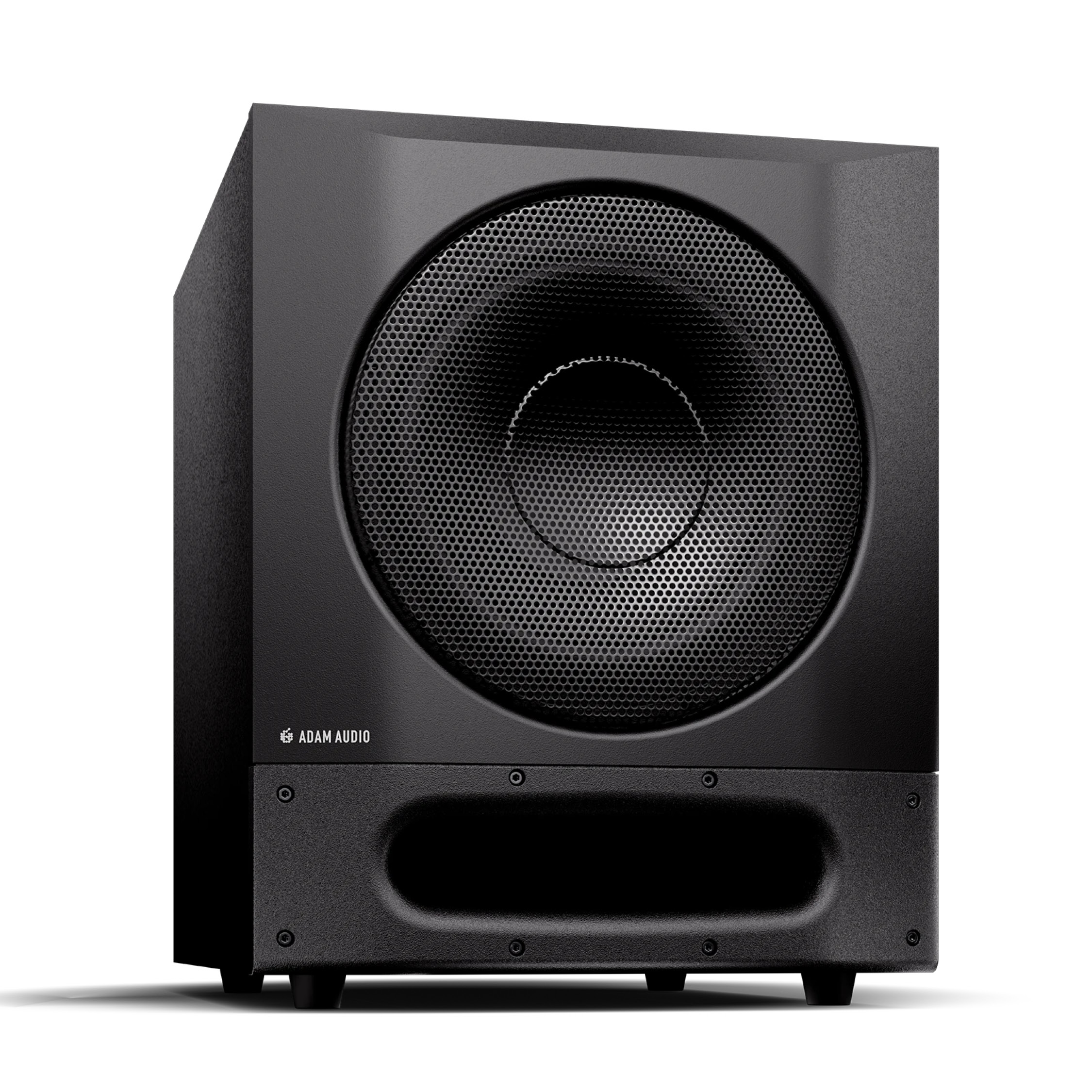

Adam Audio Sub10 PRO

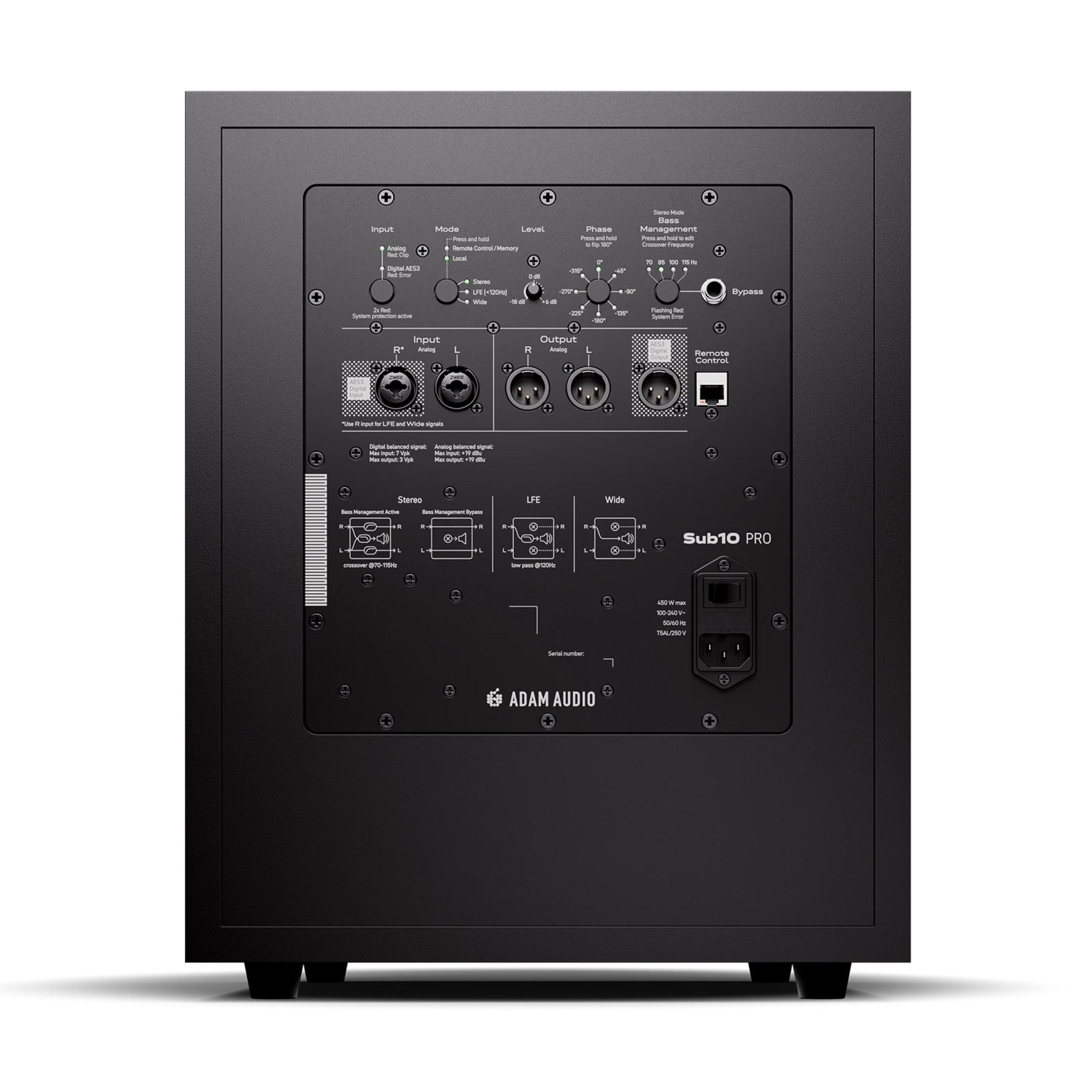

The Sub10 PRO combines advanced DSP, powerful low-frequency audio reproduction and network-based calibration for stereo and multichannel monitoring systems. Its high-excursion 10” woofer and Class D amplifier deliver plentiful SPLs with minimal distortion thanks to the FEA-optimized bass port. Professional connectivity on the backplate includes AES3 digital, balanced analog XLR and TRS, precise phase and crossover controls, plus a footswitch input for bass management. ADAM Control facilitates manual calibration over 4-bands of parametric EQ, plus the deployment of Sonarworks calibration profiles and firmware updates.
General data
Cabinet Design: Front Fire and front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
Power consumption (max, standby): 450 W, 2.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 450 W max
Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
Weight: 22.8 kg (50 lbs 4 oz)
Dimensions (Height x Width x Depth): 450 mm x 360 mm x 450 mm (17 3/4" x 14 1/8" x 17 3/4")
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Sub10 PRO subwoofer, power cable, Quick Start Guide
Audio Connectors
Analog Inputs: 2 x XLR / TRS combi
Digital Input: XLR AES3
Analog Input Impedance: 25 kOhm
Digital Input Impedance: 110 Ohm
Max. Input Level: +19 dBu
Analog Outputs: 2 x XLR
Digital Outputs: XLR AES3
Amplification
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 325 W
RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
Control Options [via Network]
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control (Windows and MacOS available)
Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
Advanced Room Adaptation: 4-bands QEQ
Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
Acoustics
Frequency Response @ -3 dB: 22 - 264 Hz
Frequency Response @ -6 dB: 21 - 300 Hz
Crossover Frequencies: 70, 85, 100, 115 Hz (variable via ADAM Control)
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS):: 106 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 110 dB SPL
Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (RMS): 102 dB SPL
Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (Peak): 105 dB SPL
Max peak SPL in full space at 1 m with IEC-weighted noise (full range)): 113 dB SPL
Max peak SPL in full space at 1 m with IEC-weighted noise (85 Hz bass managed): 114 dB SPL
Dolby DARDT max SPL in full space (full range bass managed): 113 dB SPL
Drivers
Basket Diameter: 10″
Voice Coil Diameter: 1 3/4" (45 mm)
Cone Material: Paper, fiber-reinforced
Signal Processing
AD converter: 24-bit (via XLR/TRS inputs)
Internal sample rate: 96 kHz
Delay range and resolution: 0 - 10 ms, 32-bit
Protection: Independent peak and thermo limiters, over current protection, over temperature protection, under voltage protecti
Control Options [via Backplate]
Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
Level: -18 dB to +6 dB
Input Selection: Analog, digital
Phase: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management: 70, 85, 100, 115 Hz
Operational Modes: Remote Control, Local / Stereo, LFE (<120Hz), Wide
Bypass: Yes, via footswitch (not included) and TRS connection (latched)
