Adam Audio Sub8 PRO

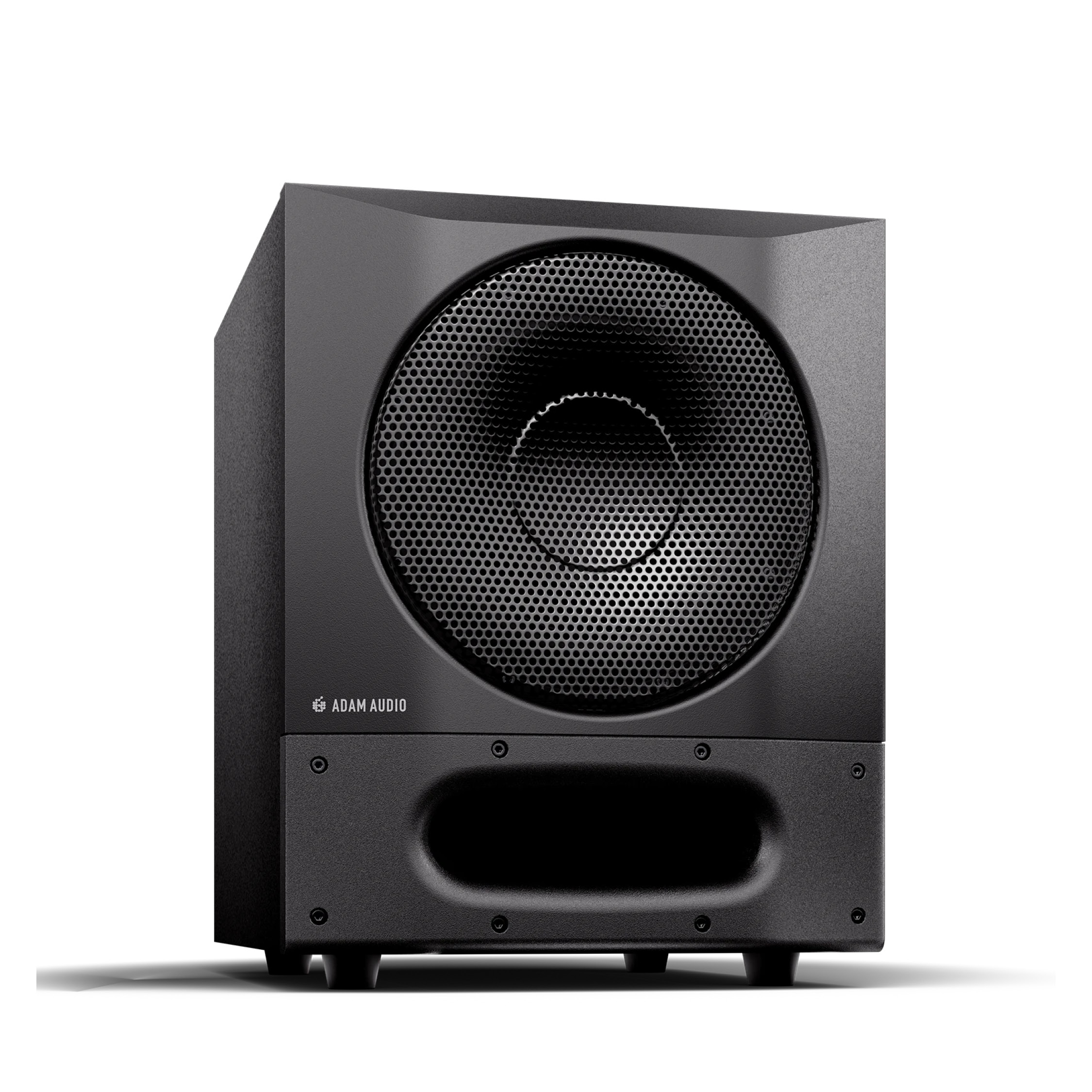

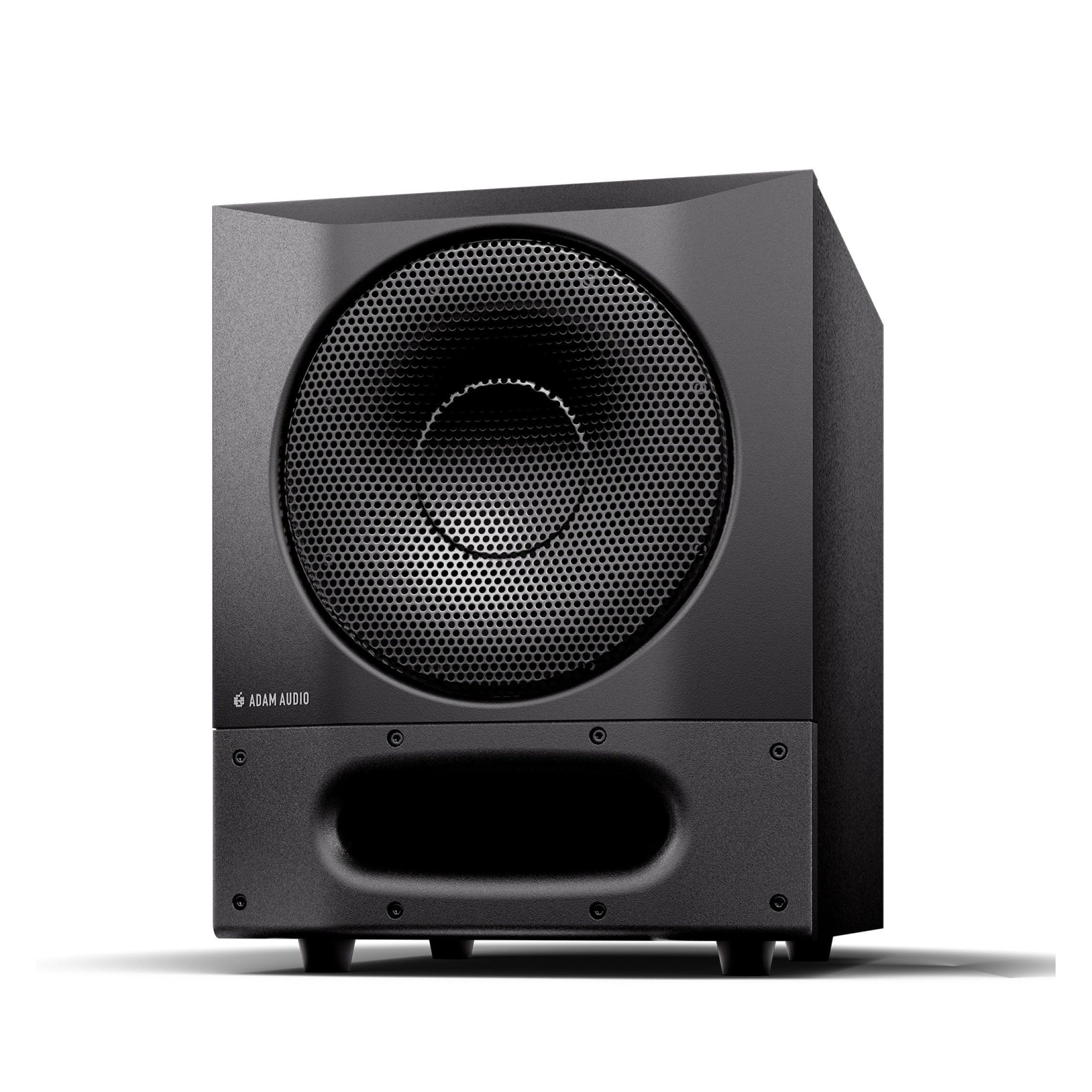

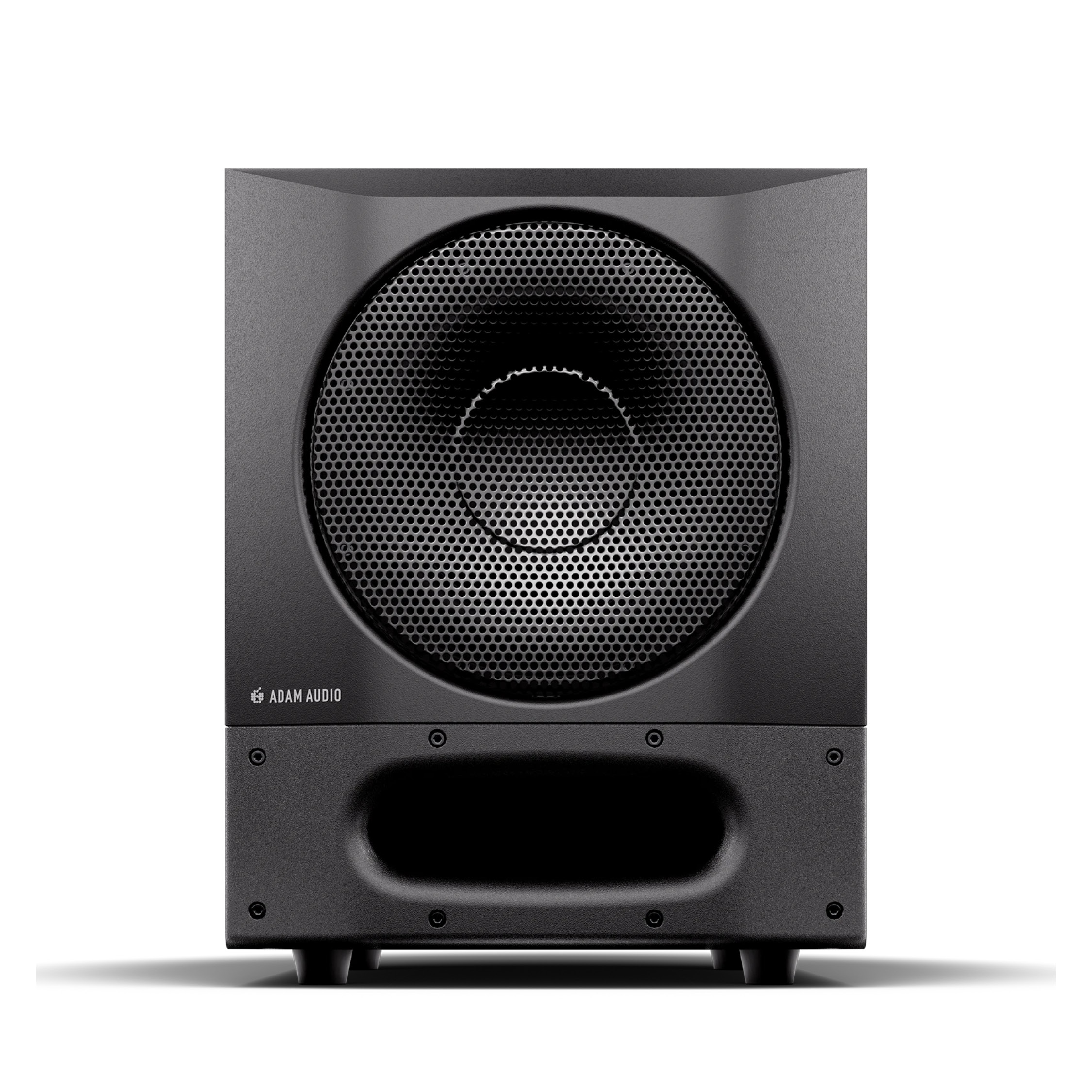

The Sub8 PRO combines advanced DSP technology with outstanding acoustic performance, making it an ideal foundation for compact monitoring systems. This networked subwoofer features a high-excursion 8” woofer, FEA-optimized bass port and powerful Class D amplifier. An onboard Ethernet connection provides access to ADAM Control and its range of management and calibration tools. Users can manually time-align the subwoofer, apply four bands of parametric EQ and upload Sonarworks calibration profiles. Firmware updates can also be managed through the application, allowing future functionality to be added.
General data
Cabinet Design: Front Fire and front ported
Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
Power consumption (max, standby): 400 W, 2.5 W
AC Input Voltage: 100 – 240 V, 50/60 Hz
Power Rating: 400 W max
Operating Conditions: -10° C to +40° C (+14° F to +104° F); <75 % RH, non-condensing
Weight: 15.3 kg (33 lbs 12 oz)
Dimensions (Height x Width x Depth): 385 mm x 300 mm x 365 mm (15 1/8" x 11 6/8" x 14 3/8")
Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Sub8 PRO subwoofer, power cable, Quick Start Guide
Audio Connectors
Analog Inputs: 2 x XLR / TRS combi
Digital Input: XLR AES3
Analog Input Impedance: 25 kOhm
Digital Input Impedance: 110 Ohm
Max. Input Level: +19 dBu
Analog Outputs: 2 x XLR
Digital Outputs: XLR AES3
Amplification
Amplifier Type: PWM
Peak (10% THD, limiter deactivated): 325 W
RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
Control Options [via Network]
Networking Connector: RJ45
Connection Type: Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control (Windows and MacOS available)
Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
Advanced Room Adaptation: 4-bands QEQ
Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference\
Acoustics
Frequency Response @ -3 dB: 30 - 228 Hz
Frequency Response @ -6 dB: 26 - 300 Hz
Crossover Frequencies: 70, 85, 100, 115 Hz (variable via ADAM Control)
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (RMS):: 105 dB SPL
Max SPL in full space at 1 m with sine bursts (average 50 Hz to 100 Hz) @ 3% THD (Peak): 110 dB SPL
Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (RMS): 101 dB SPL
Max SPL in full space at 1 m with sine bursts (average 25 Hz to 50 Hz) @ 10% THD (Peak): 104 dB SPL
Max peak SPL in full space at 1 m with IEC-weighted noise (full range)): 112 dB SPL
Max peak SPL in full space at 1 m with IEC-weighted noise (85 Hz bass managed): 113 dB SPL
Dolby DARDT max SPL in full space (full range bass managed): 112 dB SPL
Drivers
Basket Diameter: 8″
Voice Coil Diameter: 1 3/8" (35 mm)
Cone Material: Paper, fiber-reinforced
Signal Processing
AD converter: 24-bit (via XLR/TRS inputs)
Internal sample rate: 96 kHz
Delay range and resolution: 0 - 10 ms, 32-bit
Protection: Independent peak and thermo limiters, over current protection, over temperature protection, under voltage protecti

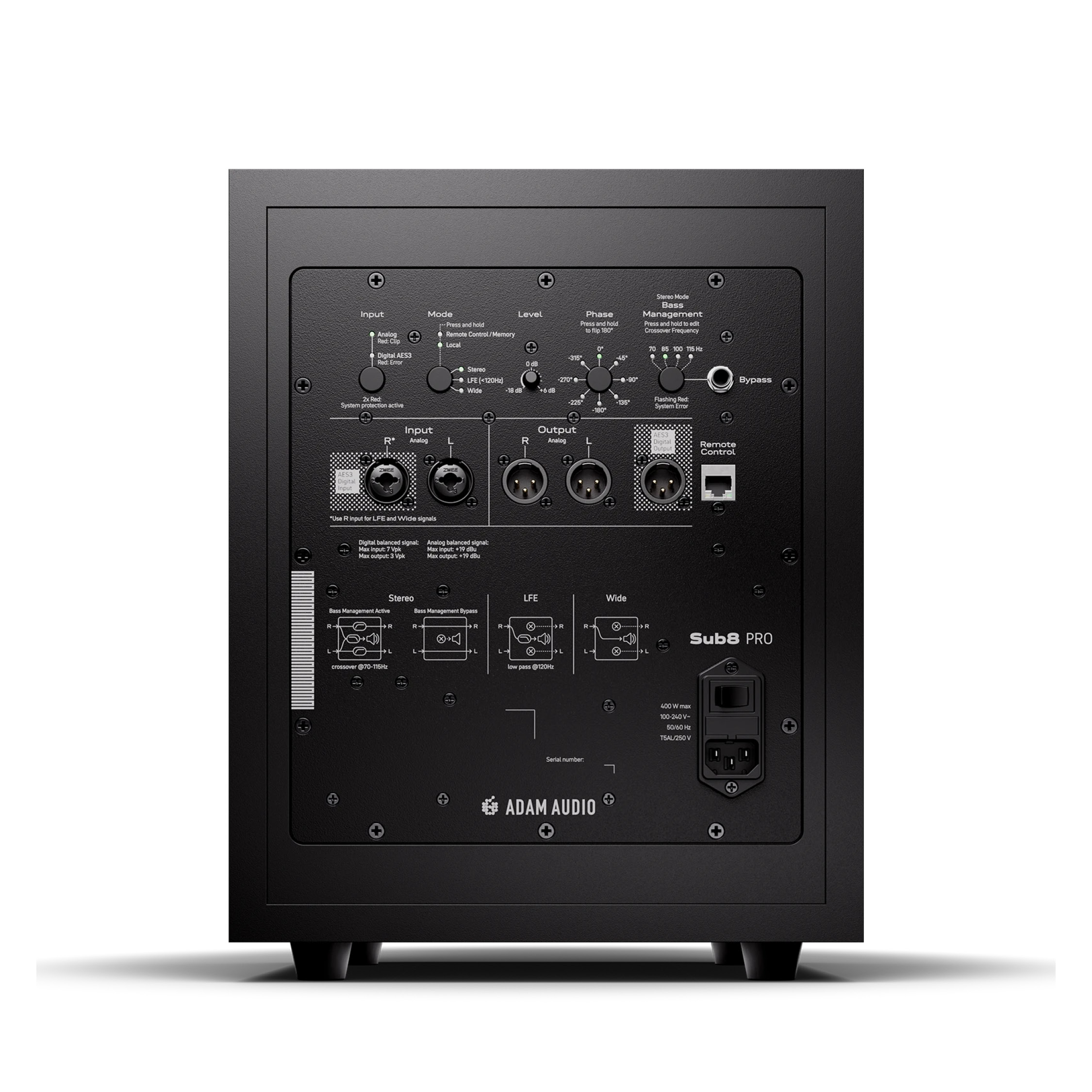

Control Options [via Backplate]
Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
Level: -18 dB to +6 dB
Input Selection: Analog, digital
Phase: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management: 70, 85, 100, 115 Hz
Operational Modes: Remote Control, Local / Stereo, LFE (<120Hz), Wide
Bypass: Yes, via footswitch (not included) and TRS connection (latched)
