Start your journey into the world of audio recording with the Start Recording Bundle, a professional, powerful and versatile solution for home recording. Experience a combination of outstanding audio performance and innovative technology to make sure you achieve studio quality recordings from the start.
Microphone Preamplifier
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48v +/-4v @ 10mA/Channel
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response: +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)
ADC Inputs
Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted
DAC Outputs
Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100Ω Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output
Output Impedance: <50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)
DSP Mixer Roundtrip Latency:
(in to out)
44.1 kHz: 0.594ms
48.0 kHz: 0.552ms
88.2 kHz: 0.302ms
96.0 kHz: 0.281ms
DAW Playback Latency
@ 32 Sample Buffer for Software Instrument Playback
44.1 kHz: ~2.5ms
96.0 kHz: ~2ms
DAW Roundtrip Software Monitoring Latency
@ 32 Sample Buffer (in to out)
44.1 kHz: 5ms
96.0 kHz: 4.1ms
Latency – performance may vary as stability at these low buffer sizes is dependant on many factors including CPU load, operating system and performance of other drivers.
USB 2.0 High Speed
No. Of Input Channels 2 Analogue
No. Of Output Channels 2 Digital
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-A
Weight & Dimensions
Weights: Unit: 360g
Packaged: 600g
Dimensions: Unit: 140mm (w) x 67mm (h) x 67mm (d)
Packaged: 172mm (w) x 88mm (h) x 97.5mm (d)

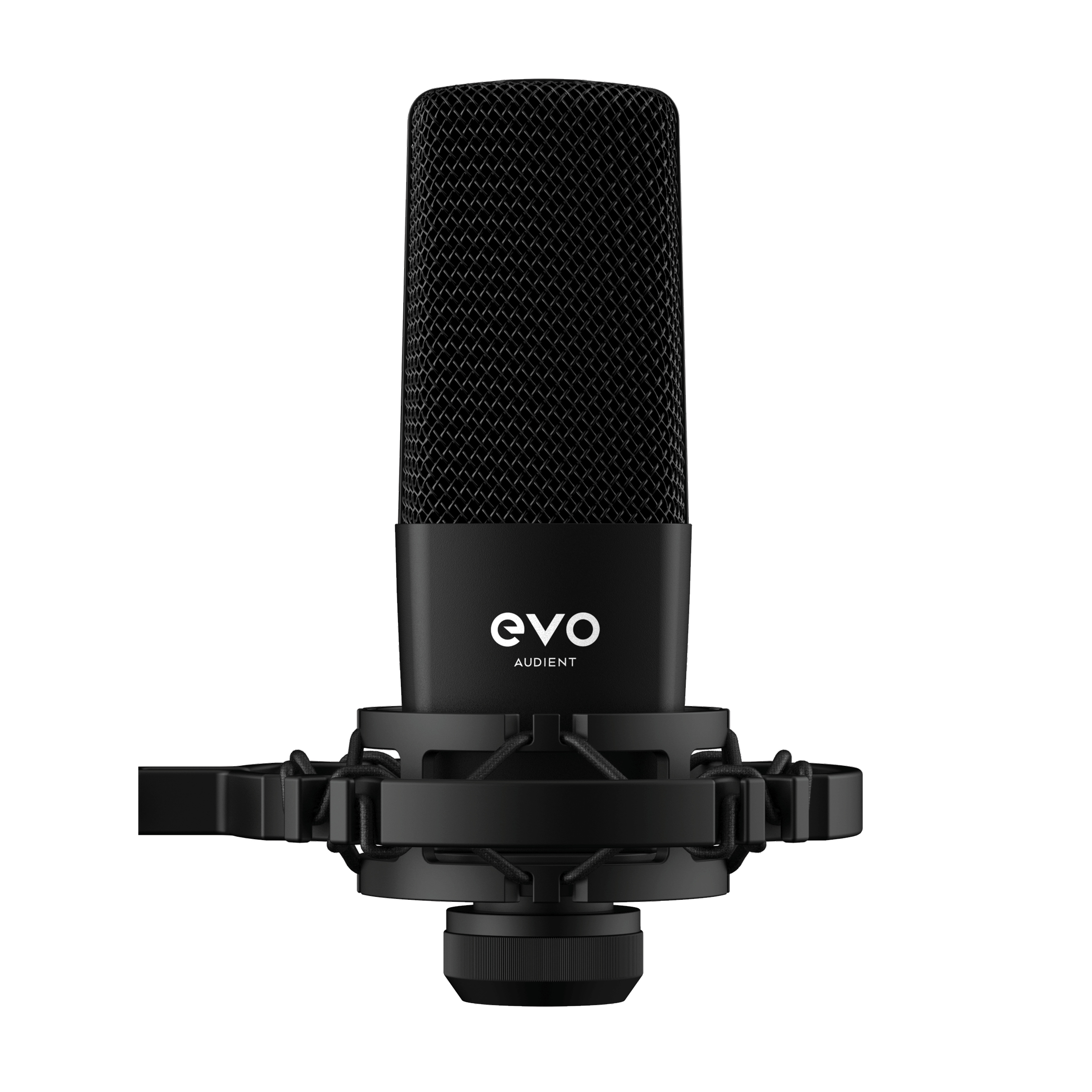

EVO SR1 Condenser Microphone
Element: 14mm back electronic condenser capsule
Polar Pattern: Uni-directional(Super-cardioid)
Frequency Response: 20Hz-18kHz
Sensitivity: 30dB±3dB (0dB=1V/Pa at 1kHz)
Output Impedance: 150Ω±30% (at 1kHz)
Load Impedance: ≥1000Ω
Self Noise: 16dB A
Max. Input SPL: 134dB (at 1kHz ≤1% T.H.D)
S/N Ratio: 78dB
Phantom Power Requirement: 5V or 48V
Electrical Current: 3mA
EVO SR2000 Monitoring Heaphones
Operating Principle: Closed
Fashion: Supra-aural
Transducer Type: Dynamic
Loudhailer: 40MM
Impedance: 32ohm
Sensitivity/ Max. SPL: 95±3dB/105±3dB
THD: <0.3%
Frequency Response: 15HZ-22KHZ
Max. Power: 400MW
Rating Power: 250MW
Cable Type: Straight
Cable Length: About 3M (straight)
Plug: 3.5MM+6.3MM
Net Weight: 233g(with cable)
Norminal Headband Pressure: Approx.2.8N
