Focusrite RedNet A16R MkII
RedNet A16R MKII is a 16-channel analogue Interface for Dante networks, with two channels of AES3 I/O.
Individual input and output channel level controls allow for precise adjustment of all I/O levels using RedNet Control. With two power supplies and primary and secondary etherCON network connectors, RedNet A16R MKII is perfect for critical-path applications in recording, post-production, live sound and broadcast. Built-in redundancy features allow for silent fail-over in the event of power or network outage, providing reassurance for system technicians.
Key Features
• 16-channel bi-directional analogue interface for Dante networks, with additional two-channel AES3 I/O.
• Precision A-D and D-A conversion with 119dB dynamic range, flat from 20Hz - 20 kHz (+/- 0.15dB).
• Individual input/output channel level control using RedNet Control software.
• Dual PSUs with locking IEC inlets.
• Dual locking etherCON connectors for Primary and Secondary network connections.
• Power supply and ethernet redundancy with auto switchover in case of failure.
• Front-panel LED indicators for PSU, network, sample rate, signal present and clock source status.
• Sample rate conversion on the AES3 inputs allows external equipment to run at any sample rate.
• Analogue I/O on four AES59 standard DB25 connectors.
• • Digital I/O on a pair of XLR connectors (AES3).
• Rear panel XLR connector can either be used as a DARS input or as a traditional AES3 audio input.
• BNC connectors for Word Clock input and output.
• Compact 1U chassis allows maximum functionality in minimum rack space.
• AES67 and AES70 compliant.
• SMPTE ST 2110 compliant when used with Dante Domain Manager (sold separately).
• Full operability with Focusrite RedNet and Red interfaces, plus all Dante devices from hundreds of manufacturers.
• Remote control with RedNet Control, and route via Dante Control.
Specifications
Line inputs
0 DBFS Reference Levels: +18 or 24dBu (switchable)
Frequency Response: 20Hz – 20kHz ± 0.1dB
THD+N: Less than -100dB (0.001) unweighted, 20Hz – 20kHz; -1dBFS input
EIN: -96dBu A-Weighted (typical)
Signal-To-Noise Ratio: 120dB A-Weighted (typical)
Converter Dynamic Range: 120dB A-Weighted (typical), 10Hz – 20kHz
Line outputs
0 DBFS Reference Levels Outputs: 18 or 24dBu (switchable)
Frequency Response Outputs: 20Hz – 20kHz ± 0.1dB
THD+N Outputs: Less than -100dB (0.001) unweighted, 20Hz – 20kHz; 23dBu input
Noise In Presence Of Signal: -94dBu A-Weighted (typical)
Dynamic Range: 118 dB A-Weighted (typical)
Converter Dynamic Range Output: 120dB A-Weighted (typical), 10Hz – 20kHz
Digital input sample rate converters
Sample Rate Range: 32kHz to 216kHz
Gain Error: -0.3dB
Dynamic Range Inputs: Greater than 138dB
THD+N Inputs: Less than -130dB (0.00003)
Latency: 11 to 45 samples (network and sample rate dependent)
Digital performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources: Internal or from Dante Network Master
External Word Clock Range: Nominal sample rate ±7.5

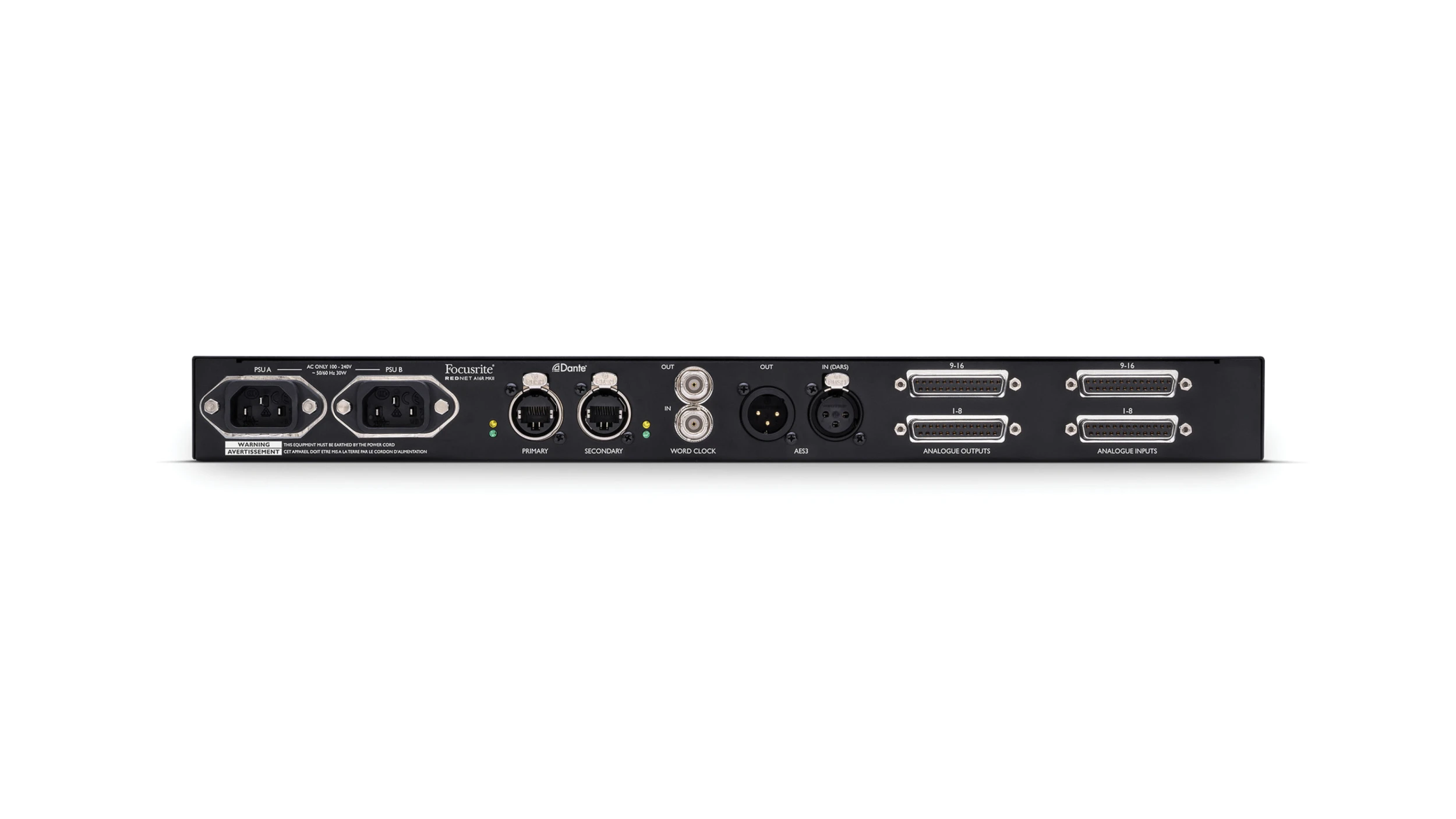

Rear panel connectivity
Line Inputs: 2 x DB25 connectors
Line Outputs: 2 x DB25 connectors
Channel Count: 2 x 2 AES/EBU channels
Input (Optional DARS): 1 x Female XLR (Switchable with analogue input channels 15 and 16 at quad rates)
Output: 1 x Male XLR (Duplicate of analogue output channels 15 and 16 at quad rates)
Word Clock Input: 1 x BNC 75O port (switchable termination)
Word Clock Output: 1 x BNC 75O port
PSU: 2 x IEC Inputs with retaining clips
Network: 2 x EtherCON NE8FBH, also compatible with standard RJ45 connectors
