Focusrite RedNet D64R
MADI is widely used for large-scale digital audio systems such as audio consoles and conversion systems, allowing multiple channels to be carried along a single interface. RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet's high quality interface products with a MADI system — or MADI components with a Dante system.
D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. Connect a Dante network to MADI-based digital consoles, computer cards, converters and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out.
Key Features
• Connects a MADI system and a Dante network seamlessly together.
• Connect Dante to digital mixing consoles, interfaces and cards that use MADI; or extend a MADI system with RedNet's versatile, superb-quality audio interfaces and connectivity - or any other Dante compatible devices.
• Built-in redundancy with dual locking power and etherCON network connectors.
• Supports both coax and optical interfaces — connect simply to any MADI equipment.
• Slave either the Dante system or MADI streams to an external clock.
• Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz) from a MADI system, 32 channels at 96kHz and 16 at 192kHz.
• Sample rate conversion (SRC) on each input and output, allowing MADI and Dante systems to operate simultaneously at different sample rates.
• Simple 1U rack-mount module with the classic red aluminium faceplate.
• RedNet Control and Dante software allow remote routing and control from the audio computer system via a software control panel — no hardware patching required.
Specifications
Sample rate convertors
Sample Rate Range: 44.1kHz -4% to 192kHz +4.1667%
Gain Error: -0.01dB
Dynamic Range: > 139dB (-60 dBFS method)
THD N: < -130dB (0.00003); 0 dBFS input
Latency: 43 to 196 samples (Network and MADI sample rate dependent)
MADI Clock Sources: RedNet, MADI Input and Word Clock
Digital performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources: Internal, MADI, Word Clock, or from Dante Network Leader

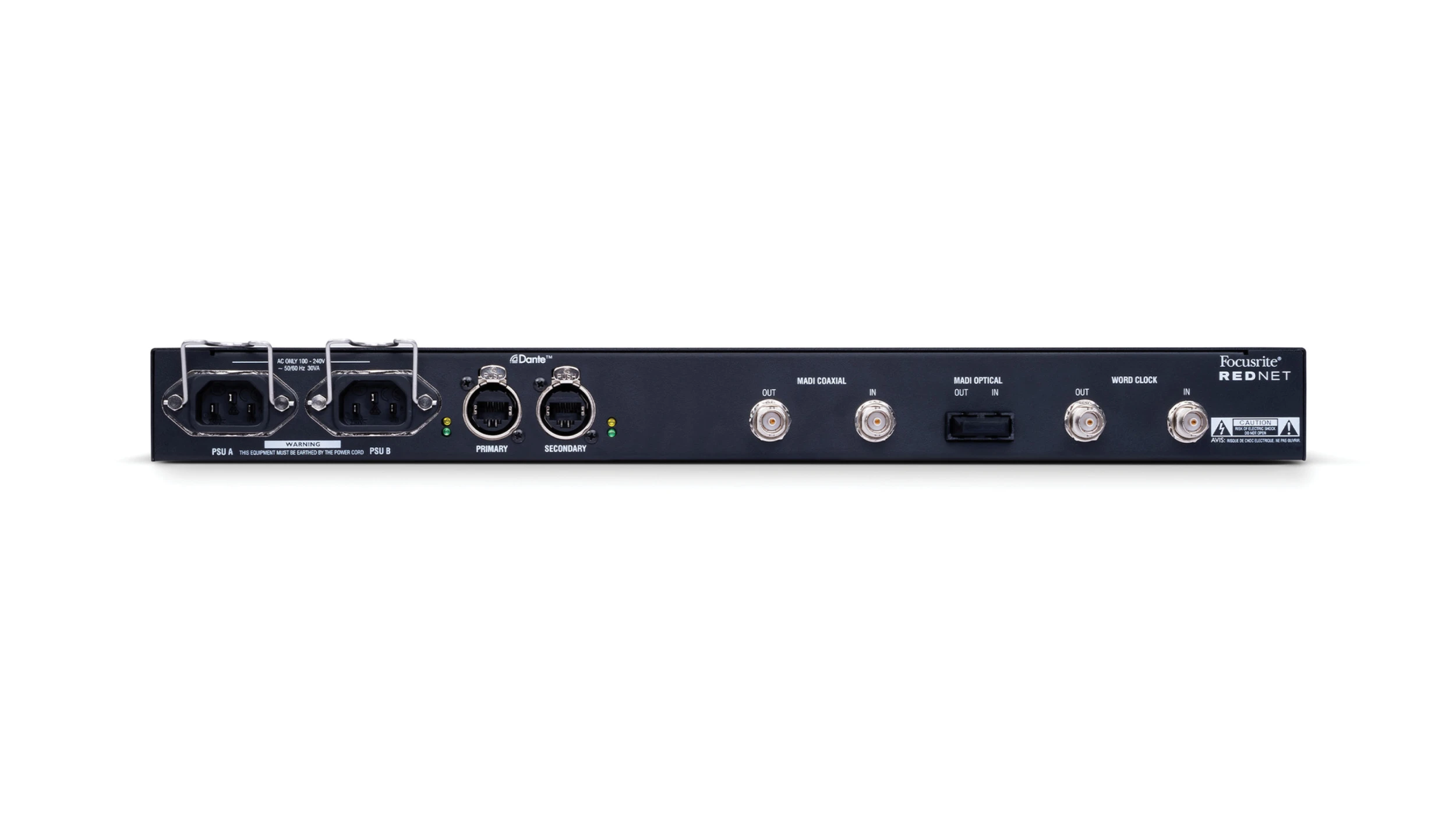

Rear panel connectivity
Electrical Standard: as per AES10:2008
Recommended Cable: OM1 adheres to AES10:2008 RedNet 6/ D64R supports OM2 if 3rd Party Device also supports OM2
Connector: Duplex-SC
Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
Word Clock Input: 1 x BNC 75O port
Word Clock Output: 1 x BNC 75O port
PSU: 2 x IEC Inputs with retaining clips
Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors
Network modes
Redundant: Allows unit to connect two independent networks
Switched: Connects both ports to integrated network switch allowing daisy-chaining of device
