Key Features
• 8-channel remote-controlled mic pre with A/D and Dante audio-over-IP networking — Eight remote-controlled Focusrite mic preamps and precision A/D conversion at up to 192kHz provide a compact, rugged interface compatible with any Dante network hardware and infrastructure.
• Power and Ethernet redundancy — MP8R is ideal for critical path applications, with dual power supplies that include local and remote status indication, and dual Ethernet ports.
• Tailored for the Live Sound environment — MP8R includes rugged road-worthy construction, high build quality and built-in redundancy for power and network connections.
• Flexible input capability — Including a new, enhanced input level capability, MP8R mic pres include dual input impedance to deliver maximum performance in a variety of configurations.
• Remote or local control of mic pre parameters — In addition to mic gain, MP8R mic pres offer 20dB Pad, High-pass filter and polarity inversion, all controllable remotely or from the front panel.
• Multiple remote control possibilities — MP8R has full front panel control, but can most effectively be operated via RedNet Control software on a host computer, or directly via Pro Tools or MIDI, or OCA (Open Control Architecture). RedNet Control software allows full routing and control from your audio computer system via a software control panel — without hardware patching.
• Best-in-class Focusrite A/D conversion — The eight mic pres are followed by precision low-latency conversion at up to 24-bit 192kHz, offering best-in-class dynamic range.
• Comprehensive indicators tell status at a glance —Two power LEDs (one per PSU) are provided, along with remote indication of PSU status. 6-segment metering provides useful level indication for each channel and function indicators indicate individual preamp settings. An OLED display indicates input gain and system information.
• Separate outputs with automatic gain compensation — Each preamp provides two outputs: one direct and the other that is automatically gain-compensated to deliver a constant level. This gain tracking capability allows "splits", such as FOH/monitor, to be carried out in the digital domain, permitting one engineer to control the analogue mic gain while a second receives a gain-compensated output.
• Superb road-worthy build quality — Designed for life on the road, MP8R features etherCON locking Ethernet connectors, highest quality Neutrik XLR connectors and locking power input sockets. The compact 1U all-metal enclosure is ruggedly constructed and redundant power and Ethernet facilities maximise reliability in the field.

Specifications
Microphone inputs
Gain Range: 10dB to 65dB in 1dB steps
Type: Electronically Balanced, Zin = 2.4kO/10kO (Switchable); Inputs default to 2.4kO unpowered
Max. Input Level: 29dBu ±0.5; min gain with pad for 0dBFS, Rs = 150O
Min. Input Level: -46dBu ±0.5; max gain without pad for 0dBFS, Rs = 150O
Frequency Response: 20Hz - 40kHz ±0.1dB
THD N: -98dB (0.0012) @ -1dBFS, Rs = 150O
EIN: -129dBu A-Weighted (typical), Rs = 150O
Signal-To-Noise Ratio: 118dB A-Weighted (typical), Rs = 150O
Phantom Power: 48V, independently switchable per channel
Pad: -20dB, independently switchable per channel
HPF: -6dB @ 65 ± 3Hz, 12dB/Octave, independently switchable per channe

Digital performance
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources: Internal or from Dante Network Master

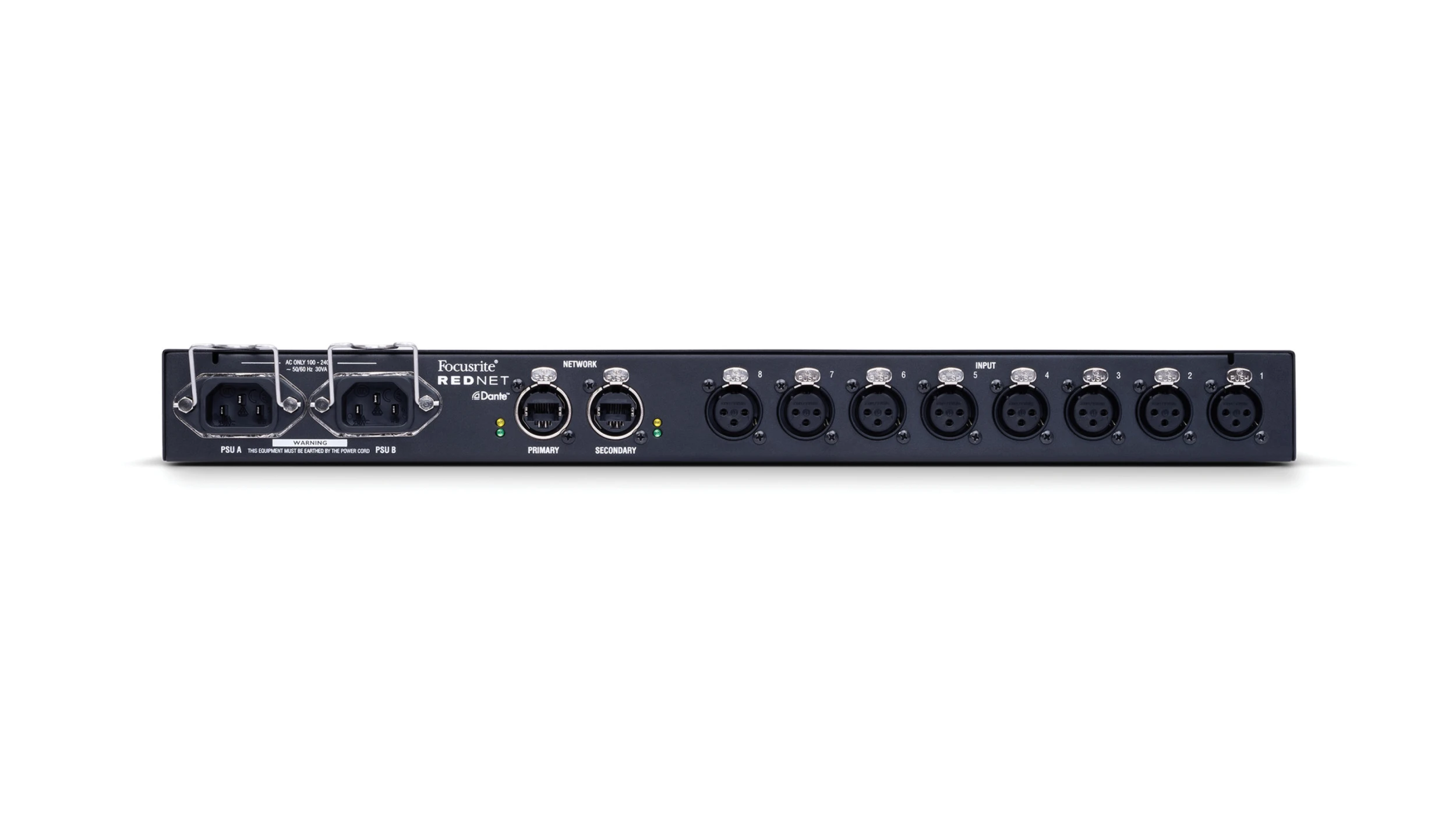

Rear panel connectivity
Mic Inputs: 8 x Female XLR
PSU: 2 x IEC Inputs with retaining clips
Network: 2 x etherCON NE8FBH-S, also compatible with standard RJ45 connectors

Network modes
Redundant: Allows unit to connect to two independent networks
Switched: Connects both ports to integrated network switch allowing daisy-chaining of devices
