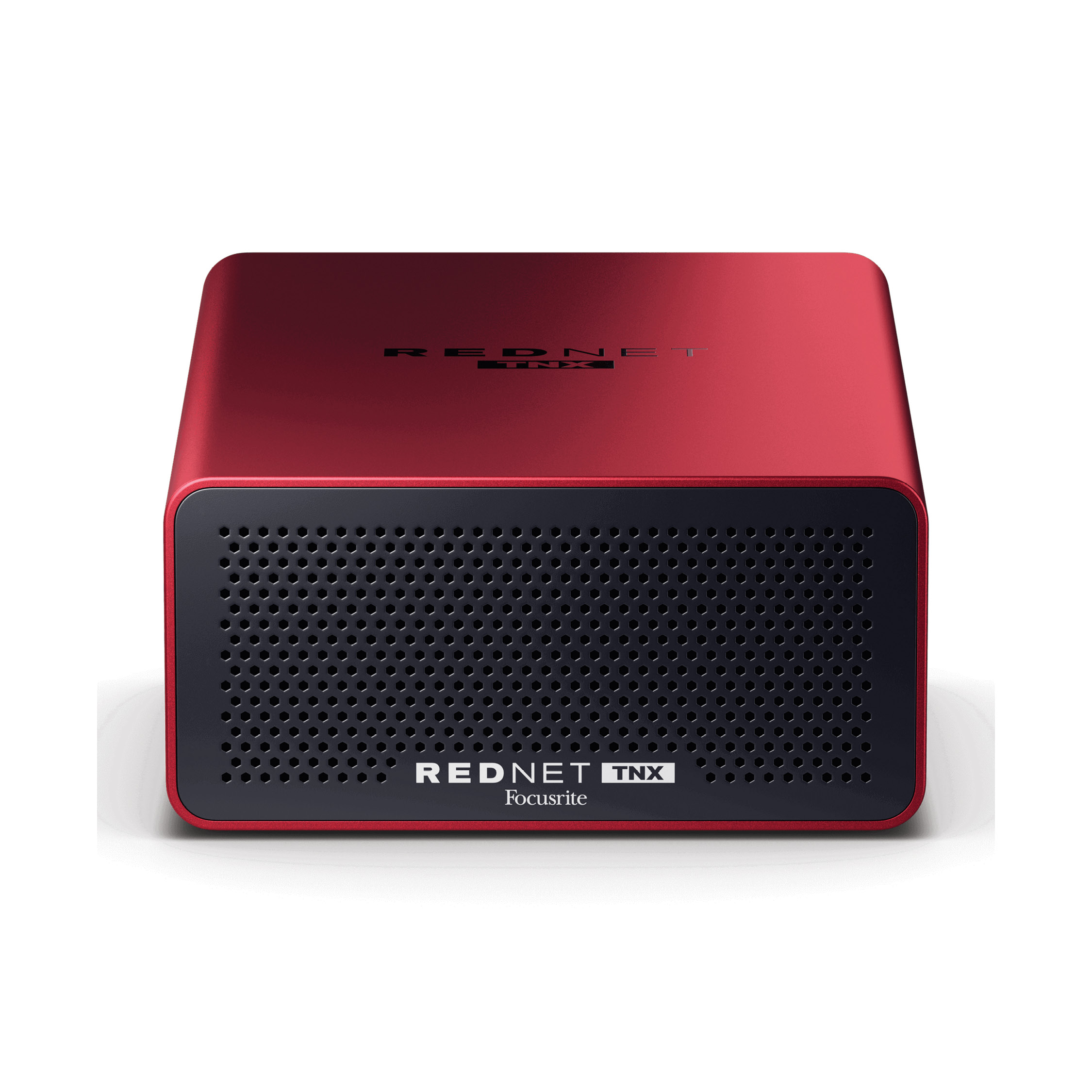

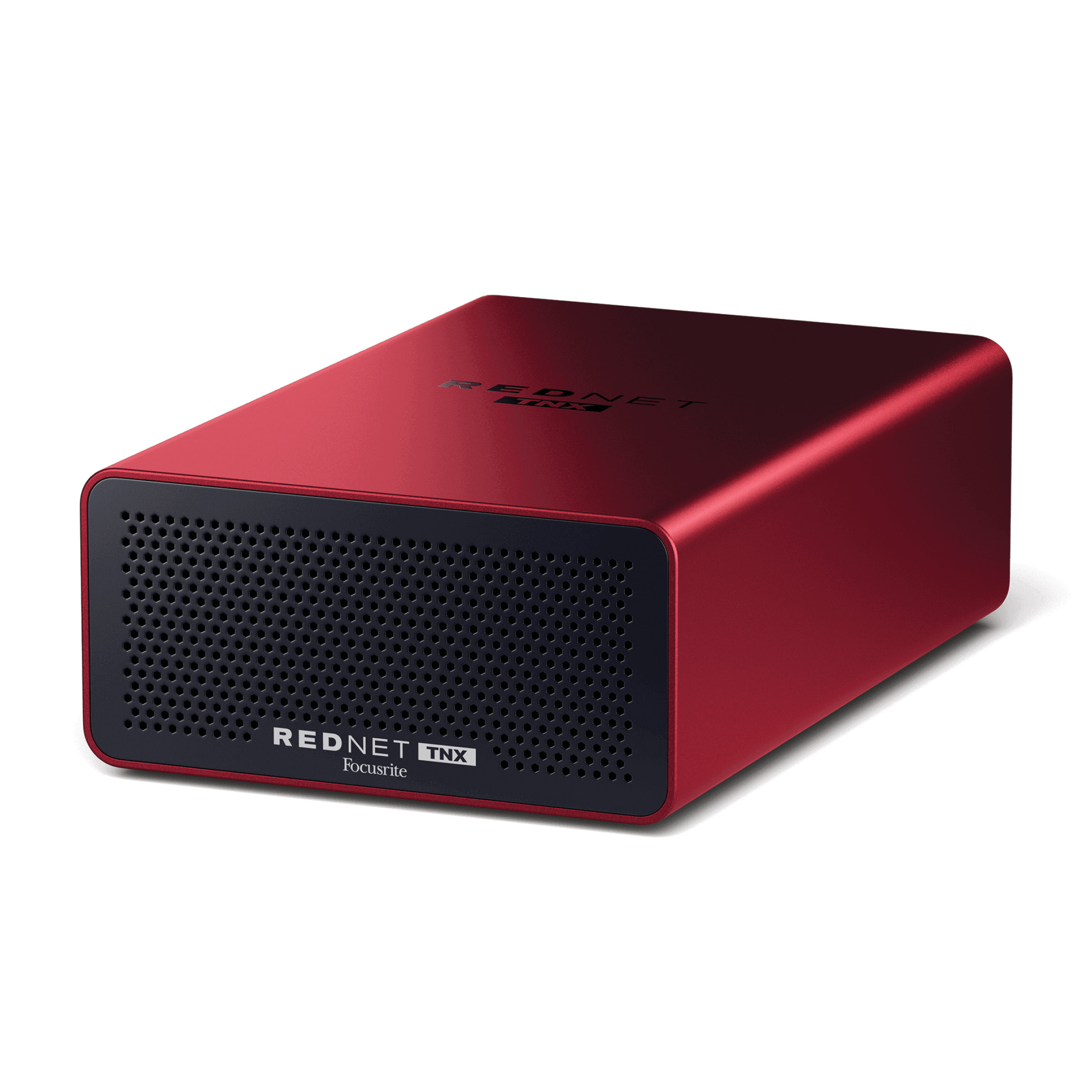

Focusrite RedNet TNX
RedNet TNX is a portable Dante® interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready™, you can expand your system to 256x256 channels at 24-bit/96kHz — all via a single Thunderbolt™ connection for powerful and versatile audio workflows.
Key Features
• Upgradable to 256x256 channels at 96kHz
• 2x Thunderbolt™ 3 ports
• Windows and macOS compatible
• AES67 and SMPTE ST 2110 compliant
Specifications
Simultaneous Inputs & Outputs:
• 128x128 (all sample rates)
• 256x256 (up to 96kHz) with a paid upgrade
Digital Performance
• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
Dante Connectivity
• 2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
Driver Compatibility
• Multi-client ASIO and WDM (Windows)
• CoreAudio (Mac)

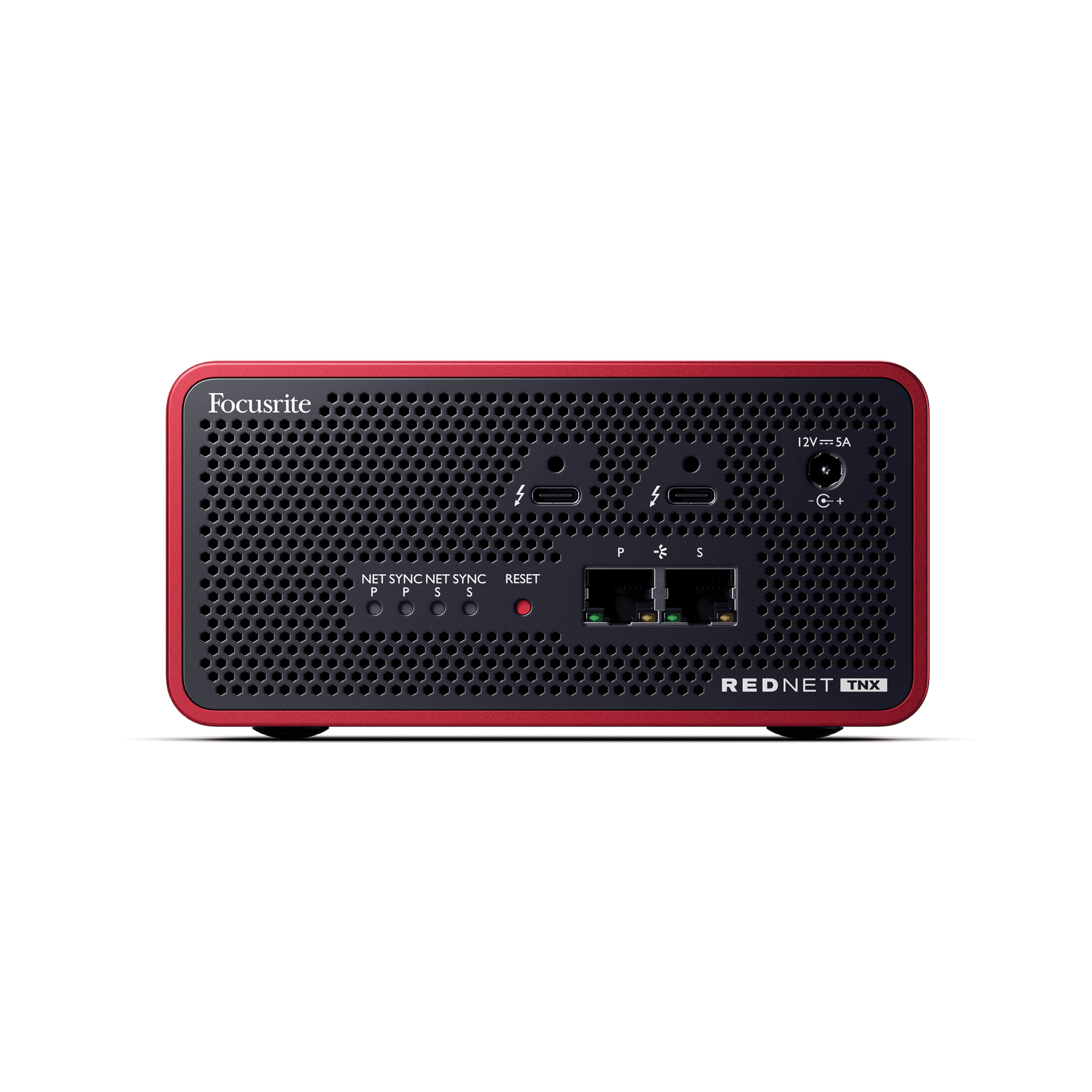

Rear Panel
• 2x Thunderbolt™ 3 ports (Provide 15W of power)
• 2 x Sonnet ThunderLok™-B
• 2x Network Active LED indicators (Primary/Secondary)
• 2x Network Lock LED indicators (Primary/Secondary)
• 1x DC power inlet
• 1x Factory Reset button
Heat Performance
• Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
Miscellaneous
• Exposed threads for rack shelf/cradle mounting
Dimensions
Width: 144mm
Depth: 212.4mm
Height: 71.6mm
Weight: 1.49kg
Power requirements
• Powered by external DC power supply
What's in the box?
• RedNet TNX unit
• 2m Thunderbolt™ 3 cable
• 2m cat6A Ethernet cable
• External DC power supply and cable
