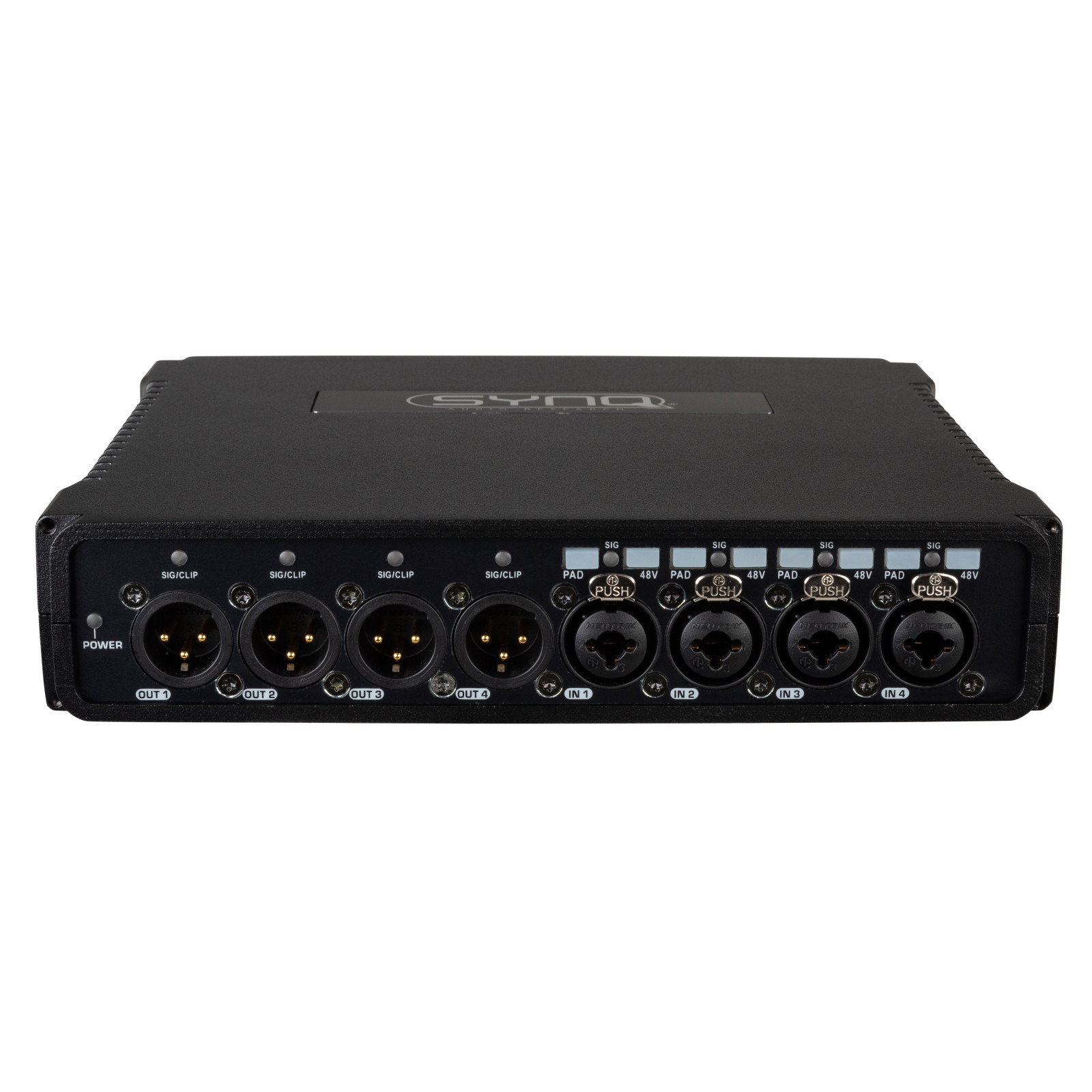

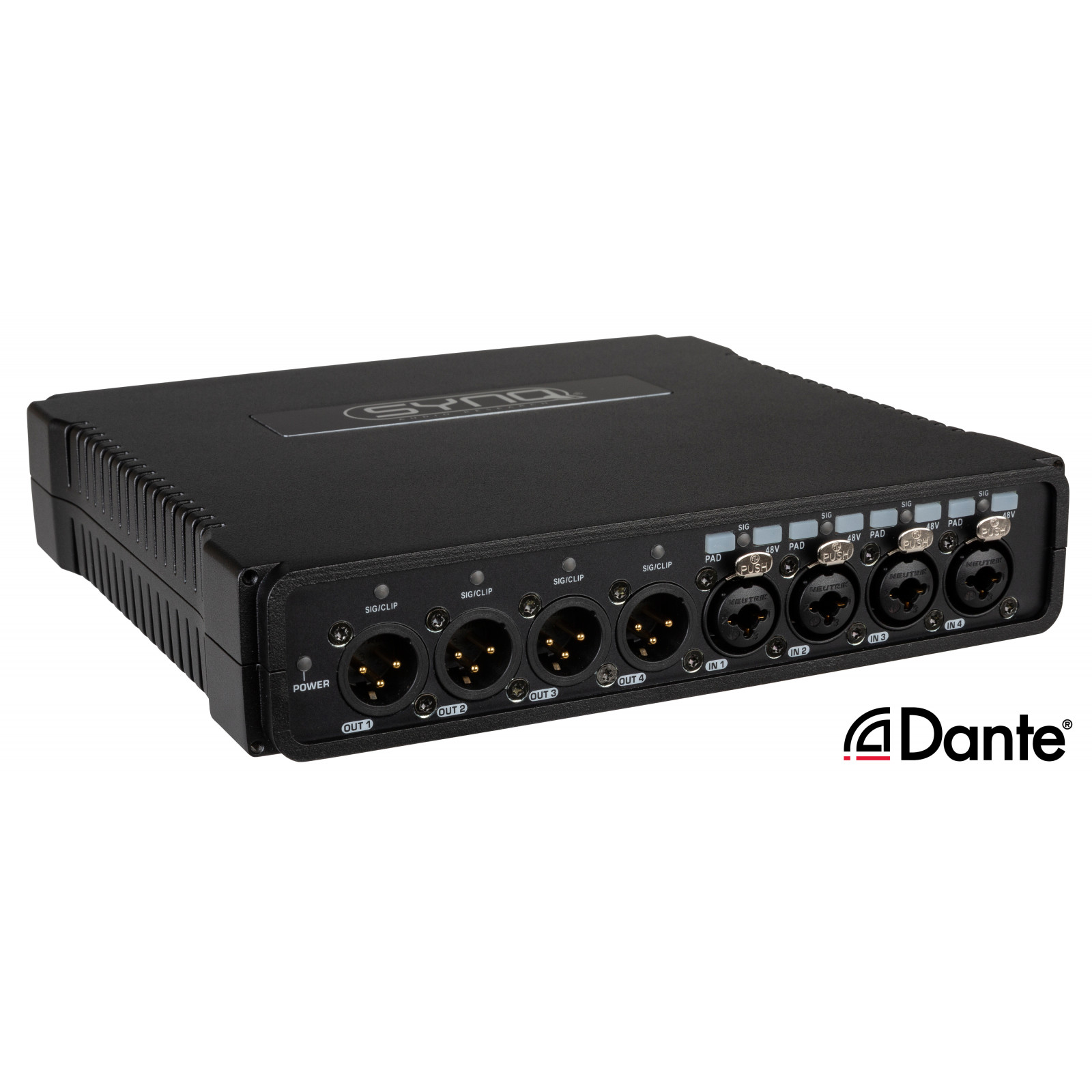

SYNQ DBT 44
Premium quality analog / DANTE® network audio bridge with AES67 support for touring applications with 4 analog inputs + outputs
Premium quality analog / Dante network audio bridge for touring.
Converts DANTE® and/or AES67 network audio to 4 hi-grade balanced analog outputs.
Converts 4 hi-grade balanced analog inputs to DANTE® and/or AES67 Network audio.
All 4 (LINE/MIC) inputs equipped with -24dB PAD & 48V Phantom power.
GIGABIT Ethernet I/O based on Hi-speed Marvell switch (no linking delays).

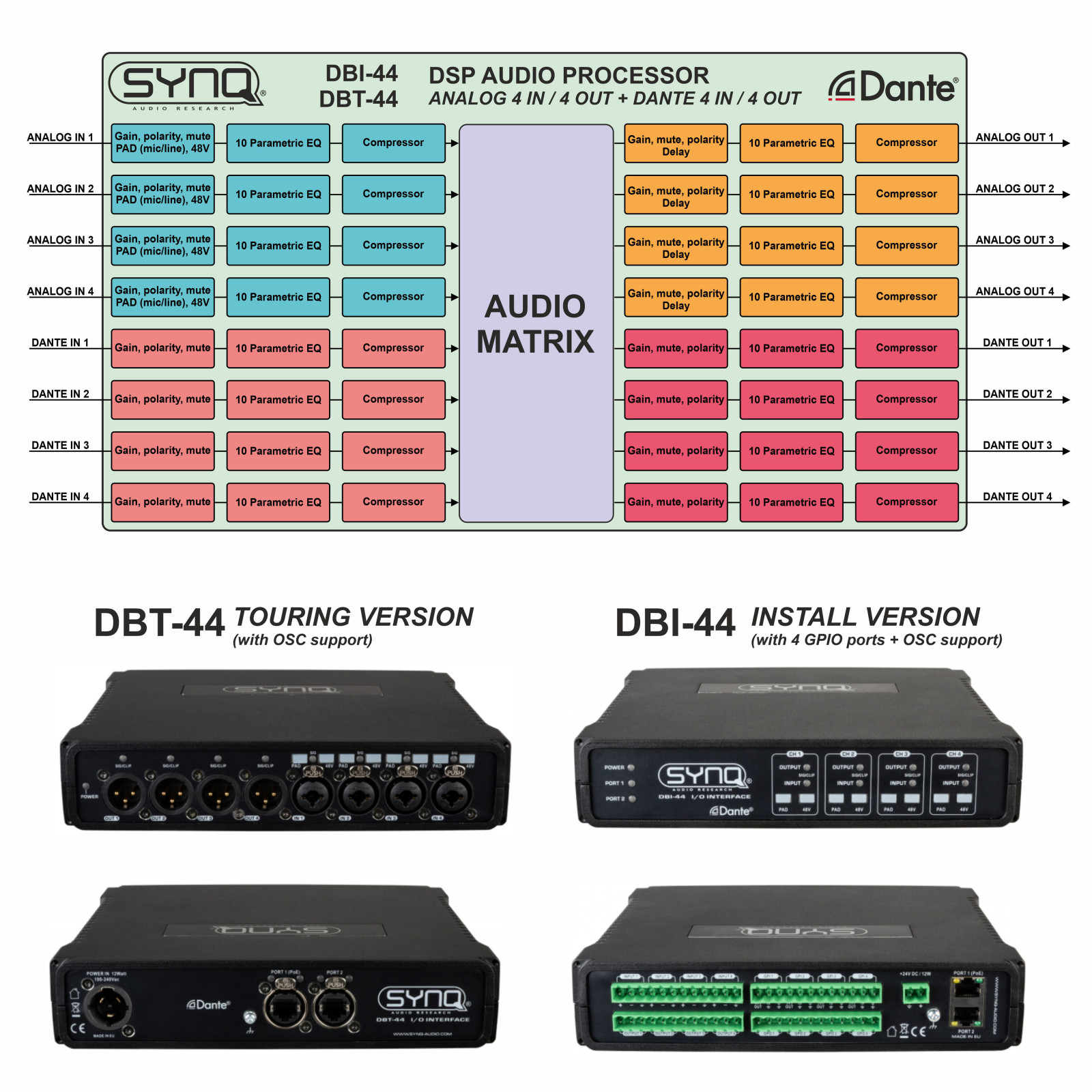

Built-in DSP AUDIO PROCESSING (parametric EQs, compressors, delays, ...) on all channels: perfect for use as DANTE enabled speaker management processor, but also deployable in many other applications.
8x8 AUDIO MATRIX for local premix, flexible routing, …
Integrated WEB SERVER: fully graphical and very user-friendly user interface for easy configuration and DSP control on any network device!
The included “SYNQ Network Discovery Tool” software makes it extremely easy to find the device(s) on a local network and open them on any desktop computer, without any knowledge of the IP-address.
Support for the OSC protocol: all functions can be controlled by user-created apps running on iPhones, Android phones, Tablets and desktop computers.
Extremely high audio quality: S/N > 120dB ~ THD: < 0.003%
Fully equipped with original Neutrik® XLR and EtherCON connectors.
Complies with IEEE 802.3-2005 standard for Information Technology.
Extreme reliability, thanks to the exclusive use of industrial-grade components, such as: high-end Burr Brown audio DACs, AKM ADCs, Wurth electrolytic capacitors, ...

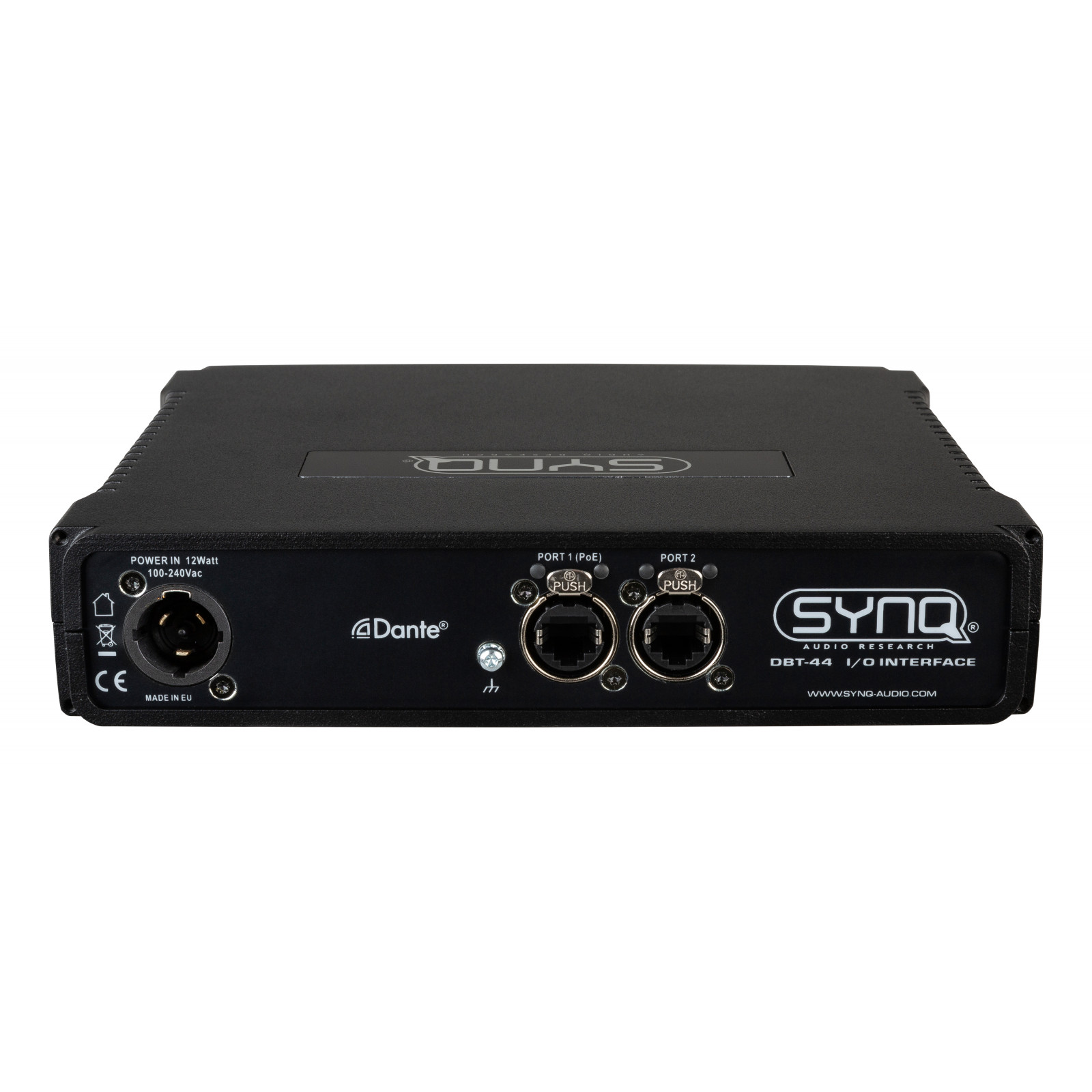

POWER options:
PowerCON TRUE1: 100-240Vac 50/60Hz
PoE: Power over Ethernet (PoE class 0)
HOUSING: ½ 19” diecast housing with different installation options:
1 unit fits in a 1U 19" rack (19" adapter included)
2 units fit together in a 1U 19" rack (adapters included)
Easy wall mounting with optional wall mount adapter
Easy truss mounting with optional truss mount adapter
General : Dimensions (cm) | 22 x 20.5 x 4.4 |
---|---|
General : Weight (kg) | 1.35 |
General : Color | black |
General : Energy Label | No |
General : Display | No |
General : Fixation | 19" rack mountable |
General : RU | 1U |
General : IP rating | indoor |
Control : Protocol | DANTE, AES67 |
Audio : functions | equalizer, adjustable crossover, DSP, limiter |
Connections : input | 3 pin XLR, jack, PowerCon® TRUE1 or compatible |
Connections : output | 3 pin XLR, PowerCon® TRUE1 or compatible |
