Symphony I/O’s audio path design is elegant and efficient, incorporating the most advanced opamps that offer better performance than multiple parts used in previous designs.

Modular I/O design, total software control, and direct connection to all popular DAWs make Symphony I/O a long-term sound investment.

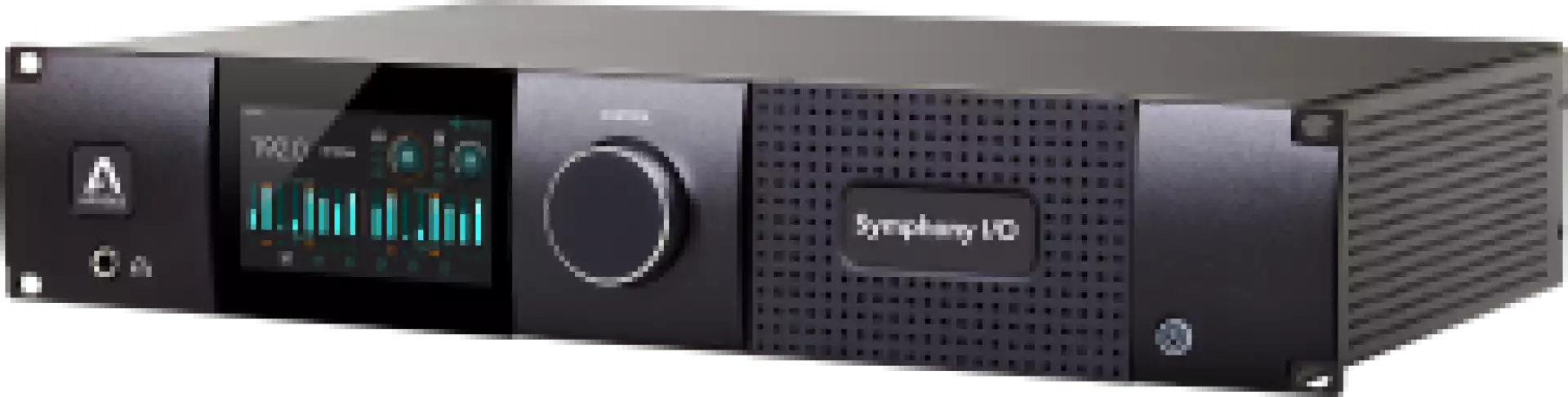

Front Panel Touchscreen with Comprehensive Control

The Symphony I/O Mk II Features a touchscreen on the front panel, where you can access all your essential input and output settings. Change your input selection, monitoring levels, mic pre gain or calibrate your Symphony I/O Mk II to match the levels of the other analog gear in your system.

The Screen utilises a high-resolution TFT display which delivers clear visual feedback that's  critical for recording and monitoring. You're not bound to looking at your computer when in the middle of a tracking session as the Symphony I/O Mk II lets you see metering for up to 64 channels of I/O, 32 IN x 32 OUT – signal levels, polarity, muting, phantom power and Soft Limit.

Features

• Best AD/DA conversion of any Thunderbolt™ audio interface


• Up to 32 channels of modular analog I/O with optional 8 mic preamps


• Best per-channel value of any interface in its category


• Choice of Thunderbolt, Pro Tools® HD (Mac/PC) or Waves SoundGrid® connectivity*


• Ultra-low latency performance


• Intuitive touchscreen display and front panel control


• Option card slot for future platform flexibility


• Designed in California, Built in the U.S.A.

The 2x6 Thunderbolt Setup

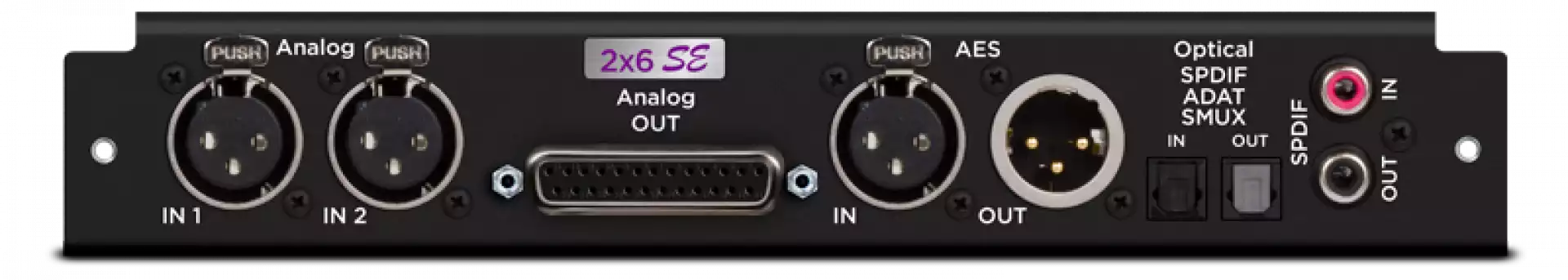

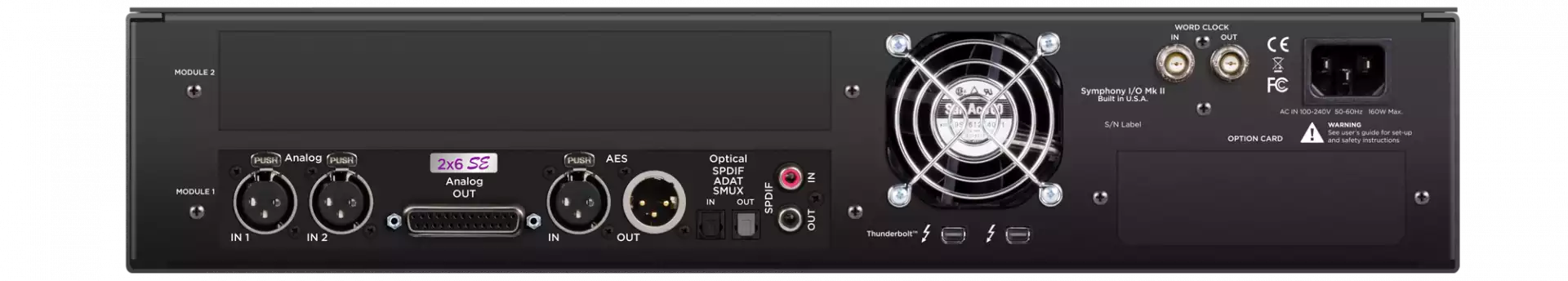

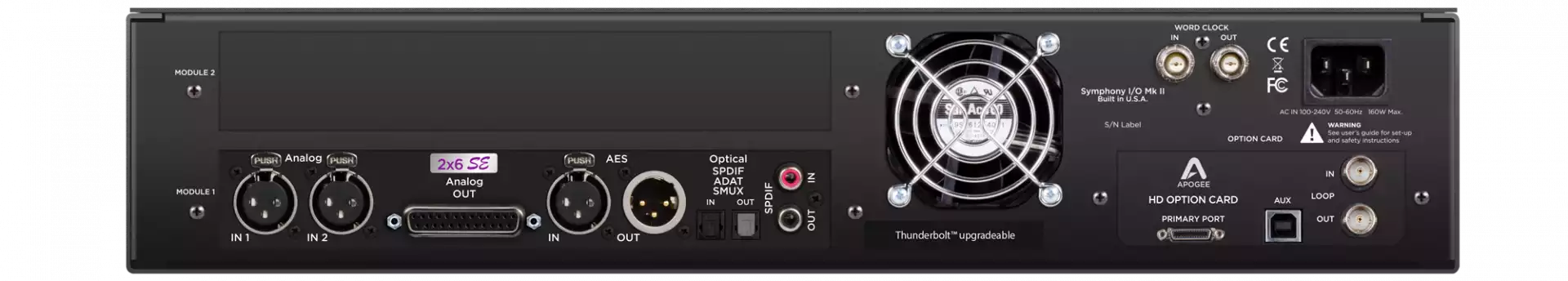

 This setup offers a Thunderbolt Chassis with the 2x6 module included; 2 balanced XLR inputs and 6 balanced analogue outputs on a DSUB 25-pin connector. However there's plenty of connectivity to plug to the rest of your setup; This includes AES, Optical and Coaxial S/PDIF

INPUTS

• Analog IN: 2 balanced inputs on 2 female XLR connectors


• AES IN: Stereo input on 1 female XLR connector


• Optical IN: Supports ADAT, SMUX & S/PDIF
        ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
        SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
        S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector


• S/PDIF Coax IN: 2 channels, up to 192 kHz on 1 RCA connector

OUTPUTS

• Analog OUT: 6 balanced outputs on 1 DSUB 25-pin connector


• AES OUT: Stereo output on 1 male XLR connector


• Optical OUT: Supports ADAT, SMUX & S/PDIF
        ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
        SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
        S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector


• S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector
