Audient Horizon 16
Welcome to the New Standard

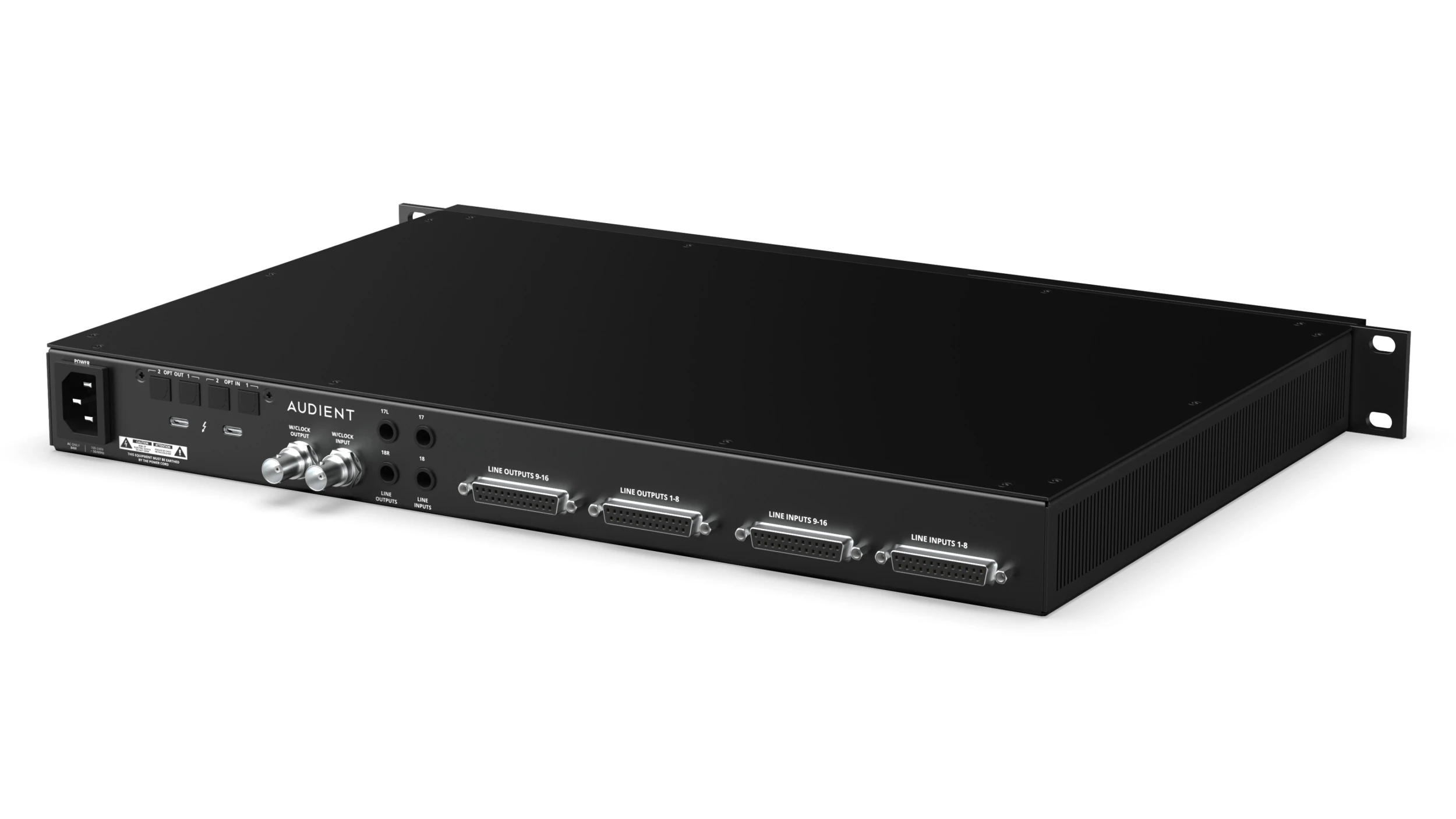

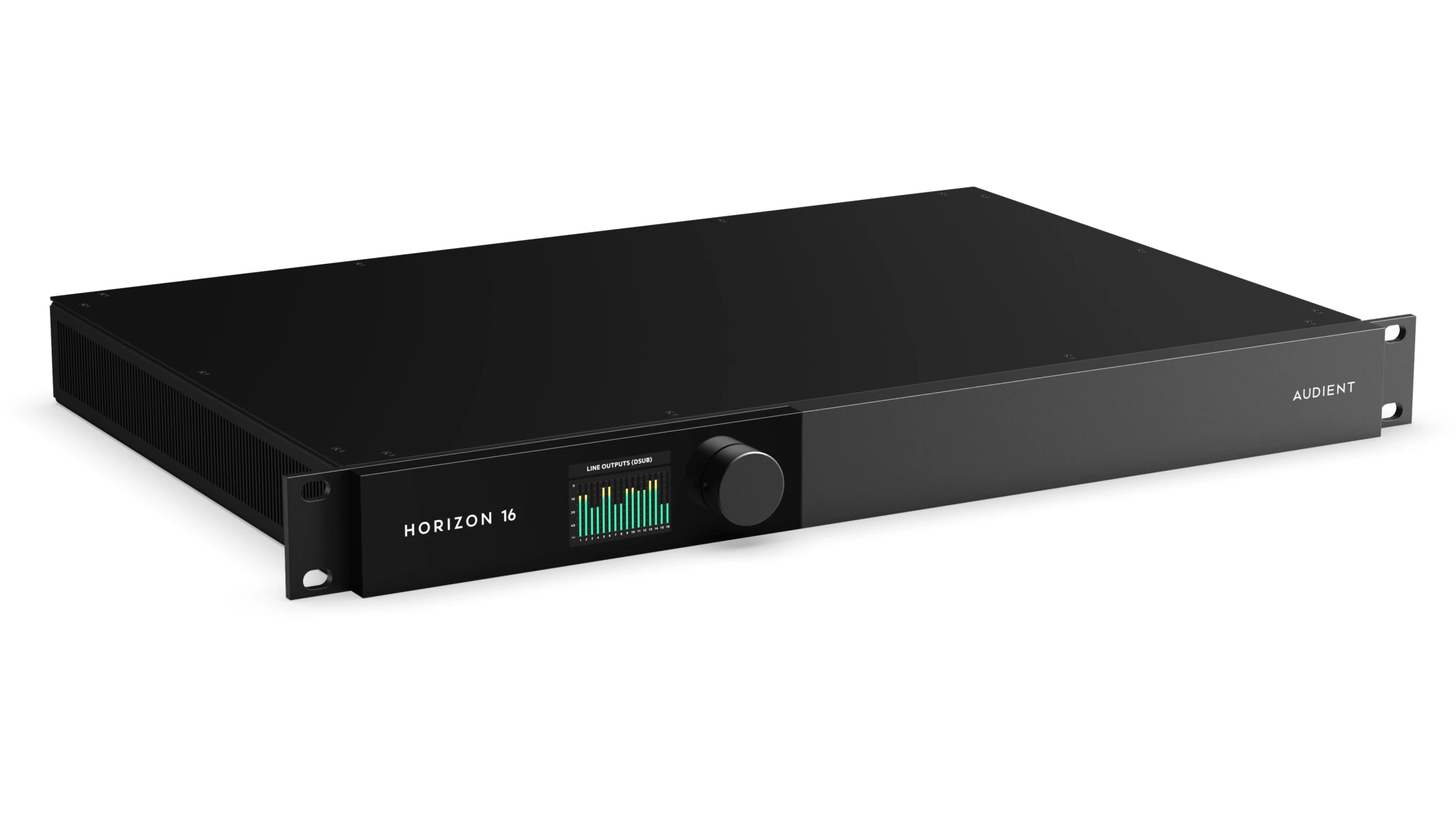

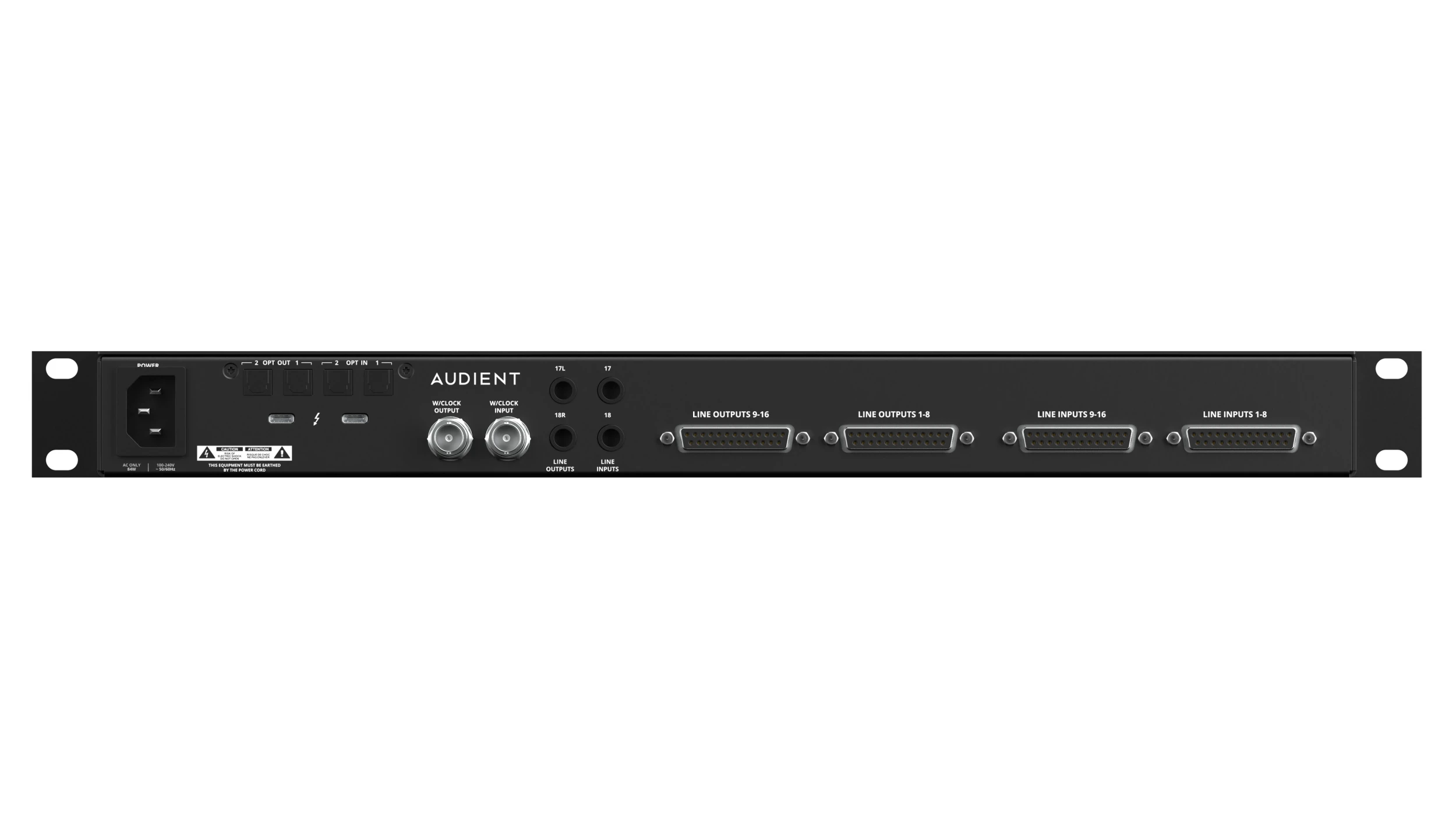

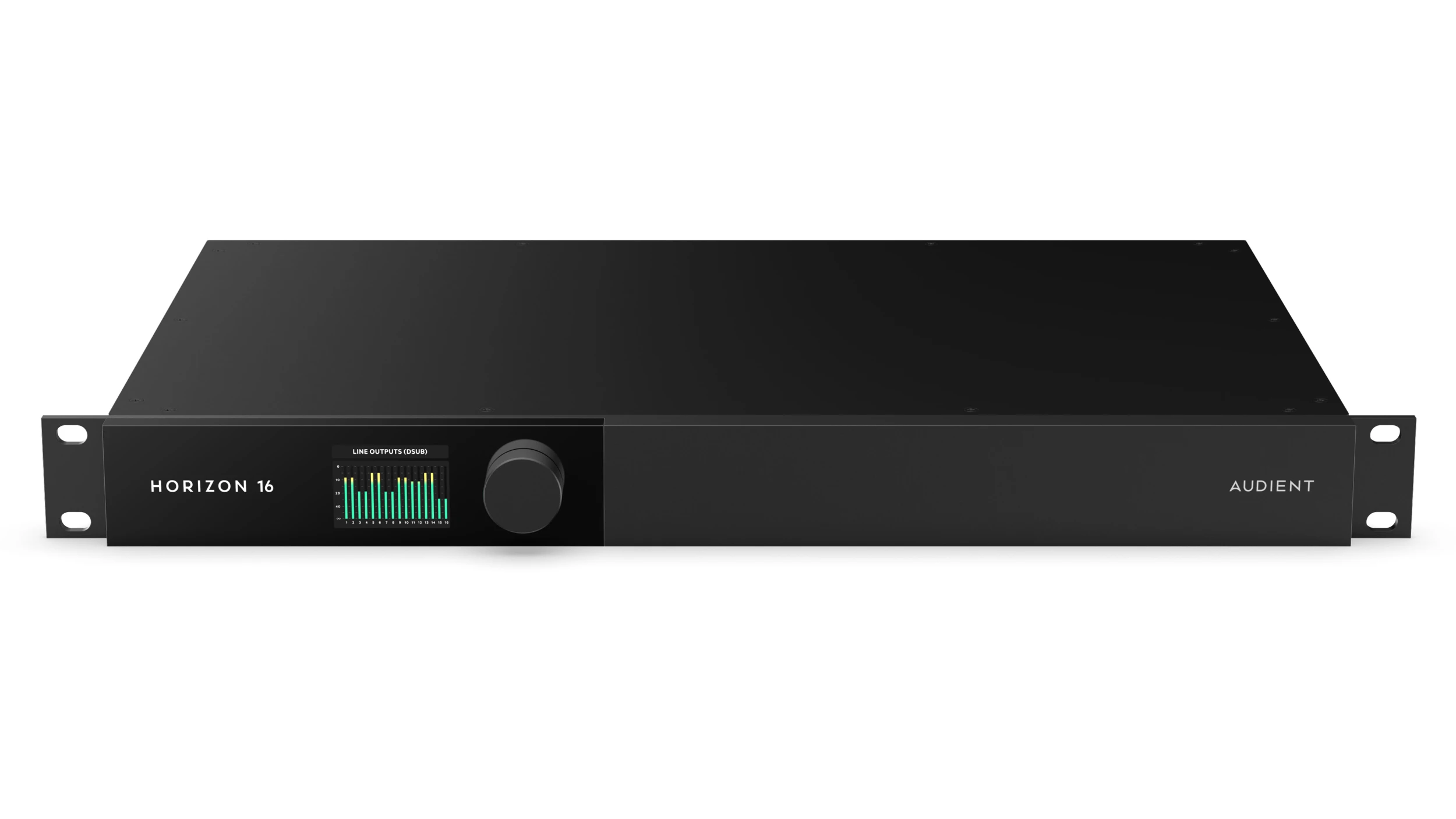

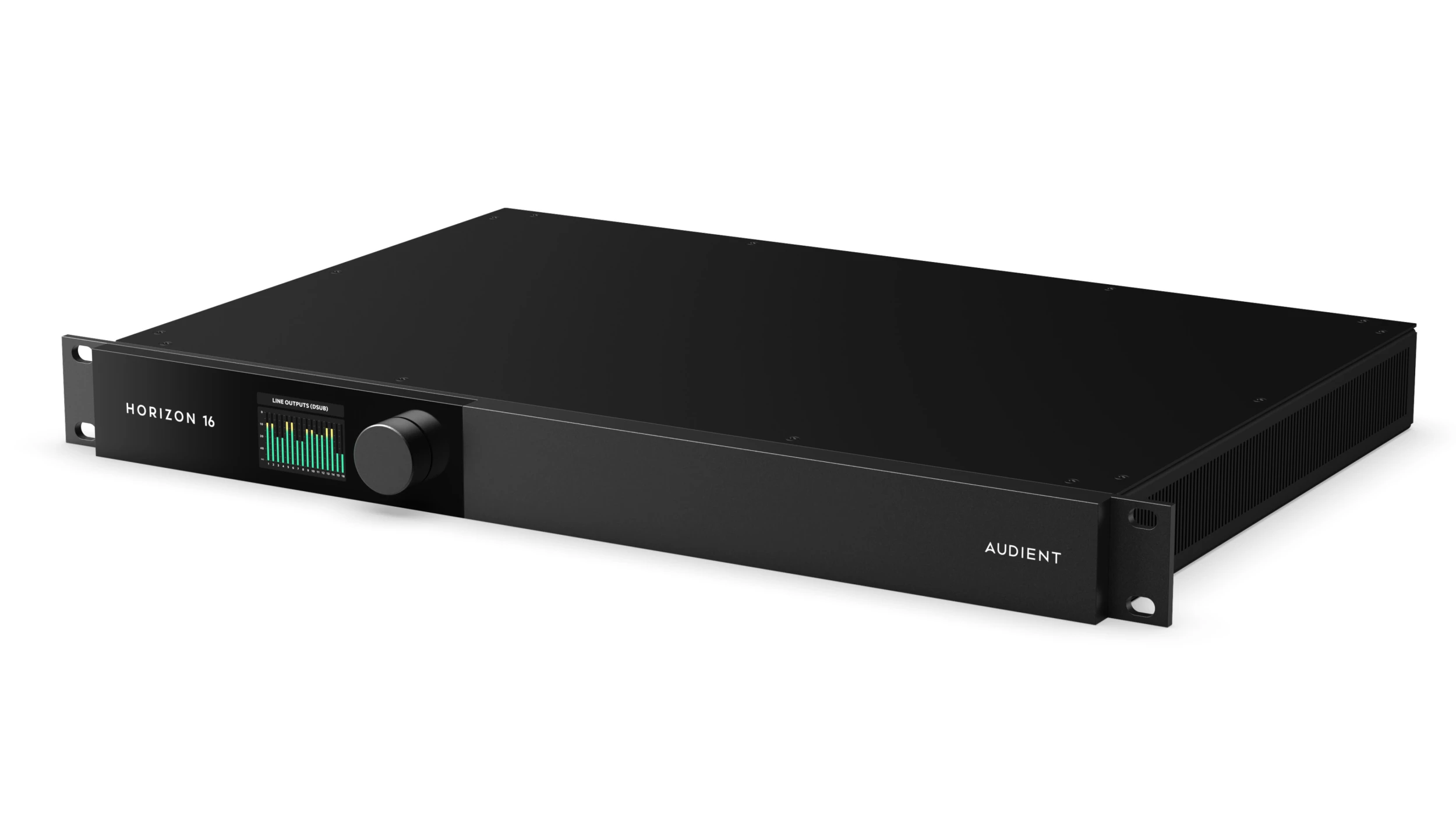

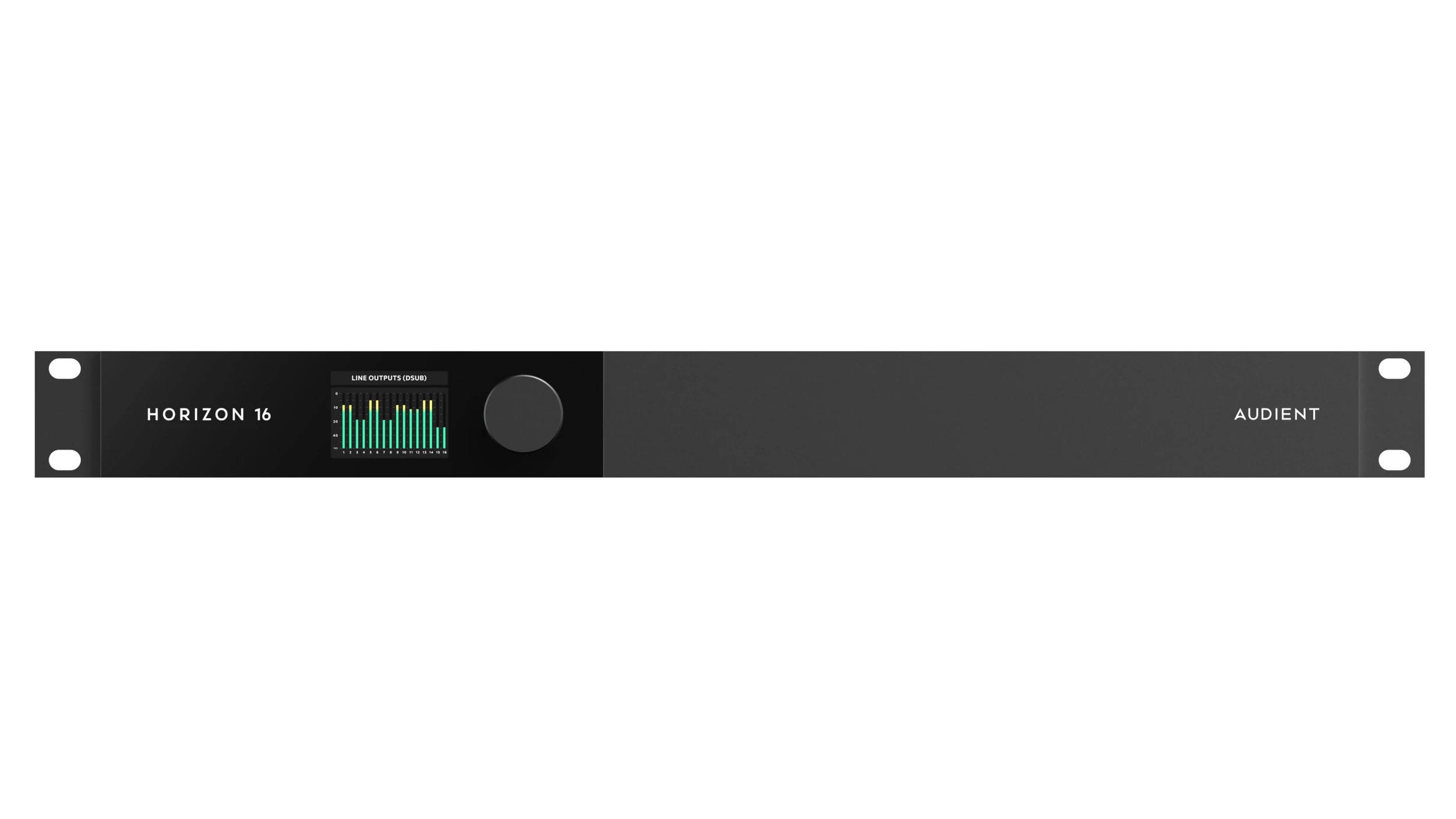

The Horizon 16 is the definitive 34-in / 34-out Thunderbolt 3 audio Interface for the professional project studio. It delivers 16×16 channels of primary analogue I/O via four industry-standard DB25 connectors, providing a transparent bridge for boutique outboard racks and summing workflows. With 0.99ms round-trip latency and Elite 32-bit Mastering-Grade Converters, Horizon 16 eliminates technical friction, ensuring only the uncoloured character of your analogue chain remains. Welcome to the new standard of conversion.
ADC Input
MAXIMUM INPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -117dB, 0.00014%
DYNAMIC RANGE: 127dB A-Weighted
FREQUENCY RESPONSE: ±0.2dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
Line Outputs
MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -122dB, 0.00008%
DYNAMIC RANGE: 132dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
IMPEDANCE: 47Ω
Monitor Outputs
MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -120dB, 0.00008%
DYNAMIC RANGE: 133dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
IMPEDANCE: 47Ω
Digital Features
INPUTS: Optical Input SPDIF/ADAT x2
OUTPUTS: Optical Output SPDIF/ADAT x2
WORD CLOCK: Input and Output, ±10ppm accuracy
SUPPORTED SAMPLE RATES: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSP Mixer Roundtrip Latency
All figures at 64 sample buffer size
44.1kHz: 4.286ms
48kHz: 3.938ms
88.2kHz: 2.143ms
96kHz: 1.969ms
176.4kHz: 1.077ms
192kHz: 0.99ms
Connectivity
THUNDERBOLT 3
Power Requirements
INPUT VOLTAGE: 85 – 264 VAC
INPUT FREQUENCY: 47 – 63Hz
