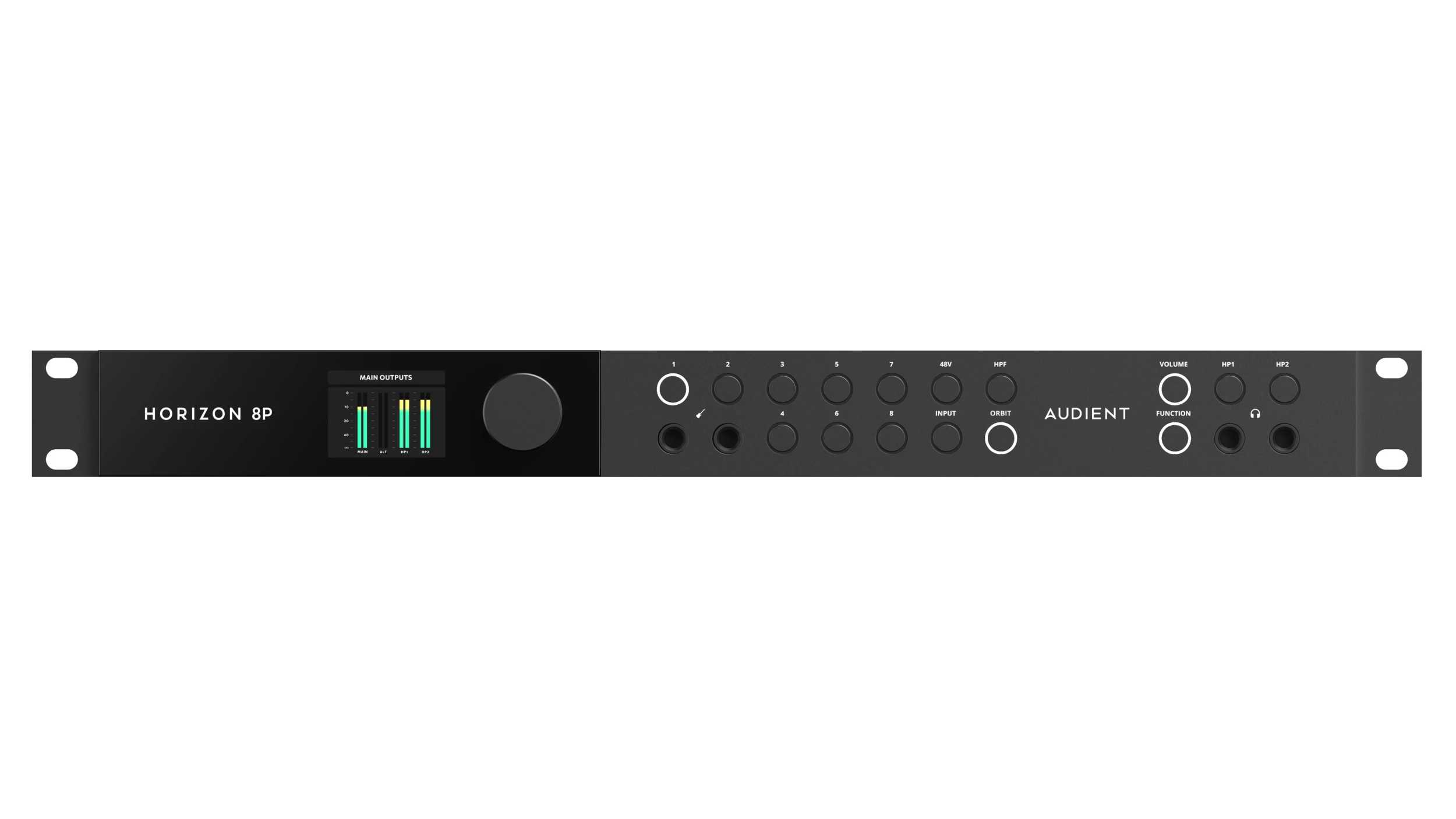

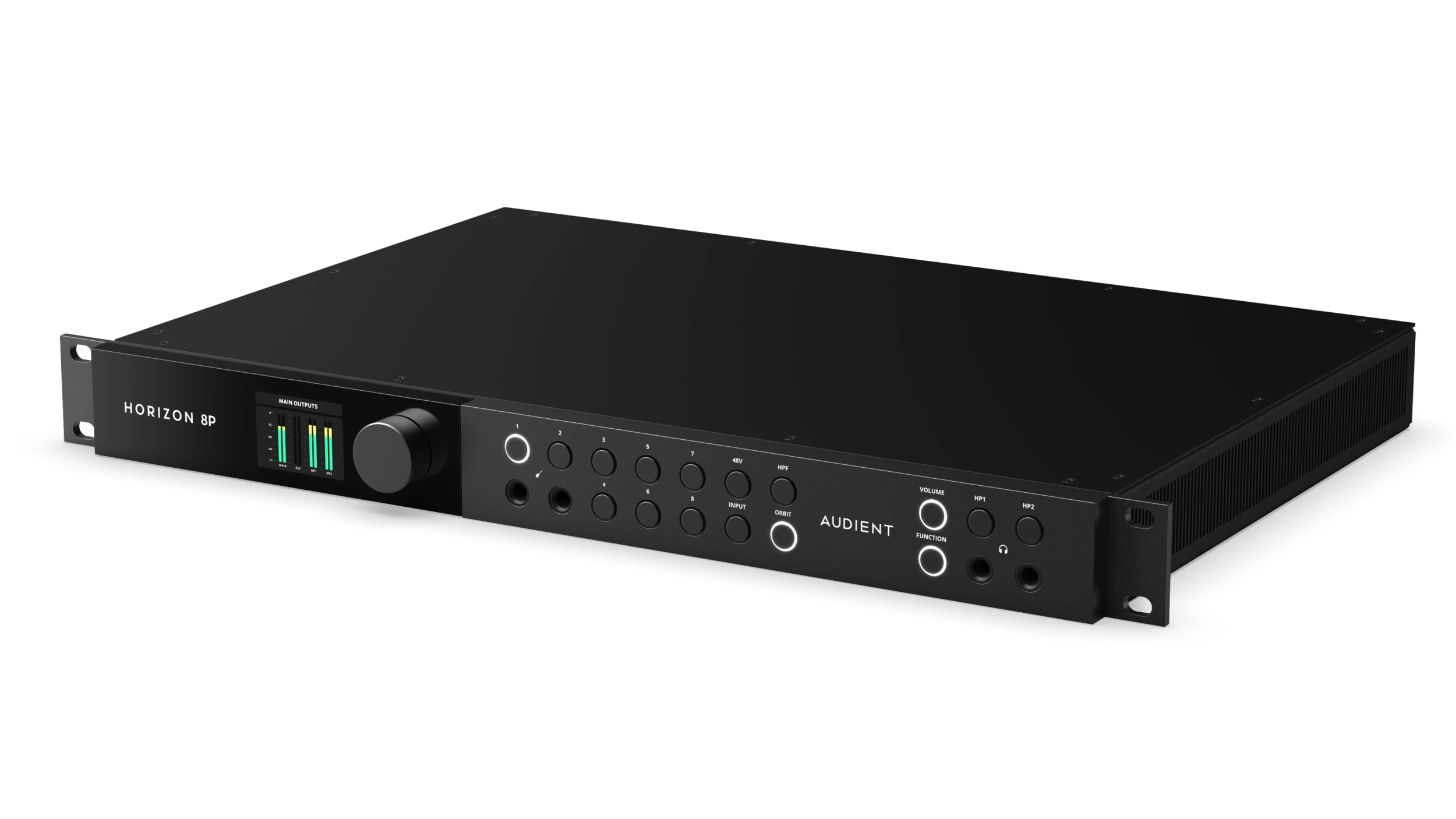

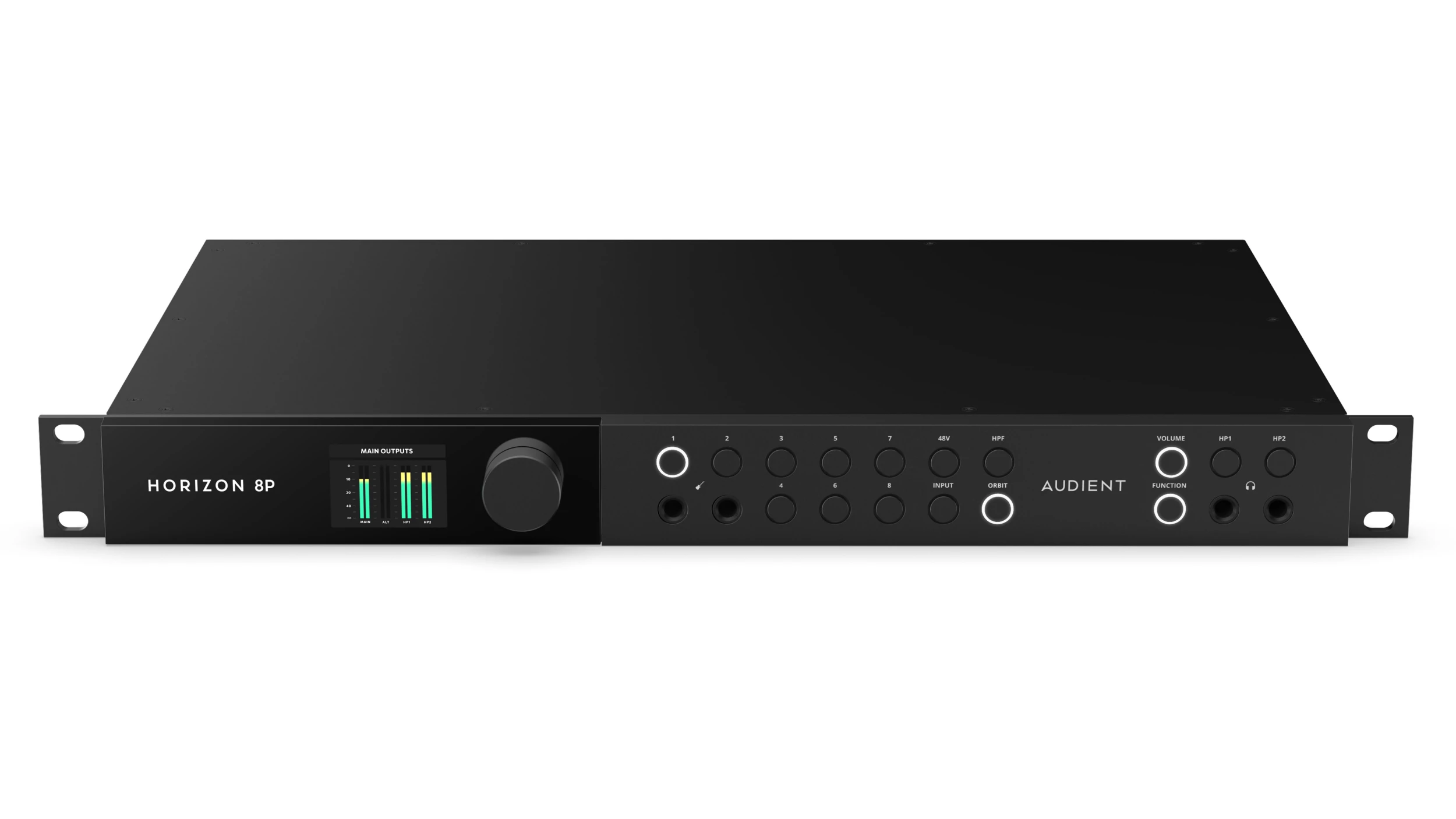

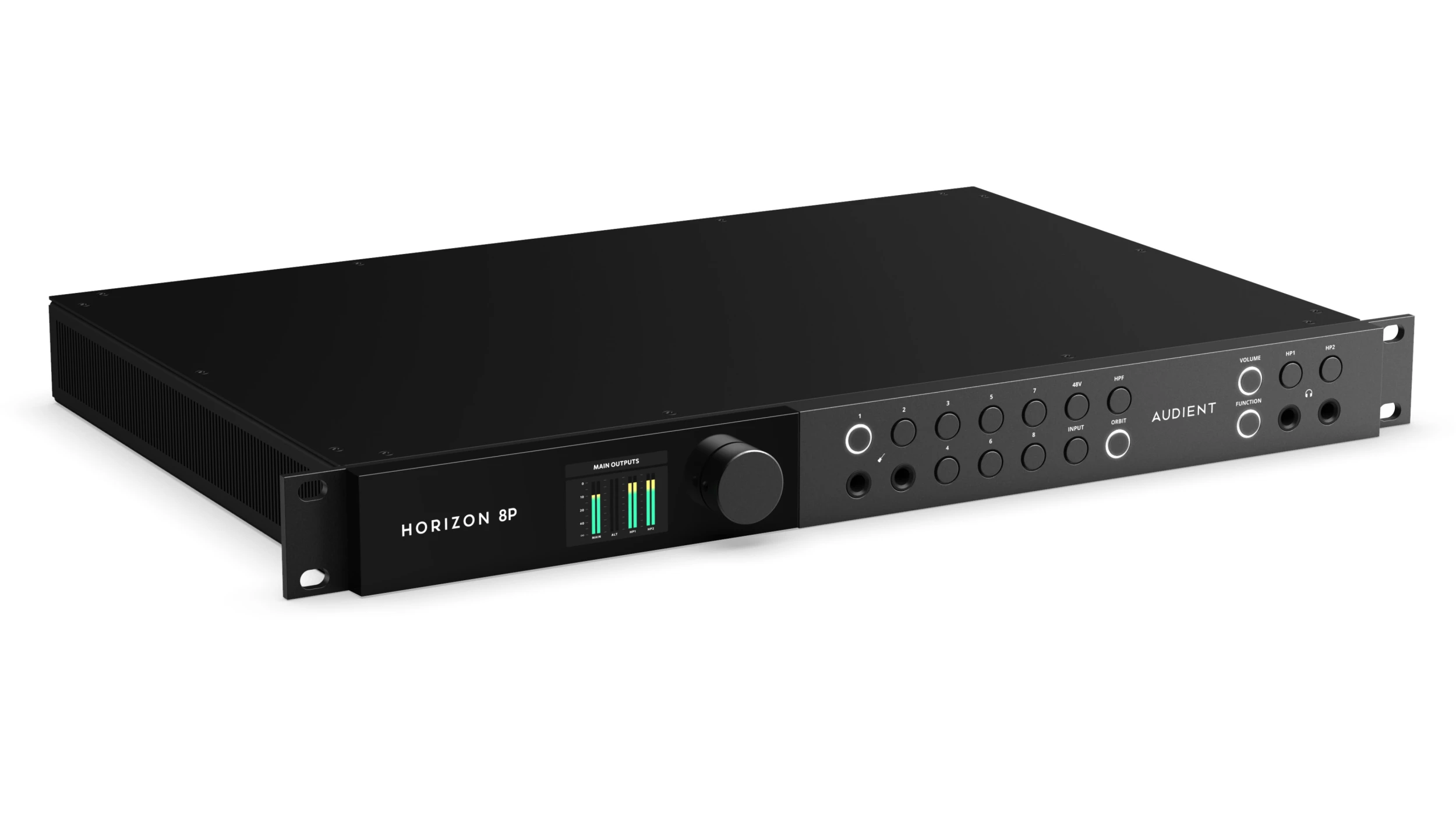

Audient Horizon 8P
Welcome to the New Standard
The Horizon 8P is a flagship 24-input, 32-output Thunderbolt 3 audio interface built for the mission-critical studio. Featuring eight Audient console preamps with ORBIT Control and Elite 32-bit mastering-grade conversion, Horizon bridges the gap between classic analogue character and the stability of a direct PCIe-speed connection. Uncompromising quality. Unrivalled performance. The first step into a frictionless, scalable studio foundation. Welcome to the new standard.
Mic Pre Input
MAXIMUM INPUT LEVEL: 18dBu
THD+N @ 0dBu: -98dB, 0.0011%
GAIN: 0 to 75dB
SNR: 101dB A-Weighted
EIN: -129dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to 80kHz
CMRR: >75dB
CROSSTALK @ 1kHz and 10kHz: <100dB
INPUT IMPEDANCE: 3kΩ
Line Input
MAXIMUM INPUT LEVEL: 28dBu
THD+N @ 10dBu: -98dB, 0.0011%
GAIN: -10 to 65dB
INPUT IMPEDANCE: 10kΩ
DI Input
MAXIMUM INPUT LEVEL: 12dBu
THD+N @ 0dBu: -75dB, 0.018%
GAIN: 0 to 75dB
SNR: 101dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz
INPUT IMPEDANCE: 500kΩ
Additional Mic Pre Features
PHANTOM POWER: +48V DC, 10mA per channel
ORBIT
10dB PAD
HPF
ADC Input
MAXIMUM INPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -118dB, 0.00012%
DYNAMIC RANGE: 127dB A-Weighted
FREQUENCY RESPONSE: ±0.2dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
Line Outputs
MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -122dB, 0.00008%
DYNAMIC RANGE: 132dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
IMPEDANCE: 47Ω
Headphone Outputs
MAXIMUM OUTPUT LEVEL: 15dBu = 0dBFS
THD+N @ -1dBFS: -116dB, 0.00015%
DYNAMIC RANGE: 124dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <120dB
IMPEDANCE: 10Ω
MAXIMUM OUTPUT LEVEL AND POWER INTO 30R: 5.55V Peak, 1.03W
MAXIMUM OUTPUT LEVEL AND POWER INTO 60R: 6.44V Peak, 691mW
MAXIMUM OUTPUT LEVEL AND POWER INTO 600R: 6.55V Peak, 71mW
Digital Features
INPUTS: Optical Input SPDIF/ADAT x2
OUTPUTS: Optical Output SPDIF/ADAT x2
WORD CLOCK: Input and Output, ±10ppm accuracy
SUPPORTED SAMPLE RATES: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSP Mixer Roundtrip Latency
All figures at 64 sample buffer size
44.1kHz: 4.286ms
48kHz: 3.938ms
88.2kHz: 2.143ms
96kHz: 1.969ms
176.4kHz: 1.077ms
192kHz: 0.99ms
Connectivity
THUNDERBOLT 3
Power Requirements
INPUT VOLTAGE: 85 – 264 VAC
INPUT FREQUENCY: 47 – 63Hz
