MOTU Traveler-mk3 - zvučna kartica

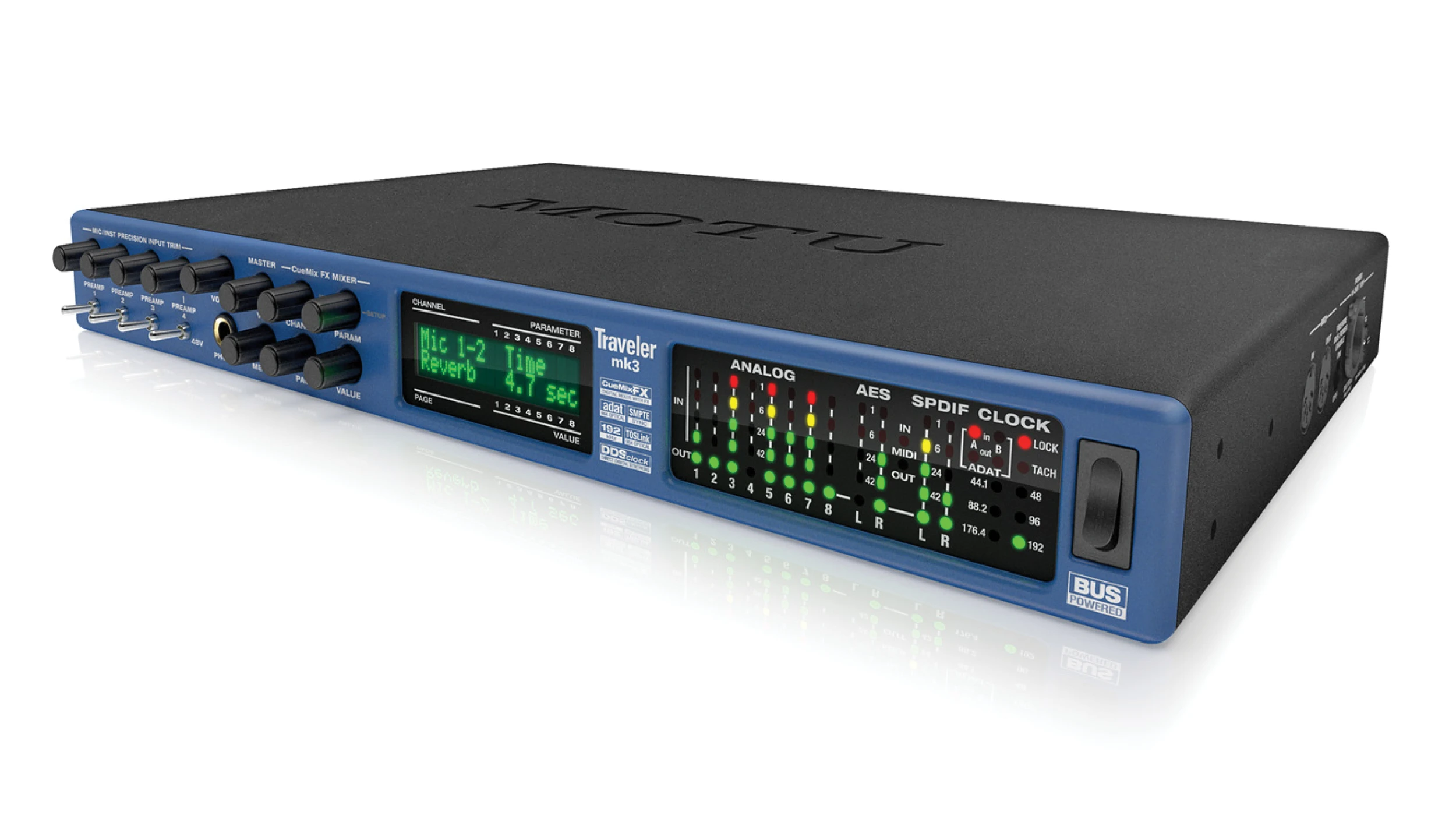

The Traveler-mk3 from MOTU can function as both a FireWire audio interface or stand-alone mixer, and is primarily engineered for high-end mobile recording applications. Equally suited to any other audio situation, the unit delivers 4 high quality microphone inputs, and can be powered from either a computer's FireWire bus or via optional battery packs. It also features internal DSP-driven mixing and effects processing.
General
Display: No
Channels of I/O: 28 Input / 30 Output
Built-In DSP: No
Maximum Sampling Rate: 192 kHz / 24-Bit
Number of Microphone Inputs: 4
Built-In Microphone: No
Signal Processing
Pad: No
High-Pass Filter: No
Solo/Mute: No
Connectivity
Analog Audio I/O:
• 4x Combo XLR-1/4" TRS Mic/Line Input
• 4x 1/4" TRS Balanced/Unbalanced Line Input
• 8x 1/4" TRS Balanced/Unbalanced Line Output
• 1x 1/4" TRS Headphone Output
Phantom Power: No
Digital Audio I/O:
• 2x TOSLINK Optical ADAT Input (S/MUX Support)
• 1x XLR 3-Pin AES3 Input
• 1x RCA Coaxial S/PDIF Input
• 2x TOSLINK Optical ADAT Output (S/MUX Support)
• 1x XLR 3-Pin AES3 Output
• 1x RCA Coaxial S/PDIF Output
Host Connection: 2x FireWire 6-Pin
Host Connection Protocol: FireWire 400
USB (Non-Host): No
Sync I/O:
• 1x BNC Word Clock Input
• 1x BNC Word Clock Output
Network I/O: No
MIDI I/O:
• 1x DIN 5-Pin Input
• 1x DIN 5-Pin Output
Expansion Slots: No
Wireless: No
Digital Audio
Sample Rates: Up to 192 kHz
Sample Rate Conversion: No
Bit Depths: 24-Bit
Sync Sources: SMPTE/LTC
Clocking: Internal
Audio Storage & Playback
Media/Memory Card Slot: No
Compatibility
OS Compatibility: macOS / Windows
Mobile Device Compatibility: No

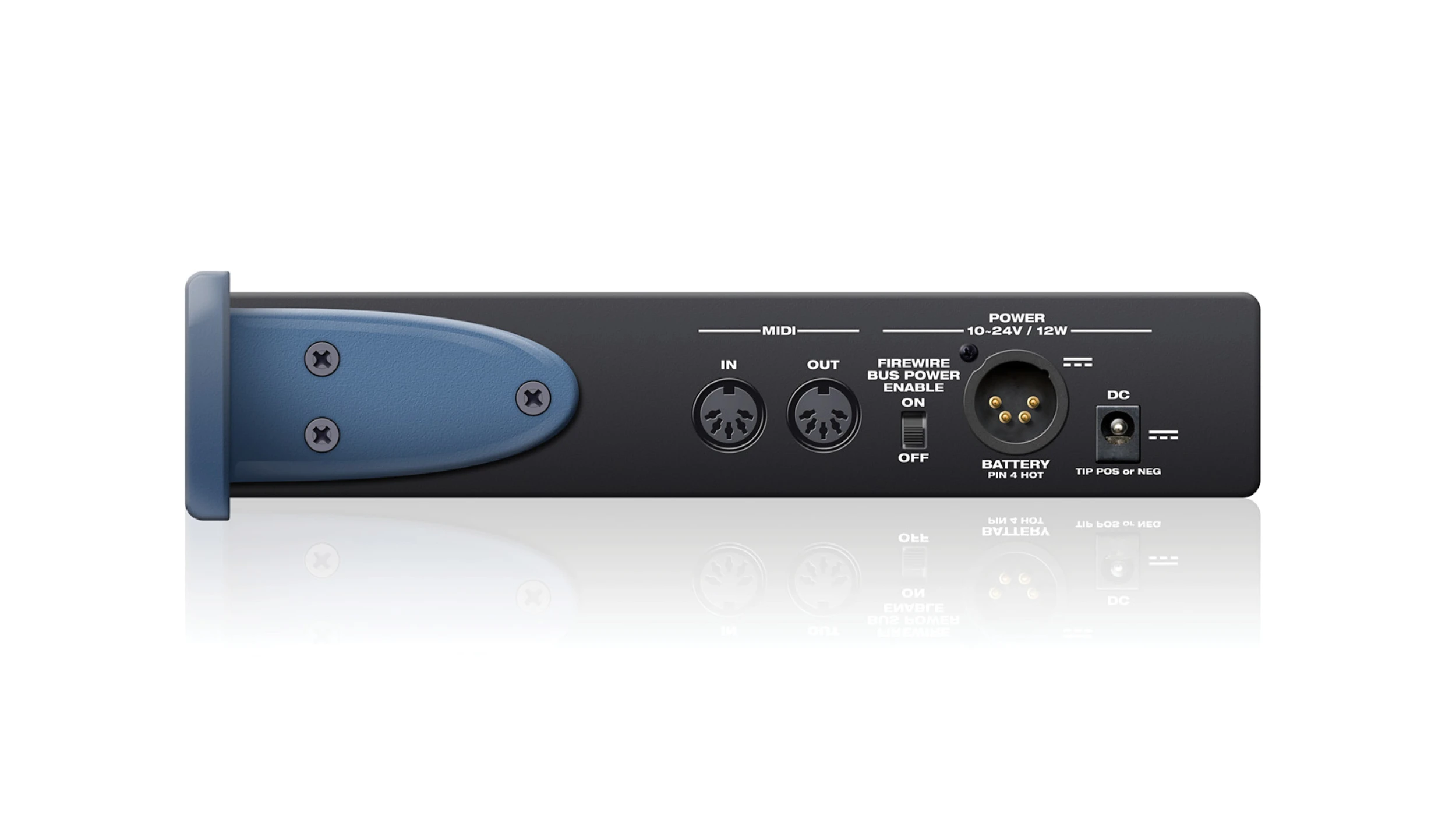

Power
Power Requirements: AC/DC Power Adapter (Not Included), Battery, FireWire Bus Power
AC/DC Power Adapter: 10 to 24 VDC (Not Included)
Physical
Rackmount Size: 1 U (with Included Hardware)
Dimensions: 14.8 x 9 x 1.7" / 376 x 229 x 43 mm
Packaging Info
Package Weight: 6.85 lb
Box Dimensions (LxWxH): 19 x 12.9 x 5.4"
