Antelope MP32

Šifra:
386.680,00 rsd
322.233,33 rsd (Bez PDV-a)
Iznos rate:
Prikazana cena je za komad.

Garantujemo najnižu cenu!

Prijavi povoljniju cenu Obavesti me ako cena padne Postavi pitanje
Opcija:

Direktni uvoz! Najbolje cene!

DOES YOUR ORION32 / ORION32+ FEEL LONELY?

This 32-Channel Mic Pres Perfectly Matches the Orion32 & Orion32+ Audio Interfaces

MP32 is a 32-channel console-grade microphone preamp with integrated software remote control and Antelope Audio’s exciting new approach to analog circuit design.
The rave reviews shared by several top audio engineers regarding the quality of the 12 mic preamps in our portable audio interface Zen Studio urged us to expand further and create a 32-channel mic preamp housed in only two rack spaces.

We designed MP32 to be a perfect match for our top-selling audio interface Orion32 or its ThunderboltTM successor Orion32+. This ensures a full transparency of the sound and complete integrity of the signal via the whole chain, from the mic pres through the conversion, recording and playback, all of them characterized by the signature Antelope sound.

The combination of the Orion32 and MP32 — totaling just 3U in rack space — make it a perfectly suited solution for studios and live recording where rack space can be a precious commodity.

MP32 FEATURES

32 MIC PRES

MP32 features 32 Class-A mic preamps
Hi-Z, line, mic compatible

DIGITAL REMOTE CONTROL

Control the MP32’s input types, gain levels, routing and presets via a user-friendly app

32-CHANNEL OUTS

32-channel outputs handled by four D-Sub 25 connectors

PHANTOM POWER

Independently assignable phantom power

FULL SPEED

USB Full Speed interface for software control panel

FULL CONTROL

Intuitive Control Panel for Windows and OS X

DESCRIPTION

ANALOG FEEL

MP32 features 32 class-A mic pres with phantom power, 32 line inputs, of which 4 can operate as Hi-Z instrument inputs. All inputs are XLR combos on the front panel of the MP32.

MP32’s mic preamps are open and transparent, yet designed to maintain both signal clarity and sonic realism consistently throughout the recording process. The MP32 offers excellent headroom and up to 68 dB of gain in 1 dB steps, more than enough to power even the most demanding ribbon mics, while maintaining ultra-low THD+N (-110.5 dB).

DIGITAL CONVENIENCE

Control MP32 via its fast and flexible software control panel

A user-friendly control panel for OS X or Windows allows for easy remote management of the device’s input types and mic gain levels. The intuitive software control panel provides fast set up and easy fine-tuning of individual mic preamp gain, as well as the independent assignment of phantom power and mic/line/hi-z switching.

Complex gain structure and preamp settings are made incredibly simple by the user-defined presets, just a mouse click away. In addition, individual V/U style metering allows for instant signal confirmation at a glance of the software.

LET’S RECAP

In just 2U space:

32 class-A mic pres with phantom power; 32 line inputs, 4 of which can operate as Hi-Z instrument inputs; all front panel inputs are XLR combos.

Plus, the MP 32 offers up to 68 dB of gain in 1 dB steps, while maintaining ultra-low THD+N (-110.5 dB).

SPECIFICATIONS

    • Analog Inputs

32 channels Mic / Line on XLR Combos on the front panel;
1-4 of 32 channels are (HiZ) – Instrument selectable XLR Combos on the front;

    • XLR Combos Analog

Mic (XLR only): 20dBu max balanced @ 2Kohm
Line (1/4 only): 29dBu max balanced @ 13K (to gnd)
Hi-z (1/4 only): 20dBu max unbalanced @ 1,1Mohm

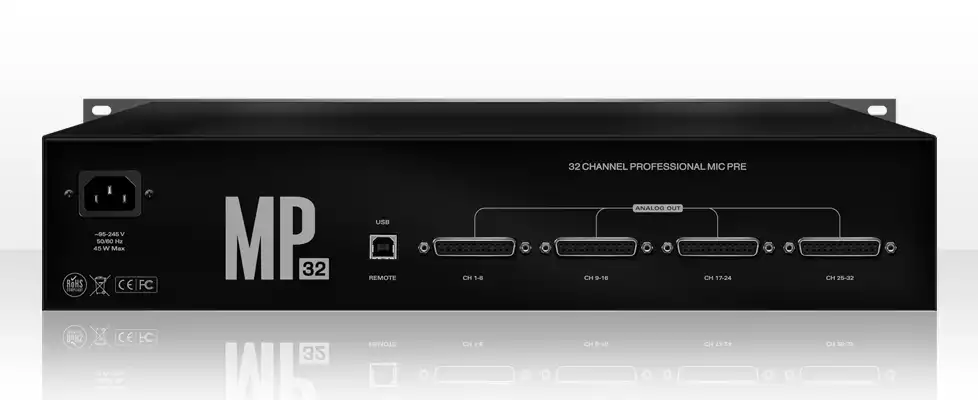

    • Analog Outputs

32 x Lines on 4 x D-SUB 25 (32 channels), 26 dBu max balanced @50 Ohms


    • USB I/O

USB 2.0 Full-Speed Type B
For use with the software control panel

    • Dimensions (Approx)

Width: 482 mm/19”/Rack
Height: 88 mm/3.5”/2U
Depth: 210 mm/8.3”

    • Mic Preamp Gain

Mic Pre: 5 to13dB in one 8dB step, 13 to 68dB in 1dB steps
Line: -9 to 20dB in 1 dB steps
Hi-z 4 to 40dB in 1 dB steps
THD + N: 110.5 dB
EIN: -129dBu


    • Operating Temperature

0-50°C, 32-122°F

    • Weight

6kg/ 13lb approx.

    • Power Supply

AC Universal Input 95-264V, 50 or 60Hz

    • Power Consumption

44 Watts Max

System requirements

Windows

OS: Windows 7/8/8.1/10
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0 Port
Required USB bandwidth (for firmware update): 80%-90%
CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency
Memory (RAM): 4GB Minimum (8GB or more Recommended)

MAC

OS X: 10.9 Mavericks or higher (10.14 Mojave Recommended)
Disk Space: Minimum 512 MB available disk space
USB: 1x USB 2.0/3.0 Port
Required USB bandwidth: 80%-90%
Memory(RAM): 4GB Minimum (8GB or more recommended)
CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)

Additional Info: Internet connection required for product activation.
