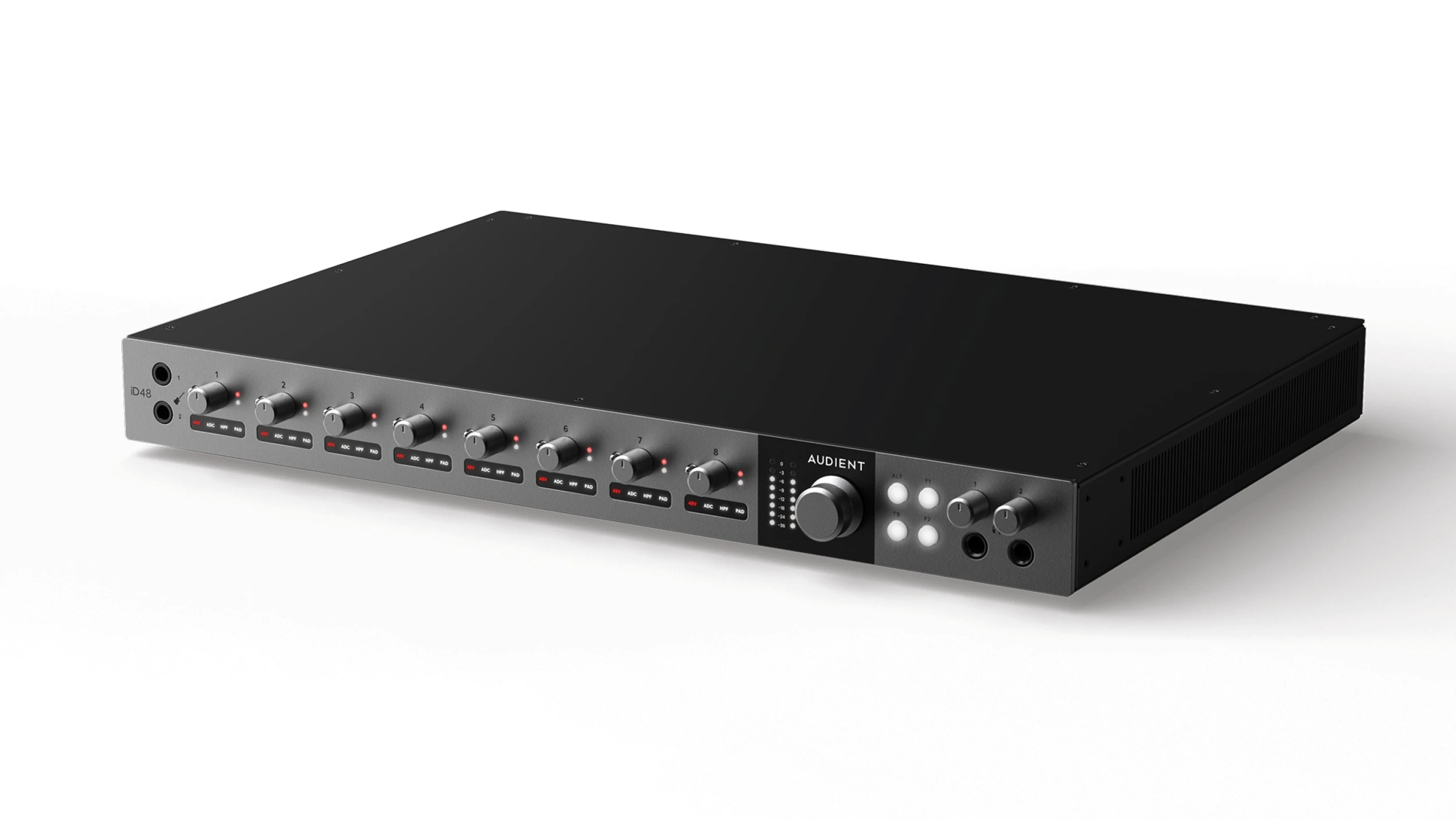

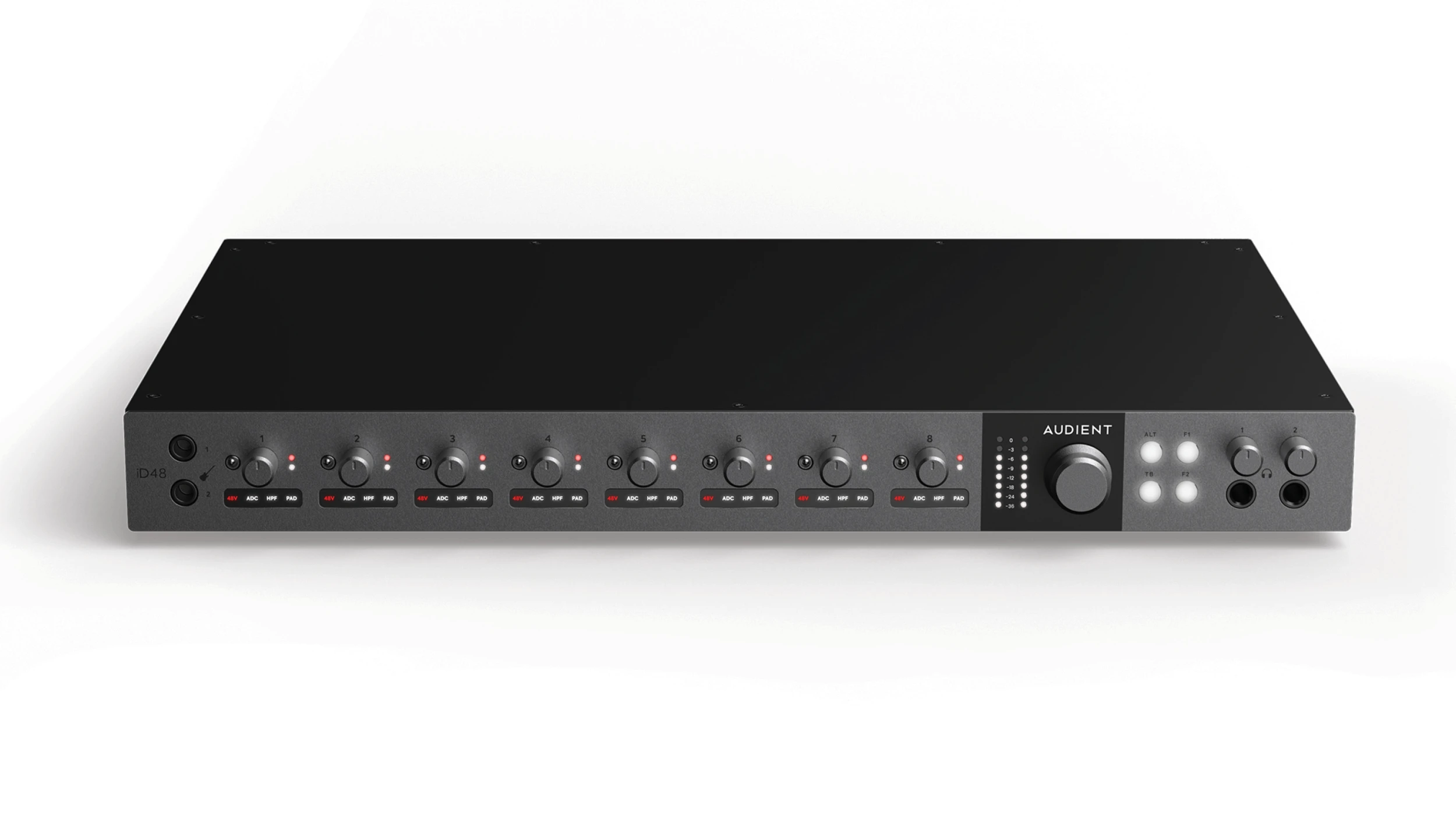

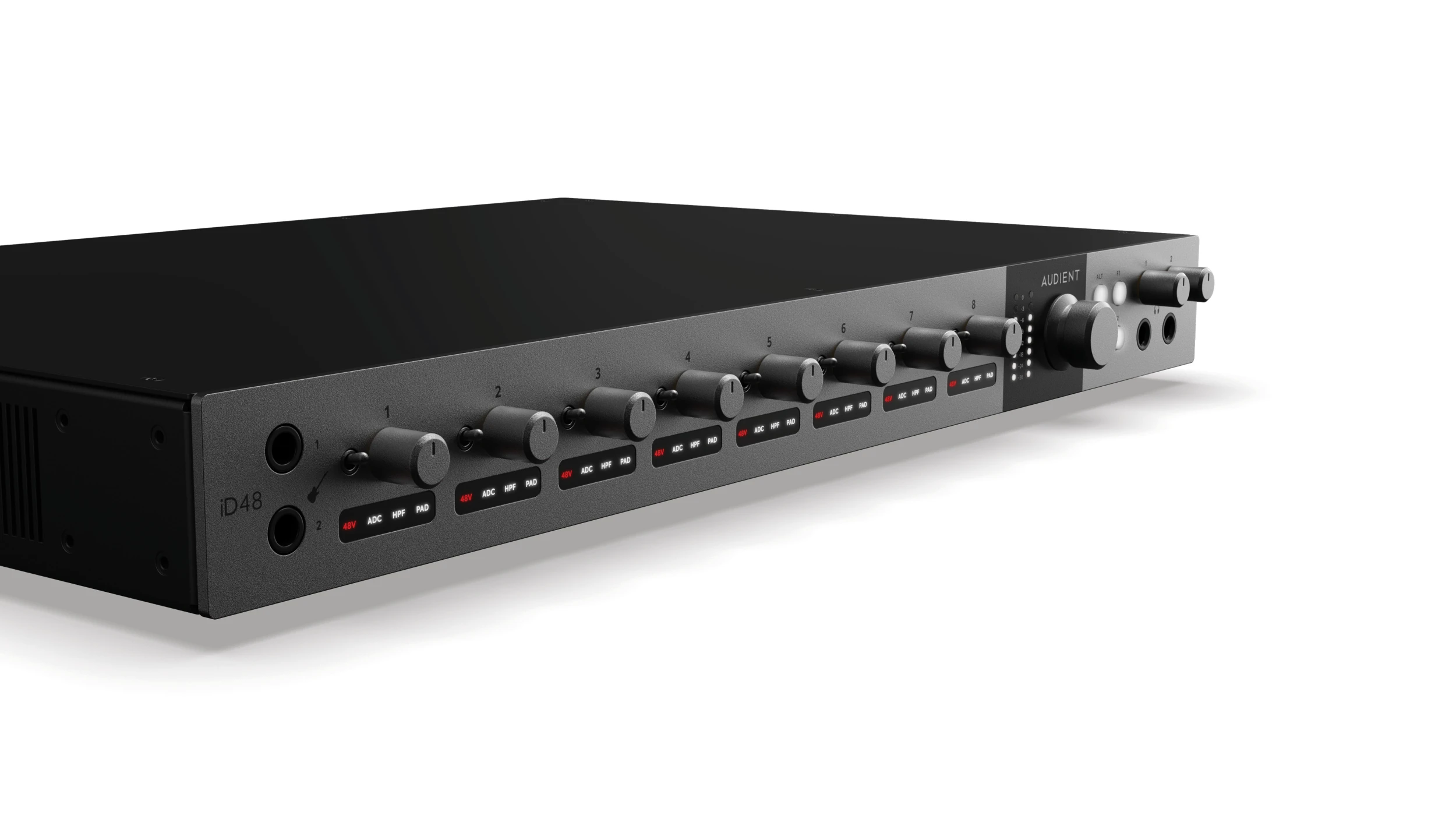

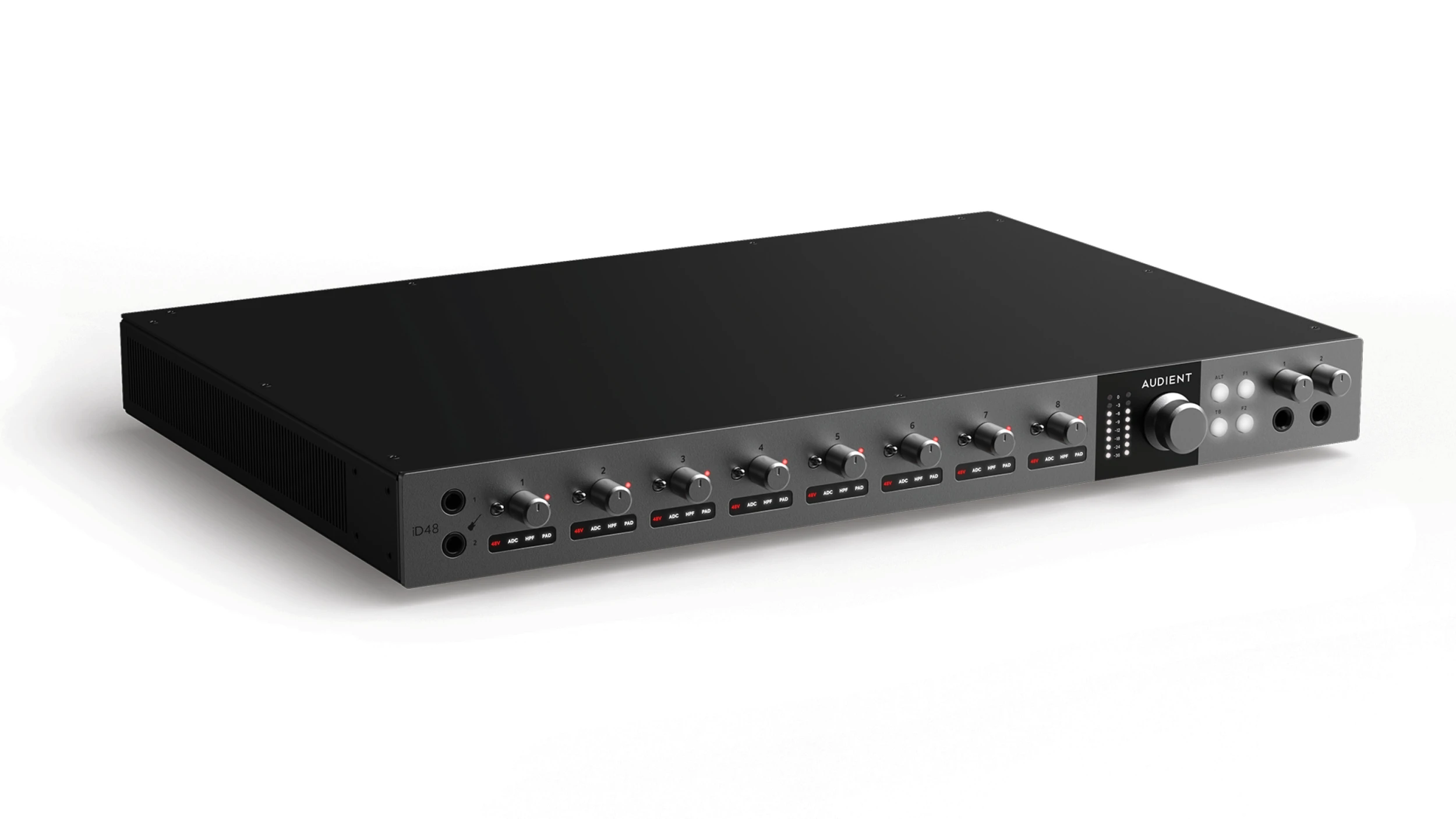

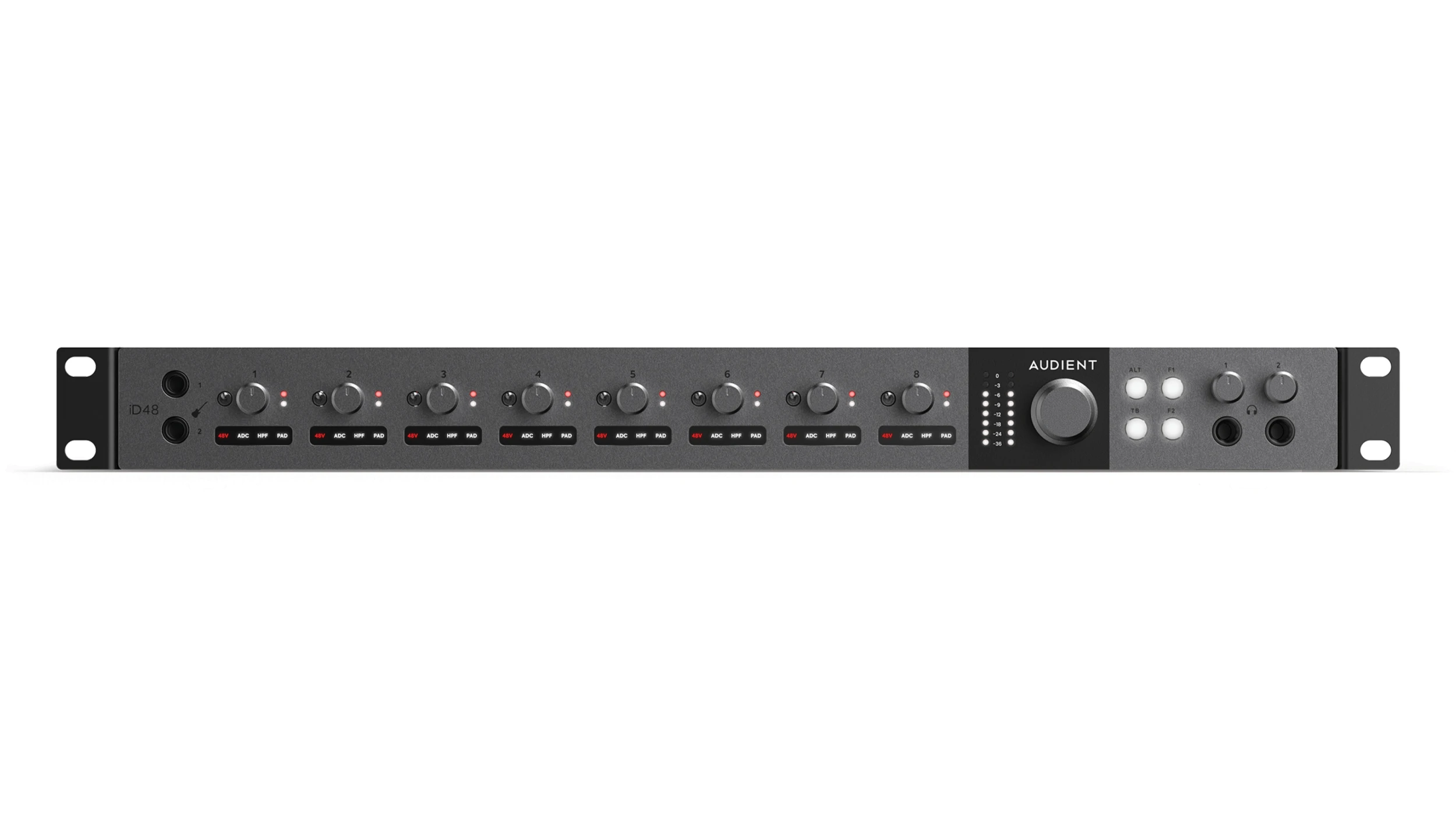

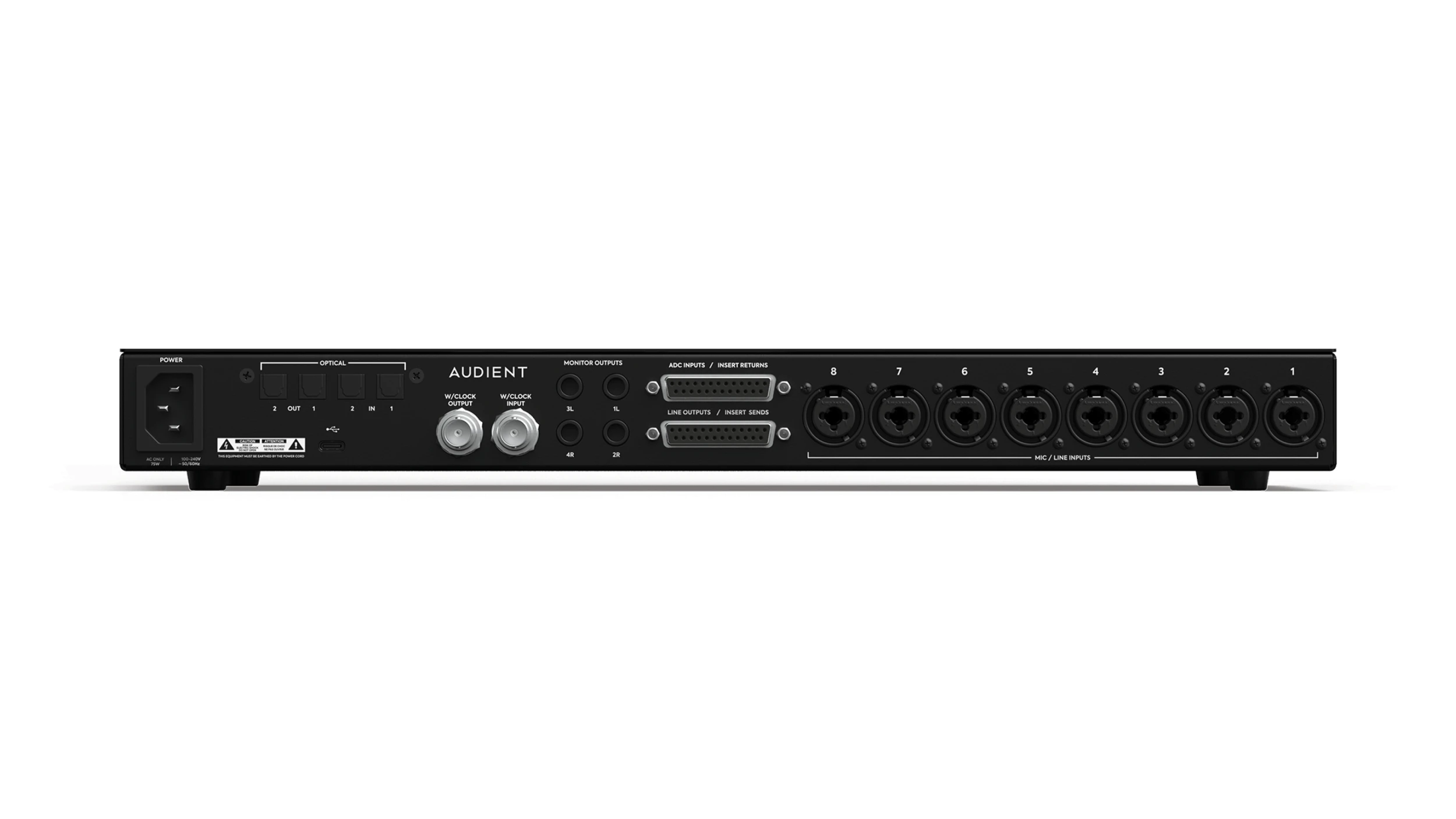

Audient ID48 MKII - USB zvučna kartica
24in | 32out Audio Interface
Bigger, better and more powerful than ever, iD48 is the flagship USB iD interface made for producers and engineers. Packing in eight Audient Console Mic Preamps, advanced 32-bit ESS converter technology and the all new Switchable Analogue Insert technology, iD48 seamlessly combines astonishing audio performance with ease of use. Add to that professional must have features like ADAT expandability and customisable monitor control, iD48 is ready to transform your studio.
Microphone Preamplifier
MIC GAIN: 0 to +68dB (with 10dB Gain Boost)
LINE GAIN: -10 to +58dB (with 10dB Gain Boost)
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: -127dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +18dBu
INPUT IMPEDANCE (Mic): 3k Ω balanced
INPUT IMPEDANCE (Line): 10k Ω balanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to 65kHz
CROSSTALK: <-115dB @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.0016% (-96dB)
SNR: 99dB A-Weighted
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
PAD: -10dB
HPF: -3dB @ 100Hz, 2nd Order (12dB/Octave)
D.I / Instrument Input (Channel 1 and 2)
D.I GAIN: 0 to +68dB (with 10dB Gain Boost)
MAXIMUM INPUT LEVEL: +15dBu
INPUT IMPEDANCE: 500kΩ Unbalanced
FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz
THD+N @ 0dBu (1kHz): <0.06%
SNR: 96dB A-weighted
1/4” JACK: Tip (Hot) & Sleeve (Shield)
Analogue to Digital Converter
MAXIMUM INPUT LEVEL: +18dBu (0dBFS digital maximum)
DIGITAL REFERENCE LEVEL: +18dBu = 0dBFS
INPUT IMPEDANCE: >10k Ω Balanced
CROSSTALK: <-118dB @ 1kHz, <-115dB @ 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): <0.0003% (-110dB)
DYNAMIC RANGE: 120dB A-weighted
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Digital to Analogue Converter (Monitor and Line Outputs)
MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE: <100 Ω
CROSSTALK: <-120dB @ 1kHz, <-115dB @ 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
THD+N @ -1dBFS (1kHz): <0.00026% (-111.5dB)
DYNAMIC RANGE: 124dB un-weighted, 126.5dB A-weighted
1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Outputs
MAXIMUM OUTPUT LEVEL: +18dBu (0dBFS digital maximum)
OUTPUT IMPEDANCE: <50 Ω unbalanced
CROSSTALK: <-117dB @ 1kHz, -112dB @ 10kHz
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2
THD+N @ -1dBFS (1kHz): <0.00023% (-112dB)
DYNAMIC RANGE: 121dB un-weighted, 124dB A-weighted
MAX LEVEL INTO 30ohms: 4V Peak, 2.85V RMS, 530mW
MAX LEVEL INTO 60ohms: 5.82V Peak, 4.12V RMS, 565mW
MAX LEVEL INTO 600ohms: 8.71V Peak, 6.16V RMS, 126mW
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
