MOTU 16A - Thunderbol 4 / USB4 zvučna kartica
Thunderbol 4 / USB4 Audio Interface with DSP, Mixing, Effects and Networking
Designed as the central hub of a high-performance recording or live-sound environment, the MOTU 16A is a 32-in / 34-out audio interface featuring Thunderbolt 4 and USB4 connectivity, onboard DSP mixing and effects, AVB networking, and advanced A/D/A conversion supporting up to 32-bit / 192 kHz resolution. The unit integrates a 64-channel DSP-driven monitor mixer with 32-bit floating-point internal processing, enabling low-latency routing and effects independent of host CPU load. A full digital patch bay provides flexible signal routing between physical I/O, the internal mixer, computer channels, and the AVB network.
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz

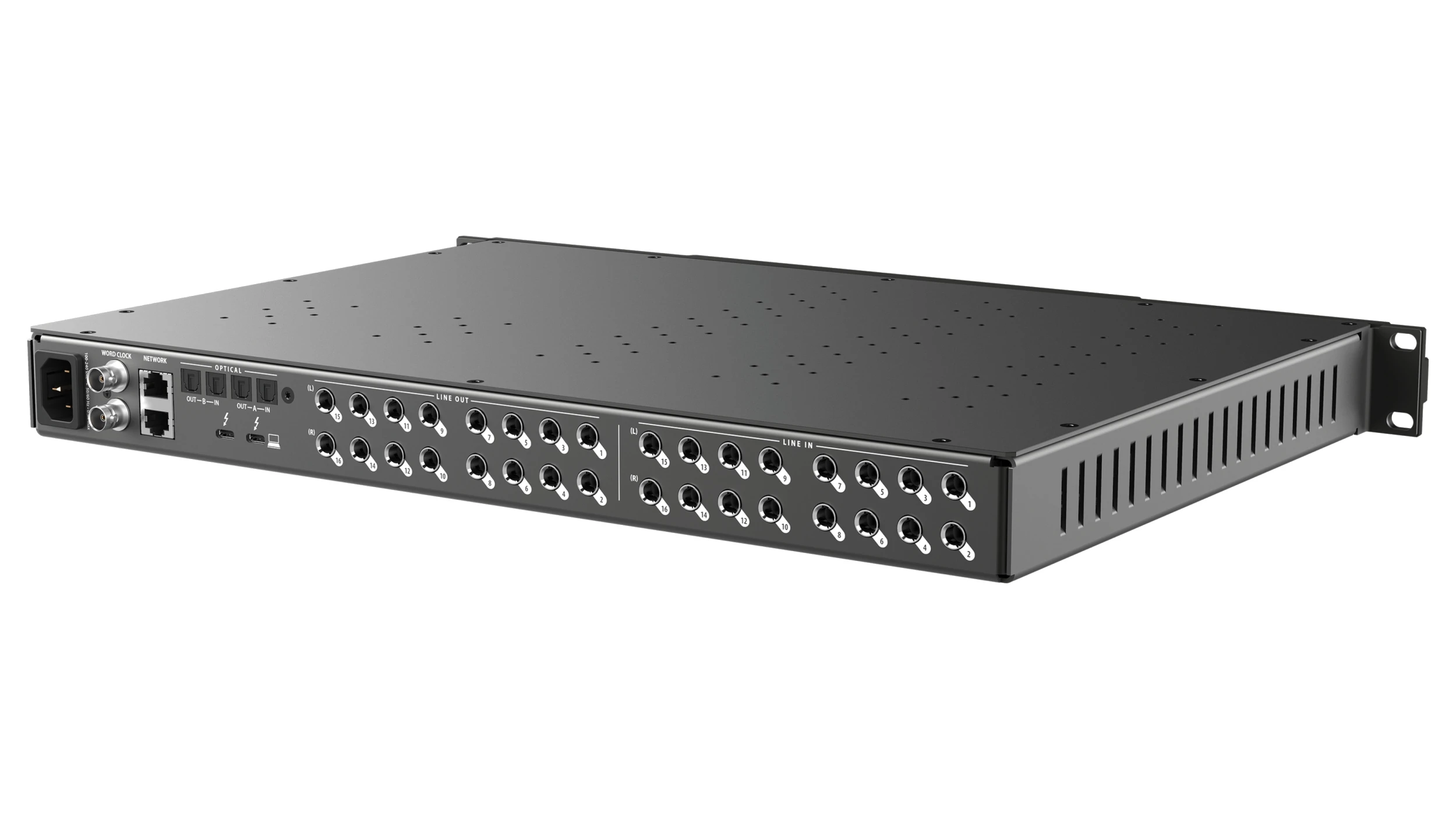

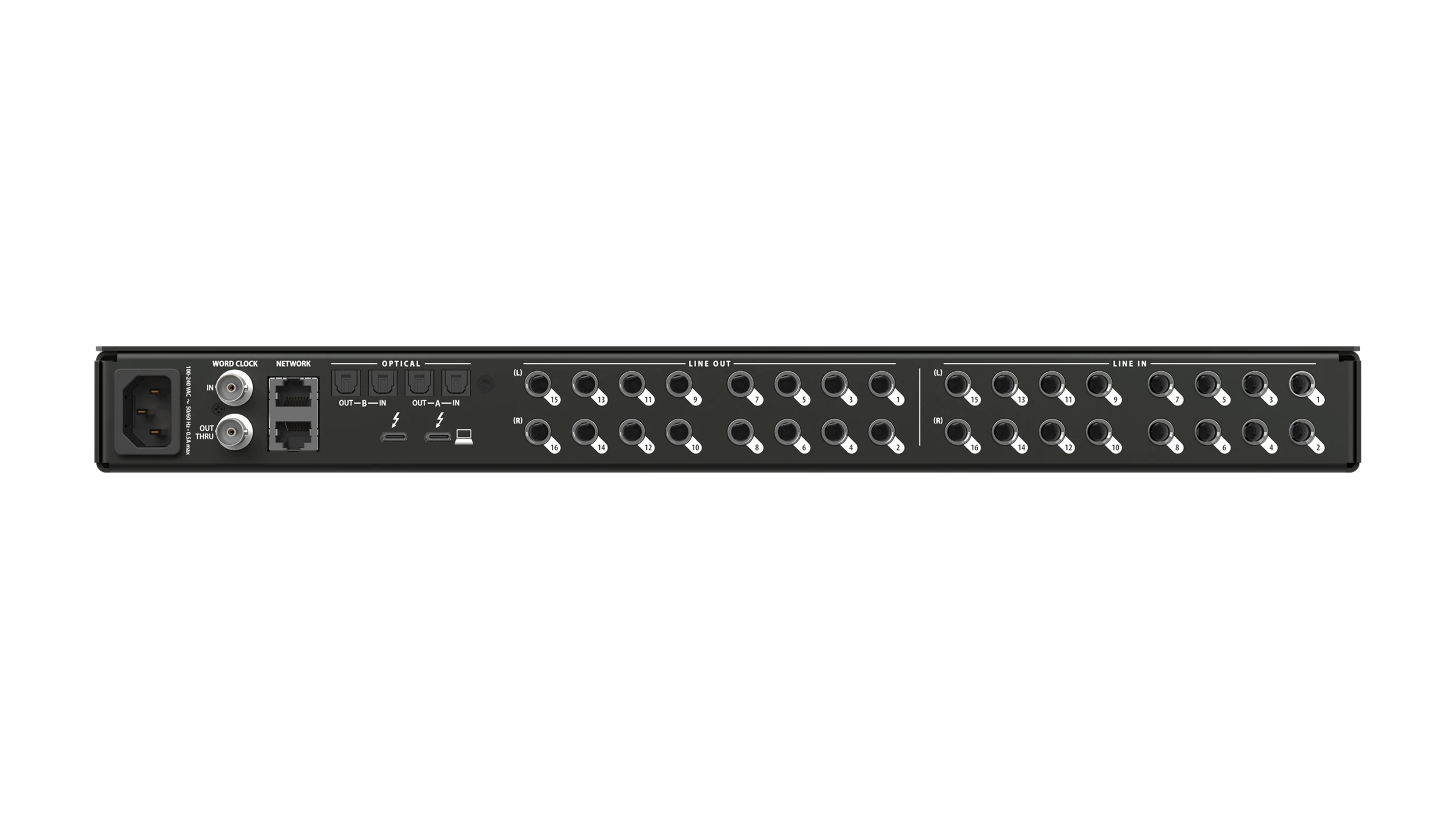

Analog inputs:
• 16 x 1/4-inch TRS line in (balanced/unbalanced)
• Max level: +21 dBu
• +20 dB digital gain on each input
Analog outputs:
• 16 x 1/4-inch TRS line out (balanced, DC coupled)
• Max level: +21 dBu
• -99 dB digital trim on each output
• 1 x 1/4-inch TRS stereo headphone (see below)
Digital I/O:
• 2 banks (16 ch) of ADAT optical I/O at 1x sample rates
• 2 banks (8 ch) of S/MUX optical I/O at 2x sample rates
• Bank A switchable to stereo TOSLink I/O (optical S/PDIF)
Computer I/O
2 x Thunderbolt 4 / USB 4.1 (40 Gbps) Type C
• USB3 / USB2 compatible
• USB audio class compliant (no driver needed)
1 x Thunderbolt-compatible / USB4 GEN3 C-to-C cable
• 40Gpbs / 240W
• Length = 2 meters
• Cable included
• Provides 15W power downstream / 0W upstream
Compatible with USB2 Type A with a C-to-A cable
• (sold separately)
Round Trip Latency (RTL): ~1.8 ms
• (32 sample buffer at 96K)
Total audio channels: see "Total Audio I/O" below
Total audio I/O:
• 32 in / 34 out (66 total channels) at 1x sample rates
• 24 in / 26 out (50 total channels) at 2x sample rates
• 16 in / 18 out (34 total channels) at 4x sample rates
Headphone:
• 1 x 1/4-inch TRS stereo headphone with channel select
• Output impedance: <1Ω
• Max output: 13.3 dBu
Networking:
• 2x Gigabit AVB Ethernet ports
• 16 AVB streams in/out at sample rates up to 96 kHz
• 8 AVB streams in/out at 176.4 or 192 kHz
• 1-8 audio channels configurable per stream
• Up to 128 audio channels in & out (up to 96 kHz)
• Supports 1722.1 for Connection Management and Control
• Supports AAF stream formats & legacy AM8-24 format
• Stream format configurable per stream
Sync I/O:
• 1 x BNC Word Clock In
• 1 x BNC Word Clock Out/Thru
• Sample rates: all (from 44.1 to 192 kHz)

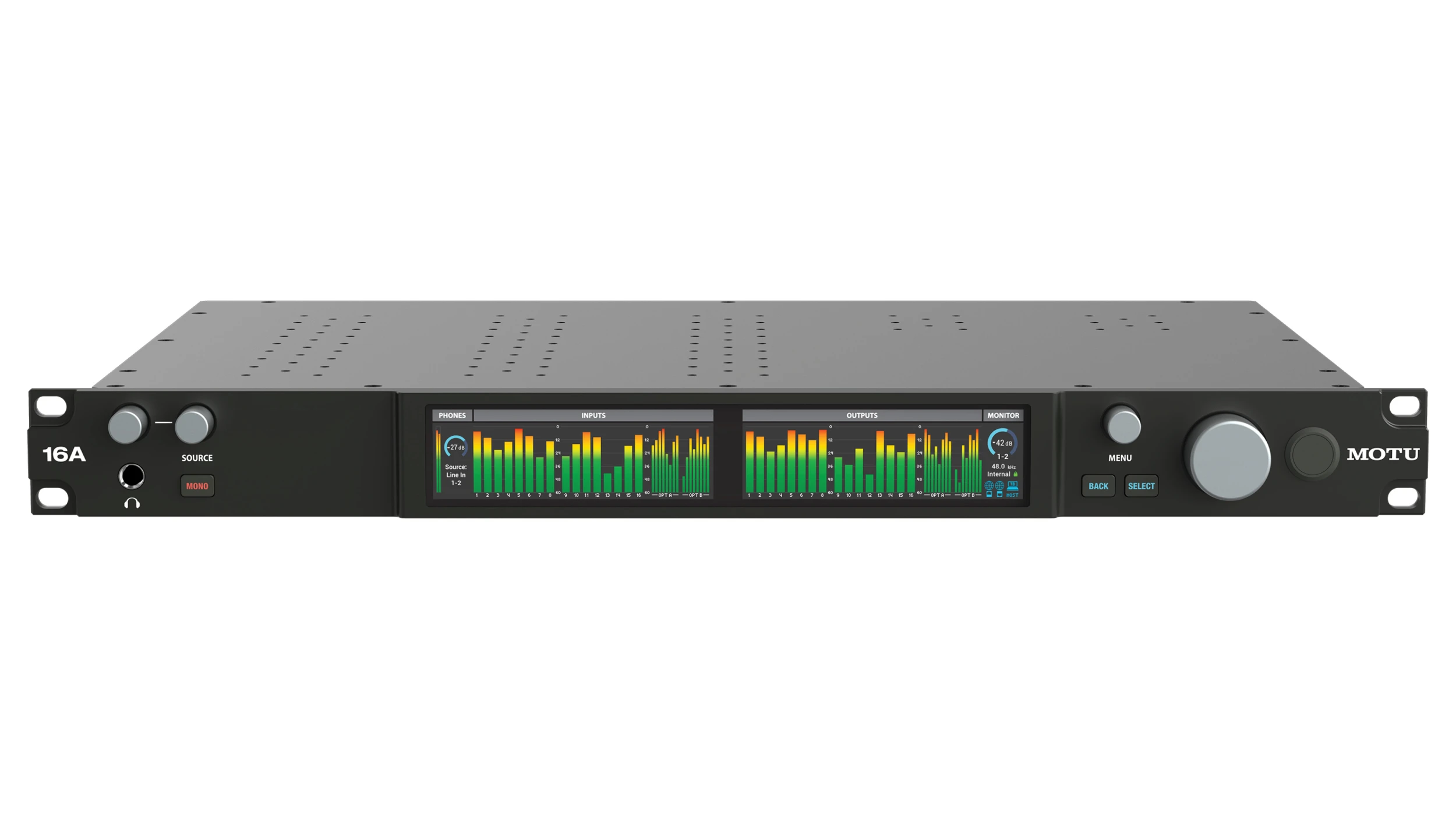

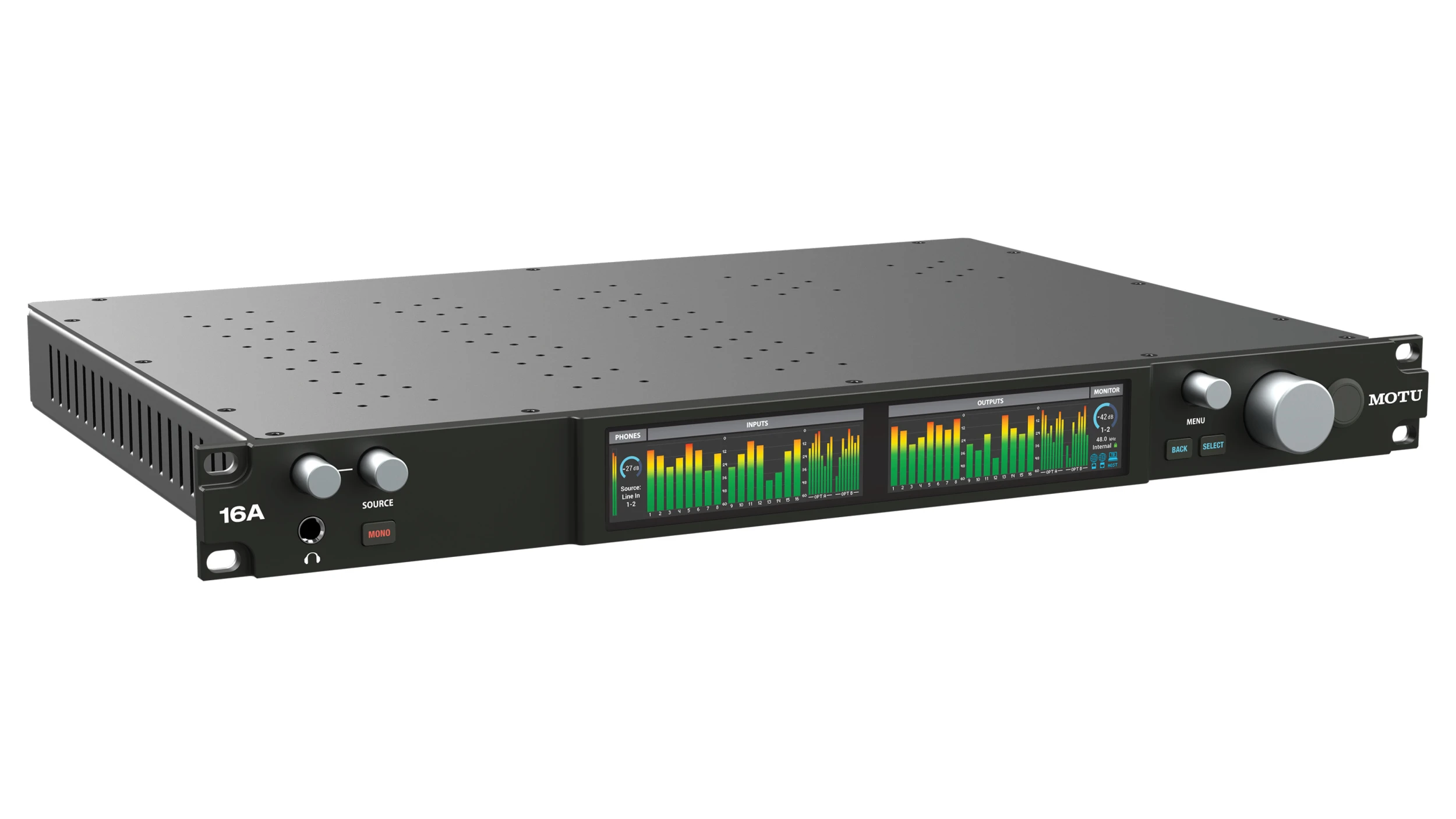

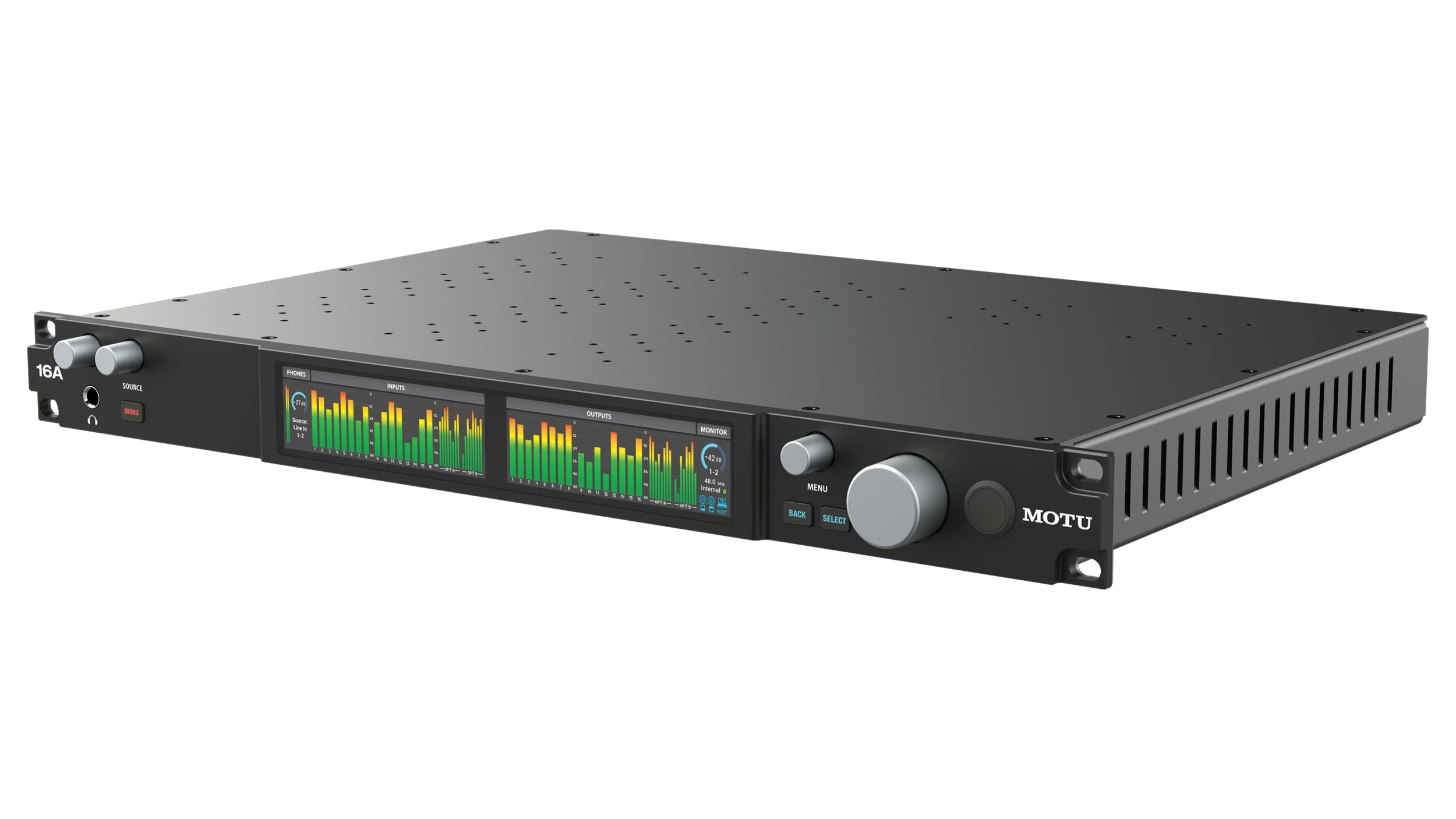

Front panel:
• 1 x 1/4" TRS headphone output
• 1 x encoder • headphone volume
• 1 x encoder • headphone channel select
• 1 x encoder • menu navigation
• 1 x large encoder • main volume
• 3 x switches • (1) headphone mono, (2) menu nav
• 2 x 3.9-inch 480 x 128 pixel 24-bit RGB TFT display
• 1 x latching power button
Power:
• Internal 100-240V autoswitching supply
• 50-60 Hz • 1.0A max
Dimensions and weight: (width x depth x height, enclosure only)
• 19 x 12.25 x 1.75 inches / 48.26 x 31.1 x 4.44 cm
• 11 lbs / 5 kgs
System Requirements
Mac System Requirements:
• Intel Core i3 Mac or faster (including Apple silicon Macs)
• 4 GB RAM; 8 GB or more recommended
• macOS 12 or later (with driver or USB class compliant)
• Available Thunderbolt 3+ or USB port
• A large hard drive (at least 500 GB for recording)
Windows System Requirements:
• Intel Core i3 PC (or AMD equivalent)
• 4 GB RAM; 8 GB or more recommended
• Windows 10 22H2 or later (x64 AMD/Intel only)
• Windows 11 23H2 or later (x64 AMD/Intel only)
• Available Thunderbolt 3+ or USB port
• A large hard drive (at least 500 GB for recording)
iOS System Requirements:
• iOS 17.5 or later*
Class-Compliant Support:
• USB audio class compliant for plug-and-play operation on macOS or iOS (no driver required)
Included Software:
• CueMix Pro for macOS, Windows and iOS
• Drivers for macOS, Windows and iOS**
• MOTU Performer Lite for macOS and Windows
• 6GB of loops and sounds from Big Fish Audio,
• LucidSamples, Loopmasters and MOTU
