General

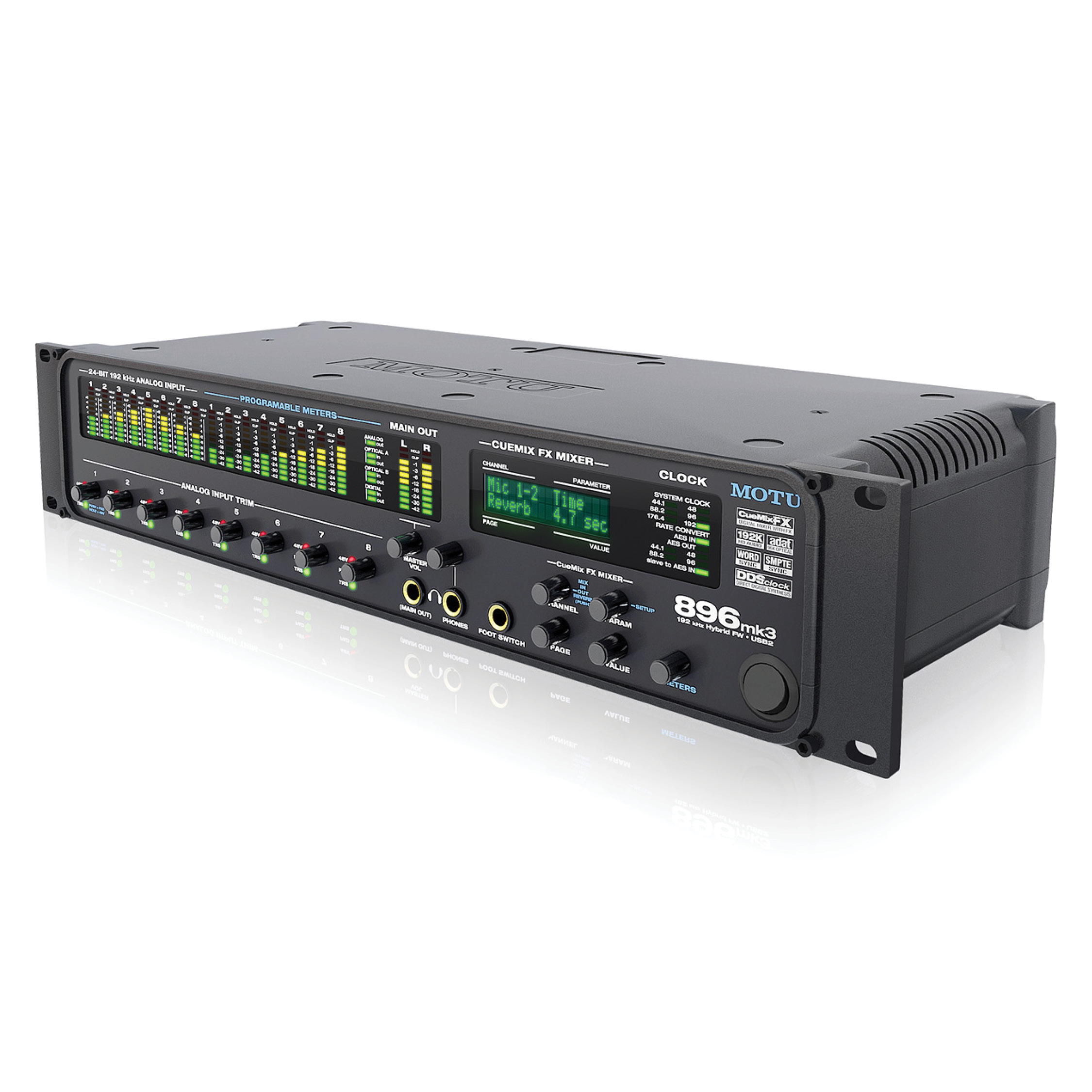

Display: 8x Multi-Segment LED Meter
Channels of I/O: 28 Input / 32 Output
Built-In DSP: Yes
Maximum Sampling Rate: 192 kHz / 24-Bit
Number of Microphone Inputs: 8 Preamps
Built-In Microphone: No
Input Level Adjustment: 8x Knob
Expansion Slots: No

Signal Processing
High-Pass Filter: No
Solo/Mute: No

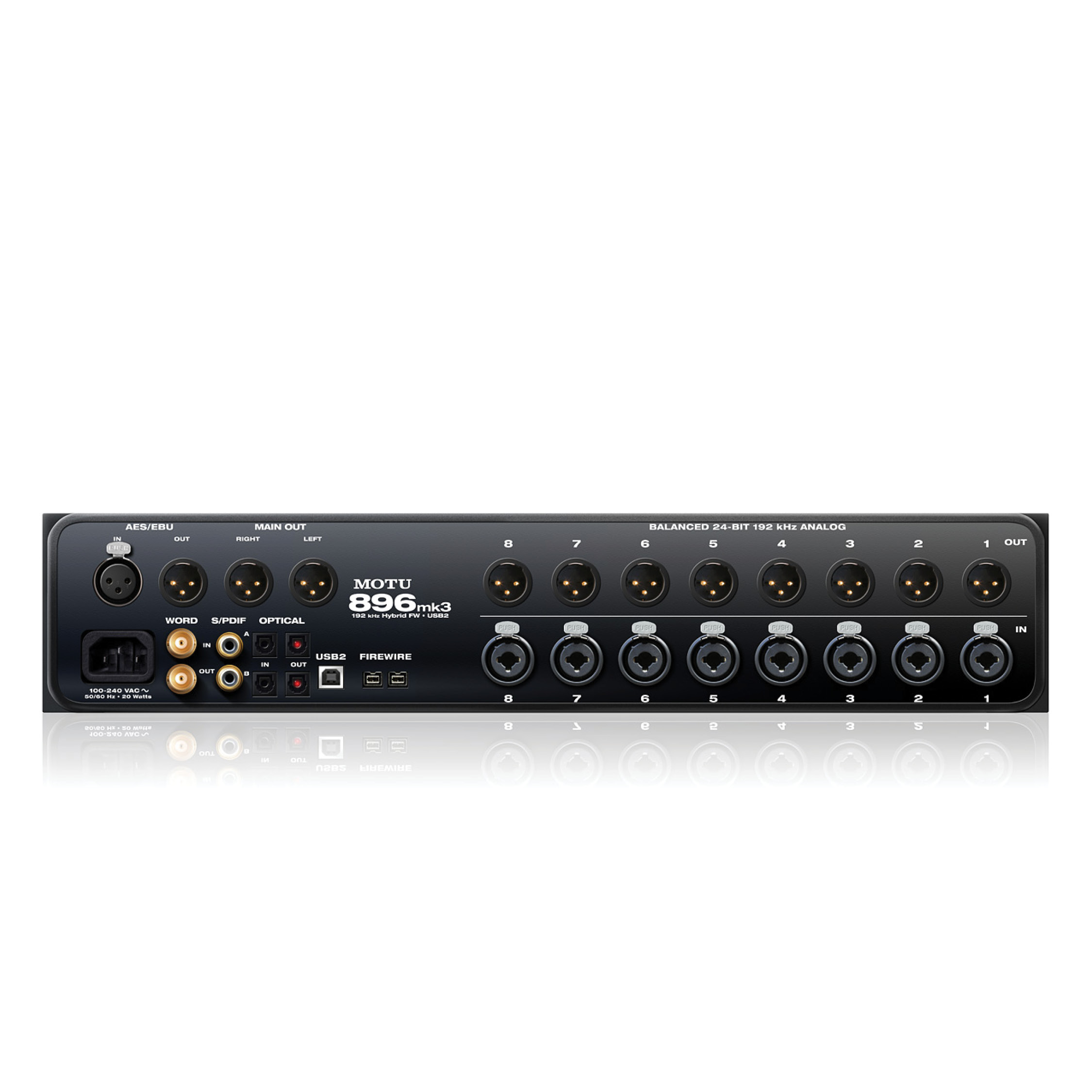

Connectivity
Analog Audio I/O:
• 8x Combo XLR-1/4" TRS Input
• 8x XLR 3-Pin Balanced Output
• 2x XLR 3-Pin Monitor Output
• 2x 1/4" TRS Headphone Output
Digital Audio I/O:
• 1x XLR 3-Pin AES3 Input
• 1x XLR 3-Pin AES3 Output
• 2x TOSLINK Optical ADAT Input
• 2x TOSLINK Optical ADAT Output
• 1x RCA Coaxial S/PDIF Input
• 1x RCA Coaxial S/PDIF Output
Host Connection:
• FireWire 9-Pin
• USB-B
Host Connection Protocol:
• FireWire 400
• USB 2.0
Sync I/O:
• 1x BNC Word Clock Input
• 1x BNC Word Clock Output
MIDI I/O: No
Other I/O: 1x 1/4" Footswitch Input

Digital Audio
Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion: No
Bit Depths: 24-Bit
Sync Sources: ADAT, AES3, S/PDIF, and Word Clock
Clocking: Internal

Compatibility
OS Compatibility:
• macOS 10.7
• Windows Vista
• Windows 7
Included Software: No
Included Plug-Ins: No
Processor Requirement:
Mac:
1 GHz PowerPC G4
PC:
1 GHz Intel Pentium
RAM Requirements: 1 GB, 2 GB Recommended
Storage Requirements: 250 GB
Required Hardware: Available FireWire Port or USB 2.0 Port

Power
Power Requirements: AC/DC Power Adapter (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical
Rackmount Size: 2 U
Dimensions: 19 x 7 x 3.5" / 483 x 178 x 89 mm

Packaging Info
Package Weight: 10.4 lb
Box Dimensions (LxWxH): 23.5 x 14.2 x 6.5"
