MOTU 8M - Thunderbol / USB zvučna kartica

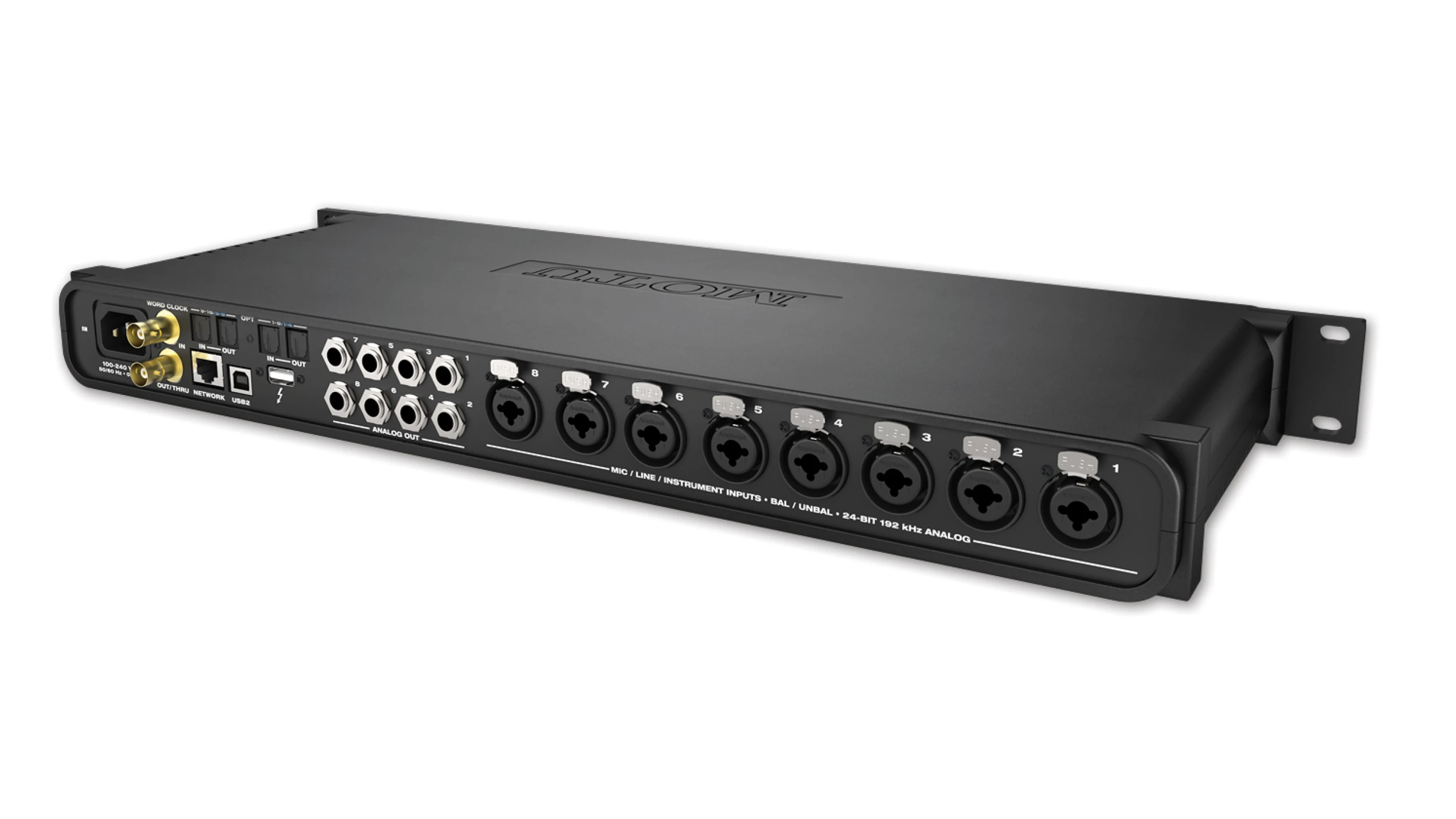

The MOTU 8M - Thunderbolt and USB Audio Interface With AVB Networking and DSP (24x26, 8 Mic/Line/Instrument) is designed for studio recording, installed sound, and live sound reinforcement applications such as mixing a band in a club or music venue. The 1U 19" rackmountable device features eight balanced combination microphone/line/instrument inputs with individually switchable +48V phantom power and pads, v-limiting circuitry to prevent clipping, 8 analog outs, one front panel stereo headphone output with gain control, 2 x 8-channel ADAT optical, and RCA S/PDIF (with sample rate conversion). Additional I/O can be added to the system through AVB networking.
Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Analog inputs:
• 8 x XLR/TRS combo-style mic/line/instrument inputs
• Preamp gain: 0 to +53 dB (digitally controlled)
• TRS max level with pad: +17 dbU (V-limit at +7)
Analog outputs:
• 8 x 1/4" TRS line out (balanced, DC coupled)
• Max level: +20 dBu (digitally adjustable -4 to +20)
• 1 x 1/4" TRS stereo headphone
Digital I/O:
• 2 banks (16 ch) of ADAT optical at 1x sample rates
• 1 bank (8 ch) of SMUX optical at 2x sample rates
• Stereo TOSLink (optical S/PDIF) on Bank A (optional)
Total I/O:
• 24 inputs and 26 outputs (50 total) at 1x sample rates
• 16 inputs and 18 outputs (34 total) at 2x sample rates
• 8 inputs and 10 outputs (18 total) at 4x sample rates
Computer I/O:
• 1 x Thunderbolt (compatible with 1 and 2)
• 1 x USB 2.0 audio class compliant
USB 3.0 and iOS compatible
• 1 x AVB Ethernet (requires OS X Yosemite)
Computer I/O channels:
• Thunderbolt (44.1 to 96 kHz): 128 in/out
• Thunderbolt (176.4 to 192 kHz): 64 in/out
• USB 2.0 (44.1 to 48 kHz): 64 in/out
• USB 2.0 (88.2 to 96 kHz): 32 in/out
• USB 2.0 (176.4 to 192 kHz): 24 in/out
• AVB Ethernet: 16 to 128 in/out, depending on host computer speed
Sync I/O:
• 1 x word clock in
• 1 x word clock out
Network I/O: 1 x RJ45 AVB/TSN Ethernet (1 Gbps)
AVB streams (8 channels per stream):
• 16 in / 16 out @ 44.1 or 48 kHz
• 16 in / 16 out @ 88.2 or 96 kHz
• 8 in / 8 out @ 176.4 or 192 kHz
Headphone: 1 x 1/4" TRS stereo phone (assignable)
Phantom power: 8 x individual +48V

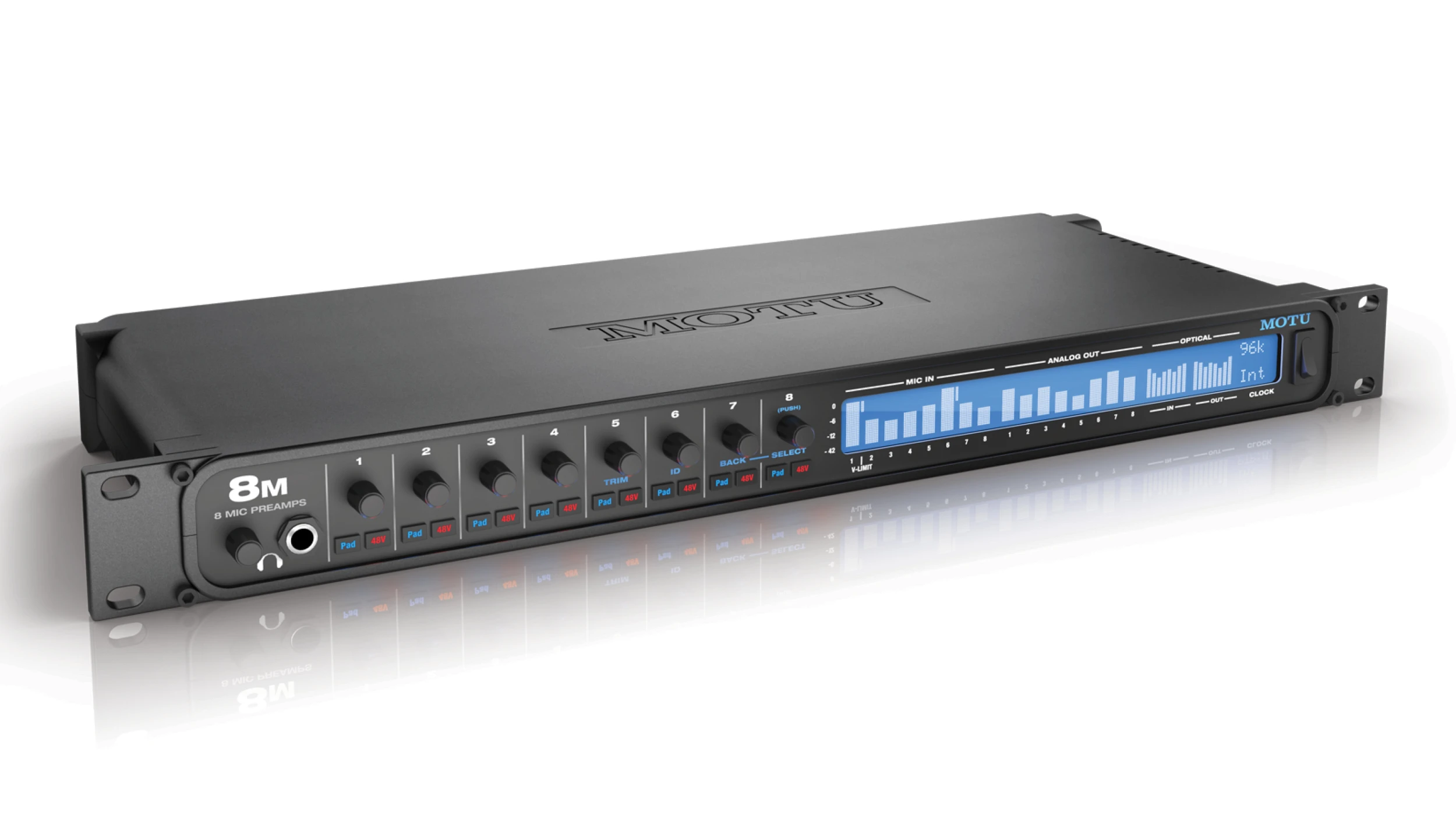

Front panel:
• 1 x 1/4" TRS headphone output
• 1 x digital rotary encoder • phone volume
• 8 x digital rotary encoders • mic preamp gain
• 16 x switches • (8) Pad and (8) 48V Phantom switch
• 324 x 24 pixel LCD for level meters / menu nav
• 1 x AC power switch
Power:
• International 100-240V autoswitching supply
• 50-60 Hz • 0.5A max
Dimensions and weight (width x depth x height, enclosure only):
• 19 x 7 x 1.75 inches
• 48.3 x 17.75 x 4.5 cm
• 4.6 lbs / 2.08 kg
with rack brackets removed:
• 17.25 inches (43.8 cm) wide
• 4.5 lbs / 2.04 kg
