MOTU Audio Express - zvučna kartica

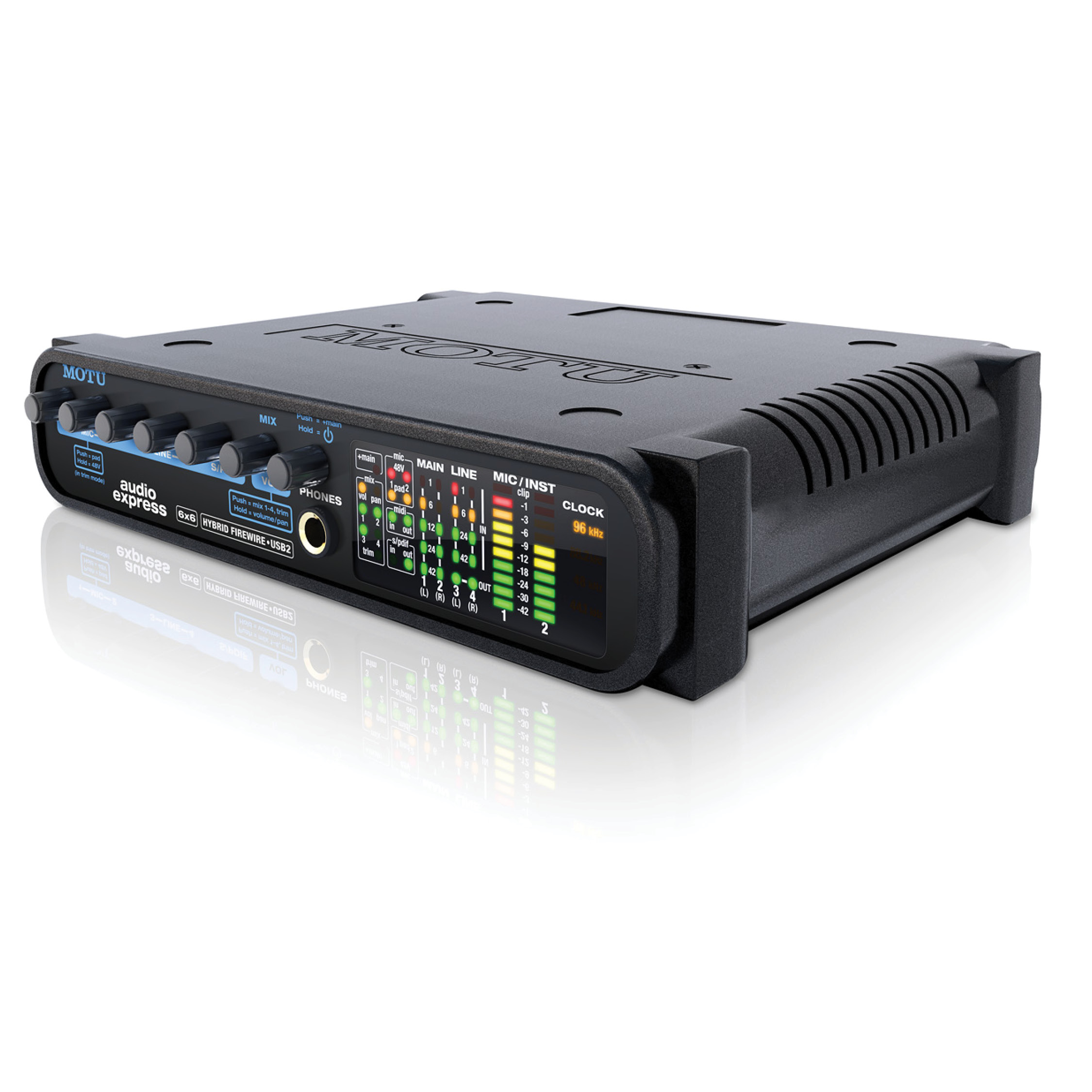

The Audio Express from MOTU is a compact, yet fully featured digital audio interface that connects to any current Mac or PC via FireWire or high-speed USB 2.0. The interface is compatible with virtually all DAWs on the market today, but can also function as a standalone mixer, both in the studio and for live events.
General
Display: 4x Multi-Segment LED Meter
Channels of I/O: 6 Input / 6 Output
Built-In DSP: No
Maximum Sampling Rate: 96 kHz / 24-Bit
Number of Microphone Inputs: 2
Built-In Microphone: No
Signal Processing
Pad: No

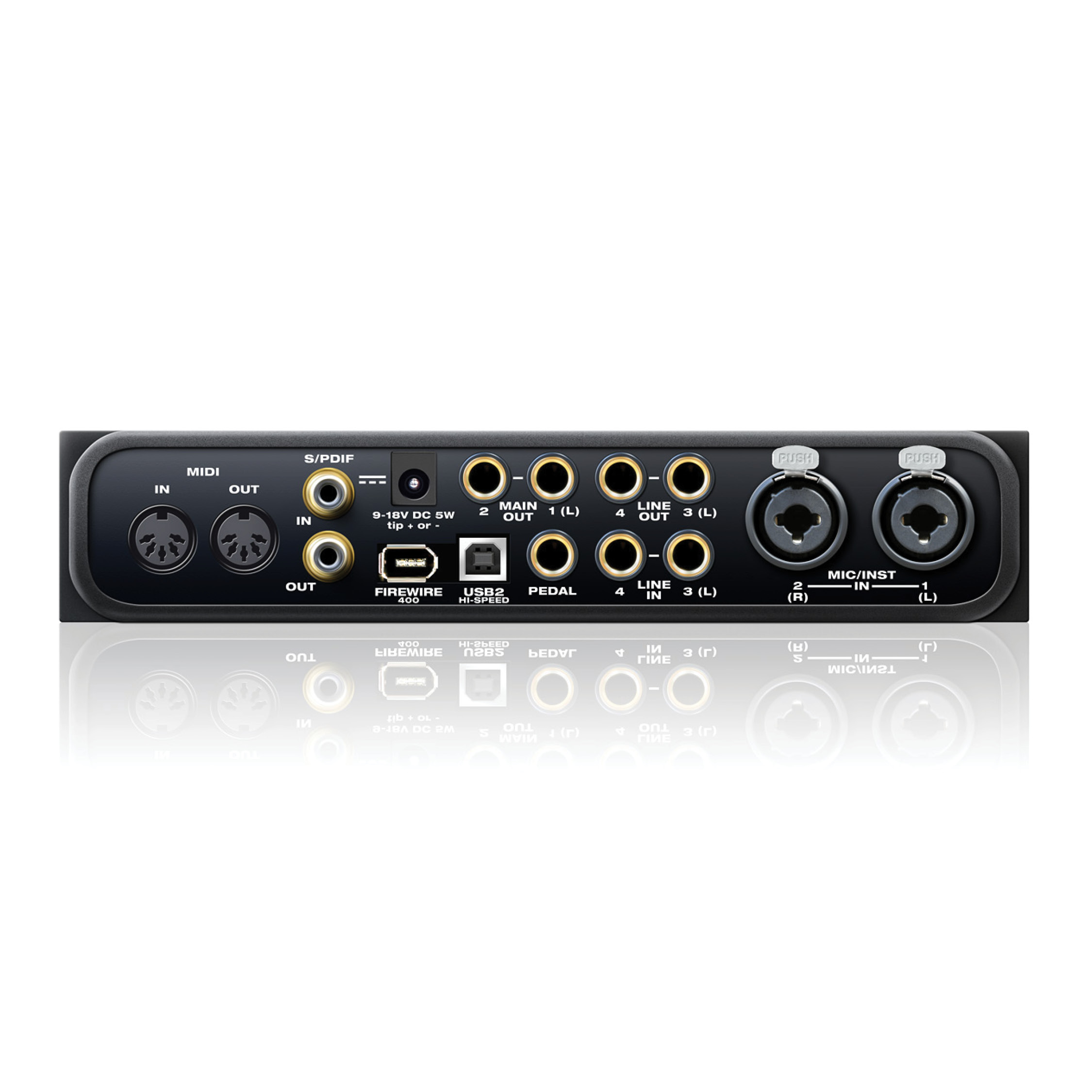

Connectivity
Analog Audio I/O:
• 2x Combo XLR-1/4" TS Mic/Hi-Z Input
• 2x 1/4" TRS Line Input
• 4x 1/4" TRS Line Output
• 1x 1/4" TRS Headphone Output
Phantom Power: 48 V (Selectable on Individual Inputs)
Digital Audio I/O:
• 1x RCA Coaxial S/PDIF Input
• 1x RCA Coaxial S/PDIF Output
Host Connection:
• 1x FireWire 6-Pin
• 1x USB-B
Host Connection Protocol:
• FireWire 400
• USB 2.0
USB (Non-Host): No
Sync I/O: No
Network I/O: No
MIDI I/O:
• 1x DIN 5-Pin Input
• 1x DIN 5-Pin Output
Expansion Slots: No
Other I/O: 1x 1/4" TS Footswitch Input
Wireless: No
Digital Audio
Sample Rates: Up to 96 kHz
Bit Depths: 24-Bit
Clocking: Internal
Audio Storage & Playback
Media/Memory Card Slot: No
Compatibility
OS Compatibility: macOS 10.5 or Later / Windows
Processor Requirement:
• Mac:
1 GHz PowerPC G4
• PC:
1 GHz Intel Pentium 4
RAM Requirements: 1 GB, 2 GB Recommended
Storage Requirements: 100 GB
Required Hardware: Available USB 2.0 Port
Power
Power Requirements: AC/DC Power Adapter (Included), FireWire Bus Power, USB Bus Power
AC/DC Power Adapter: 9 to 18 VDC (Included)
Physical
Dimensions: 9.5 x 7 x 1.75" / 241 x 178 x 45 mm
Packaging Info
Package Weight: 4.815 lb
Box Dimensions (LxWxH): 14.95 x 11.55 x 5.45"
