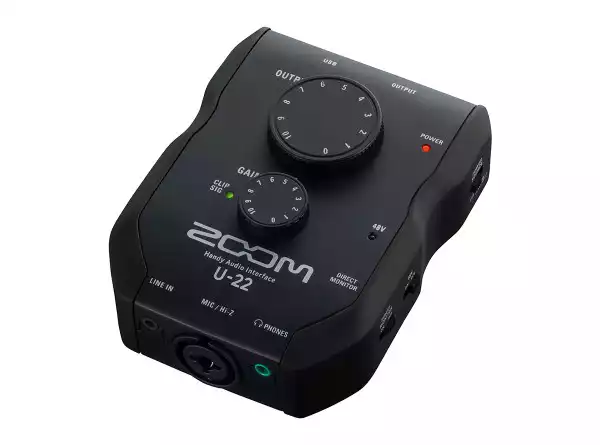

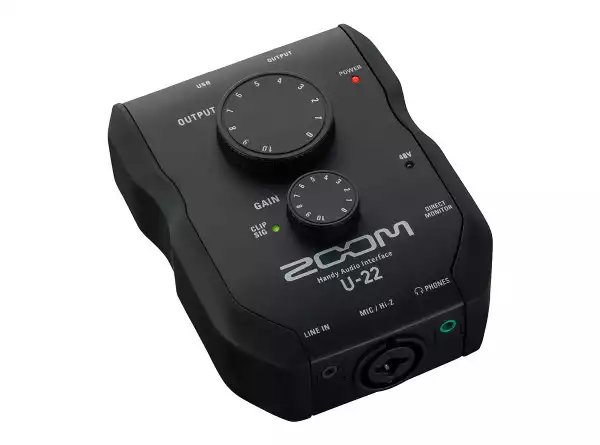

ZOOM U-22
*Cena sa popustom može da se ostvari ukoliko se plaća gotovinski, virmanom (preko računa) ili odmah debitnom karticom.
Garantujemo najnižu cenu!
The interface features a high-performance, low-noise mic preamp so you can record vocals, instruments, and more with pristine sound quality—at resolutions up to 24-bit/96 kHz. The U-22 delivers the same excellent sound as our U-44 and U-24, with an even more compact form factor.
| Connector: |
XLR/TRS combo jack (XLR: 1 hot, TRS: TIP hot) |
|---|---|
| Input gain: |
0 – 43 dB |
| Input impedance: |
2.6 k Ω (MIC) 484 k Ω (Hi-Z) |
| Maximum input level: |
-0.8 dBu (MIC) /+8.7 dBu (Hi-Z) |
| Phantom power: |
+48V |
| ANALOG IN: LINE IN | |
| Connector: |
Stereo mini jack |
| Input impedance: |
22 kΩ |
| Maximum input level: |
+1.0 dBu |
| ANALOG OUT: OUTPUT L/R | |
| Connector: |
RCA (coaxial) |
| Maximum output level: |
-0.8 dBu (at 0 dBFS) (into 10 kΩ load) |
| Output impedance: |
1 kΩ |
| ANALOG OUT: PHONES | |
| Connector: |
Standard stereo phone jack 10 mW x 2 (into 32 Ω load) |
| Output impedance: |
10 Ω |
| Frequency characteristics: |
At 44.1 kHz: ±1.5dB: 20 Hz - 20 kHz
|
| Input conversion noise: |
Measured EIN: -120 dB or less (IHF-A)
|
| Number of audio recording and playback channels: |
Recording: 2 channels
|
| Sampling frequencies: |
96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz |
| Bit depth: |
24-bit |
| Interface: |
USB 2.0 |
| Power Source: |
USB bus power (Type B)
|
| Power consumption: |
5W maximum |
| Dimensions: |
119.2 mm (D) x 91.8 mm (W) x 44.6 mm (H) |
| Weight (main unit only): |
151 g |
|
*0dBu=0.775Vrms |
|
